PDQ CLS Installation Instruction

CLS INSTALLATION INSTRUCTION
BLE ONLY INTERCONNECTED LOCK

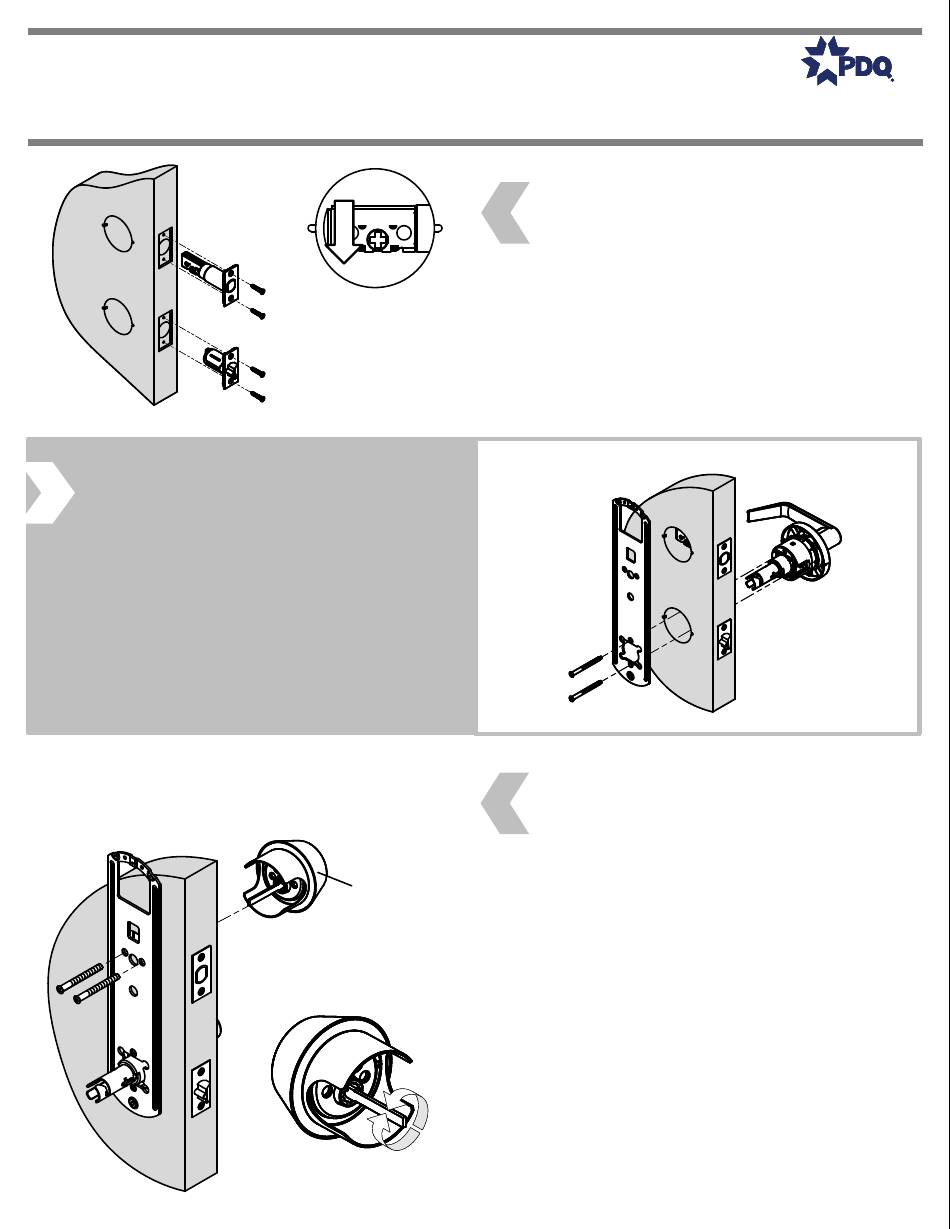

2. INSTALL LOCK ASSEMBLY
• Install lock chassis into bottom hole
making sure to properly engage lock body
into latchbolt
• Install inside mounting plate and secure
with (2) screws
CYLINDER
ASSEMBLY
RIGHT RIGHT
HAND HAND
LEFT LEFT
HAND HAND
1. PREPARE DOOR &
INSTALL LATCHES
• Prepare door according to template
• Install deadbolt latch in top hole with
cross slot for tailpiece toward bottom
• Install beveled latch on bottom with bevel
toward door frame
• Secure with (4) combo screws
3. INSTALL CYLINDER
ASSEMBLY
• Install cylinder assembly from outside of
door
• If extended, retract deadbolt
Left Hand Door – Rotate tailpiece clockwise
until it stops in the vertical orientation
Right Hand Door – Rotate tailpiece counter-
clockwise until it stops in the vertical
orientation
For Mechanical Concerns: For Mechanical Concerns:
Phone: 866-874-3662 Phone: 866-874-3662
www.pdqlocks.com www.pdqlocks.com
Rev0 – 5-26-23
