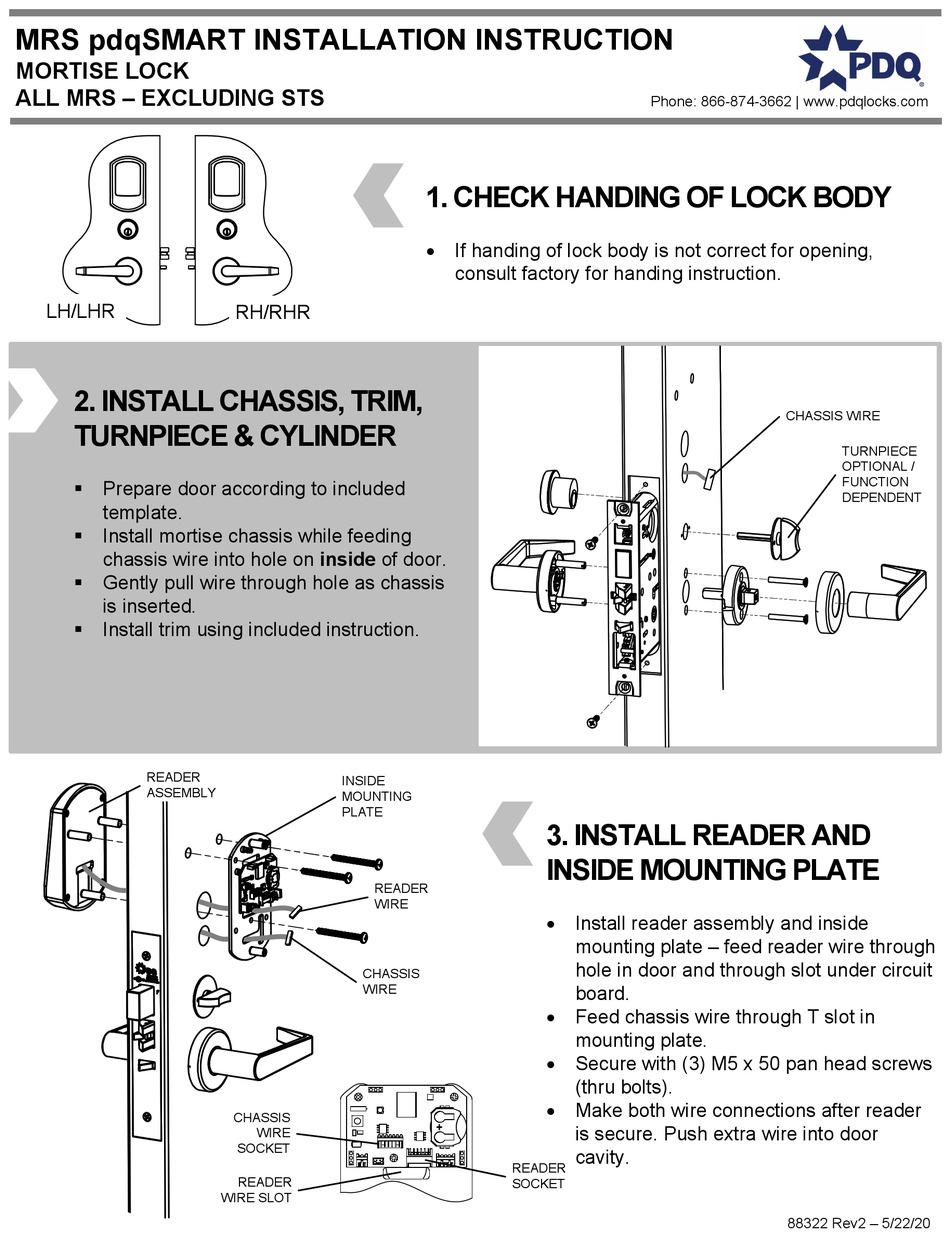

MRS pdqSMART INSTALLATION INSTRUCTION
MORTISE LOCK
ALL MRS – EXCLUDING STS
LH/LHR
2. INSTALL CHASSIS, TRIM,
TURNPIECE & CYLINDER
 Prepare door according to included
template.
 Install mortise chassis while feeding
chassis wire into hole on inside of door.
 Gently pull wire through hole as chassis
is inserted.
 Install trim using included instruction.
READER
ASSEMBLY
RH/RHR
INSIDE
MOUNTING
PLATE
READER
WIRE
CHASSIS
WIRE
CHASSIS
WIRE
SOCKET
READER
WIRE SLOT

1. CHECK HANDING OF LOCK BODY

 If handing of lock body is not correct for opening,
consult factory for handing instruction.
3. INSTALL READER AND
INSIDE MOUNTING PLATE
 Install reader assembly and inside
mounting plate – feed reader wire through
hole in door and through slot under circuit
board.
 Feed chassis wire through T slot in
mounting plate.
 Secure with (3) M5 x 50 pan head screws
(thru bolts).
 Make both wire connections after reader
is secure. Push extra wire into door
cavity.
READER
SOCKET
Phone: 866-874-3662 | www.pdqlocks.com
CHASSIS WIRE
88322 Rev2 – 5/22/20
TURNPIECE
OPTIONAL /
FUNCTION
DEPENDENT
