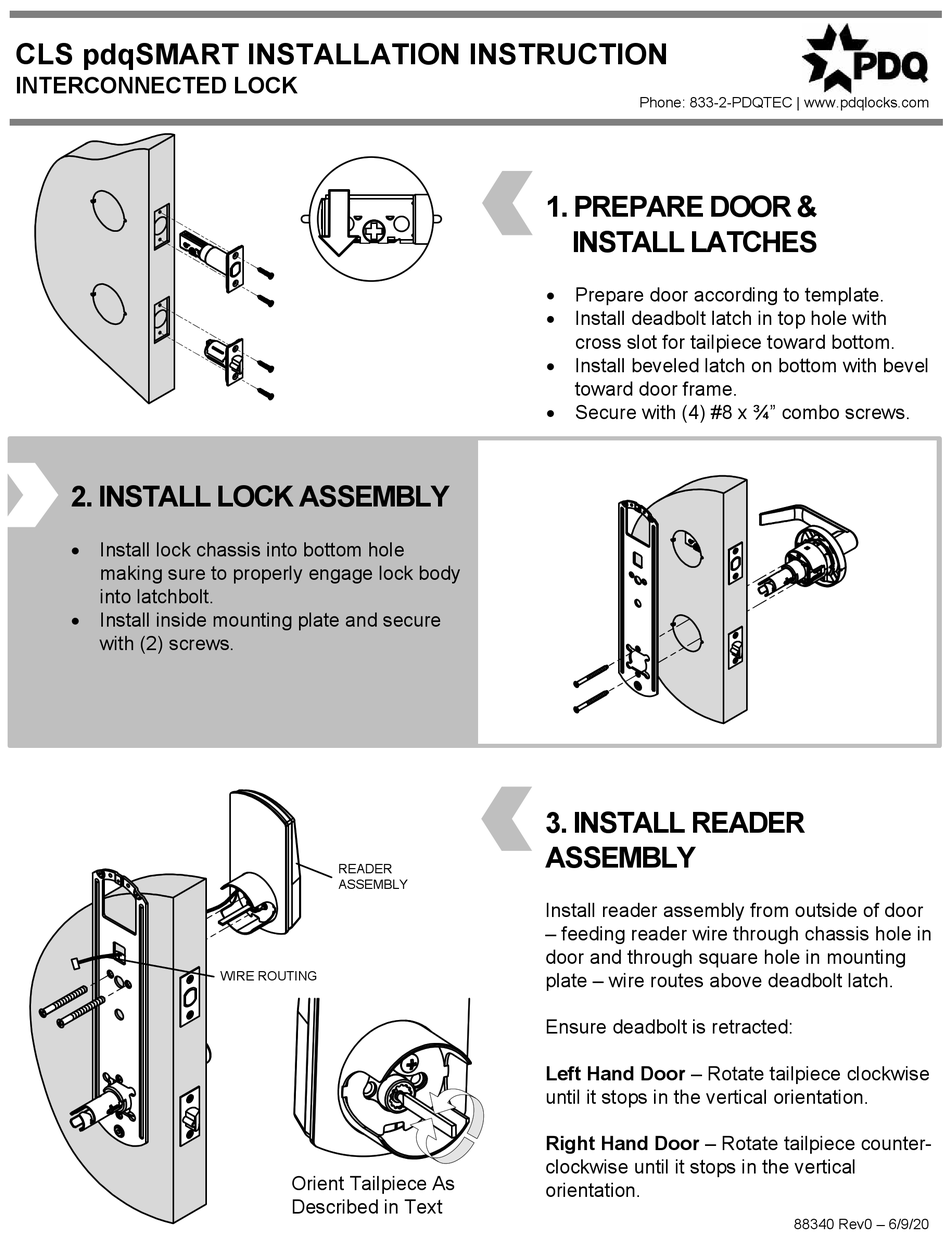

CLS pdqSMART INSTALLATION INSTRUCTION
INTERCONNECTED LOCK

2. INSTALL LOCK ASSEMBLY

 Install lock chassis into bottom hole
making sure to properly engage lock body
into latchbolt.
 Install inside mounting plate and secure
with (2) screws.
READER
ASSEMBLY
WIRE ROUTING
Orient Tailpiece As
Described in Text
Phone: 833-2-PDQTEC | www.pdqlocks.com
1. PREPARE DOOR &
INSTALL LATCHES
 Prepare door according to template.
 Install deadbolt latch in top hole with
cross slot for tailpiece toward bottom.
 Install beveled latch on bottom with bevel
toward door frame.
 Secure with (4) #8 x ¾" combo screws.
3. INSTALL READER
ASSEMBLY
Install reader assembly from outside of door
– feeding reader wire through chassis hole in
door and through square hole in mounting
plate – wire routes above deadbolt latch.
Ensure deadbolt is retracted:
Left Hand Door – Rotate tailpiece clockwise
until it stops in the vertical orientation.
Right Hand Door – Rotate tailpiece counter-
clockwise until it stops in the vertical
orientation.
88340 Rev0 – 6/9/20
