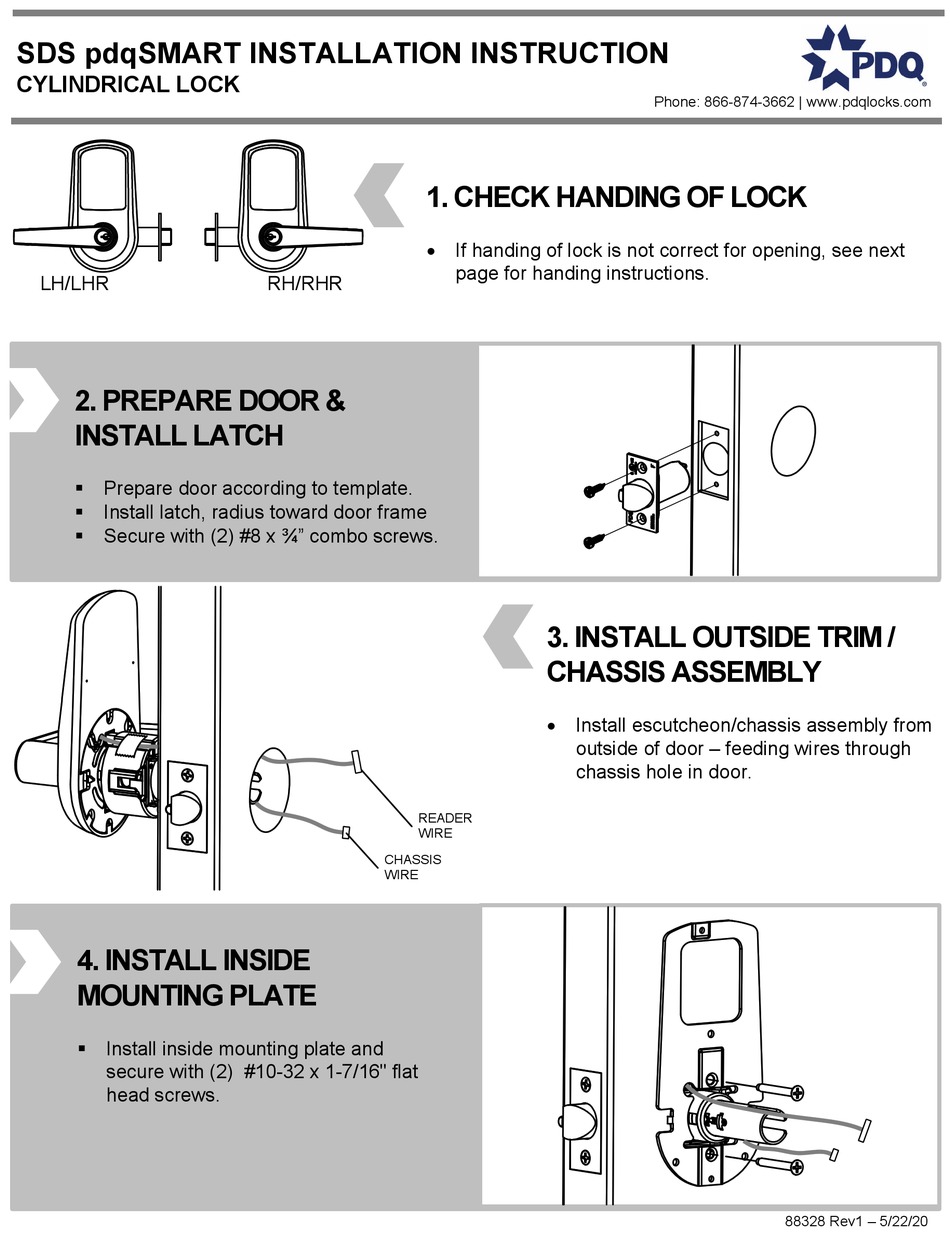

SDS pdqSMART INSTALLATION INSTRUCTION
CYLINDRICAL LOCK
LH/LHR
2. PREPARE DOOR &
INSTALL LATCH
Prepare door according to template.
Install latch, radius toward door frame
Secure with (2) #8 x ¾" combo screws.
4. INSTALL INSIDE
MOUNTING PLATE
Install inside mounting plate and
secure with (2) #10-32 x 1-7/16" flat
head screws.
1. CHECK HANDING OF LOCK
If handing of lock is not correct for opening, see next
RH/RHR
READER
WIRE
CHASSIS
WIRE
page for handing instructions.
3. INSTALL OUTSIDE TRIM /
CHASSIS ASSEMBLY
Install escutcheon/chassis assembly from
outside of door – feeding wires through
chassis hole in door.
Phone: 866-874-3662 | www.pdqlocks.com
88328 Rev1 – 5/22/20
