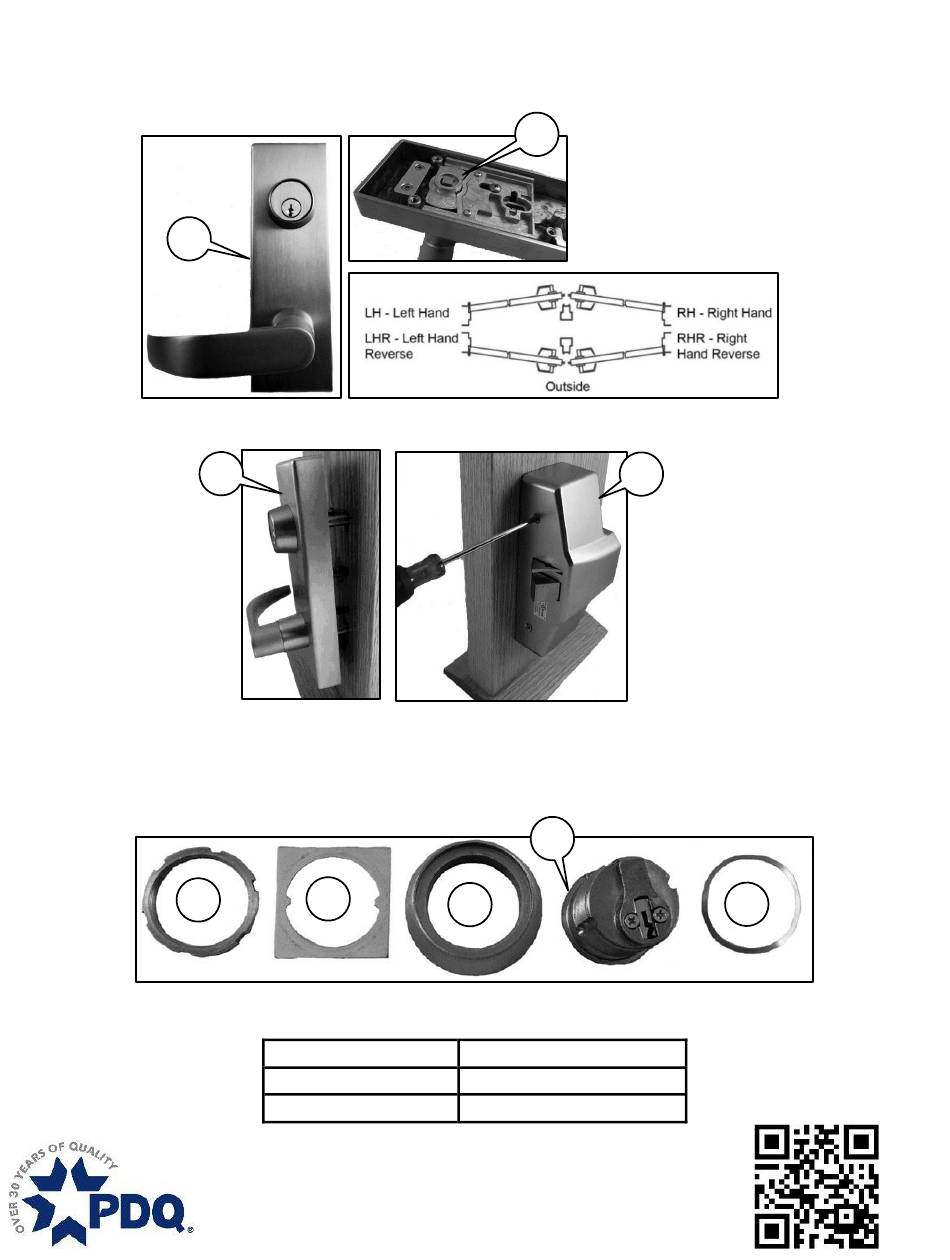

6EW Exit Device Trim Installation Instruction
For cylinder installation or door adjustment, see page 2.
1. Hand trim (1). Install lever drive spindle (2).
1
2. Install trim (1) and exit device head cover (3).
1
Key/Cylinder Parts
a. Cylinder Lock Nut (P/N 88644)
b. Cylinder Lock Plate (P/N 88608)
c. Collar (Refer to Cylinder Length Chart for P/N)
a
2754 Creek Hill Road
Leola, PA 17540-2005
Customer Service: 1-800-441-9692
b
Cylinder Length Chart
Cylinder Length
1-1/8" and 1-1/4"
1-1/2"
2
3
d. Mortise Cylinder
e. Wave Spring (P/N 88657)
d
c
Part Number
I5503
I5504
e
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for PDQ 6EW
Summary of Contents for PDQ 6EW
- Page 1 6EW Exit Device Trim Installation Instruction For cylinder installation or door adjustment, see page 2. 1. Hand trim (1). Install lever drive spindle (2). 2. Install trim (1) and exit device head cover (3). Key/Cylinder Parts a. Cylinder Lock Nut (P/N 88644) d.
- Page 2 Cylinder Installation 1. Remove back plate (4). Install wave spring (e) and cylinder (d) into the collar (c). Install cylinder and collar assembly. Secure with cylinder locking plate (b) and locknut (a). 2. Align drive pin (5). Install and secure back plate (4). Adjust for Door Thickness Trim is factory preset for a 1 ¾“.
