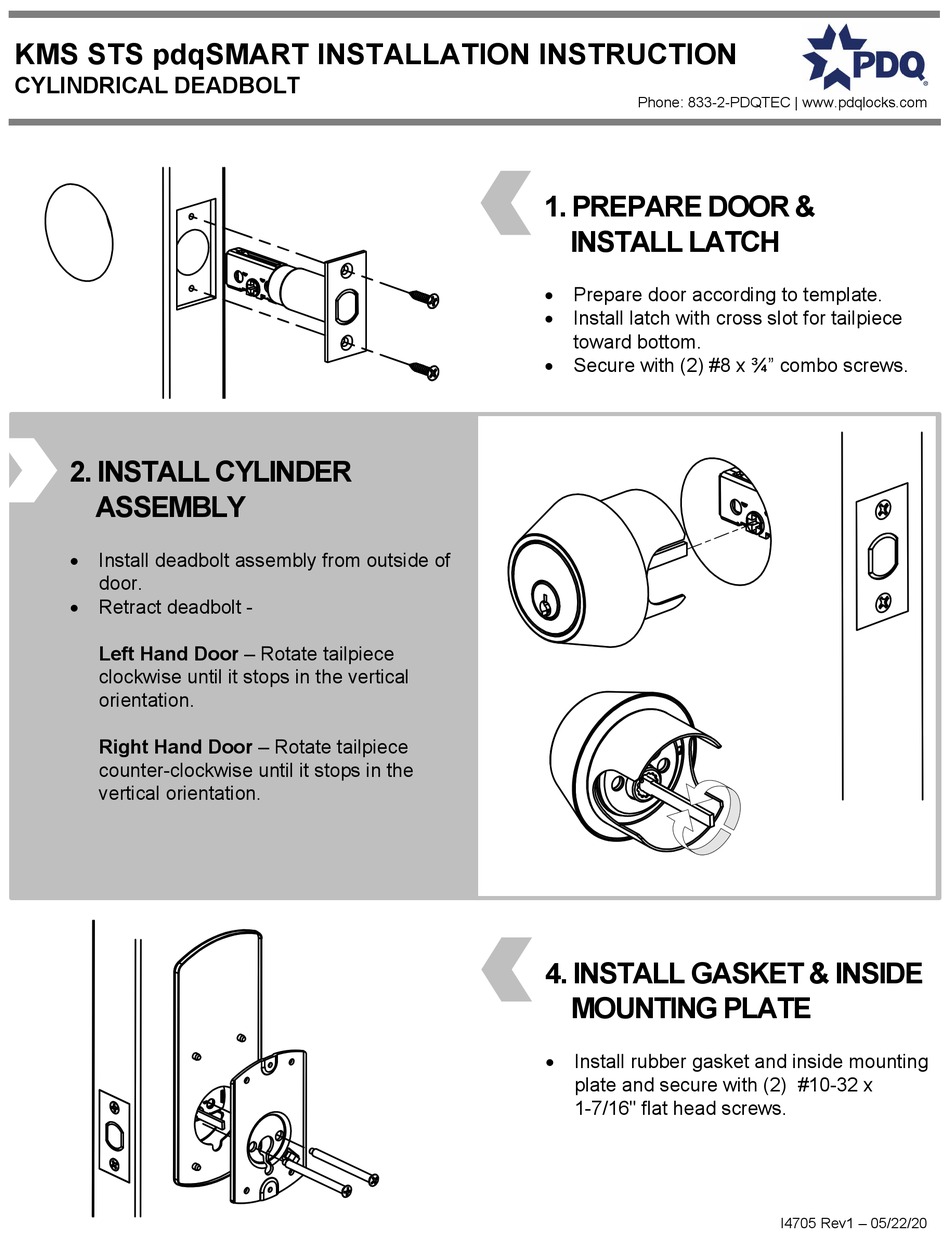

KMS STS pdqSMART INSTALLATION INSTRUCTION
CYLINDRICAL DEADBOLT
2. INSTALL CYLINDER
ASSEMBLY
 Install deadbolt assembly from outside of
door.
 Retract deadbolt -
Left Hand Door – Rotate tailpiece
clockwise until it stops in the vertical
orientation.
Right Hand Door – Rotate tailpiece
counter-clockwise until it stops in the
vertical orientation.
Phone: 833-2-PDQTEC | www.pdqlocks.com
1. PREPARE DOOR &
INSTALL LATCH
 Prepare door according to template.
 Install latch with cross slot for tailpiece
toward bottom.
 Secure with (2) #8 x ¾" combo screws.
4. INSTALL GASKET & INSIDE
MOUNTING PLATE
 Install rubber gasket and inside mounting
plate and secure with (2) #10-32 x
1-7/16" flat head screws.
I4705 Rev1 – 05/22/20

Advertisement

loading
Need help?

Need help?

Do you have a question about the KMS STS pdqSMART and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for PDQ KMS STS pdqSMART

Summary of Contents for PDQ KMS STS pdqSMART

  • Page 1 KMS STS pdqSMART INSTALLATION INSTRUCTION CYLINDRICAL DEADBOLT Phone: 833-2-PDQTEC | www.pdqlocks.com 1. PREPARE DOOR & INSTALL LATCH  Prepare door according to template.  Install latch with cross slot for tailpiece toward bottom.  Secure with (2) #8 x ¾” combo screws.
  • Page 2 KMS STS pdqSMART INSTALLATION INSTRUCTION 5. INSTALL INSIDE TRIM AND BATTERIES BATTERIES BATTERY COVER  Secure escutcheon with (2) M4x12 Pan head screws.  Install batteries and battery cover with M3x18 pan head screw. I4705 Rev1 – 05/22/20...
