Ametek Sorensen XTR Series Quick Reference Quide

Q R G
UICK EFERENCE UIDE
The XTR is equipped with a rotary Adjust/Enter control to provide a streamlined front panel for faster setup. Set voltage and current quickly and
easily using the rotary Adjust/Enter control and the 9-position Mode control. The information provided in this Quick Reference Guide is for basic
usage of the front panel and for understanding the menu system. See the other side of this Quick Reference Guide for a map of the front panel
menu system. For complete information on the XTR, please refer to the XTR 850 Watt Series Programmable DC Power Supply Operating
Manual (Part number: M370046-01).

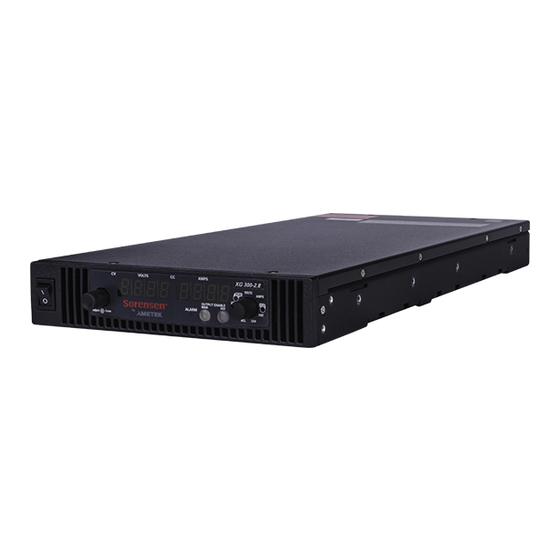

XTR Front Panel Controls, Displays, and Indicators
General Procedures for Setting Up Features
• To select a mode, rotate the 9-position Mode control to the desired mode.
• To select the feature or setting, turn the rotary Adjust/Enter control to scroll through the different available settings of that mode.
• The settings appear on the output display.
• Press the rotary Adjust/Enter control to select the feature or setting.
• Set each value using the rotary Adjust/Enter control. When the value has been selected, press the Adjust/Enter control to commit the
updated value.
Setting the Output Voltage and Current Limit Using Tracking Mode
To access the tracking mode where new values take effect as the rotary Adjust/Enter control is turned:
1. Select VOLTS or AMPS on the 9-position Mode control. The set point will blink and the unit will be in coarse tracking mode.
• When VOLTS mode is selected, the voltage set point will blink in the output voltage display.
• When AMPS mode is selected, the current set point will blink in the output current display.
2. Use the rotary Adjust/Enter control to adjust the set point.
3. Press the Adjust/Enter control to use fine adjust tracking mode. The set point blinks faster when the unit is in fine tracking mode.
4. Use the rotary Adjust/Enter control to fine tune the set point.
5.
Once the set point has been selected, press the Adjust/Enter control to exit tracking.
Part Number M370046-04 Rev E January 2009
: XTR 850 Watt Series Programmable DC Power Supply
© 2007-2009 AMETEK Programmable Power, Inc. All rights reserved.
1. Rotary Adjust/Enter Control
2. Constant Voltage Mode LED
3. Model Identification Label
4. Output Voltage Display
5. Constant Current Mode LED
6. Output Current Display
7. Alarm Indicator LED
8. Output On/Off Button
9. AUX On/Off Button
10. 9-position Mode Control
(firmware v1.09 and below)
VOLTS: Voltage Programming
AMPS: Current Programming
FLD: Foldback
PRT: Protection
SAV: Save User Setting Memory Locations
RCL: Recall User Setting Memory Locations
CAP: Current Analog Programming
VAP: Voltage Analog Programming
PGM: Programming
XTR Rotary Adjust/Enter Control
