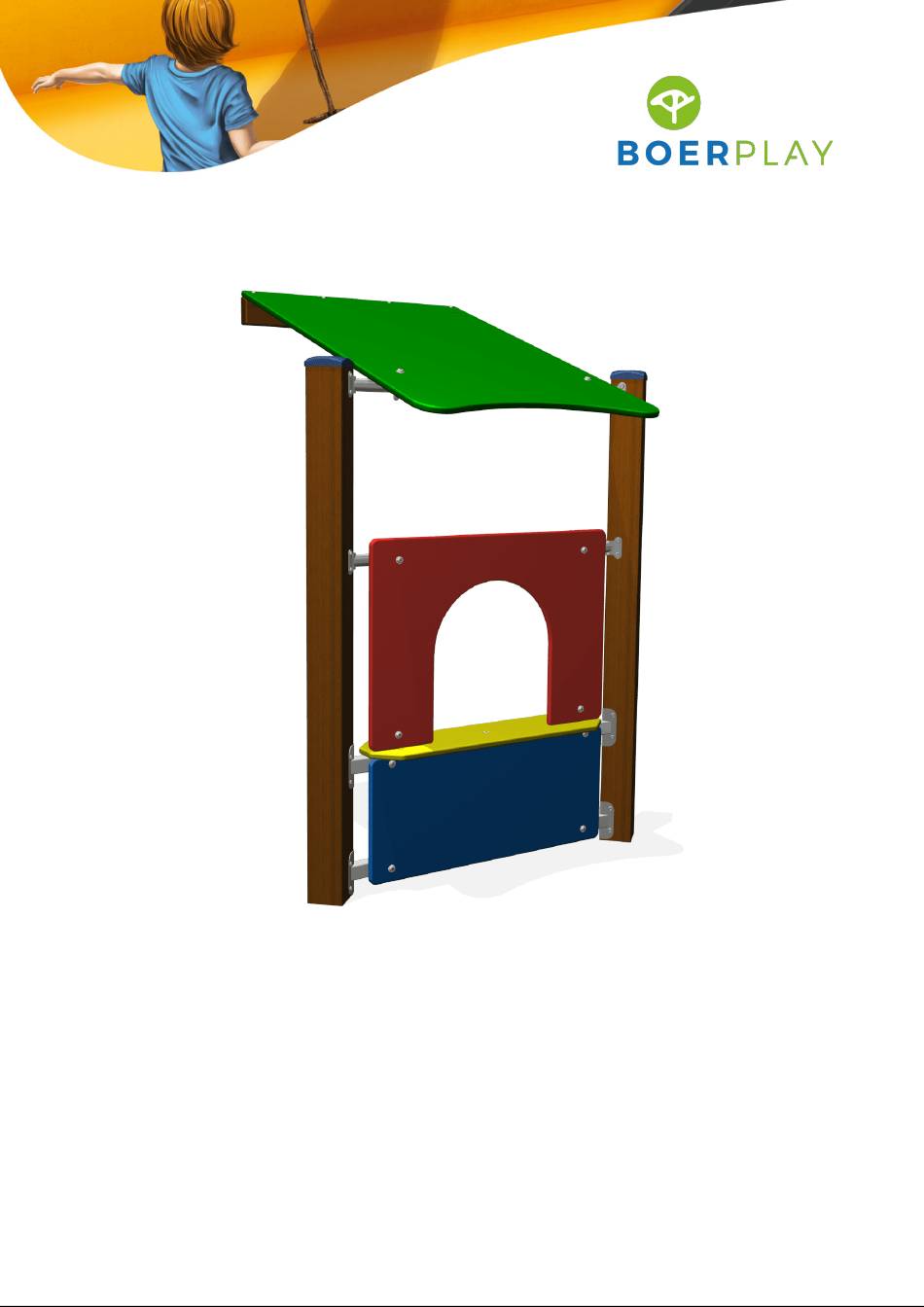

- Page 1 Counter DRME025.154...
- Page 2 1,70 m 1,46 m 0,40 m 0,00 m 1,16 m Benaming TOE DRM 025 154 Winkelstraat solo Title Tekening Opmerking Hardhout Drawing Comment BOER Datum Hoofdafmetingen Main dimensions 12-10-2015 Date SPEELTOESTELLEN...
- Page 3 2,43 m Opvangzone Impact area Obstakelvrije zone Obstacle free zone Benaming TOE DRM 025 154 Winkelstraat solo Title Tekening Opmerking Hardhout Drawing Comment BOER Datum Obstakelvrije zone Obstacle free zone 12-10-2015 Date SPEELTOESTELLEN...
- Page 4 0,25 m 0,85 m 1,57 m Grondmarkering Ground level marker 0,61 m Benaming TOE DRM 025 154 Winkelstraat solo Title Tekening Opmerking Hardhout Drawing Comment BOER Datum Bodemplan Groundplan 12-10-2015 Date SPEELTOESTELLEN...
- Page 5 Geleverde modules: Supplied modules: Zie tabel See table Montageinstructie: Assembly instruction: - De hoofdmaten geven de maten van de staanders en vloeren aan - The main dimensions indicate the dimensions of the posts and floors - De detailtekeningen geven specifiek de maten van de verbindingen aan - The detailed dimensions show the specific dimensions of the connections - The modules which contain tubes are dimensioned at the top of the flanges - De modules met buizen zijn op de tekeningen bemaat op bovenkant kopplaat...
- Page 6 1,70 m 1,46 m 0,00 m Links (Left) 1,70 m 1,46 m 1,40 m 0,94 m 0,38 m 0,08 m 0,00 m Rechts (Right) Benaming TOE DRM 025 154 Winkelstraat solo Title Tekening Opmerking Hardhout Drawing Comment BOER Datum Afmetingen Dimensions 12-10-2015 Date SPEELTOESTELLEN...
- Page 7 LOGBOOK Type indication Article number DRME025.154 Product Name Counter Maximum fall height < 0,6 m Construction year 2023 Certificate 08100313120 Inspection body Liftinstituut B.V. Buikslotermeerplein 381, A'dam 1025 XE Amsterdam Manufacturer name Boer Speeltoestellen Hyacintstraat 2 - 4255 HX Nieuwendijk...
- Page 8 LOGBOOK Inspection and maintenance Date of Time of Name Name Parts to be inspection inspection executor of executor of Found defects replaced maintenance maintenance inspection maintenance Accidents Date Age of Measures taken Probable cause of injury Occurred injury accident victim after accident...
-
Page 9: Inspection And Maintenance Intervals
Inspection and maintenance intervals months Nr. Inspection Maintenance between inspections Verify equipment's stability, junctions and Add missing parts, secure joints, apply missing parts. Inspect bolts, screws and nuts for missing fixing agent and replace absence, jams, corrosion and wear. corroded parts. Replace worn parts and/or remove non- Check suspension for wear. - Page 10 7. Remember that bad maintenance leads to unsafe conditions and notably faster impoverishment of the playground area. 8. Replacement parts can be ordered at the manufacturer with the OEM part numbers on the module drawing. Drawings can be found in the user guide. 9.
- Page 12 Type Progr. Volgnr Bew. Rev. Benaming Opmerking SCHROEF 5 x 50 DOPMOER BORG RVS M10 M10 x 40 - RVS A2-70 Bolkopbout ISO 7380 SLUITRING Facet ring M5 - RVS A2-70 OPVULDOPJE 6 MM ROOD RING NYLON M10 x 2.5 MM ZADELRING BUIS 33.7 LOKET BEUGEL...
- Page 13 Type Progr. Bew. Rev. Benaming Volgnr Opmerking SCHROEF 5 x 50 DOPMOER BORG RVS M10 Bolkopbout ISO 7380 M10 x 80 - RVS A2-70 SLUITRING Facet ring M5 - RVS A2-70 Zeskantbout ISO 4014 M10 x 100 - VZ 8.8 M10 - VZ 8.8 Sluitring Keilbouthuls...
- Page 14 Grondmarkering Ground level marker Type Progr. Volgnr. Bew. Rev. Benaming Opmerking SCHROEF 5 x 50 M10 x 40 - RVS A2-70 Bolkopbout ISO 7380 Verzonken bout M10 x 35 - RVS A2-70 Facet ring M5 - RVS A2-70 OPVULDOPJE 6 MM ROOD LAMELLENSTOP ROND 15 RING NYLON...
- Page 15 TYPE PROJ. BEH. BENAMING OPMERKING Schroef Assy 5 x 50 - RVS A2-70 Paalkap 100x100 Aluminium Staander HHT 100x100, lengte=2050 Voetplaat 100 x 100 Benaming MOD VRB HHT 150 STAANDER Title Tekening Opmerking 145 CM Drawing Comment Datum Samenstelling module Assembly module 22-11-2006 Date...
