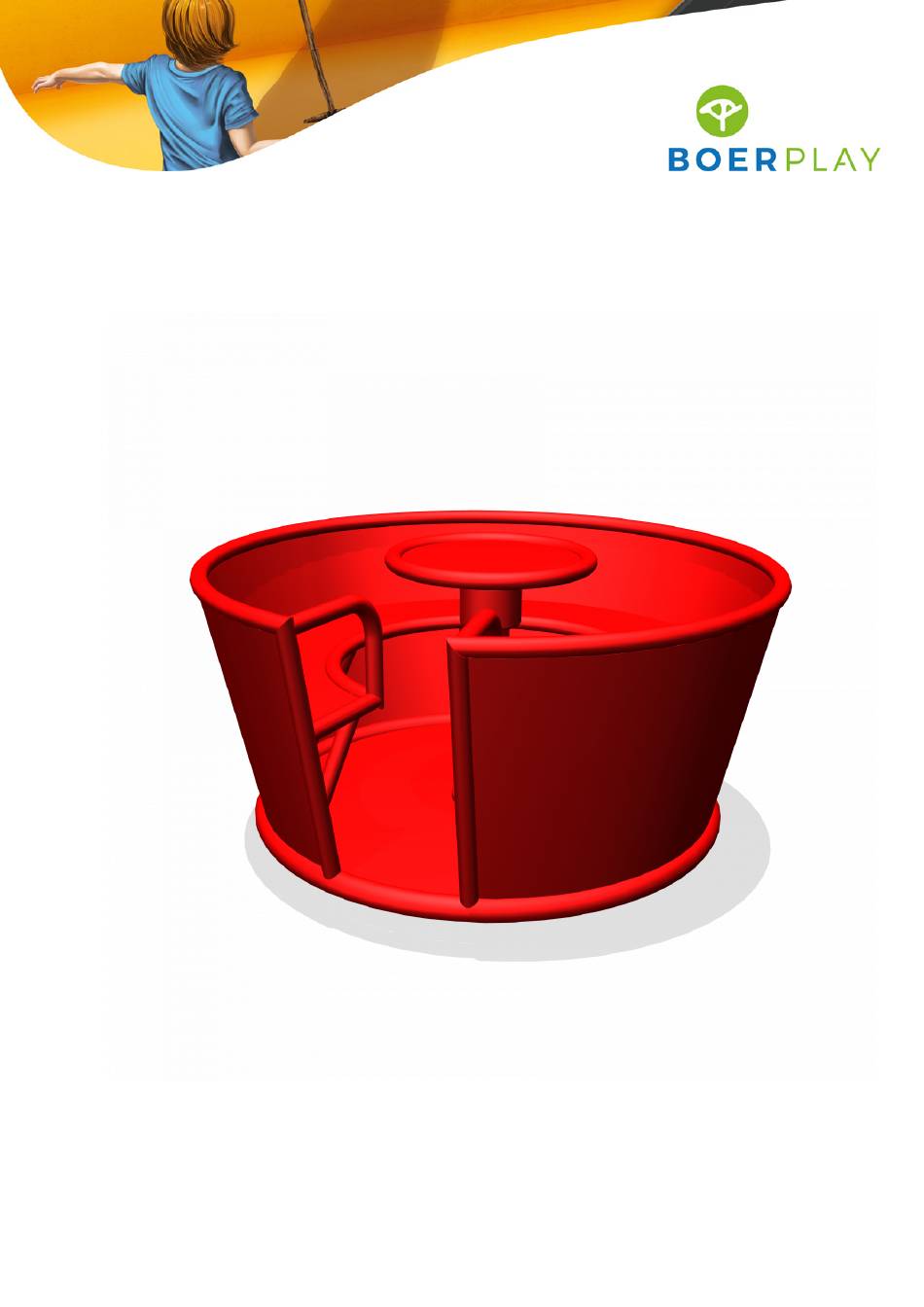

  • Page 1 Spinning tub CSPE404.320...
  • Page 2 B B B B e e e e n n n n a a a a m m m m i i i i n n n n g g g g TOE CSP 404 320 Draaiton Title T T T T e e e e k k k k e e e e n n n n i i i i n n n n g g g g O O O O p p p p m m m m e e e e r r r r k k k k i i i i n n n n g g g g Classic play Drawing...
  • Page 3 5,50 m Opvangzone Impact area Obstakelvrije zone Obstacle free zone B B B B e e e e n n n n a a a a m m m m i i i i n n n n g g g g TOE CSP 404 320 Draaiton Title...
  • Page 4 0,64 m 2,75 m 2,75 m Grondmarkering Ground level marker B B B B e e e e n n n n a a a a m m m m i i i i n n n n g g g g TOE CSP 404 320 Draaiton Title...
  • Page 5 S S S S u u u u p p p p p p p p l l l l i i i i e e e e d d d d m m m m o o o o d d d d u u u u l l l l e e e e s s s s : : : : G G G G e e e e l l l l e e e e v v v v e e e e r r r r d d d d e e e e m m m m o o o o d d d d u u u u l l l l e e e e s s s s : : : : Zie tabel See table...
  • Page 6 CSPE404.320 Spinning tub LOGBOOK (Onderstaand logboek kan gebruikt worden om te voldoen aan de eisen, gesteld in artikel 14 van het Warenwetbesluit Attractie- en Speeltoestellen) Type indication Classic Play Product code CSPE404.320 Name of equipment Alu Draaiton 404 RAL3020 Maximum height of fall...

  • Page 7: Maintenance

    LOGBOOK Inspection and maintenance intervals months Inspection Maintenance between inspections Verify equipment's stability, junctions and missing parts. Add missing parts, secure joints, apply missing fixing Inspect bolts, screws and nuts for absence, jams, corrosion agent and replace corroded parts. and wear. Replace worn parts and/or remove non-functioning Check suspension for wear.
  • Page 12 A ( 1 : 10 ) B ( 1 : 10 ) Type Progr. Volgnr Bew. Rev. Benaming Opmerking Verzonken bout M6 x 30 - RVS A2-70 Cilinderkop bout M10 x 30 - RVS A2-70 Type H.211 Klembus voor as Ø50 Kegellager Type 32017 X/Q Tweerijig Kogellager...
  • Page 13 Type Progr. Volgnr Bew. Rev. Benaming Opmerking Zeskantmoer M16 - VZ 8.8 Carrosseriering M16 x 50 - VZ 8.8 Poermodel 7 245 kg Benaming MOD OBT 007 002 Poermodel 7 Title Tekening Opmerking 245 kilo Drawing Comment BOER Datum Samenstelling module Assembly module 13-2-2014 Date SPEELTOESTELLEN...
  • Page 14 Type Progr. Volgnr Bew. Rev. Benaming Opmerking Zeskantmoer M16 - VZ 8.8 Carrosseriering M16 x 50 - VZ 8.8 Poermodel 7 245 kg Benaming MOD OBT 007 002 Poermodel 7 Title Tekening Opmerking 245 kilo Drawing Comment BOER Datum Samenstelling module Assembly module 13-2-2014 Date SPEELTOESTELLEN...
