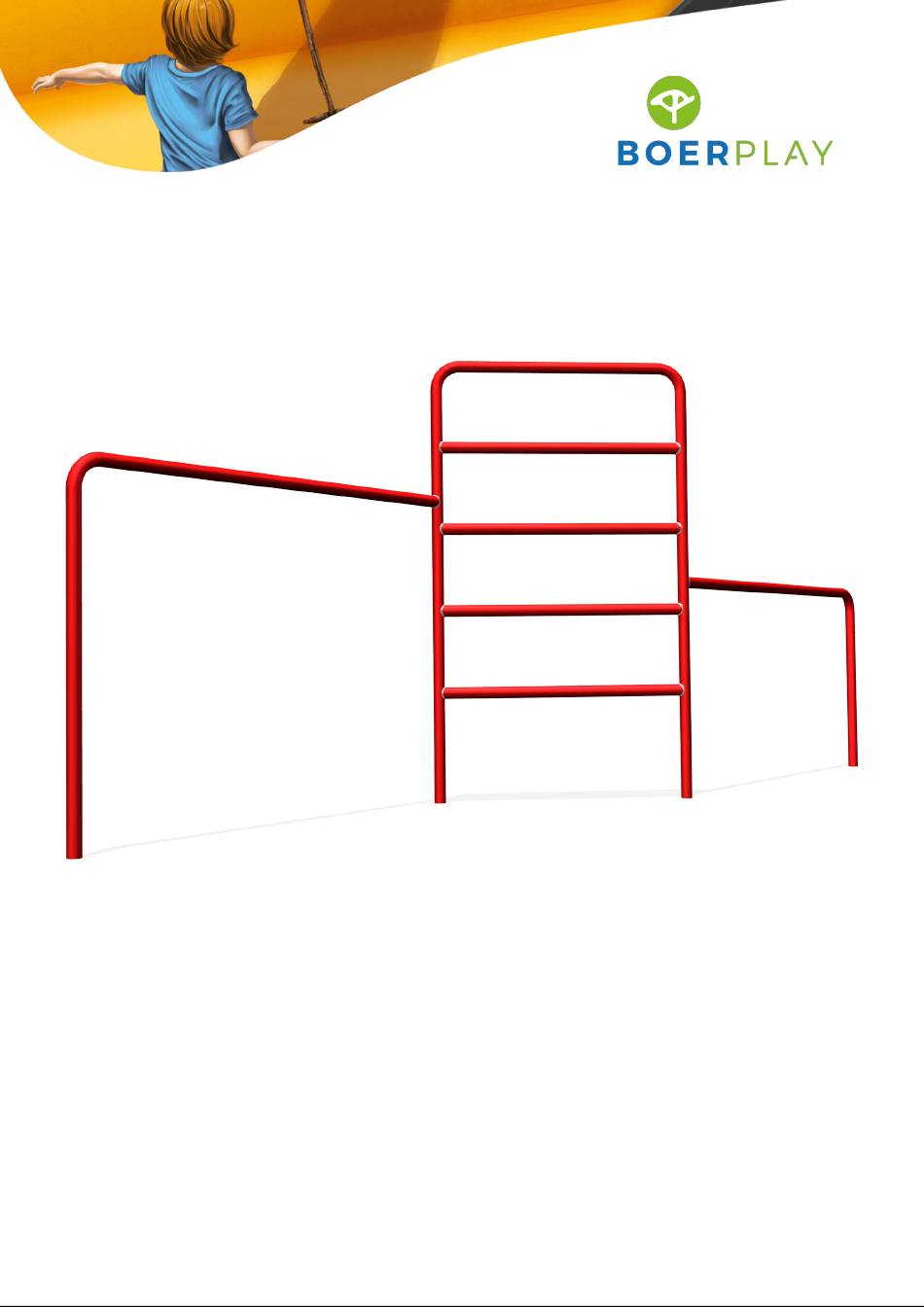

- Page 1 Climbing/Tumble bars combination RAL3020 CSPE226.320...
- Page 2 0,00 m 0,69 m 1,62 m 1,32 m 1,12 m 1,02 m 0,82 m 0,72 m 0,42 m 0,00 m Benaming TOE CSP 226 320 Klim-/duikelrek Title Tekening Opmerking Staal Drawing Comment Datum Hoofdafmetingen Main dimensions 20-8-2019 Date...
- Page 3 3,69 m 0,65 m Opvangzone Impact area Obstakelvrije zone Obstacle free zone Benaming TOE CSP 226 320 Klim-/duikelrek Title Tekening Opmerking Staal Drawing Comment Datum Obstakelvrije zone Obstacle free zone 20-8-2019 Date...
- Page 4 2,56 m 0,76 m 1,41 m 0,29 m 1,52 m 0,51 m 0,51 m 1,52 m 0,66 m Grondmarkering Ground level marker Benaming TOE CSP 226 320 Klim-/duikelrek Title Tekening Opmerking Staal Drawing Comment Datum Bodemplan Groundplan 20-8-2019 Date...
- Page 5 Geleverde modules: Supplied modules: Zie tabel See table Montageinstructie: Assembly instruction: - De hoofdmaten geven de maten van de staanders en vloeren aan - The main dimensions indicate the dimensions of the posts and floors - De detailtekeningen geven specifiek de maten van de verbindingen aan - The detailed dimensions show the specific dimensions of the connections - The modules which contain tubes are dimensioned at the top of the flanges - De modules met buizen zijn op de tekeningen bemaat op bovenkant kopplaat...
- Page 6 LOGBOOK Type indication Classic Play Article number CSPE226.320 Product Name Climbing/Tumble bars combination RAL3020 Maximum fall height 1,4 m Construction year 2023 Certificate 051944 Inspection body TUV Nederland QA BV Ekkersrijt 4401 5692 DL Son Manufacturer name Boer Speeltoestellen Hyacintstraat 2 - 4255 HX Nieuwendijk...
- Page 7 LOGBOOK Inspection and maintenance Date of Time of Name Name Parts to be inspection inspection executor of executor of Found defects replaced maintenance maintenance inspection maintenance Accidents Date Age of Measures taken Probable cause of injury Occurred injury accident victim after accident...
-
Page 8: Inspection And Maintenance Intervals
Inspection and maintenance intervals months Nr. Inspection Maintenance between inspections Verify equipment's stability, junctions and Add missing parts, secure joints, apply missing parts. Inspect bolts, screws and nuts for missing fixing agent and replace absence, jams, corrosion and wear. corroded parts. Replace worn parts and/or remove non- Check suspension for wear. - Page 9 7. Remember that bad maintenance leads to unsafe conditions and notably faster impoverishment of the playground area. 8. Replacement parts can be ordered at the manufacturer with the OEM part numbers on the module drawing. Drawings can be found in the user guide. 9.
- Page 11 Type Progr. Volgnr Bew. Rev. Benaming Opmerking Patentmoer M6 - RVS A2-70 Patentschroef M6 x 35 - RVS A2-70 Klimrek Staal Aanbouwduikel H1500 Staal Aanbouwduikel H1200 Staal B B B B e e e e n n n n a a a a m m m m i i i i n n n n g g g g MOD CSP 024 320 Klim-/duikelrek Title...
- Page 12 Type Progr. Volgnr Bew. Rev. Benaming Opmerking Zeskantbout ISO 4014 M12 x 40 - VZ 8.8 Carrosseriering M12 x 35 - VZ 8.8 Poer model 2 55 kg Benaming MOD OBT 002 001 Poer model 2 Title Tekening Opmerking 55 KG Drawing Comment BOER...
