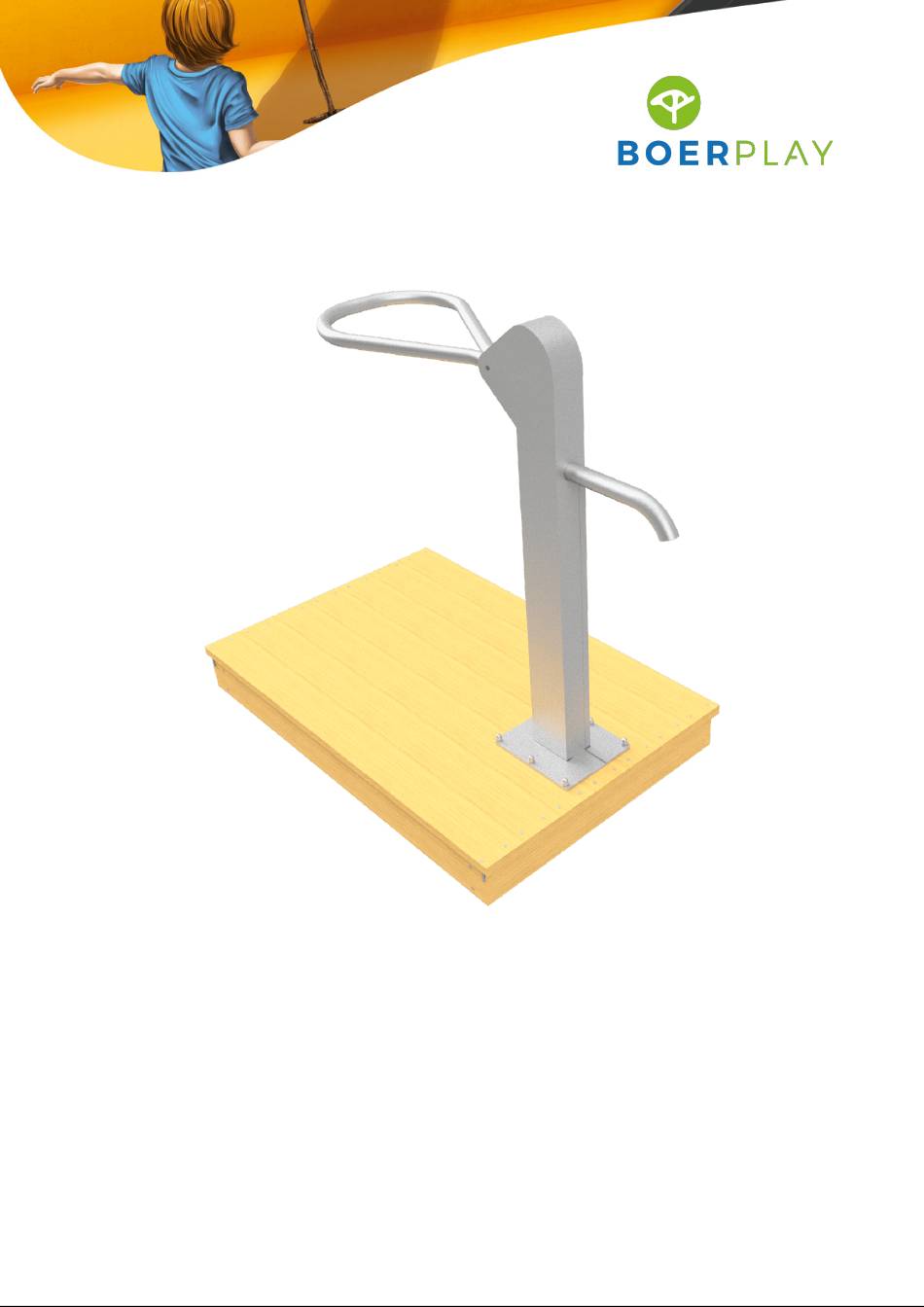

- Page 1 Connection platform with pump (Ground water (pulse) connection) PSTE801.002...
- Page 2 1,48 m 1,30 m 1,35 m 0,23 m 0,00 m Benaming Water combinatie TOE PST 801 002 Title Tekening Opmerking Pomp Drawing Comment Datum Afmetingen Dimensions 8-12-2022 Date...
- Page 3 4,30 m Opvangzone Impact area Obstakelvrije zone Obstacle free zone Benaming Water combinatie TOE PST 801 002 Title Tekening Opmerking Pomp Drawing Comment Datum Obstakelvrije zone Obstacle free zone 8-12-2022 Date...
- Page 4 2,15 m 2,15 m 1,28 m Grondmarkering Ground level marker 0,72 m Benaming Water combinatie TOE PST 801 002 Title Tekening Opmerking Pomp Drawing Comment Datum Bodemplan Groundplan 8-12-2022 Date...
- Page 5 Geleverde modules: Supplied modules: Zie tabel See table Montageinstructie: Assembly instruction: - De hoofdmaten geven de maten van de staanders en vloeren aan - The main dimensions indicate the dimensions of the posts and floors - De detailtekeningen geven specifiek de maten van de verbindingen aan - The detailed dimensions show the specific dimensions of the connections Montagevolgorde: Assembly sequence:...
- Page 6 LOGBOOK Type indication Adventure Play Article number PSTE801.002 Product Name Connection platform with pump (Ground water (pulse) connection) Maximum fall height n.v.t. Construction year 2023 Certificate 064752 Inspection body TUV Nederland QA BV Ekkersrijt 4401 5692 DL Son Manufacturer name...
-
Page 7: Inspection And Maintenance
LOGBOOK Inspection and maintenance Date of Time of Name Name Parts to be inspection inspection executor of executor of Found defects replaced maintenance maintenance inspection maintenance Accidents Date Age of Measures taken Probable cause of injury Occurred injury accident victim after accident... -
Page 8: Inspection And Maintenance Intervals
Inspection and maintenance intervals months Nr. Inspection Maintenance between inspections Verify equipment's stability, junctions and Add missing parts, secure joints, apply missing parts. Inspect bolts, screws and nuts for missing fixing agent and replace absence, jams, corrosion and wear. corroded parts. Replace worn parts and/or remove non- Check suspension for wear. - Page 9 7. Remember that bad maintenance leads to unsafe conditions and notably faster impoverishment of the playground area. 8. Replacement parts can be ordered at the manufacturer with the OEM part numbers on the module drawing. Drawings can be found in the user guide. 9.
- Page 11 1,30 m A ( 1 : 6 ) 0,19 m 0,42 m Type Progr. Volgnr. Bew. Rev. Benaming Opmerking Schroef Assy 5 x 35 - RVS A2-70 Schroef Assy 5 x 70 - RVS A2-70 Bolkopbout ISO 7380 M10 x 50 - RVS A2-70 Veerring M10 - RVS A2-70 OPVULDOPJE...
- Page 12 BOER PLAY Assembly manual for Hand pump HPOl This manual has been written to guide you in the assembly of the Mh2o hand pump type HP0l, suitable for sucking water from a borehole or water storage. Manuals for other Mh2o products can be found at www.mh2opompen.nl Preparation: In this installation manual we assume that the location of the pump is already fully...
-
Page 13: Installation
BOER PLAY Installation: 1. Pull the piston rod out of the gray cylinder and pull the tie rod out of the blue riser on the male side. Connect the tie rod of the first riser to the piston rod of the pump cylinder and tighten securely using the two open-end wrenches. - Page 14 BOER PLAY 5. When the desired depth has been reached, clamp the riser to approximately 1.5 meters above the borehole / water storage. Now drill a hole in the riser about 1.2 meters below the end of the tube. This ensures that the pump drains automatically and can therefore never freeze.
- Page 15 BOER PLAY 11. Now connect the tie rod to the operating handle by tightening the Allen screw through the hole in the housing. First, make sure the hole, handle and rod end are aligned. To do this, move the lever and with the pipe wrench the rod end until they are in front of the hole.
