BOERPLAY PSTE801.003 Manual

Water combination with pump (ground water (pulse) connection)
Hide thumbs Also See for PSTE801.003:

Advertisement

Quick Links

Download this manual
Water combination with Pump
(Ground water (pulse) connection)
PSTE801.003

Advertisement

loading
Need help?

Need help?

Do you have a question about the PSTE801.003 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for BOERPLAY PSTE801.003

Summary of Contents for BOERPLAY PSTE801.003

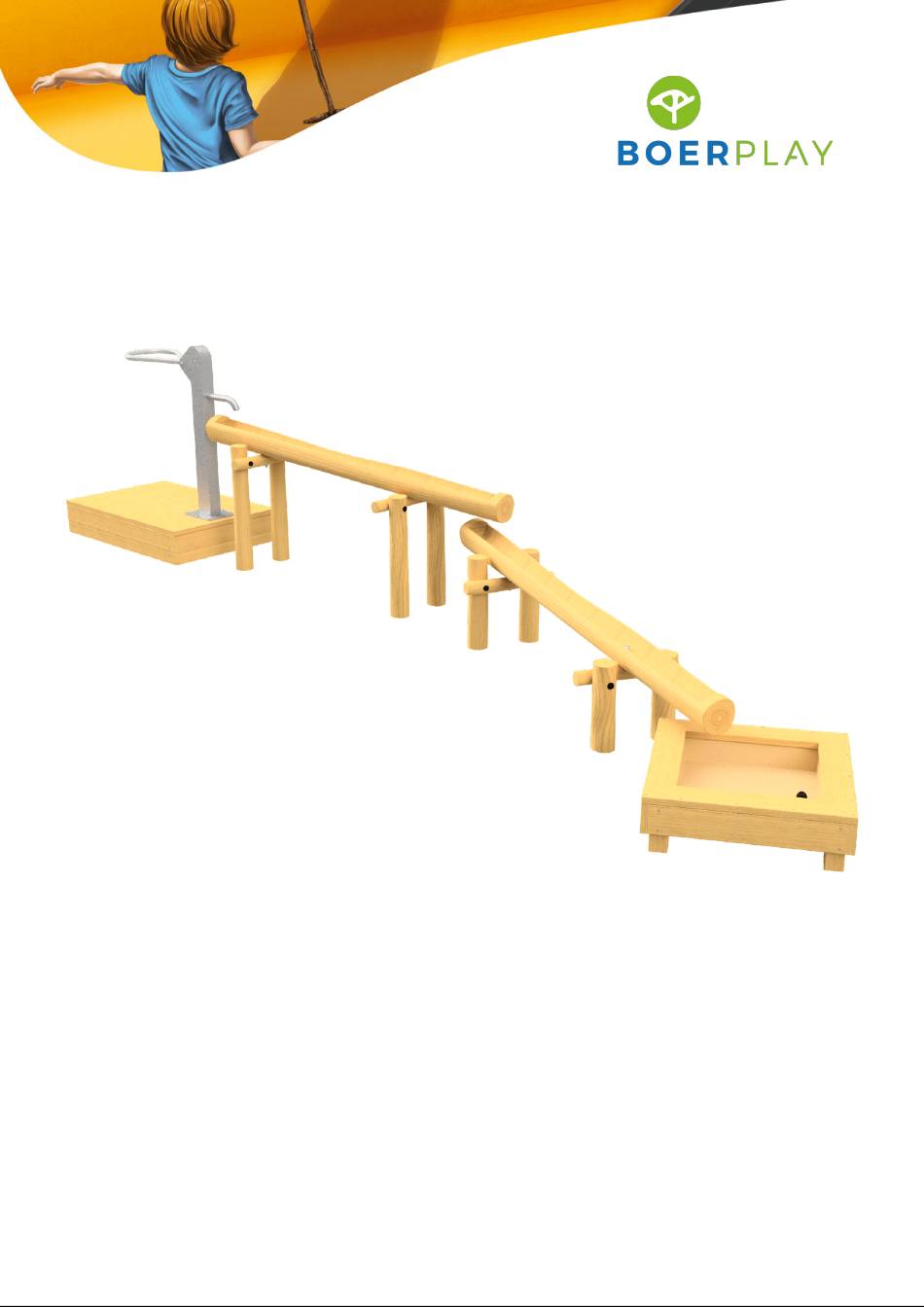

  • Page 1 Water combination with Pump (Ground water (pulse) connection) PSTE801.003...

  • Page 2: Main Dimensions

    Dimensiones principales Dimensions principales 0,00 m 0,29 m 0,43 m 0,97 m 1,95 m 1,35 m 0,70 m 0,50 m 0,80 m 0,40 m 0,24 m 0,23 m 0,00 m 0,00 m PST 801 003 © Copyright BOERplay 13-3-2023 Revision: G...
  • Page 3 Zona libre de obstáculos Zone libre d’obstacles Impact area 3,12 m Opvangzone Ausprallbereich 5,22 m Zona de impacto Zone d‘impact Obstacle free zone Obstakelvrije zone Hindernissfreie raum Zona libre de obstáculos Zone libre d’obstacles PST 801 003 © Copyright BOERplay 13-3-2023 Revision: G...
  • Page 4 Bodemplan Bodenplan Plan de superficie Plan de surface 2,15 m 1,08 m 1,18 m 1,41 m 0,51 m 2,46 m 0,85 m 1,28 m Grondmarkering Ground level marker 0,72 m PST 801 003 © Copyright BOERplay 13-3-2023 Revision: G...
  • Page 5 3 - Check the dimensions of the safety area compared to the play equipment Typeplaatje Identification plate Type Progr. Volgnr. Bew. Rev. Benaming Opmerking Pomp Vlonder 130 x 90 cm Polyester waterbak H=900 Watergoot 2,5 m Watergoot 2,5 m TOE PST 801 003 © Copyright BOERplay 13-3-2023 Revision: G...
  • Page 6 LOGBOOK Type indication Adventure Play Article number PSTE801.003 Product Name Water combination with Pump (Ground water (pulse) connection) Maximum fall height 1,0 m Construction year 2023 Certificate 067478 Inspection body Keurmerkinstituut Groeneweg 2e, Zoetermeer 2718AA Zoetermeer Manufacturer name Boer Speeltoestellen...

  • Page 7: Inspection And Maintenance

    LOGBOOK Inspection and maintenance Date of Time of Name Name Parts to be inspection inspection executor of executor of Found defects replaced maintenance maintenance inspection maintenance Accidents Date Age of Measures taken Probable cause of injury Occurred injury accident victim after accident...

  • Page 8: Inspection And Maintenance Intervals

    Inspection and maintenance intervals months Nr. Inspection Maintenance between inspections Verify equipment's stability, junctions and Add missing parts, secure joints, apply missing parts. Inspect bolts, screws and nuts for missing fixing agent and replace absence, jams, corrosion and wear. corroded parts. Replace worn parts and/or remove non- Check suspension for wear.
  • Page 9 7. Remember that bad maintenance leads to unsafe conditions and notably faster impoverishment of the playground area. 8. Replacement parts can be ordered at the manufacturer with the OEM part numbers on the module drawing. Drawings can be found in the user guide. 9.
  • Page 11 A ( 1 : 2 ) Type Progr. Volgnr. Bew. Rev. Benaming Opmerking Schroef Assy 4 x 25 - RVS A2-70 Schroef Assy 5 x 70 - RVS A2-70 M10 x 55 - RVS A2-70 Draadeind H = 38 m10 Draaiknop Ø...
  • Page 12 A-A ( 1:15 ) D ( 1:15 ) Benaming Polyester waterbak MOD PST 013 259 Title Tekening Opmerking H=900 Drawing Comment Datum Samenstelling module Assembly module 16-5-2022 Date...
  • Page 13 0,67 m 1,41 m 0,42 m Type Progr. Volgnr. Bew. Rev. Benaming Opmerking Ring+Dopmoer + Slotbout 140 mm Watergoot Steunbok 1,50m Steunbok 1,50 m Watergoot Watergoot 2,50 m Een kant dicht Benaming Watergoot MOD PST 013 289 Title Tekening Opmerking 2,5 m Drawing Comment...
  • Page 14 0,67 m 1,41 m 0,42 m Type Progr. Volgnr. Bew. Rev. Benaming Opmerking Ring+Dopmoer + Slotbout 140 mm Watergoot Steunbok 1,34m Steunbok 1,40m Watergoot Watergoot 2,50 m Een kant dicht Benaming Watergoot MOD PST 013 290 Title Tekening Opmerking 2,5 m Drawing Comment Datum...
  • Page 15 BOER PLAY Assembly manual for Hand pump HPOl This manual has been written to guide you in the assembly of the Mh2o hand pump type HP0l, suitable for sucking water from a borehole or water storage. Manuals for other Mh2o products can be found at www.mh2opompen.nl Preparation: In this installation manual we assume that the location of the pump is already fully...

  • Page 16: Installation

    BOER PLAY Installation: 1. Pull the piston rod out of the gray cylinder and pull the tie rod out of the blue riser on the male side. Connect the tie rod of the first riser to the piston rod of the pump cylinder and tighten securely using the two open-end wrenches.
  • Page 17 BOER PLAY 5. When the desired depth has been reached, clamp the riser to approximately 1.5 meters above the borehole / water storage. Now drill a hole in the riser about 1.2 meters below the end of the tube. This ensures that the pump drains automatically and can therefore never freeze.
  • Page 18 BOER PLAY 11. Now connect the tie rod to the operating handle by tightening the Allen screw through the hole in the housing. First, make sure the hole, handle and rod end are aligned. To do this, move the lever and with the pipe wrench the rod end until they are in front of the hole.
  • Page 23 1,30 m A ( 1 : 6 ) 0,19 m 0,42 m Type Progr. Volgnr. Bew. Rev. Benaming Opmerking Schroef Assy 5 x 35 - RVS A2-70 Schroef Assy 5 x 70 - RVS A2-70 Bolkopbout ISO 7380 M10 x 50 - RVS A2-70 Veerring M10 - RVS A2-70 OPVULDOPJE...
