Summary of Contents for BOERPLAY PSTE801.005

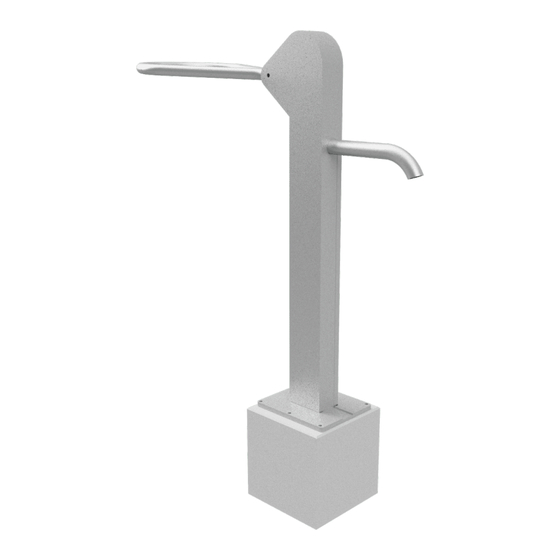

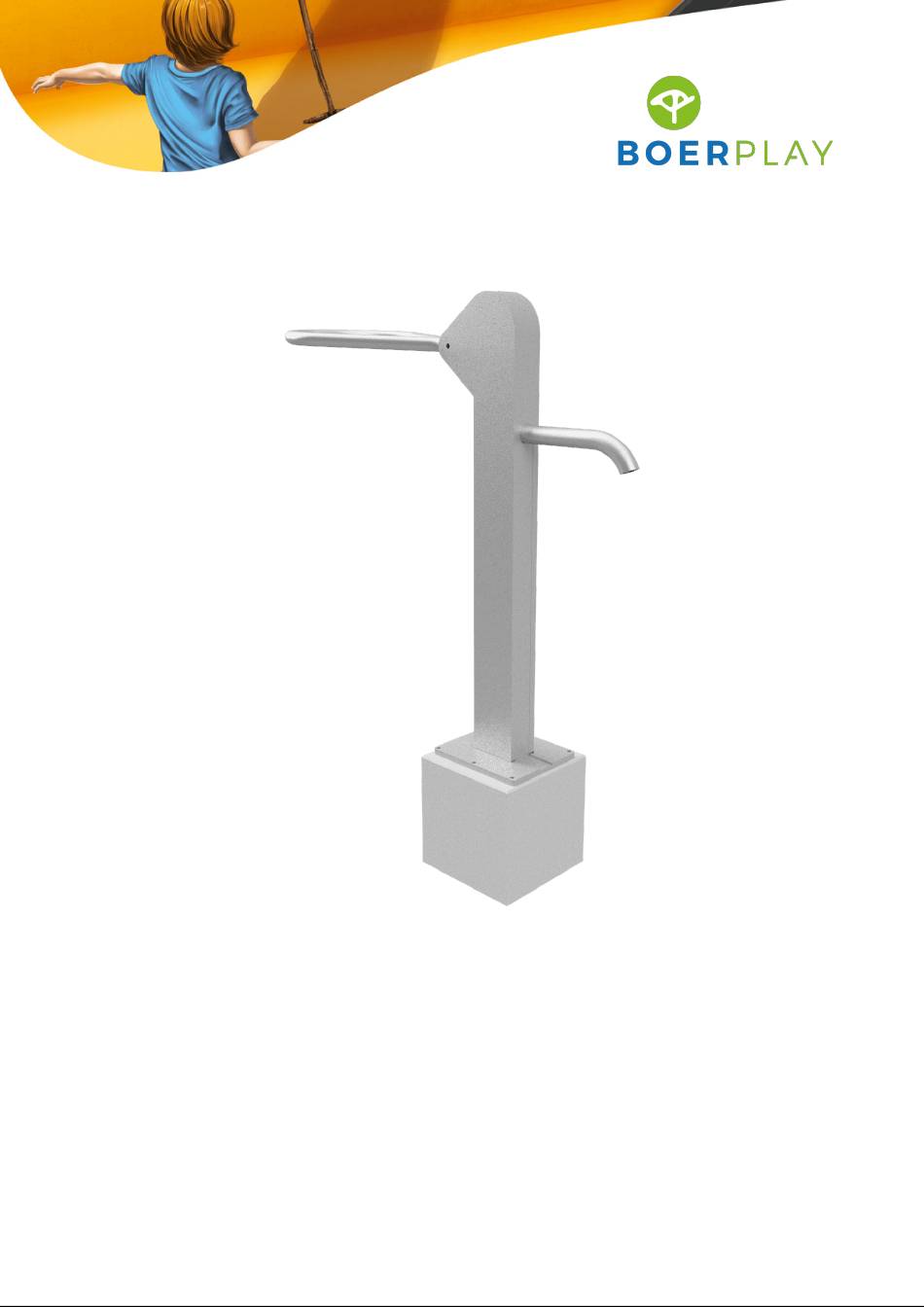

  • Page 1 Pomp puls op poer PSTE801.005...
  • Page 2: Main Dimensions

    Hoofdafmetingen Hauptabmessungen Dimensiones principales Dimensions principales PST 801 005 © Copyright BOERplay 13-1-2023 Revision:...
  • Page 3 Obstakelvrije zone Hindernissfreie raum Zona libre de obstáculos Zone libre d’obstacles 3,40 m PST 801 005 © Copyright BOERplay 13-1-2023 Revision:...
  • Page 4 Bodemplan Bodenplan Plan de superficie Plan de surface 2,20 m 1,87 m Grondmarkering Ground level marker PST 801 005 © Copyright BOERplay 13-1-2023 Revision:...
  • Page 5 3 - Check the dimensions of the safety area compared to the play equipment Type Progr. Volgnr. Bew. Rev. Benaming Opmerking 003-03 Poer voor MH2O pomp Voor puls en leiding MH2O Pomp los MH2O pomp manual / Handleiding EN / NL TOE PST 801 005 © Copyright BOERplay 13-1-2023 Revision:...
  • Page 6 LOGBOOK Type indication Adventure Play Article number PSTE801.005 Product Name Pomp puls op poer Maximum fall height 0,5 m Construction year 2023 Certificate 050840 Inspection body TUV Nederland QA BV Ekkersrijt 4401 5692 DL Son Manufacturer name Boer Speeltoestellen Hyacintstraat 2 - 4255 HX Nieuwendijk...
  • Page 7: Inspection And Maintenance

    LOGBOOK Inspection and maintenance Date of Time of Name Name Parts to be inspection inspection executor of executor of Found defects replaced maintenance maintenance inspection maintenance Accidents Date Age of Measures taken Probable cause of injury Occurred injury accident victim after accident...
  • Page 8: Inspection And Maintenance Intervals

    Inspection and maintenance intervals months Nr. Inspection Maintenance between inspections Verify equipment's stability, junctions and Add missing parts, secure joints, apply missing parts. Inspect bolts, screws and nuts for missing fixing agent and replace absence, jams, corrosion and wear. corroded parts. Replace worn parts and/or remove non- Check suspension for wear.
  • Page 9 7. Remember that bad maintenance leads to unsafe conditions and notably faster impoverishment of the playground area. 8. Replacement parts can be ordered at the manufacturer with the OEM part numbers on the module drawing. Drawings can be found in the user guide. 9.
  • Page 11 - module Montagehandleiding - module Montageanleitung - Modul Manual de ensamblado - módulo Manuel de montage - module Type Progr. Bew. Rev. Benaming Volgnr. Opmerking MOD PST 013 295 © Copyright BOERplay 29-3-2023 Revision:...
  • Page 12 BOER PLAY Assembly manual for Hand pump HPOl This manual has been written to guide you in the assembly of the Mh2o hand pump type HP0l, suitable for sucking water from a borehole or water storage. Manuals for other Mh2o products can be found at www.mh2opompen.nl Preparation: In this installation manual we assume that the location of the pump is already fully...
  • Page 13: Installation

    BOER PLAY Installation: 1. Pull the piston rod out of the gray cylinder and pull the tie rod out of the blue riser on the male side. Connect the tie rod of the first riser to the piston rod of the pump cylinder and tighten securely using the two open-end wrenches.
  • Page 14 BOER PLAY 5. When the desired depth has been reached, clamp the riser to approximately 1.5 meters above the borehole / water storage. Now drill a hole in the riser about 1.2 meters below the end of the tube. This ensures that the pump drains automatically and can therefore never freeze.
  • Page 15 BOER PLAY 11. Now connect the tie rod to the operating handle by tightening the Allen screw through the hole in the housing. First, make sure the hole, handle and rod end are aligned. To do this, move the lever and with the pipe wrench the rod end until they are in front of the hole.
