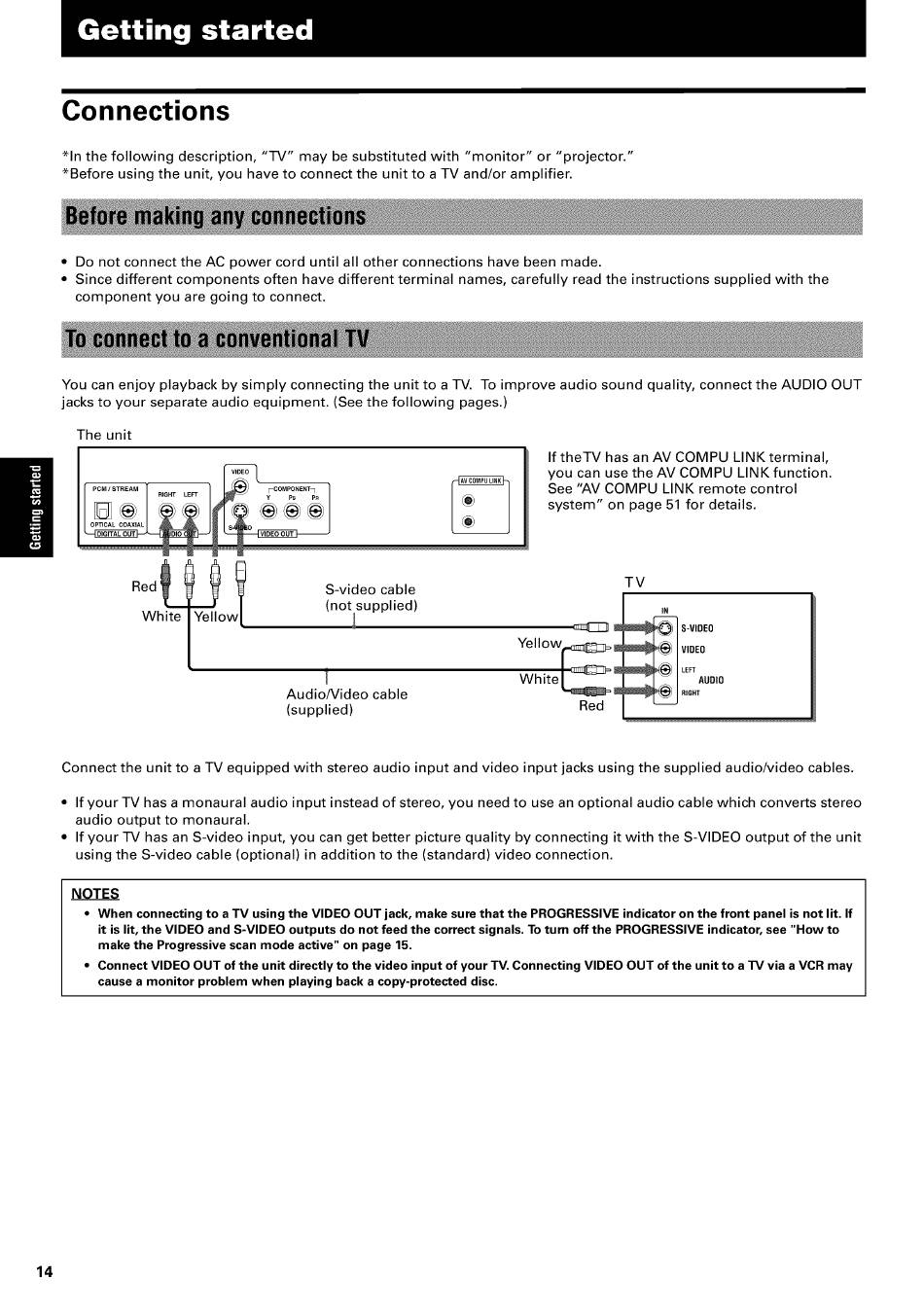

Connections
*In the following
description,
"TV" may be substituted
with "monitor"
or "projector."
*Before using the unit, you have to connect the unit to a TV and/or amplifier.
• Do not connect the AC power cord until all other connections
have been made.
• Since different
components
often have different
terminal
names, carefully
read the instructions
supplied with the
component
you are going to connect.
You can enjoy playback by simply connecting
the unit to a TV. To improve
audio sound quality, connect the AUDIO OUT
jacks to your separate audio equipment.
(See the following
pages.)
The unit
If theTV has an AV COMPU LINK terminal,
you can use the AV COMPU LINK function.
See "AV COMPU LINK remote control
system"
on page 51 for details.
S-video cable
TV
(not supplied)
J
Yellowr_=_zz_
_
]
White L_:
Audio/Video
cable
(supplied)
Red
IN
_
-VIDEO
VIDEO
L3oo,o
Connect the unit to a TV equipped
with stereo audio input and video input jacks using the supplied
audio/video
cables.
• If your TV has a monaural
audio input instead of stereo, you need to use an optional
audio cable which converts stereo
audio output to monaural.
• If your TV has an S-video input, you can get better picture quality by connecting
it with the S-VIDEO output of the unit
using the S-video cable (optional)
in addition
to the (standard)
video connection.
NOTES
• When connecting to a TV usingthe VIDEO OUT jack, make sure that the PROGRESSIVEindicator on the front panel is not lit. If
it is lit, the VIDEO and S-VIDEO outputs do not feed the correct signals. To turn off the PROGRESSIVEindicator,see "How to
make the Progressivescan mode active" on page 15.
• Connect VIDEO OUT of the unit directly to the video input of your TV.Connecting VIDEO OUT of the unit to a TV via a VCR may
cause a monitor problem when playing backa copy-protected disc.
14
