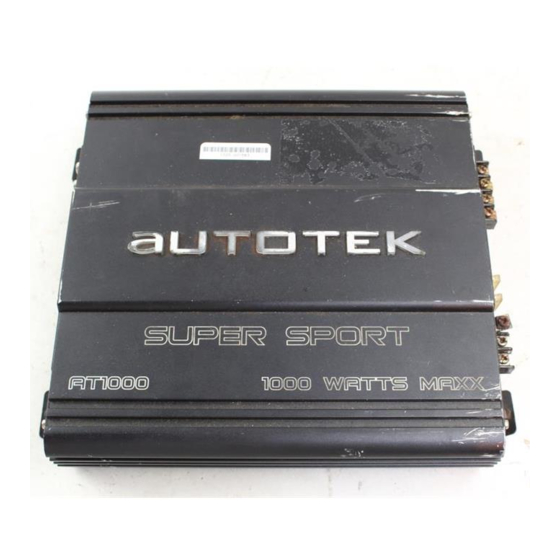

- Page 1 EVOLUTION OF POWER SUPER SPORT AT-SERIES AMPLIFIERS AT1000 / AT1500 AT950 / AT1200 AT2000.1 / AT3000.1...
-
Page 2: Table Of Contents
AT-SERIES AMPLIFIERS Autotek is proud to introduce the finest high end car audio products available and would like to thank you for your continued support. The Super Sport AT-Series amplifiers have been designed to a very high level of performance, with features unavailable in any other products. -
Page 3: General Installation Procedures
GENERAL INSTALLATION PROCEDURE System Design The success of any car stereo system relies on several factors, such as the system design, execution of the installation, and system setup. Please remember that any system is only as good as its weakest link. Please remember that higher power systems are not necessarily useful purely for high sound pressure levels, but also to establish a headroom capability, to reproduce musical peaks cleanly without distortion. -
Page 4: Amplifier Feature Descriptions
Each model is capable of 4 & 2-Ohms stereo per channel, or 4-Ohms mono bridged All Autotek amplifiers feature a comprehensive diagnostic system, with speaker lead operation except the mono amps which are capable of 4, 2 and 1-Ohm loads. -
Page 5: At1000 / At1500 / 2-Channel Amplifier Applications
TO BATTERY + 12 volts VIA FUSE REMOTE TURN-ON CHASSIS GROUND FULL RANGE MONO This application illustrates the basic mono bridging method for all Autotek 2 channel amplifiers. Switch setting checklist: - The AMPLIFIER X-OVER switch must be in the FULL position. - Page 6 AT1000 / AT1500 2-CHANNEL AMPLIFIER APPLICATIONS Stereo high pass with mono low-pass in a 2 way active, or bi-amplified system In this application we will use a 2 channel amplifier for the high frequencies, and a second one for the low frequencies, or mono sub bass. Please consult the Lows amplifier: speaker specifications to determine maximum amplifier power requirements.
-
Page 7: At950 / At1200 / 4-Channel Amplifier Applications
2 or 3 CHANNEL FULL RANGE SYSTEM Here we show how to use the 4 channel amplifiers as full range 2 or 3 channel Crossover frequency control checklist: units by taking advantage of the mono bridging capability of all Autotek Channels 1/2: amplifiers. -
Page 8: At2000.1 / At3000.1 / 1-Channel Amplifier Applications
AT2000.1 / AT3000.1 / MONO AMPLIFIER APPLICATIONS Basic application These sub bass amplifiers can be used in any of the bi-amplification systems SUBSONIC:15 Hz to 55 Hz described in this manual, replacing the 2 channel amplifiers as per the BASS EQ: 0 to +12dB illustrations. -
Page 10: Setting Up Systems After Installation For Best Performance
SETTING UP SYSTEMS AFTER INSTALLATION FOR BEST PERFORMANCE AT1000 / AT1500 / AT950 / AT1200 General: At this point you are ready to get more specific on the settings for your amplifier. High Pass: -When in Hi Pass operation, this setting acts as a low frequency cut off for your system reproduction. The point that you set it at cuts off any frequencies from reproduction beyond this point. -
Page 11: Troubleshooting And Diagnostics
The key to finding the problem in a misbehaving sound system is to isolate parts of that system in a logical fashion to track down the fault. Description of the PROTECT system built into all Autotek amplifiers The diagnostic system will shut down the amplifier, until reset by turning the head unit off, and back on. This state of affairs will be indicated by the front panel PROTECT LED lighting up under the following conditions: 1 - A sort circuit on the loudspeaker leads. -
Page 12: Product Warranty
AT-SERIES Maxxsonics Limited Warranty As the manufacturer of Maxxsonics, Autotek, Crunch, MB Quart and Hifonics car audio products Maxxsonics USA Inc. Warrants to the original consumer purchaser the amplifier to be free from defects in material and workmanship for one (1) Year from date of purchase. - Page 13 PART#S309...
