Autotek AMX 200.2 Owner's Manual

100x2
Hide thumbs

Advertisement

Quick Links

AMX 200.2 100 x 2
Owner's Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the AMX 200.2 and is the answer not in the manual?

Questions and answers

Related Manuals for Autotek AMX 200.2

Summary of Contents for Autotek AMX 200.2

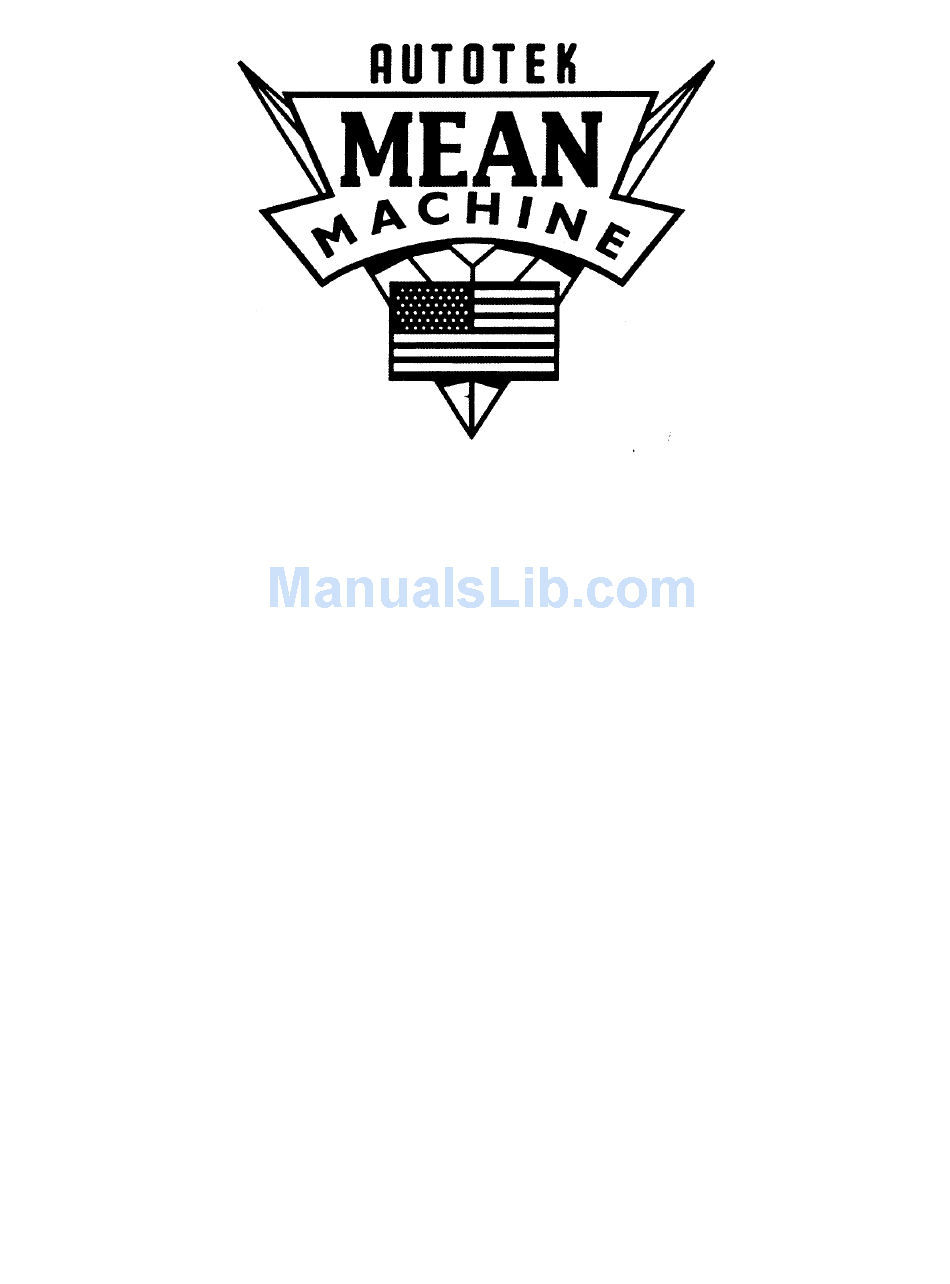

  • Page 1 AMX 200.2 100 x 2 Owner’s Manual...

  • Page 2: Dear Customer

    AUTOTEK and the Electronic Industry Associations Consumer Electronic Group want you to get the most out of your equipment by playing it at a safe level, a level that lets the sound come through loud and clear without annoying blaring distortion;...

  • Page 3: Installation

    Introduction Your Autotek MEAN MACHINE amplifier has been designed to give you very high performance, and valuable features, at a reasonable price. Take the time to read over this brief set of instructions, and you will get full enjoyment from your system.

  • Page 4: Power Supply Connections

    fig. 1 Installation of Amplifier Power Supply Connections The +12VDC and ground wires should be heavy gauge standard copper wires with heavy insulation. The wire gauge should be 4AWG for the AMX50.2 and AMX100.2 or larger. In addition, it has a 12V remote control wire and it should be 14AWG-18AWG.
  • Page 7 Caution First make +12V wire connection then the ground connection and finally the remote connection. Furthermore the +12V wire must always be fused at the battery for protection against possible damage. If you need to replace the power fuse, replace it with a fuse of the same value. Using a fuse of a different type or rating may result in a serious hazard.
  • Page 9 The amplifier can be used in the STEREO and BRIDGED mode as shown in Fig. 4, Fig. 5. The speaker wires should be connected to the speaker terminal on amplifier. Notice that most speakers have a polarity marking such as "+" or a dot on speaker terminal and these markings denote the positive terminals of the speaker and are used as a guide to phase the speakers.
  • Page 10 RCA Line Output Jacks Full range output from channel L+R inputs is provided at Line Out Jacks and its output frequency can be adjusted by 3way x-over (HP/FULL/LP.BP) with line out switch. RCA Line Input Jacks It allows left and right inputs to be connected to the amplifier using RCA plugs. Balanced Input Accepts line level balanced input, in the 0.4V to 8V range.

  • Page 11: Specifications

    SPECIFICATIONS MEAN MACHINE AMX200.2 *Audio power output per Channel, both channels driven at 14.4VDC -4 Ohms 1kHz 350Wx2CH -4 Ohms Bridged RMS 1200Wx1CH *THD -4 Ohm loads 0.015% -2 Ohm loads 0.15% *Signal to Noise Ratio 100dB *Frequency Response 10Hz-40KHz-1dB *Crossover: Separate -High Pass 10Hz-4.0KHz...
  • Page 12 We Want You Listening for a Lifetime Used wisely, your new sound equipment will provide a lifetime of fun and enjoyment. Since hearing damage from loud noise is often undetectable until it is too late, this manufacturer and the Electronic Industries Association's Consumer Electronics Group recommend you avoid prolonged exposure to excessive noise.
