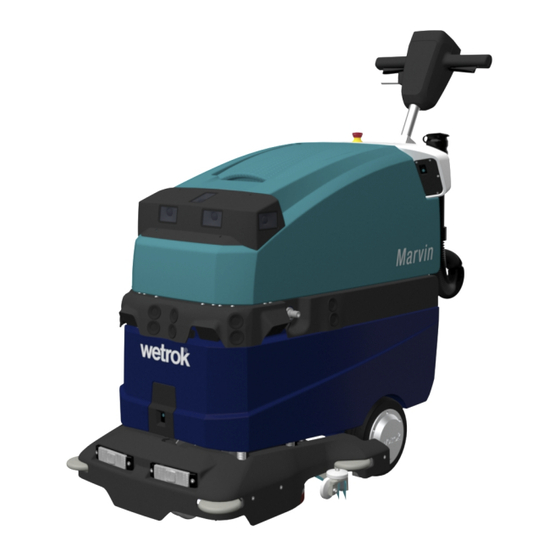

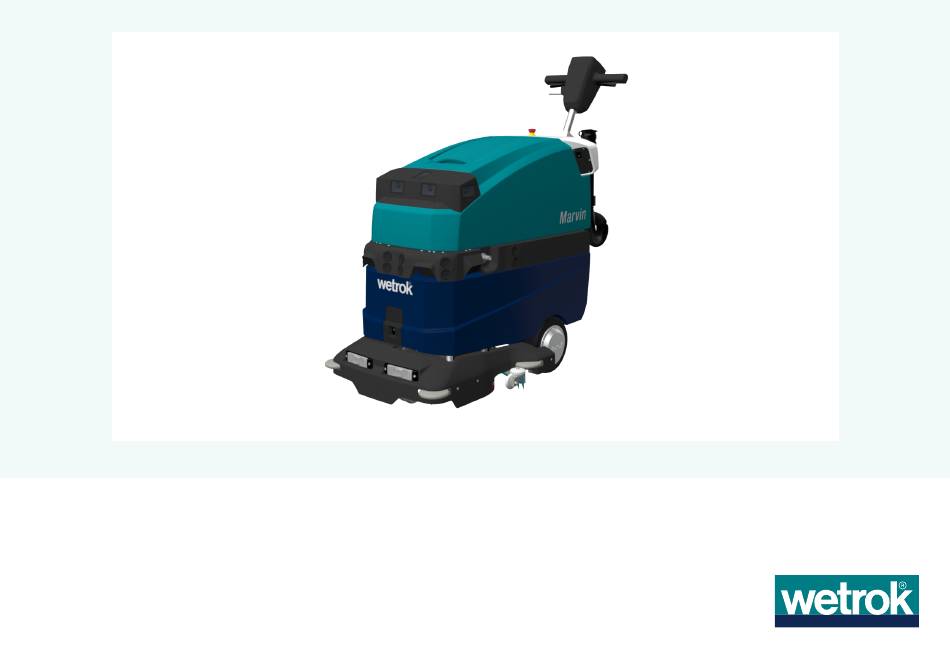

- Page 1 Wetrok Robomatic Marvin "Autonomy by Sevensense" Operating instructions (Translation of the original)
-
Page 2: General
▪ These operating instructions provide all information necessary for operation, maintenance and care. It is integrated part of the machine and must be passed on to an eventual new owner. Wetrok supplies it’s customers with this booklet on the internet under: www.techinfo.wetrok.com Page 2... -
Page 3: Table Of Contents
Table of Contents General After operation Table of Contents Maintenance and care of the dosing system Symbols Troubleshooting Intended Use Technical specifications Improper Use Transport Emergency Storage Guarantee provisions Disposal Safety CE Declaration Scope of delivery Copyright Machine overview left Accessories / Options Consumables Before commissioning / Initial commissioning... -
Page 4: Symbols
Symbols DANGER Check For an immediate threat that could lead to severe bodily injury or death. No household refuse. Dispose of in accordance with applicable laws and regulations. WARNING For a possible threat that could lead to severe bodily injury or death. Battery 36 V ATTENTION In compliance with the European directives for safety and EMC. -
Page 5: Intended Use
Intended Use This machine is designed for industrial floor cleaning of hard floor coverings in interior DANGER areas in due consideration of this operating manual and the specifications given by the manufacturer of the hard floor covering. Furthermore, with the necessary training, this machine can be used for the automated for personal injury and damage to the machine cleaning of indoor hard floor coverings. -
Page 6: Emergency
▪ Alert for further assistance. ▪ Immediately apply recognised first-aid measures. After incidents, do not resume operation with the machine until it has been inspected by Wetrok or a Wetrok authorized partner. Guarantee provisions ▪ The guarantee provisions are found in the General Terms and conditions of the contractual partner. -
Page 7: Safety
Safety This machine is electrically tested and satisfies European Safety Standards.It is con‐ ▪ This machine is not intended for use by persons and/or children under 12 with structed according to the available scientific information and state-of-the art technology reduced physical, sensory or mental capabilities or lack of experience and It has various circuit breakers that act as protection systems. - Page 8 ▪ Faults and damage must be immediately notified to the Wetrok Service Agent. Besides the safety notices in these operating instructions, additionally, the na‐...
-
Page 9: Scope Of Delivery
Copyright This set of operating instructions is property of Wetrok AG as concerns copyright. It is only entrusted to buyers of this machine. All rights, particularly the right to reproduce or trans‐ late, belong to Wetrok AG. Violation obligates compensation for damages. We reserve all other statutory claims. The language of the original edition of these instructions is German. -
Page 10: Machine Overview Left
Machine overview left 1. Camera module 2. Dirty water tank lid 3. Emergency stop 4. Display 5. Drawbar folding mechanism 6. Running wheel with traction drive 7. Quick Refill coupling 8. Brush housing Page 10... - Page 11 1. Operating lever 2. Drawbar adjustment 3. Charging socket 4. Dirty water tank 5. Bumper wheels 6. Suction nozzle / Suction lips 7. Fresh water filter 8. Fresh water emptying 9. Dirty water emptying Page 11...
-
Page 12: Accessories / Options
Accessories / Options Accessories Contact your Wetrok authorized agent for reordering. 51400 Universal filler hose, 3 m 1 piece Find more information on our products and product range at: www.wetrok.com 51430 Fast charger 1 piece 62684 Chemical canister with screw cap... -
Page 13: Before Commissioning / Initial Commissioning
Before commissioning / Initial commissioning SAFETY ▪ Delivery, or instructions on safety regulations, handling and maintenance, in addition to initial commissioning, are normally undertaken by an approved expert. Where this is not the case, the operator is responsible for instructing the users. ▪... -
Page 14: Charging
11 hours. Only detach the charging cable when the charging is completed. Fast charger approx. 5 hour. Danger of electric shock Do not reach into the charging socket! Use only Wetrok charger or chargers explicitly approved by Wetrok for this machine. Page 14... -
Page 15: Operation
Operation Preparation without dosing system Open the machine Quick Refill Fill up fresh water tank with chemicals Fill with water to the desired dosage Page 15... -
Page 16: Preparation With Dosing System
Open the machine Fill up with chemicals Fill with water Switch on the machine Quick Refill Press the bypass button The machine was tested with Wetrok cleaning agents. Only use Wetrok cleaning agents to ensure working without problems. Page 16... -
Page 17: Commissioning
Commissioning SAFETY ▪ When leaving the machine, the machine must be secured against unintended motion, and the ( ) button must be switched off. If available, the mains connection must be unplugged. ▪ Before starting maintenance work or cleaning, switch off the machine and secure against involuntary switching on. ▪... -
Page 18: Manual Operation
Manual operation Mounting the working elements Matching pads or brushes mounted Correct suction lips mounted Battery completely charged. Fresh water tank “full” Cleaning agent filled up. Page 18... - Page 19 Commissioning Use shaft adjustment lever to properly position shaft depending on operator height Activate the desired functions Switch on the machine; Actuate the operating lever and - Enter code* push the machine Unlock the EMERGENCY/STOP, Work when LED-indicator flashes (red) Select the leaf symbol in the status bar to activate or de-activate the eco- Set the water quantity, brush pressure and mode.
-
Page 20: Robotic
▪ The restrictions given in Supplement 1 to the General Conditions of Contract for the Sale and Delivery of Robomatic Machines – Marvin Specifications must be observed in all cases without exception. SAFETY The machine is equipped with several sensors and cameras. This equipment allows a safe operation of the Robomatic Marvin machine. Page 20... - Page 21 Switch on the machine and Main menu Teach: Record paths and enter code (Superuser) settings (Superuser, User) Unlock the EMERGENCY/ STOP, Main menu Repeat: Execute command when LED-indicator flashes (User) for autonomous cleaning (red) Edit: Edit or delete Press the Robotic button saved surfaces Important: with the user mode role can only use the "repeat”...
- Page 22 Robotic Super User Teach mode Put the machine in the correct “home” position Activate the desired functions (starting point) As required: Select the Robotic Teach submenu Deselect water addition: Press the “water” button As required: Set the quantity of water, the brush pressure Deselect vacuum cleaner: and the chemical dosing.
- Page 23 Press the “Record” button Teachen X = the path is deleted A red rotating circle appears As soon as the surface is After confirming with the for a short period of time, cleaned, press the “Stopp” “hook” button, the path is the machine determines the button saved on the machine...
- Page 24 Edit mode Preparing Map Edit Select the “Map Edit” robotic submenu Selection of the path to be edited Rename Rename surface and confirm Activate editing with the “Enter” button Delete Select delete √ = confirm deleting X = do not confirm deleting Page 24...
- Page 25 Robotic operator Put the machine in the The machine searches for correct Forward = the home position. “home” position bleu/orange flashing LED glows in blue (starting point) The machine is now ready Select the surface to be for cleaning the surface Cleaning finished = cleaned The drawbar must be folded...
-
Page 26: Maintenance And Repair
Maintenance and repair After operation CAUTION WARNING Do not clean machine with high-pressure or steam-pressure cleaners If the machine is tilted there is an increased danger of injury! or liquid spray. Prevent direct contact with water. Switch off all functions (switch off button); (-) button must be "OFF". Page 26... - Page 27 Fresh and dirty water tank Remove the hose of the fresh water Empty dirty water tank tank from the bracket Tilt the dirty water tank to clean Empty fresh water tank out the remaining water Remove the hose of the dirty Rinse the dirty water tank, water tank from the bracket leave the intake filter in the tank...
- Page 28 Clean the working elements (brushes and pads) and suction nozzle Remove the working elements Clean the brush housing Rinse the working elements Insert the working elements Rinse the suction nozzle Page 28...
- Page 29 Change the suction lips Remove the suction nozzle Turn or replace suction lips Put the suction nozzle back Push clamps outwards in place in reverse order Page 29...
- Page 30 Clean (weekly) or replace the fresh water filter Clean the filter screen or Tilt the machine to the back replace the fresh water filter Unscrew the viewing Screw in the filter screen pane for the filter and viewing pane (anticlockwise) (clockwise) Take out the viewing pane and the filter at the same time...
-
Page 31: Maintenance And Care Of The Dosing System
MAINTENANCE Once a year the hoses must be replaced. This replacement may be done only by Wetrok or by a Wetrok authorized specialist. When using basic cleaner, it is imperative to rinse the system with fresh water. Otherwise, deposits and obstrucion of the system may happen. -
Page 32: Troubleshooting
Cleaning action inadequate Insufficient amount of water / chemical dosing Increase amount of water / chemical dosing Wrong cleaning materials/methods Check product instructions or ask Wetrok customer service Turbine button inactive Activate turbine Suction hose not hooked up to suction nozzle... - Page 33 Fault Cause Solution Suction lips contaminated or worn Clean or replace suction lips Streak formation Suction nozzle fixed incorrectly Remount suction nozzle again correctly Suction nozzle wheels are blocked or worn Remove dirt blocking wheels or replace with new wheels No fresh water in tank Fill with fresh water No supply of water, or supply in‐...
-
Page 34: Technical Specifications
Technical specifications Technical specifications Technical specifications Working gradient max. 8 % Nominal voltage 24 V Dosage 0.5 - 4.5 % 1720 Theoretical power 1400 (Robotic) Max. dimensions (LxWxH) 1050 x 600 x1120 mm Operating witdh 430 cm Underclearance 850 mm Width of suction nozzle, folded 550 cm Brush pressure... -
Page 35: Transport
Transport Temperature must not be below 5 °C nor exceed 40°C when transporting and storing machine. The machine may only be stored indoors. When the machine is transported, it must be properly packed and secured. For this topic, please refer to the instructions supplied separately. Storage If the machine is stored, the fresh water and dirty water must be emptied and the tanks must be cleaned and kept opened. -
Page 36: Ce Declaration
Page 36... - Page 37 Tel 0800 20 48 68 Wetrok GmbH Maybachstrasse 35, D-51381 Leverkusen Tel +49 2171 398-0 Wetrok Polska S.A. ul. La¸czyny 4, PL-02-820 Warszawa Tel +48 22 331 20 50 Wetrok AB Bergkällavägen 32, S-192 79 Sollentuna Tel +46 8 444 34 00...
