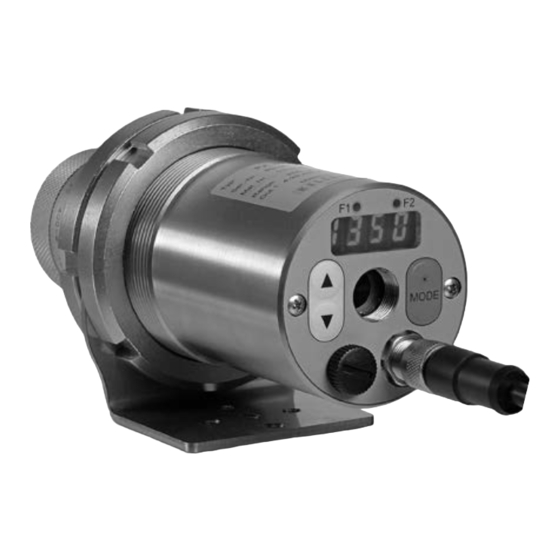

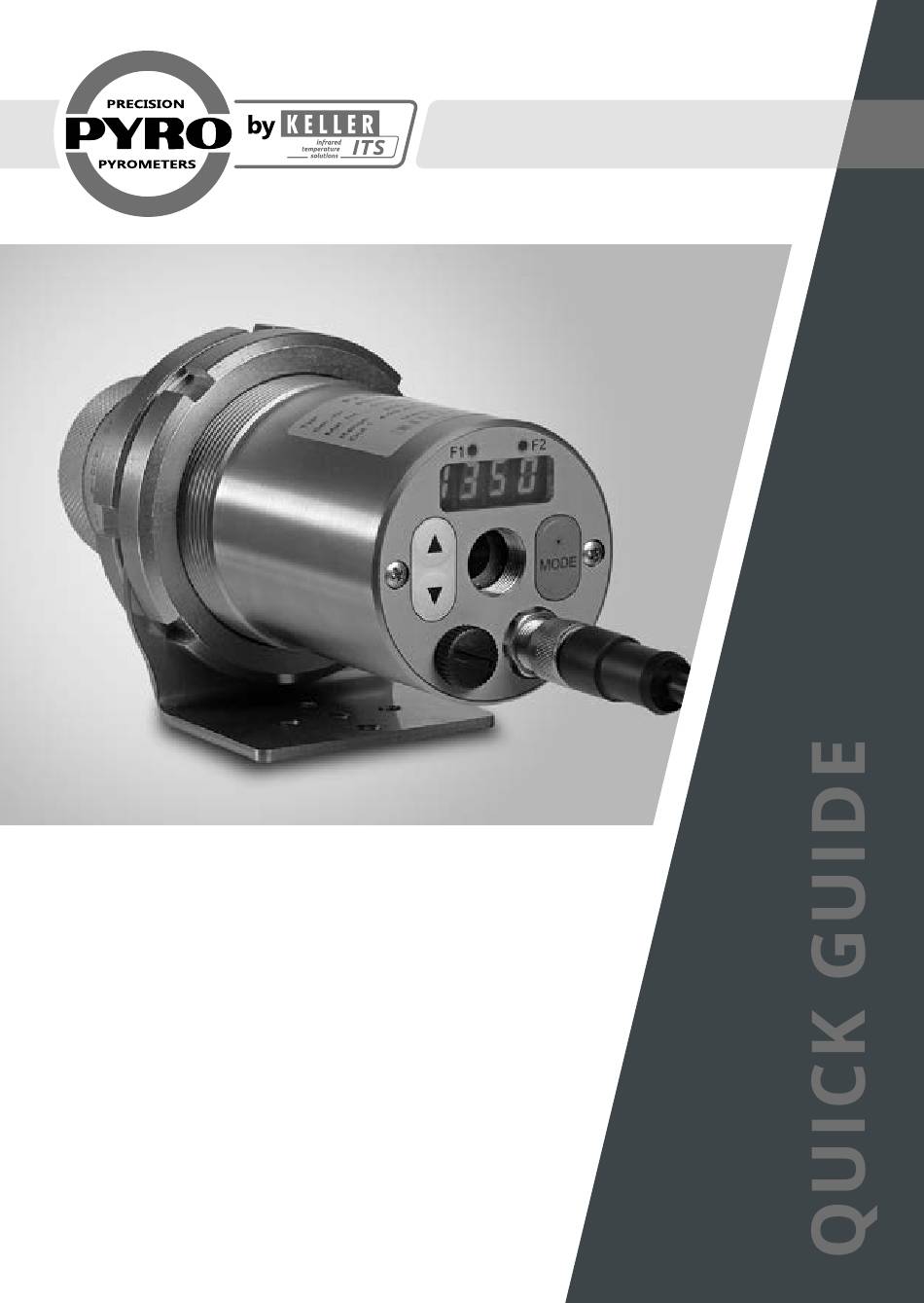

- Page 1 PYROMETER CellaCast PA 8x Ident no.: 1117989 05/2022...
-
Page 3: Explanation Of Symbols
1 General This manual gives you brief information on how to properly install the pyrometer of the PA 8x series. Detailed information can be downloaded from our website www.keller.de/its/. 2 Explanation of symbols Important notes in this manual are marked with a symbol. -
Page 4: Mechanical Installation
Quick Start Guide CellaCast PA 8x 1: Ideal measuring point 5 Mechanical installation The distance should be adjusted in that way, that the pouring stream is wide enough to fill up at least 30 % of the measurement area. Reduce the distance, if the pouring stream covers less than 30 % of the measurement area. -
Page 5: Electrical Connection
Quick Start Guide CellaCast PA 8x 7 Electrical connection The pyrometer is supplied with low voltage 24 DC (18 ... 32 V DC). ATTENTION The device may only be installed by a skilled, qualified electrician. Do not connect it while the voltage supply source is turned on. Please observe international safety regulations at all times. - Page 6 Quick Start Guide CellaCast PA 8x 8 Focussing If the pyrometer is mounted in a cooling or protective housing, remove the pyrometer from the protective fitting. For easier focusing, hold the pyrometer parallel to the cooling or protective fitting. Pyrometer with through-the-lens sighting: When aiming the pyrometer with through-the-lens sighting to a target, both the targeted object and the target marker (distinctly marked circled or rectangle spot in the viewfinder) must appear in sharp focus simultaneously.
- Page 7 Quick Start Guide CellaCast PA 8x To protect the laser against overload, an over temperature is provided. At temperatures above 60 °C, the laser switches of an can no longer be activated. To check, whether the laser is acti- vated, the parameter LED lights up. In normal operation, the laser is switch off.
- Page 8 Quick Start Guide CellaCast PA 8x 9.1 Setting the sampling time at the PA 83 On delivery the pyrometer is parameterized on a discontinuous pouring stream. If the pouring times are < 5 seconds the measuring time needs to be adapted. The time delay (time after detection of the pouring stream up to the start of the measurement) and the measurement time must be less than the minimum pouring time.
- Page 9 Quick Start Guide CellaCast PA 8x Two-colour channel [Qu] -> ATD function [Q . A td] Parameter Function Default Time delay [s] [T . D EL] Sampling time [s] 15 s (T . A CT) ► Press [Mode] to access the main menu >...
- Page 10 Quick Start Guide CellaCast PA 8x Ratio correction Temperature difference [°C] Experience has shown that the following settings apply as a first approximation - grey pig iron 101 - spheroidal graphite iron 104 However, these values may differ in practice. After changing the emissivity ratio, carry out a new control measurement.
- Page 11 These devices can be returned for disposal to the manufacturer or they must be disposed properly by the user. For the improper disposal of the device by the user, the company KELLER HCW is not responsible. is a registered trademark of the IO-Link corporate community.
- Page 12 Copyright prohibits the reproduction or distribution of this instruction manual, in- cluding text, photographs or images contained herein, in whole or in part, for any purpose whatsoever, without prior consent of the author. This applies to any form of mechanical or electronic reproduction as well as to electronic transmission in any form through any medium.
