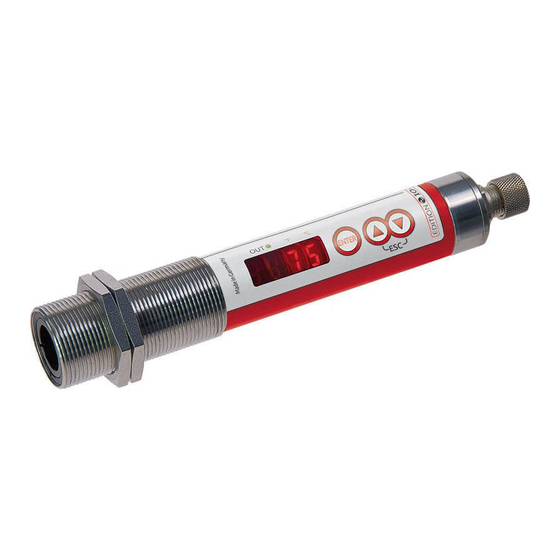

Keller CellaTemp PKF Series Manual

Pyrometer
Hide thumbs Also See for CellaTemp PKF Series:
Table of Contents

Advertisement

Quick Links

Download this manual

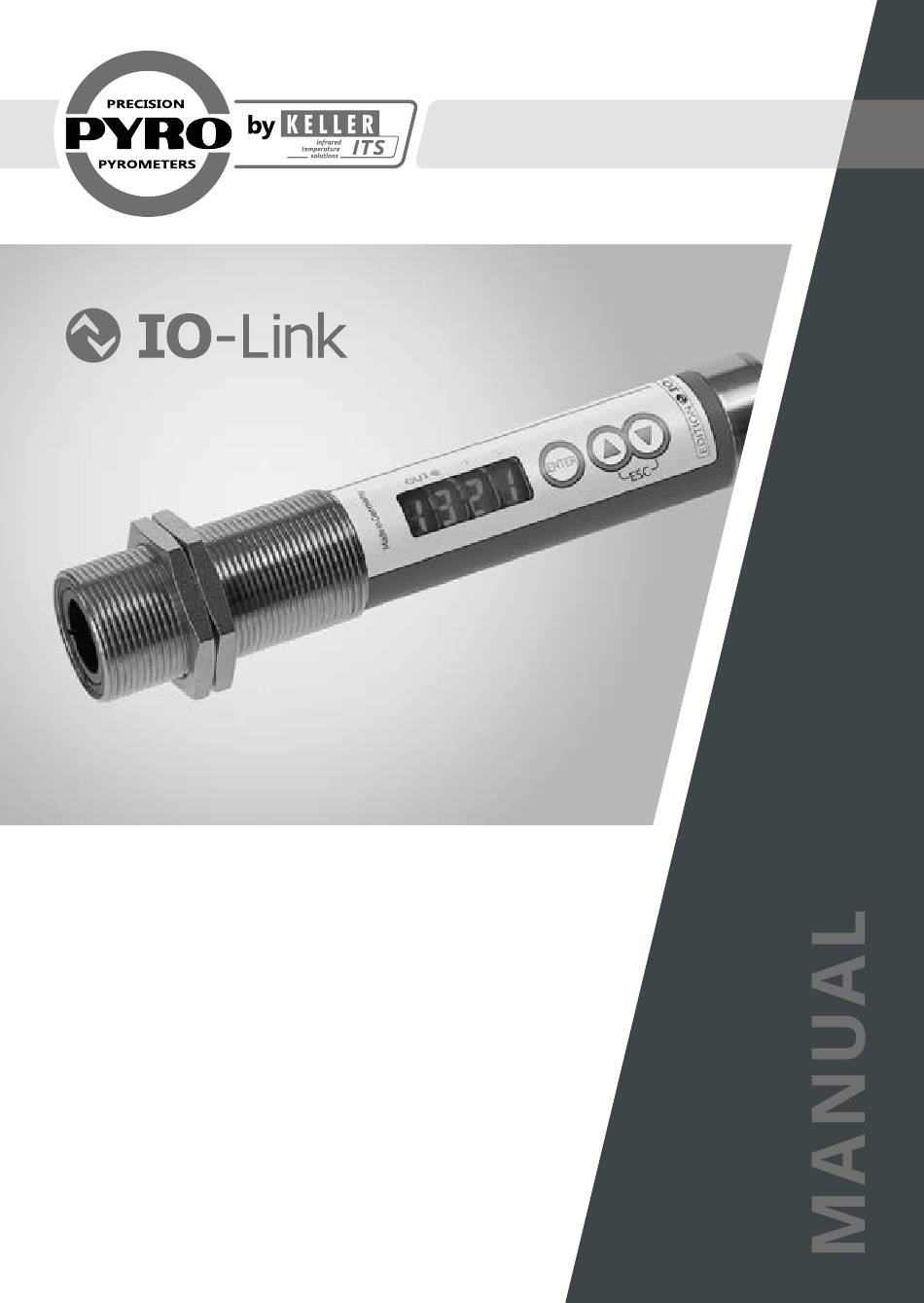

PYROMETER
CellaTemp
®
PK / PKF / PKL xx
Ident no.: 1117973
05/2022

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CellaTemp PKF Series and is the answer not in the manual?

Questions and answers

Related Manuals for Keller CellaTemp PKF Series

Summary of Contents for Keller CellaTemp PKF Series

  • Page 1 PYROMETER CellaTemp ® PK / PKF / PKL xx Ident no.: 1117973 05/2022...

  • Page 2: Table Of Contents

    Operating instructions CellaTemp PK / PKF / PKL xx Content 11 General ��������������������������������������������������������������������������������������������������������������4 1�1 Information about this manual ���������������������������������������������������������������������4 1�2 Explanation of symbols �������������������������������������������������������������������������������4 1�3 Liability and Warranty ����������������������������������������������������������������������������������4 1�4 Copyright �����������������������������������������������������������������������������������������������������5 12 Safety �����������������������������������������������������������������������������������������������������������������5 2�1 Intended use �����������������������������������������������������������������������������������������������5 2�2 User‘s responsibility ������������������������������������������������������������������������������������5 2�3 Safety requirements ������������������������������������������������������������������������������������5 2�4 Electromagnetic Compatibility ���������������������������������������������������������������������6 13 General Description �������������������������������������������������������������������������������������������6...
  • Page 3 Operating instructions CellaTemp PK / PKF / PKL xx 11 Setup ���������������������������������������������������������������������������������������������������������������19 12 Aligning and focusing the fiber optic head �������������������������������������������������������20 12�1 Safety instructions and precautions ��������������������������������������������������������21 13 Operating parameters ��������������������������������������������������������������������������������������22 13�1 Setting parameters – general information �����������������������������������������������22 13�2 Test function �������������������������������������������������������������������������������������������23 13�3 Damping function ������������������������������������������������������������������������������������24 13�4 Peak hold function ����������������������������������������������������������������������������������24 13�5 Reset all parameters to factory settings ��������������������������������������������������25...

  • Page 4: General

    Operating instructions CellaTemp PK / PKF / PKL xx 1 General 1.1 Information about this manual The Operating Manual shall enable the user to properly install the pyrometer and the required accessories� Before starting installation, be sure to read and understand this entire manual, in particular the chapter on safety! The instructions contained in this manual, especially those concerning safety, as well as site specific regulations governing UV radiation must be complied with at all times�...

  • Page 5: 1�4 Copyright

    Operating instructions CellaTemp PK / PKF / PKL xx 1.4 Copyright This Operating Manual should be treated as confidential� It is solely intended for use by persons involved with the instrument� This manual may not be made available to a third party without prior Manufacturer’s consent� Please contact the Manufacturer if the need should arise�...

  • Page 6: 2�4 Electromagnetic Compatibility

    Operating instructions CellaTemp PK / PKF / PKL xx 2.4 Electromagnetic Compatibility The devices comply with the essential safety requirements of the Electromagnetic Compatibility Directive 2014/30/EU (EMC Act)� When connecting a power supply unit, make sure that is also conforms to these standards�...

  • Page 7: Models

    Operating instructions CellaTemp PK / PKF / PKL xx 4 Models Compact pyrometer Model Temp. range Application PK 11 0 - 1000 °C nonmetals PK 12 -30 - 1300 °C objects at low temperatures PK 14 0 - 1500 °C large objects PK 18 0 - 1500 °C...

  • Page 8: Function

    Operating instructions CellaTemp PK / PKF / PKL xx 5 Function The pyrometer measures the temperature without contact to the target� The infrared sensor is equipped with an analogue output and an open collector output� The instrument‘s display panel shows the measured temperature� •...

  • Page 9: 5�4 Lower Threshold Delay

    Operating instructions CellaTemp PK / PKF / PKL xx 5.4 Lower threshold delay • To make sure the output impulse is correctly identified, e�g� by a downstream control system, the output impulse can be lengthened� • Lower threshold delay: [do] → [do . d r] = 0���10 sec� 5.5 Switching functions 1: Temperature profile...

  • Page 10: 5�7 Analogue Output

    Operating instructions CellaTemp PK / PKF / PKL xx 5.7 Analogue output The pyrometer is equipped with an analogue output OUT2 0/4���20 mA� The maximum load is 500 Ω. The output current is linear to the measured temperature. Within the overall measuring range, the required measuring range can be set to °C or °F using parameter [Ao .

  • Page 11: 5�9 Io-Link

    The IODDs required for configuring the IO-Link device as well as detailed infor- mation on process data set-up, diagnostic functions and parameter addresses are available in the download area at www�keller-its�com� A 3-wire cable port Class A (Type A) must be used for IO-Link operation�...

  • Page 12: Shielding And Grounding

    Operating instructions CellaTemp PK / PKF / PKL xx Pin 1 BN (brown) L+ (Power supply 24V) Pin 5 GY (grey) Test Input Pin 2 WH (white) Analogue output; 0/4 ��� 20mA Open Collector switching output; I = 150 mA Pin 4 BK (black) or IO-Link...

  • Page 13: Operating Controls And Display

    Operating instructions CellaTemp PK / PKF / PKL xx To avoid an equalising current, the pyrometer can be mounted electrically insulated� The shielding must be connected to the plant’s earthing system� If the pyrometer is installed without an insulator and with out potential equalisation, the interference voltage may not exceed 32V�...

  • Page 14: Menu

    Operating instructions CellaTemp PK / PKF / PKL xx 1 to 3: Indicator-LEDs LED 1 = indicates switching output of the respective output LED 2 = temperature in °F LED 3 = temperature in °C 4: Control key Enter Select parameter and confirm setting 5: Control key up and down Adjust configuration parameters 6: Alphanumeric display, 4-digit...

  • Page 15: 9�2 Digital Output Out1

    Operating instructions CellaTemp PK / PKF / PKL xx 9.2 Digital output OUT1 9.3 Analogue output OUT2...

  • Page 16: 9�4 Advanced Features

    Operating instructions CellaTemp PK / PKF / PKL xx 9.4 Advanced Features...

  • Page 17: Menu Explanation

    Operating instructions CellaTemp PK / PKF / PKL xx 10 Menu explanation 10.1 Digital output OUT1 Parameter Function Comments OUT1 Upper threshold Upper threshold which activates OUT1 do . S P OUT1 Lower threshold Lower threshold which activates OUT1 do . r P no normally opened Output function doF .

  • Page 18: 10�3 Advanced Features

    Operating instructions CellaTemp PK / PKF / PKL xx 10.3 Advanced Features Parameter Function Comments Correction of the radiation properties of Emissivity the measured object (10���110%) Configuration of the peak hold function Peak hold function PhL . d (OFF/ 0,1 - 999,9 s) Damping for the temperature display, Damping switching output and analogue output...

  • Page 19: Setup

    Operating instructions CellaTemp PK / PKF / PKL xx 11 Setup The pyrometer uses the intensity of infrared radiation for non-contact temperature measurements� It is necessary to configure the pyrometer to the respective emissivity coefficient of the measuring object to obtain exact measuring results (→ 15 Emissivity coefficient tables)�...

  • Page 20: Aligning And Focusing The Fiber Optic Head

    Operating instructions CellaTemp PK / PKF / PKL xx 12 Aligning and focusing the fiber optic head The fiber optic head has to be aligned on the target� It is important to ensure that the beam path is not obstructed� If the pyrometer has a fiber optic, it could be necessary to focus the measuring head additionally�...

  • Page 21: 12�1 Safety Instructions And Precautions

    Operating instructions CellaTemp PK / PKF / PKL xx 12.1 Safety instructions and precautions Laser Radiation Hazard: Laser radiation can be harmful to eye! The laser pointer operates with a class 2 red light laser� Direct prolonged viewing of a laser beam can injure the retina� There-fore, the following safety precautions must be strictly observed, otherwise the laser may not be operated! •...

  • Page 22: Operating Parameters

    Operating instructions CellaTemp PK / PKF / PKL xx 13 Operating parameters When you reset/adjust the operating parameters the instrument remains in run mode� It continues to operate, using the current parameter settings, until you have finished configuring by pressing [Enter]� 13.1 Setting parameters –...

  • Page 23: 13�2 Test Function

    Operating instructions CellaTemp PK / PKF / PKL xx Confirm parameter value ► Press [Enter] > The display indicates the parameter� The new value has been saved and will take effect� Adjust additional parameters ► Start again with step 2� Exit operating parameters layer ►...

  • Page 24: 13�3 Damping Function

    Operating instructions CellaTemp PK / PKF / PKL xx 5� Voltage must be applied for at least t > 300 ms� The unit performs a self test� The display shows OL(analogue output 20�5 m)� To deactivate the diagnostics function, the static signal must be available for a period of 300 msec „Low“�...

  • Page 25: 13�5 Reset All Parameters To Factory Settings

    Operating instructions CellaTemp PK / PKF / PKL xx The hold time [PhLd] can be set from 0�1 to 999�9 sec� The maximum tempera- ture sampled during the defined hold time will be saved� It makes sense to choose a hold time which is approximately 1�5 times as long as the cycle of the moving targets�...

  • Page 26: Operation

    Operating instructions CellaTemp PK / PKF / PKL xx After a reset to factory settings configure the emissivity coefficient [EPS] again (→ 11 Setup) to obtain exact measuring results. 14 Operation After connecting the supply voltage the pyrometer will be automatically initialized and will perform a self-diagnosis�...

  • Page 27: 14�3 Display Of The Configuration Parameters Advanced Features

    Operating instructions CellaTemp PK / PKF / PKL xx 14.3 Display of the configuration parameters Advanced Features ► Press [Enter] ► Press [▼] until the display shows the parameter [Ef]� ► Press [Enter] ► Press [▼] until the required parameter is displayed. ►...

  • Page 28: Theory Of Non-Contact Temperature Measurements

    Operating instructions CellaTemp PK / PKF / PKL xx 15 Theory of Non-Contact Temperature Measurements All materials radiate thermal energy in all states of aggregation above absolute zero� This radiation is mainly caused by atomic or molecular oscillations� This temperature radiation is only a limited sector within the total electromagnetic radiation spectrum�...

  • Page 29: 15�3 Measurements Of Real Radiators

    Operating instructions CellaTemp PK / PKF / PKL xx coefficient e(*) of a black body is equal to 1 or 100 %� The emissivity coefficient indicates the ratio of radiation of a real body (target) to the radiation of an ideal black body�...

  • Page 30: Ways To Determine Emissivity

    Operating instructions CellaTemp PK / PKF / PKL xx 16 Ways to determine emissivity Technical literature or operating manuals often contain data on the emissivity of various materials� This information should be used with caution, however� It is important to know for which temperature and which wavelength the emissivity value is applicable�...
  • Page 31 Operating instructions CellaTemp PK / PKF / PKL xx Model PK 11 / PK 12 / PK 14 / PK 18 / PKL 11 Bread in baking oven Ferrous oxide 85���89 Enamel 84���88 Earth 92���96 Paint and varnish, bright Paint and varnish, pale Gypsum 80���90 Glass...
  • Page 32 Operating instructions CellaTemp PK / PKF / PKL xx Model PK 21 / PK 24 / PK 31 / PKF 36 / PKF 26 / PKL 28 PKL 38 Wavelength λ 1.0 - 1.7 μm 0.78 - 1.06 μm „Black body“ Aluminium, polished Aluminium, filed smooth Asbestos cement...

  • Page 33: Maintenance

    Old electrical and electronic devices frequently still contain valua- ble materials� These devices can be returned for disposal to the manufacturer or they must be disposed properly by the user� For the improper disposal of the device by the user, the company KELLER HCW is not responsible�...

  • Page 34: Accessories

    Operating instructions CellaTemp PK / PKF / PKL xx 19 Accessories Device Type Ident no. shielded cable VK 02/L AF 1: 5 m 1043813 shielded cable VK 02/L AF 2: 10 m 1047718 laser pointer PS 01/M AF 3 1039284 laser pointer PS 01/P 1029357...

  • Page 35: General Technical Data

    Operating instructions CellaTemp PK / PKF / PKL xx 20 General technical data Load max. 500 Ω Switching output OUT1 Open Collector Ausgänge 24 V, ≤ 150 mA Schaltpunkt [°C]/ Rückschaltpunkt [°C], Hysterese ≥ 2 K, Ein-/Ausschaltverzögerung, NC/ NO Ambient temperature 0 - 65 °C IO-Link revision V1�1, downward compatible to V1�01...

  • Page 36: Device-Specific Technical Data And Field Of View Diagrams

    Operating instructions CellaTemp PK / PKF / PKL xx 21 Device-specific technical data and field of view diagrams PK 11 AF 1 / PK 18 AF 1* / PK 18 AF 2* PK 11 AF 1: 0 - 1000 °C / PK 18 AF 1: 0 - 500 °C / Temperature range PK 18 AF 2: 0 - 400 °C Sensor...
  • Page 37 Operating instructions CellaTemp PK / PKF / PKL xx PK 11 AF 2 Temperature range 0 - 1000 °C Sensor Thermopile Spectral sensitivity 8 - 14 µm Focus distance 900 mm Target spot diameter 33 mm Analogue output OUT2 0(4) - 20 mA linear, switchable, scalable (≥ 15 K) Resolution current output 0�2 K + 0�03 % of selected range Resolution temp�...
  • Page 38 Operating instructions CellaTemp PK / PKF / PKL xx PK 12 AF 1 Temperature range -30 - 300 °C Sensor Thermopile Spectral sensitivity 8 - 14 µm Focus distance 300 mm Target spot diameter 18 mm Analogue output OUT2 0(4) - 20 mA linear, switchable, scalable (≥ 15 K) Resolution current output 0�2 K + 0�03 % of selected range Resolution temp�...
  • Page 39 Operating instructions CellaTemp PK / PKF / PKL xx PK 14 AF 1 Temperature range 0 - 500 °C Sensor Thermopile Spectral sensitivity 8 - 14 µm Focus distance 2�4:1 (90%) ≥ 1 m, calculated in the far field Target spot diameter Analogue output OUT2 0(4) - 20 mA linear, switchable, scalable (≥...
  • Page 40 Operating instructions CellaTemp PK / PKF / PKL xx PK 21 AF 1 Temperature range 250 - 1600 °C Sensor InGaAs Spectral sensitivity 1�0 - 1�7 µm Focus distance 1500 mm Target spot diameter 10 mm Analogue output OUT2 0(4) - 20 mA linear, switchable, scalable (≥ 50 K) Resolution current output 0�2 K + 0�03 % of selected range Resolution temp�...
  • Page 41 Operating instructions CellaTemp PK / PKF / PKL xx PK 24 AF 1 Temperature range 250 - 1600 °C Sensor InGaAs Spectral sensitivity 1�0 - 1�7 µm Focus distance 5�1:1 (90%) ≥ 1 m, calculated in the far field Target spot diameter Analogue output OUT2 0(4) - 20 mA linear, switchable, scalable (≥...
  • Page 42 Operating instructions CellaTemp PK / PKF / PKL xx PK 25 AF 1 Temperature range 75 - 650 °C Sensor ext� InGaAs Spectral sensitivity 1�8 - 2�2 µm Focus distance 300 mm Target spot diameter 7 mm Analogue output OUT2 0(4) - 20 mA linear, switchable, scalable (≥...
  • Page 43 Operating instructions CellaTemp PK / PKF / PKL xx PK 29 AF 1 Temperature range 150 - 800 °C Sensor ext� InGaAs Spectral sensitivity 1�8 - 2�2 µm Focus distance 300 mm Target spot diameter 7 mm Analogue output OUT2 0(4) - 20 mA linear, switchable, scalable (≥...
  • Page 44 Operating instructions CellaTemp PK / PKF / PKL xx PK 31 AF 1 Temperature range 500 - 2500 °C Sensor Spectral sensitivity 0�78 - 1�06 µm Focus distance 1500 mm Target spot diameter 8 mm Analogue output OUT2 0(4) - 20 mA linear, switchable, scalable (≥ 100 K) Resolution current output 0�2 K + 0�03 % of selected range Resolution temp�...
  • Page 45 Operating instructions CellaTemp PK / PKF / PKL xx PK 41 AF 1 Temperature range 300 - 1300 °C Sensor Thermopile Spectral sensitivity 4�6 - 4�9 µm Focus distance 400 mm Target spot diameter 11 mm Analogue output OUT2 0(4) - 20 mA linear, switchable, scalable (≥ 50 K) Resolution current output 0�2 K + 0�03 % of selected range Resolution temp�...
  • Page 46 Operating instructions CellaTemp PK / PKF / PKL xx PK 42 AF 1 Temperature range 500 - 2500 °C Sensor Thermopile Spectral sensitivity 4�6 - 4�9 µm Focus distance 400 mm Target spot diameter 7 mm Analogue output OUT2 0(4) - 20 mA linear, switchable, scalable (≥ 50 K) Resolution current output 0�2 K + 0�03 % of selected range Resolution temp�...
  • Page 47 Operating instructions CellaTemp PK / PKF / PKL xx PK 51 AF 1 Temperature range 400 - 1400 °C Sensor Thermopile Spectral sensitivity 3�8 - 4�0 µm Focus distance 400 mm Target spot diameter 11 mm Analogue output OUT2 0(4) - 20 mA linear, switchable, scalable (≥ 50 K) Resolution current output 0�2 K + 0�03 % of selected range Resolution temp�...
  • Page 48 Operating instructions CellaTemp PK / PKF / PKL xx PK 52 AF 1 Temperature range 500 - 2000 °C Sensor Thermopile Spectral sensitivity 3�8 - 4�0 µm Focus distance 400 mm Target spot diameter 7 mm Analogue output OUT2 0(4) - 20 mA linear, switchable, scalable (≥ 50 K) Resolution current output 0�2 K + 0�03 % of selected range Resolution temp�...
  • Page 49 Operating instructions CellaTemp PK / PKF / PKL xx PK 72 AF 1 Temperature range 400 - 2000 °C Sensor Thermopile Spectral sensitivity -Bande Focus distance 400 mm Target spot diameter 7 mm Analogue output OUT2 0(4) - 20 mA linear, switchable, scalable (≥ 50 K) Resolution current output 0�2 K + 0�03 % of selected range Resolution temp�...
  • Page 50 Operating instructions CellaTemp PK / PKF / PKL xx PKF 26 AF 1 Temperature range 300 - 1600 °C Sensor InGaAs Spectral sensitivity 1�0 - 1�7 µm Focus distance 200 mm ... ∞ (adjustable) Distance ratio 180:1 (measuring head PA 41�01) Analogue output OUT2 0(4) - 20 mA linear, switchable, scalable (≥...
  • Page 51 Operating instructions CellaTemp PK / PKF / PKL xx PKF 26 AF 2 Temperature range 300 - 1600 °C Sensor InGaAs Spectral sensitivity 1�0 - 1�7 µm Focus distance 1500 mm Target spot diameter 7�2 mm (measuring head PKS 21�01) Analogue output OUT2 0(4) - 20 mA linear, switchable, scalable (≥...
  • Page 52 Operating instructions CellaTemp PK / PKF / PKL xx PKF 26 AF 3 Temperature range 300 - 1600 °C Sensor InGaAs Spectral sensitivity 1�0 - 1�7 µm Focus distance 120 mm ... ∞ (adjustable) Distance ratio 100:1 (measuring head PA 41�05) Analogue output OUT2 0(4) - 20 mA linear, switchable, scalable (≥...
  • Page 53 Operating instructions CellaTemp PK / PKF / PKL xx PKF 26 AF 4 Temperature range 300 - 1600 °C Sensor InGaAs Spectral sensitivity 1�0 - 1�7 µm Focus distance 33 - 45 mm Distance ratio 50:1 (measuring head PZ 41�18) Analogue output OUT2 0(4) - 20 mA linear, switchable, scalable (≥...
  • Page 54 Operating instructions CellaTemp PK / PKF / PKL xx PKF 36 AF 1 Temperature range 550 - 2500 °C Sensor Spectral sensitivity 0�78 - 1�06 µm Focus distance 200 mm ... ∞ (adjustable) Distance ratio 190:1 (measuring head PA 41�01) Analogue output OUT2 0(4) - 20 mA linear, switchable, scalable (≥...
  • Page 55 Operating instructions CellaTemp PK / PKF / PKL xx PKF 36 AF 2 Temperature range 550 - 2500 °C Sensor Spectral sensitivity 0�78 - 1�06 µm Focus distance 1080 mm Target spot diameter 5�6 mm (measuring head PKS 21�01) Analogue output OUT2 0(4) - 20 mA linear, switchable, scalable (≥...
  • Page 56 Operating instructions CellaTemp PK / PKF / PKL xx PKF 36 AF 3 Temperature range 550 - 2500 °C Sensor Spectral sensitivity 0�78 - 1�06 µm Focus distance 120 mm ... ∞ (adjustable) Distance ratio 100:1 (measuring head PA 41�05) Analogue output OUT2 0(4) - 20 mA linear, switchable, scalable (≥...
  • Page 57 Operating instructions CellaTemp PK / PKF / PKL xx PKF 36 AF 4 Temperature range 550 - 2500 °C Sensor Spectral sensitivity 0�78 - 1�06 µm Focus distance 33 - 45 mm Distance ratio 50:1 (measuring head PZ 41�18) Analogue output OUT2 0(4) - 20 mA linear, switchable, scalable (≥...
  • Page 58 Operating instructions CellaTemp PK / PKF / PKL xx PKL 11 AF 1 Temperature range 0 - 1000 °C Sensor Thermopile Spectral sensitivity 8 - 14 µm Focus distance 295 mm Target spot diameter 9 mm Analogue output OUT2 0(4) - 20 mA linear, switchable, scalable (≥ 50 K) Resolution current output 0�2 K + 0�03 % of selected range Resolution temp�...
  • Page 59 Operating instructions CellaTemp PK / PKF / PKL xx PKL 11 AF 2 Temperature range 0 - 1000 °C Sensor Thermopile Spectral sensitivity 8 - 14 µm Focus distance 89 mm Target spot diameter 3�2 mm Analogue output OUT2 0(4) - 20 mA linear, switchable, scalable (≥ 50 K) Resolution current output 0�2 K + 0�03 % of selected range Resolution temp�...
  • Page 60 Operating instructions CellaTemp PK / PKF / PKL xx PKL 28 AF 1 Temperature range 250 - 1600 °C Sensor InGaAs Spectral sensitivity 1�0 - 1�7 µm Focus distance 210 mm Target spot diameter 1�4 mm Analogue output OUT2 0(4) - 20 mA linear, switchable, scalable (≥ 50 K) Resolution current output 0�2 K + 0�03 % of selected range Resolution temp�...
  • Page 61 Operating instructions CellaTemp PK / PKF / PKL xx PKL 28 AF 2 Temperature range 250 - 1600 °C Sensor InGaAs Spectral sensitivity 1�0 - 1�7 µm Focus distance 1000 mm Target spot diameter 6�7 mm Analogue output OUT2 0(4) - 20 mA linear, switchable, scalable (≥ 50 K) Resolution current output 0�2 K + 0�03 % of selected range Resolution temp�...
  • Page 62 Operating instructions CellaTemp PK / PKF / PKL xx PKL 29 AF 1 Temperature range 180 - 1200 °C Sensor ext� InGaAs Spectral sensitivity 1�8 - 2�2 µm Focus distance 290 mm Target spot diameter 6�2 mm Analogue output OUT2 0(4) - 20 mA linear, switchable, scalable (≥...
  • Page 63 Operating instructions CellaTemp PK / PKF / PKL xx PKL 38 AF 1 Temperature range 500 - 2500 °C Sensor Spectral sensitivity 0�78 - 1�06 µm Focus distance 210 mm Target spot diameter 1�2 mm Analogue output OUT2 0(4) - 20 mA linear, switchable, scalable (≥ 50 K) Resolution current output 0�2 K + 0�03 % of selected range Resolution temp�...
  • Page 64 Operating instructions CellaTemp PK / PKF / PKL xx PKL 38 AF 2 Temperature range 500 - 2500 °C Sensor Spectral sensitivity 0�78 - 1�06 µm Focus distance 1000 mm Target spot diameter 5�6 mm Analogue output OUT2 0(4) - 20 mA linear, switchable, scalable (≥ 50 K) Resolution current output 0�2 K + 0�03 % of selected range Resolution temp�...

  • Page 65: Factory Settings

    Operating instructions CellaTemp PK / PKF / PKL xx 22 Factory settings Para- Factory settings meter PK 11 PK 12 PK 14 User AF 1 + AF 2 AF 1 AF 1 settings 0 °C -30 °C 0 °C Ao . _ 1000 °C 300 °C 500 °C...
  • Page 66 Operating instructions CellaTemp PK / PKF / PKL xx Para- Factory settings meter PK 18 PK 18 PK 21 User AF 1 AF 2 AF 1 settings 0 °C 0 °C 250 °C Ao . _ 500 °C 400 °C 1600 °C Ao .
  • Page 67 Operating instructions CellaTemp PK / PKF / PKL xx Para- Factory settings meter PK 24 PK 25 PK 29 User AF 1 AF 1 AF 1 settings 250 °C 75 °C 150 °C Ao . _ 1600 °C 650 °C 800 °C Ao .
  • Page 68 Operating instructions CellaTemp PK / PKF / PKL xx Para- Factory settings meter PK 31 PK 41 PK 42 User AF 1 AF 1 AF 1 settings 500 °C 300 °C 500 °C Ao . _ 2500 °C 1300 °C 2500 °C Ao .
  • Page 69 Operating instructions CellaTemp PK / PKF / PKL xx Para- Factory settings meter PK 51 PK 52 PK 72 User AF 1 AF 1 AF 1 settings 400 °C 500 °C 400 °C Ao . _ 1400 °C 2000 °C 2000 °C Ao .
  • Page 70 Operating instructions CellaTemp PK / PKF / PKL xx Para- Factory settings meter PKF 26 PKF 36 PKL 11 User AF 1, AF 1, AF 1 + AF 2 settings AF 2 + AF 3 AF 2 + AF 3 300 °C 550 °C 0 °C...
  • Page 71 410 °C 1000 °C do . S P 560 °C 440 °C 960 °C do . r P do . F n do . d S do . d r 100�0 PhLd diSP . °C Unit More information at www�keller�de/its...

  • Page 72: Copyright

    Operating instructions CellaTemp PK / PKF / PKL xx 23 Copyright The device software contains portions of the avr-libc library� Portions of avr-libc are Copyright (c) 1999-2007 Keith Gudger, Colin O‘Flynn, Nils Kristian Strom, Bjoern Haase, Bob Paddock, Michael Stumpf, Steinar Haugen, Reiner Patommel, Stefan Swanepoel,...
  • Page 74 Copyright prohibits the reproduction or distribution of this instruction manual, in- cluding text, photographs or images contained herein, in whole or in part, for any purpose whatsoever, without prior consent of the author. This applies to any form of mechanical or electronic reproduction as well as to electronic transmission in any form through any medium.
