Planning Information
Wine Storage Model 315W
IMPORTANT NOTE: Model 315W is
not available with a solid door.
A solid panel must not be
installed on a glass door unit, as
this may cause moisture to form
behind the panel.
Cabinetry dimensions shown in the
standard full-view glass door application.
Dimensions in parentheses are in
millimeters unless otherwise specified.
O V E R L A Y P A N E L S
The door frame of the unit has pre-drilled holes for our
optional handle hardware. Refer to Hardware Considera-
tions on page 8 for specifics about installing handle
hardware on this overlay application.
When planning to install the Model 315W next to adjoining
cabinetry, you must make provisions to allow the door to
open to a maximum of 145˚ and not hit the door panel.
To give you a better idea of the exact space the Model
315W needs and how the panel fits in relationship with
the unit, refer to the chart and illustration below.
For additional specifications and installation information
specific to Model 315W, refer to pages 2-5.
O V E R L A Y P A N E L S P E C I F I C A T I O N S
Door Panel (W x H)
Width of Rails and Stiles
Door Panel Weight Limit
Panel Thickness

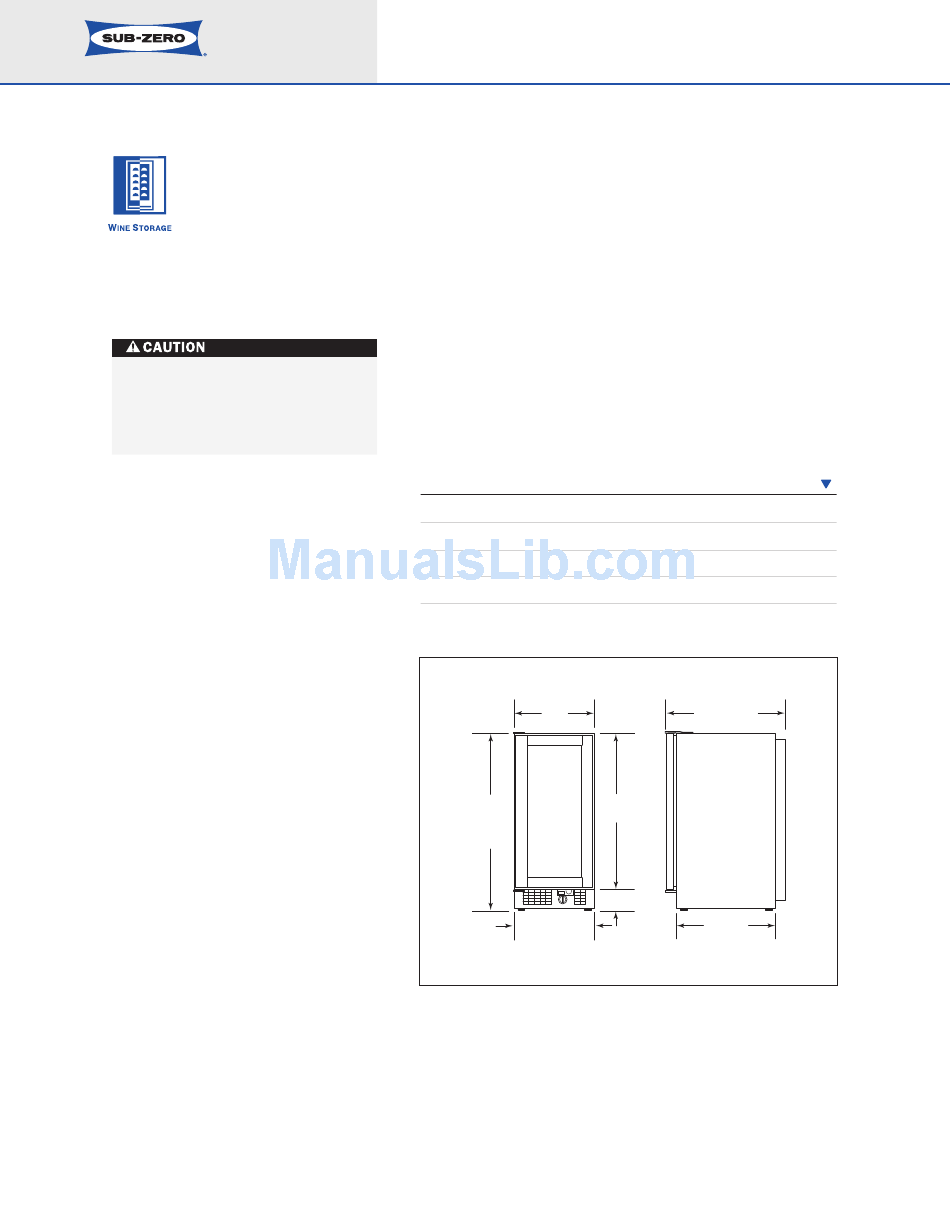

MODEL 315W CABINETRY DIMENSIONS
15"
(381)
1
34 / " 30
16
(865)
OVERALL
HEIGHT
4"
1
15 / "
8 (384)
OVERALL
WIDTH
FRONT VIEW
1
15" (381) x 30 /
16
1
2 / "
(57)
4
10 lbs (5 kg)
5
/ "
(16)
8
3
22 / "
8 (568)
1
/ "
16
(764)
TOE
(102)
KICK
19"
(483)
SIDE VIEW
" (764)
min
9
min
7
