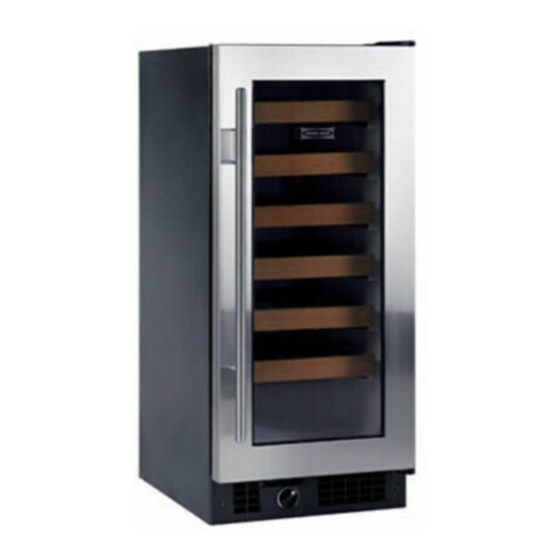

Wine Storage Model 315W Design Guide
REVISED 1 / 2016

Advertisement

loading
Need help?

Need help?

Do you have a question about the 315W and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Sub-Zero 315W

Summary of Contents for Sub-Zero 315W

  • Page 1 Wine Storage Model 315W Design Guide REVISED 1 / 2016...
  • Page 2 WINE STORAGE MODEL 315W Contents Wine Storage Wine Storage Wine finds a well-deserved place of honor in a Sub-Zero wine storage unit. Every detail is designed to ensure better Specifications wine preservation. Cherrywood-faced racks, soft lighting, Custom Door Panel custom cabinetry if desired—Sub-Zero helps make a wine collection an element of beauty in the home.
  • Page 3 WIDTH " SIDE VIEW FRONT VIEW (422) " (44) SPECIFICATIONS STORAGE CAPACITY BOTTLES (750 ML) 315W SHIPPING WEIGHT (KG) 315W (54) Overall dimensions are based on the stainless steel model 315W. Refer to page 4 for door clearance information. subzero.com/specs...
  • Page 4 Installation must comply with all applicable electrical codes. door. For model 315W, the custom door panel will attach directly ELECTRICAL REQUIREMENTS to the door frame with screws through a series of pre-drilled...
  • Page 5 Sub-Zero, Sub-Zero & Design, Dual Refrigeration, The Living Kitchen, Great American Kitchens The Fine Art of Kitchen Design, and Ingredients are registered trademarks and service marks of Sub-Zero, Inc. Wolf, Wolf & Design, Wolf Gourmet, W & Design and the color red as applied to knobs are registered trademarks and service marks of Wolf Appliance, Inc.
  • Page 6 WINE STORAGE MODEL 315W Door Clearance FULL-SCALE TEMPLATE To allow for a 145° door opening, the unit should extend a minimum of " (6) beyond the front surface of adja- cent cabinetry. The unit can be installed flush, however, there is potential for interference with the panel if the door is opened past 90°.
  • Page 7 FULL TWO YEAR WARRANTY* For two years from the date of original installation, this Sub-Zero product warranty covers all parts and labor to repair or replace, under normal residential use, any part of the product that proves to be defec- tive in materials or workmanship.
