Planning Information
Integrated Model 736TR
F E A T U R E S
Tall 36" (914) wide all refrigerator unit with
upper cabinet refrigerator and refrigerator
storage drawers
Integrated design for "point-of-use" refriger-
ation anywhere in the home
Refrigeration system with two distinct
temperature zones ensures the freshest food
and energy efficiency
Electronic digital controls are up front and
easy to use
Flat to the ceiling bright lighting in cabinet
and drawers
Door alarm will let you know with an audible
beeping if a door or drawer is left open
Adjustable, spill-proof glass shelves

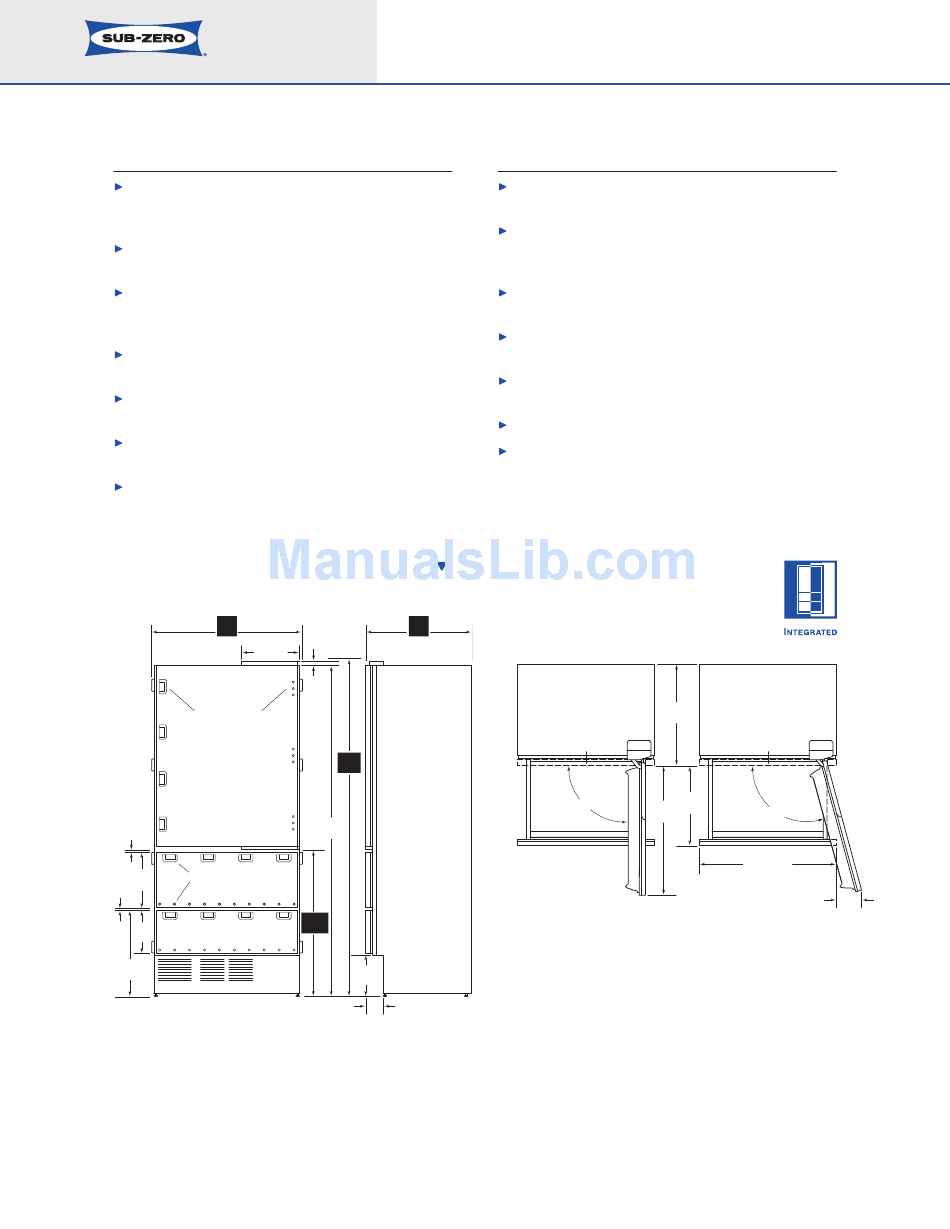

O V E R A L L D I M E N S I O N S
36"
(914)
(UNIT DIMENSION)
14"
(356)
DOOR MOUNTING
DETAIL
3
/ "
8
(10)
1
13 / "
4
DRAWER MOUNTING
1
/ "
2 (337)
DETAIL
(13)
1
10 / "
4
(260)
3
20 / "
8
(518)
FRONT VIEW
1
/ " (13) + _ ADJUSTMENT IN LEVELING LEGS
* 2
1
Dimensions may vary by ± / " (3).
8
Dimensions in parentheses are in
millimeters unless otherwise specified.
24"
(610)
TOP OF
(UNIT DIMENSION)
ROUGH
OPENING
5
1 / "
16
(33)
80"*
(2032)
13
77 / "*
16
(1976)
1
34 / "*
2
(876)
3
9 / "
4
(248)
4"
SIDE VIEW
(102)
Refrigerator deli drawer for storage of
smaller items
A removable crisper cover with a clear view
window can be used in either storage
drawer
Each storage drawer has two removable
dividers
The exclusive dual-action hinge has a built-in
90˚ door stop
Meets strict Department of Energy require-
ments
UL approved for US and Canada
Two, five and twelve year residential
warranty – exclusions apply; warranty
information can be found on our website,
subzero.com
24"
(610)
DOOR / DRAWER
CLOSED
1
19 /
2
90˚
1
34 / "*
2 (495)
(876)
90˚ DOOR OPENING
TOP VIEW
* DOOR /DRAWER PANEL THICKNESS NOT INCLUDED – DIMENSION WILL VARY WITH INSTALLATION
DOOR/ DRAWER
CLOSED
"*
105˚
7
34 / "
8 (886)
MAXIMUM DOOR OPENING
7"*
(178)
