Planning Information

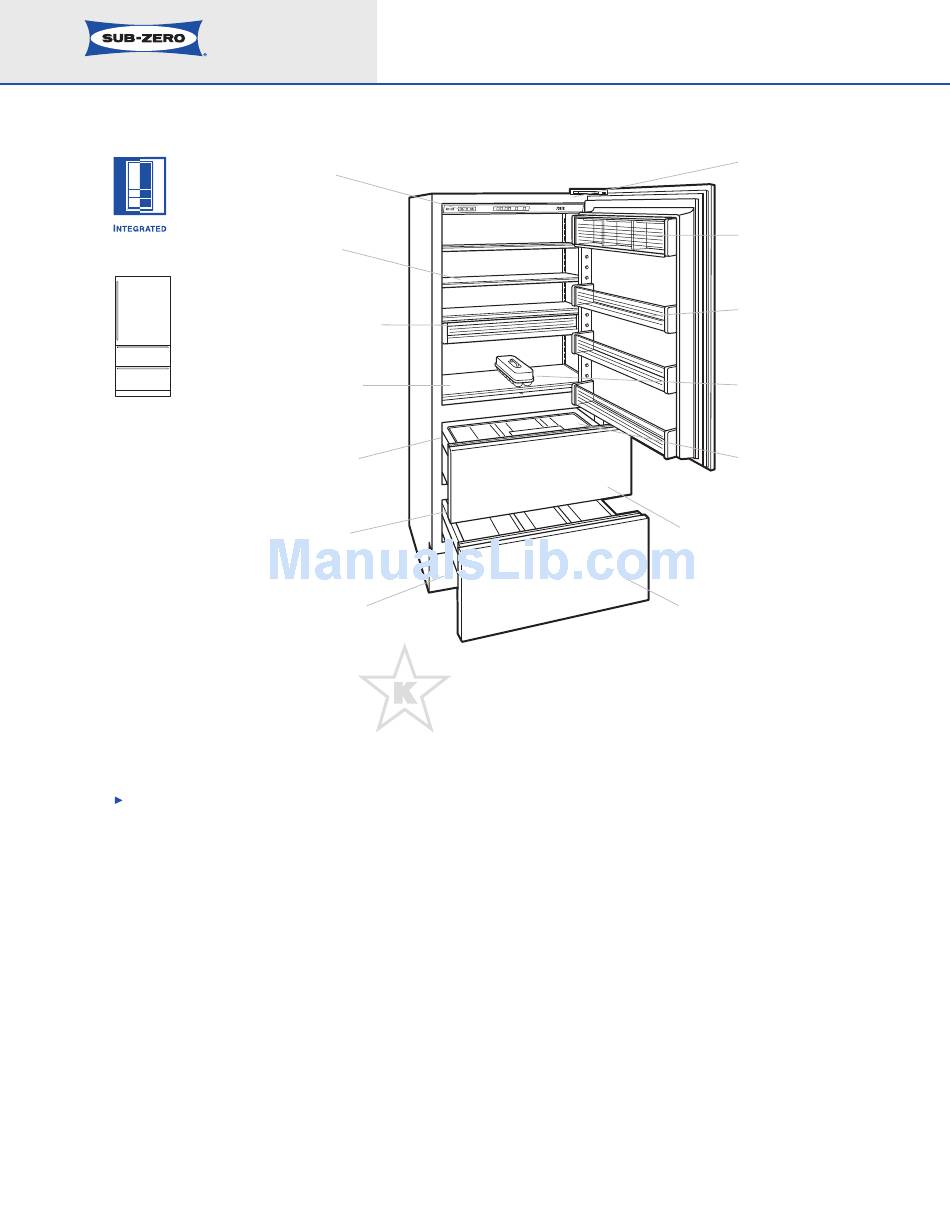

Integrated Model 736TR

All Refrigerator

Electronic digital

control panel

Adjustable spill-proof

glass shelves

Adjustable glass

shelf and deli drawer

Stationary shelf

Model 736TR

Location of serial

number

Magnetic door /

drawer gaskets

Front venting with

removable kickplate

The Sub-Zero Model 736TR integrated

design accepts custom wood or stainless

steel door and drawer panels. Stainless

steel panels and handles are available as

sales accessories in three finishes—

classic, platinum and carbon.

Dimensions in parentheses are in

millimeters unless otherwise specified.

11/06

With the installation of a harness kit, these appliances are Star-K

compliant to meet strict religious regulations in conjunction with

specific instructions found on star-k.org. You may purchase this

harness kit through your Sub-Zero dealer. To obtain local dealer

information, visit the Locator section of our website, subzero.com.

he Integrated line of refrigeration is growing—literally

and figuratively. We've introduced the Model 736TC(I)

tall combination unit, now we are offering a 36" (914)

wide all refrigerator unit, the Model 736TR. Yes, that's

correct, the Integrated line is not only 27" (686) wide,

now you can you can expand your choices to 36" (914)

wide models.

With this model, you can adjust the door cabinet

temperature independent of the two drawer environ-

ment. The range for both compartments is 34˚F (1˚C)

to 45˚F (7˚C).

All of the panel specifications are identical to the 27"

(686) wide tall models, except they have grown 9"

(229) wider.

Seamless

molding

Adjustable dairy

compartment

Adjustable door

shelves

Egg container

Removable

crisper cover

Upper refrigerator

storage drawer

Lower refrigerator

storage drawer

Need help?

Do you have a question about the Sub-Zero I736TR and is the answer not in the manual?

Questions and answers

Summary of Contents for Sub-Zero Sub-Zero I736TR

Page 1 We’ve introduced the Model 736TC(I) tall combination unit, now we are offering a 36" (914) wide all refrigerator unit, the Model 736TR. Yes, that’s correct, the Integrated line is not only 27" (686) wide, now you can you can expand your choices to 36" (914) wide models.
Page 2 Planning Information Integrated Model 736TR F E A T U R E S Tall 36" (914) wide all refrigerator unit with upper cabinet refrigerator and refrigerator storage drawers Integrated design for "point-of-use" refriger- ation anywhere in the home Refrigeration system with two distinct...
Page 3 Planning Information Integrated Model 736TR M O D E L O P T I O N S Tall Refrigerator Unit 736TR P A N E L O P T I O N S Integrated (custom panels) Classic Stainless Steel Finish...
Page 4: Top View
Planning Information Integrated Model 736TR I N S T A L L A T I O N S P E C I F I C A T I O N S " (38) LOCATE ELECTRICAL WITHIN SHADED AREA – ORIENT GROUND PRONG TO RIGHT AS SHOWN ANTI-TIP BRACKET...
Page 5 Planning Information Integrated Model 736TR I N S T A L L A T I O N N O T E S Refer to the illustrations and specifications for overall dimensions, finished rough opening dimensions and installation specifics. IMPORTANT NOTE: The depth of Model 736TR is 24"...
Page 6 Planning Information Integrated Model 736TR As the reveal between cabinets and the Integrated unit decreases, the potential exists for severe finger pinching or crushing if a hand or fingers are placed in the opening when the door is closing. Dimensions in parentheses are in millimeters unless otherwise specified.
Page 7 Planning Information Integrated Model 736TR F R A M E D C A B I N E T R Y SUB-ZERO (610) UNIT TO WALL CABINET FRAME CABINET PANEL " (3) DOOR REVEAL (914) Traditional Frame – full overlay (top view). SUB-ZERO (610) UNIT...
Page 8 Planning Information Integrated Model 736TR F R A M E D C A B I N E T R Y – B E A D E D I N S E T A P P L I C A T I O N 24"...
Page 9 Planning Information Integrated Model 736TR F R A M E L E S S C A B I N E T R Y "* (908) PANEL WIDTH " (1153) " (345) "* (424) 4"* (102) 36" (914) TOE KICK FINISHED OPENING A) ALL REVEALS ARE 1/8"...
Page 10 Planning Information Integrated Model 736TR P A N E L C O N S I D E R A T I O N S The illustrations below provide panel width dimensions for installation of a 36" (914) wide tall unit and for installing two 36"...
Page 11 Planning Information Integrated Model 736TR CABINETS (635) (914) TOP VIEW Installation without side panels. CABINETS (635) (914) MINIMUM " (16) SIDE PANELS Installation with side panels. CABINETS (635) (1829) TOP VIEW Installation of two units side by side. CABINETS (635) (914) MINIMUM "...
Page 12 Planning Information Integrated Model 736TR U P P E R V A L E N C E D E T A I L 2 (38) (1153) BOTTOM DOOR PANEL (2032) FLOOR FINISHED HEIGHT OF 80" (2032) IS TO TOP OF SUB-ZERO MOLDING Dimensions in parentheses are in millimeters unless otherwise specified.
Page 13 Planning Information Integrated Model 736TR T O E K I C K A R E A D E T A I L (268) PANEL (424) PANEL (254) OPTIONAL (102) Dimensions in parentheses are in millimeters unless otherwise specified. T O E K I C K C L E A R A N C E The toe kick clearance can vary with the height of the lower drawer panel;...
Page 14 Planning Information Integrated Model 736TR F R A M E D C A B I N E T R Y IMPORTANT NOTE: The depth of each Integrated unit is 24" (610) from the front of the unit to its back. Your design may necessitate moving the unit back, or cabinets forward to achieve a flush fit.
Page 15 Planning Information Integrated Model 736TR F R A M E L E S S C A B I N E T R Y IMPORTANT NOTE: The depth of each Integrated unit is 24" (610) from the front of the unit to its back.
