Planning Information
Built-In Model 685
H
W W

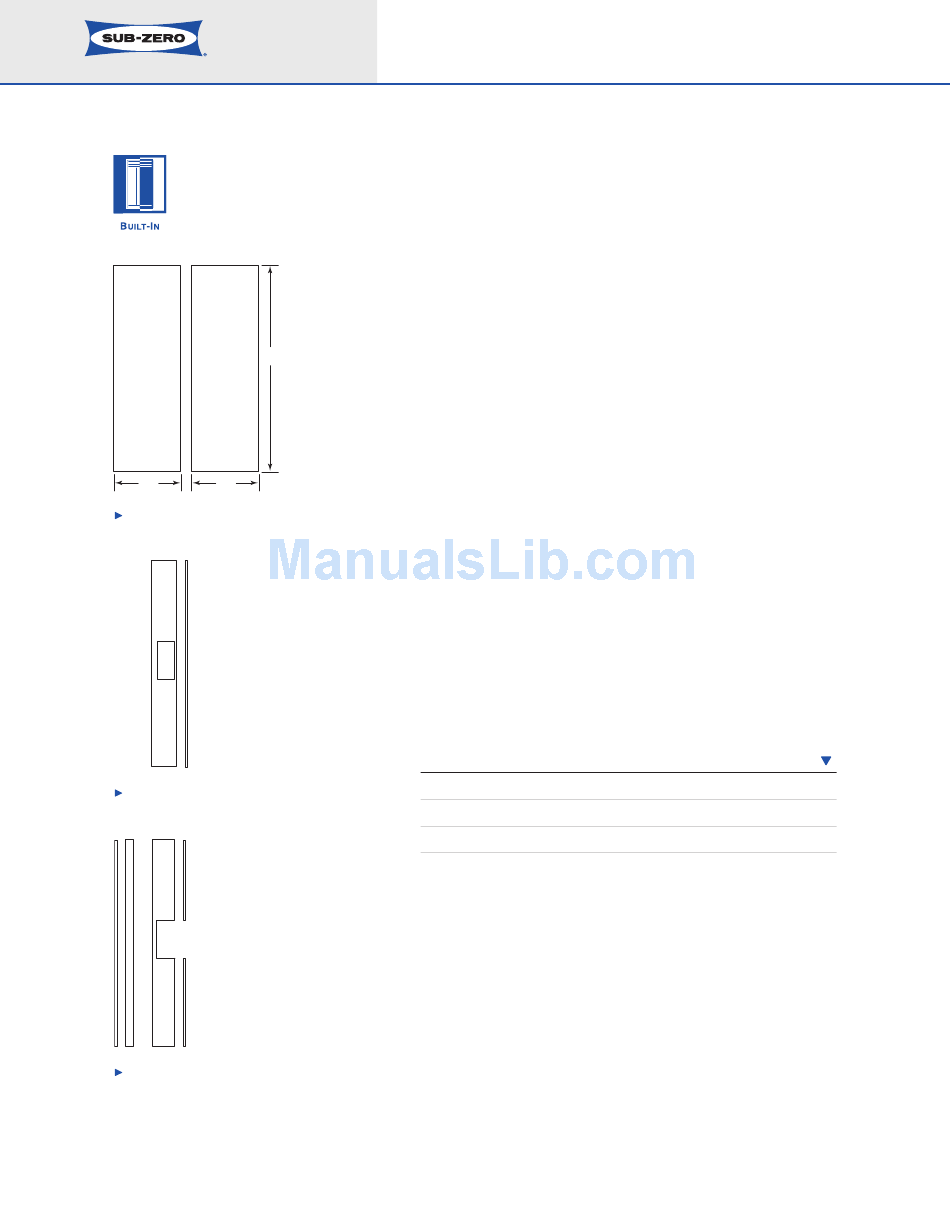

Partial Framed Door Panels
(identical in size)
Partial framed kit
Framed retrofit kit
Dimensions in parentheses are in
millimeters unless otherwise specified.
F R A M E D P A N E L A C C E S S O R Y K I T S
For framed models, the refrigerator door panel must
include a cut-out to accommodate the glasswell and bezel.
The thickness of the panel in this area can range from
1
(6) to a maximum of 1 / " (29). If the panel is thicker,
8
provisions must be made to rout out a space to accommo-
date the decorative bezel surrounding the glasswell.
If you choose not to use custom wood panels above or
below the glasswell for the framed application, a stainless
steel insert panel will be provided with the partial framed
accessory kit. This accessory kit includes partial framed
molding and classic stainless steel inset handle panel to
provide a spill-resistant finish above and below the glass-
well on the refrigerator door only. Refer to the specifica-
tions for this option in the chart below. Grille panel dimen-
sions will be the same as shown for framed panels.
With the framed retrofit accessory kit, existing Model 680
door panels can be used on a new Model 685 framed unit.
This accessory kit includes framed retrofit moldings and
classic stainless steel inset handle panels to accommodate
existing Model 680 framed refrigerator and freezer door
panels.
IMPORTANT NOTE: When using a partial framed or framed
1
retrofit kit, a / " (13) reveal must be maintained on the
2
bezel side of the panel.
Both accessory kits are available through your Sub-Zero
dealer. To obtain local dealer information, visit the Locator
section of our website, subzero.com.
P A R T I A L F R A M E D P A N E L D I M E N S I O N S
Refrigerator Door Panel
Freezer Door Panel
1
/
4
WIDTH HEIGHT
5 11
15 / " 67 / "
(397) (1719)
8 16
5 11
15 / " 67 / "
(397) (1719)
8 16
"
8
