3.1 GNSS – VBOX 3iS Single Antenna (v2) Settings

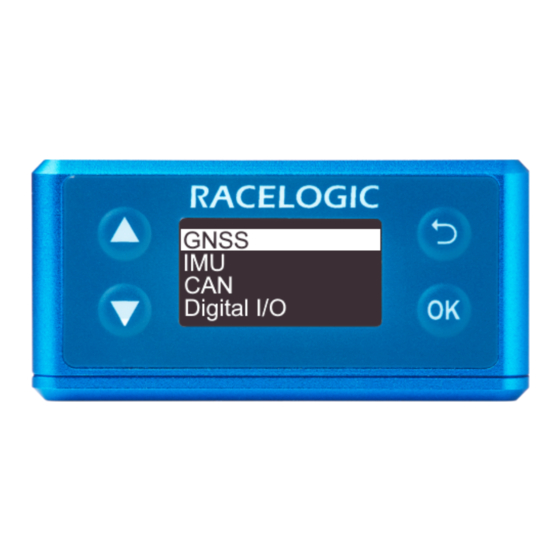

You can access the menu by pressing the OK button. Use the Up and Down arrows to navigate through the menu

and press the OK button to enter a submenu or change a setting. When you edit a setting, the Up and Down buttons

will let you scroll through the available options for that setting and the OK button will confirm your selection. Use the

Back button to exit a setting.

You can use this menu to configure the GNSS settings.

This setting will perform a coldstart of the GNSS Engine.

You can find more information here.

This setting lets you change the sensitivity of the GNSS

engine.

You can find more information here.

High (default)

For high dynamic applications such as brake stop

https://en.racelogic.support//Product_Info/Sensors/VBOX_3iS_Product_Range/VBOX_3iS_Single_Antenna/

VBOX_3iS_Single_Antenna_(v2)/User_Guide_-_VBOX_3iS_Single_Antenna_(v2)/03_Front_Panel_-

_VBOX_3iS_Single_Antenna_(v2)/3.1_GNSS_%E2%80%93_VBOX_3iS_Single_Antenna_(v2)_Settings

Table of Contents

Need help?

Do you have a question about the VBOX 3iS Single Antenna and is the answer not in the manual?

Page 1 3.1 GNSS – VBOX 3iS Single Antenna (v2) Settings You can access the menu by pressing the OK button. Use the Up and Down arrows to navigate through the menu and press the OK button to enter a submenu or change a setting. When you edit a setting, the Up and Down buttons will let you scroll through the available options for that setting and the OK button will confirm your selection.
Page 2 This setting configures the DGNSS baud rate. To make sure that VBOX 3iS receives the DGNSS correction signal, you must set the correct DGNSS rate. All Racelogic blue boxed radios use 115200 kbit/s, and Satel grey boxed radios use either 19200 kbit/s or 38400 kbit/s.
Page 3 You can find more information here. 10 (default), 15, 20, 25 Note: Increasing this value will reduce the number of satellites the VBOX will be able to use. https://en.racelogic.support//Product_Info/Sensors/VBOX_3iS_Product_Range/VBOX_3iS_Single_Antenna/ VBOX_3iS_Single_Antenna_(v2)/User_Guide_-_VBOX_3iS_Single_Antenna_(v2)/03_Front_Panel_- _VBOX_3iS_Single_Antenna_(v2)/3.1_GNSS_%E2%80%93_VBOX_3iS_Single_Antenna_(v2)_Settings...
