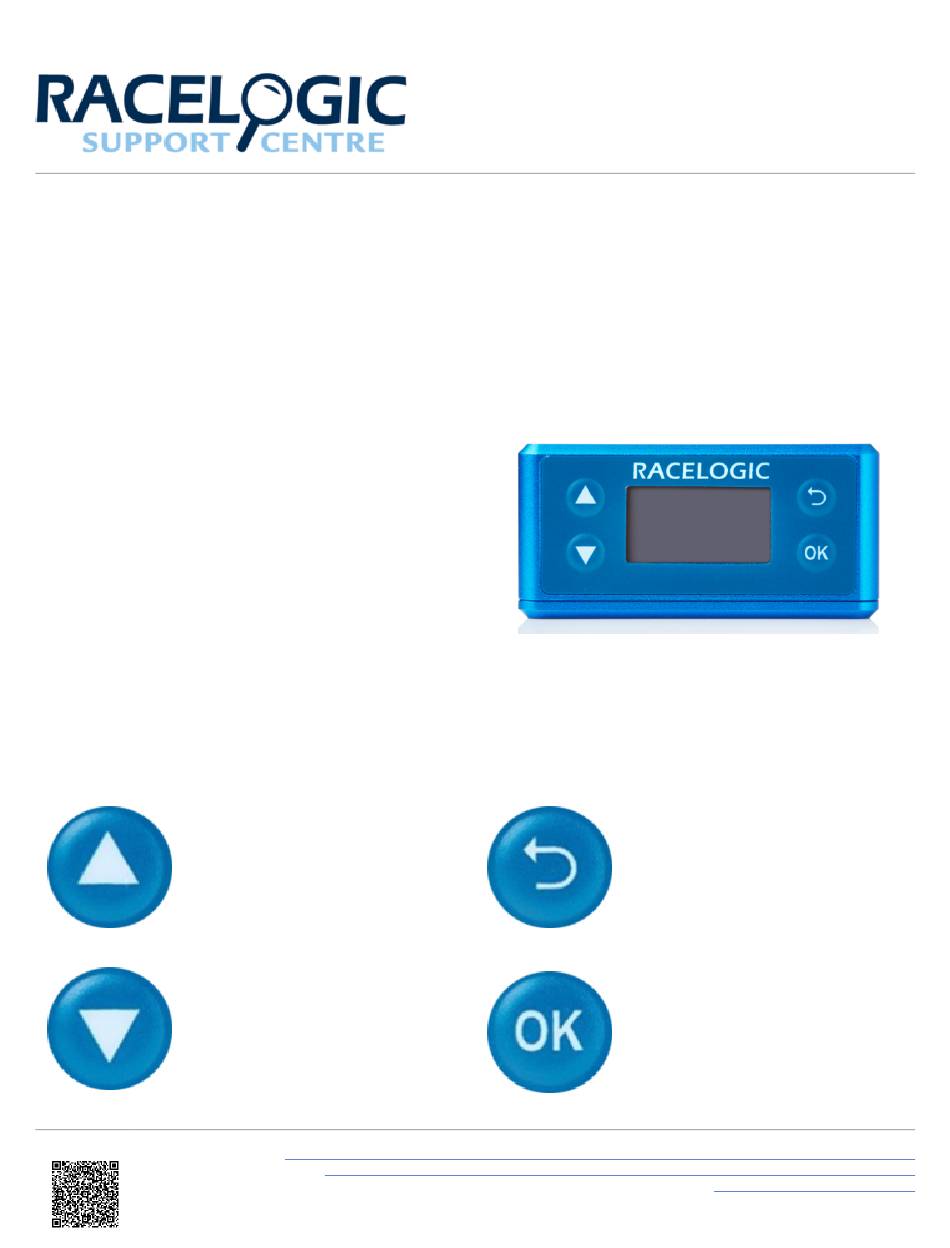

03 Front Panel - VBOX 3iS Single Antenna (v2)
Overview
To facilitate unit configuration, VBOX 3iS has an OLED
display and four membrane buttons on the front panel.
Alternatively, you can use VBOX Manager to configure
the VBOX 3iS unit. VBOX Manager will mirror the
functionality of the front panel on the VBOX 3iS.
Buttons
Menu up / Increase the
value when editing a
number.
Menu down / Decrease
the value when editing a
number.
https://en.racelogic.support//Product_Info/Sensors/VBOX_3iS_Product_Range/VBOX_3iS_Single_Antenna/
VBOX_3iS_Single_Antenna_(v2)/User_Guide_-_VBOX_3iS_Single_Antenna_(v2)/03_Front_Panel_-
Move to the previous
menu level.
Enter the menu / select
menu item for adjustment.
_VBOX_3iS_Single_Antenna_(v2)
1
Advertisement
Related Manuals for Racelogic VBOX 3iS
Summary of Contents for Racelogic VBOX 3iS
- Page 1 03 Front Panel - VBOX 3iS Single Antenna (v2) Overview To facilitate unit configuration, VBOX 3iS has an OLED display and four membrane buttons on the front panel. Alternatively, you can use VBOX Manager to configure the VBOX 3iS unit. VBOX Manager will mirror the functionality of the front panel on the VBOX 3iS.
- Page 2 Display Startup When the VBOX 3iS is powered up, it will display the RACELOGIC logo along with the serial number of the unit. Next, it will change to display the firmware version of the unit. When the unit has initialised and any warnings have been cleared, the number of satellites will be displayed.
- Page 3 Speed >0.8kph – Initialisation reset. When the unit has detected the speed, the display will show an indication of the Kalman Filter quality in relation to Speed Quality Channel output on CAN ID 0x306. The display will read either: https://en.racelogic.support//Product_Info/Sensors/VBOX_3iS_Product_Range/VBOX_3iS_Single_Antenna/ VBOX_3iS_Single_Antenna_(v2)/User_Guide_-_VBOX_3iS_Single_Antenna_(v2)/03_Front_Panel_- _VBOX_3iS_Single_Antenna_(v2)
- Page 4 5 seconds. After this period, the unit will beep and it will play an audible confirmation signal when the reset is finished. Note: Receiver settings (Dynamic Mode, DGNSS Mode, DGNSS Rate and Elevation mask) will not reset. https://en.racelogic.support//Product_Info/Sensors/VBOX_3iS_Product_Range/VBOX_3iS_Single_Antenna/ VBOX_3iS_Single_Antenna_(v2)/User_Guide_-_VBOX_3iS_Single_Antenna_(v2)/03_Front_Panel_- _VBOX_3iS_Single_Antenna_(v2)
