Framed Panel Dimensions; Framed Grille Panel Dimensions - Sub-Zero 611 Specifications

Planning Information
Built-In Model 611
H
14"
H
(356)
A
B
H
W

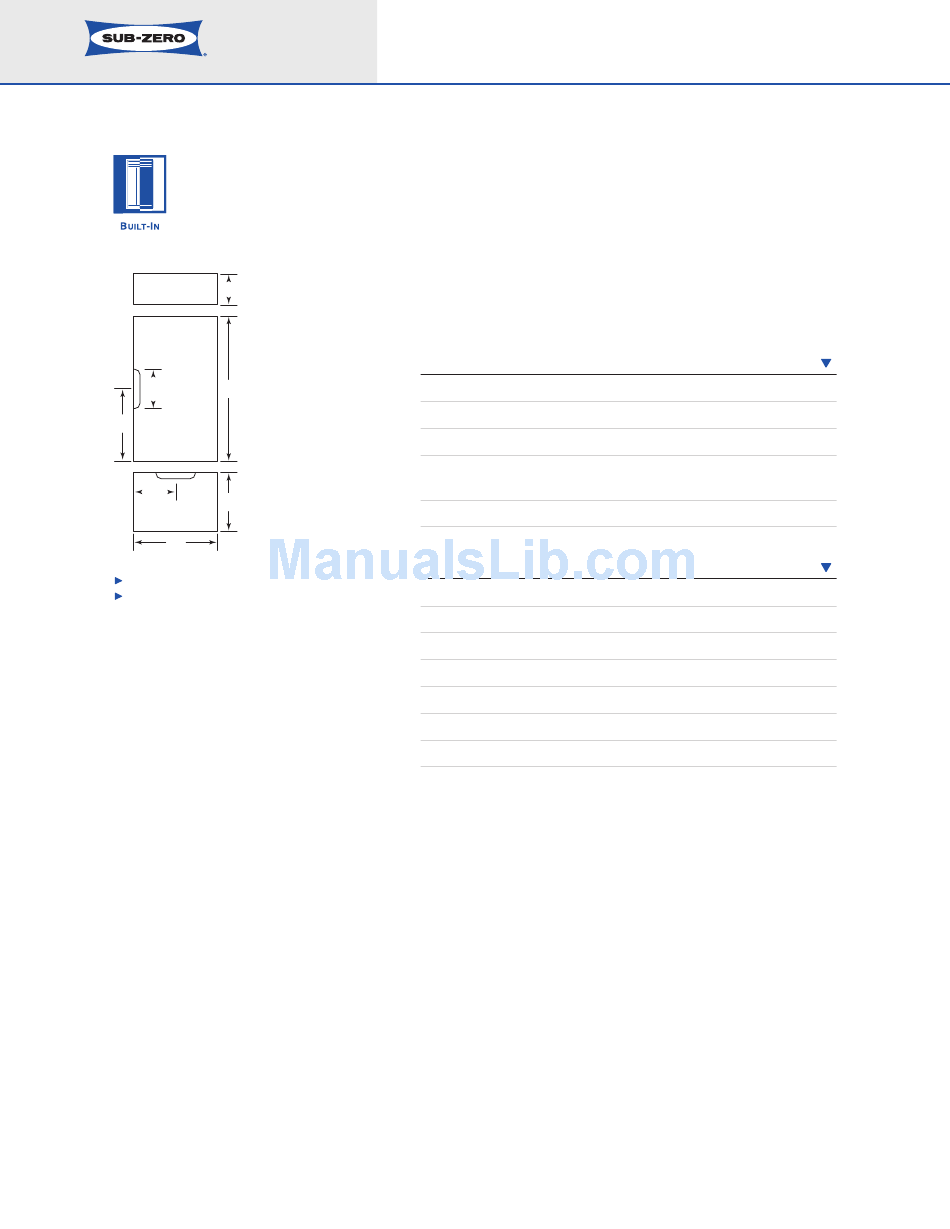

Framed Door Panels
Framed Grille Panel
Dimensions in parentheses are in
millimeters unless otherwise specified.
F R A M E D P A N E L S
An 11" (279) louvered grille is standard on framed applica-
tions. Optional louvered grilles are available in 1" (25)
height increments from 10" (254) to 15" (381).
You may choose to use Sub-Zero's optional panel grille for
the framed application. Optional panel grilles are available
in 1" (25) height increments from 10" (254) to 15" (381).
Refer to the chart below for panel dimensions.
F R A M E D P A N E L D I M E N S I O N S
Refrigerator Door Panel
Freezer Door Panel
Handle Recess Location
Maximum Weight (per panel)
F R A M E D G R I L L E P A N E L D I M E N S I O N S
10" (254) Grille
11" (279) Grille
12" (305) Grille
13" (330) Grille
14" (356) Grille
15" (381) Grille
WIDTH HEIGHT
1 1
28 / " 48 / "
(714) (1221)
8 16
1 3
28 / " 18 / "
(714) (467)
8 8
1
A – 24 / "
(610)
32
1
B – 14 / " (357)
16
50 lbs
(23 kg)
WIDTH HEIGHT
3 15
28 / " 8 / "
(716) (227)
16 16
3 15
28 / " (716) 9 / " (252)
16 16
3 15
28 / " (716) 10 / " (278)
16 16
3 15
28 / " 11 / "
(716) (303)
16 16
3 15
28 / " 12 / "
(716) (329)
16 16
3 15
28 / " (716) 13 / " (354)
16 16
7
