Micsig MDP Series Quick Manual

5. Operation Steps
1) Power the probe: Connect the probe to the oscilloscope USB via USB-C cable;
2) Connect to oscilloscope: Connect the BNC end of the probe to oscilloscope
channel (make sure the oscilloscope is grounded);
3) Select Range: Select appropriate voltage range according to the signal;
4) Connect the DUT: Use clips or hooks to connect the DUT, if an over-voltage
alarm occurs, disconnect the power supply and the circuit immediately;
5) Set on the oscilloscope.
*Note: Try not to use extension leads when measuring, it could bring more noise floor. If must use the
extension leads, please twist the leads together to reduce noise, and the input frequency should not
exceed 5MHz. If it exceeds 5MHz, the output will have a certain error.
6. Warranty
1) Micsig warrants the main body of this differential probe for 1 year.
During the warranty period, Micsig will be responsible for free maintenance for
any failure caused by the quality of the product under normal use.
2) Under the following circumstances, Micsig will refuse to provide maintenance
services or charge for a fee:
a. No packaging or anti-counterfeiting label.
b. Anti-counterfeit label has been altered or blurred beyond recognition.
c. Unauthorized disassembly, such as: changing wires, dismantling internal
components, etc.
d. No sales voucher or the content of sales voucher does not match the product.
7. Safety Precautions
1) Non-professionals do not open the product casing;
2) Do not use while case is open;
3) Do not touch any bare metal while testing;
4) Disconnect the power supply and circuit immediately when over range;
5) Do not use in flammable and explosive environments;
Shenzhen Micsig Technology Co., Ltd.
Tel: +86-755-88600880 Email: sales@micsig.com
Add: A106, Huafeng Robot Industrial Park, Hangcheng Rd, Bao'an, Shenzhen,
Guangdong, China, 518126
Quick Guide

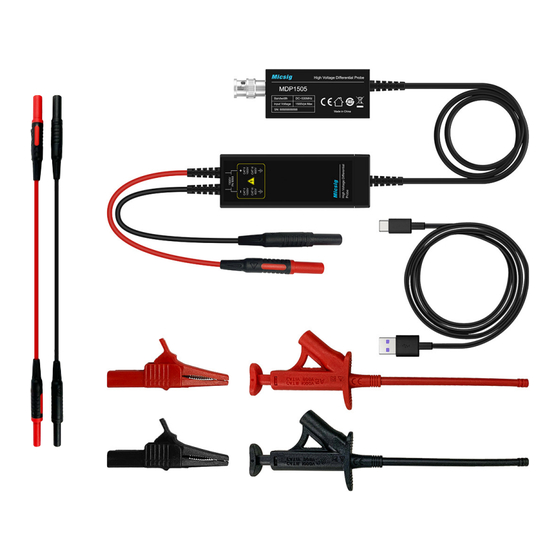

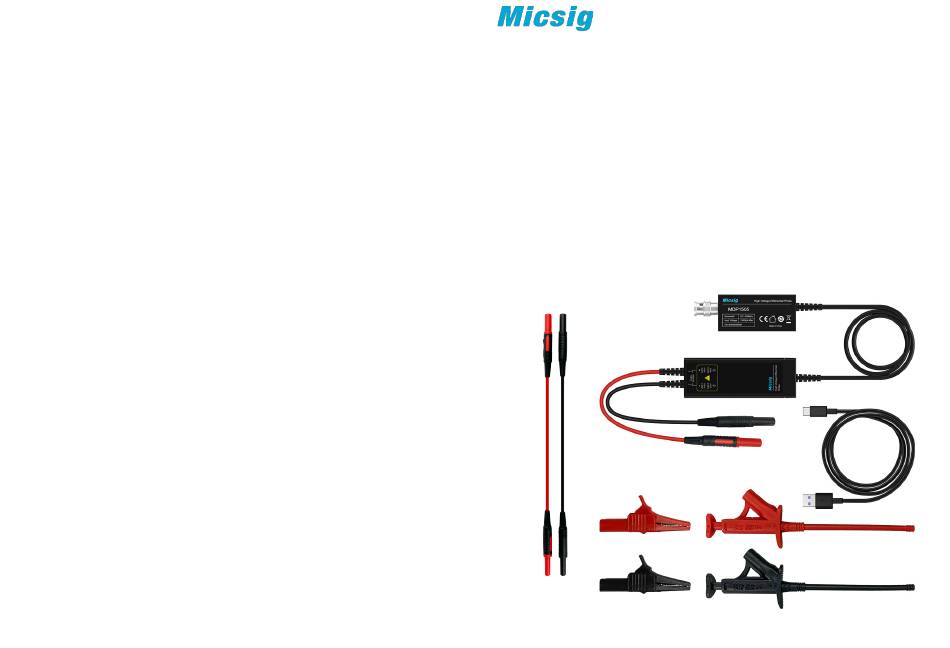

High Voltage Differential Probe -- MDP series
Bandwidth: 300MHz / 400MHz / 500MHz
1. Overview
Originated from Micsig's cutting-edge SigOFIT
voltage differential probe has very low noise floor, excellent amplitude-frequency
characteristics and industry-leading common mode rejection capability, allow users
to test high-frequency and high-voltage signals with ease.
* Extension leads,
twist together can
lower noise
technology, the MDP series high-
TM
