Micsig DP5013 User Manual

Best Practices：
4
1) Twisting the input leads together can help reduce noise and improve
the probe's high frequency response when measuring signals. Please
view the diagram below for an example:
2) Extending the input leads may introduce more noise during measurement.
If extra extension lead is necessary, please ensure the extension leads
are of equal length and the input signal frequency is under 10MHz.
Otherwise, measurement errors may occur.
3) While measuring a high frequency signal, don't touch the end of the
input lead with your hand or other objects. Otherwise, it may affect the
accuracy of the measurement.
4) Ensure that you use an oscilloscope with an input impedance of at least
1MΩ and bandwidth of at least 100MHz.
5) Turn on the oscilloscope or externally powered instrument and let the
probe and equipment warm up for 20 minutes.
5 Warranty
Micsig warrants that this probe will be free from defects in materials and
workmanship for a period of one (1) year and accessories for a period of
six(6) months from the date of shipment. If any such product proves
defective during this warranty period, Micsig, at its option, either will repair
the defective product without charge for parts and labor, or will provide a
replacement in exchange for the defective product. Parts, modules
and replacement products used by Micsig for warranty work may be new
or reconditioned to like new performance. All replaced parts, modules and
products become the property of Micsig.
Shenzhen Micsig Instruments Co., Ltd.
Add: 305 Block A, CLOU Building, Baoshen RD, North Area, Nanshan
Science & Technology Park, Shenzhen, Guangdong, China. 518000
WEB: www.micsig.com
TEL: +86-755-88600880
E-mail: sales@micsig.com

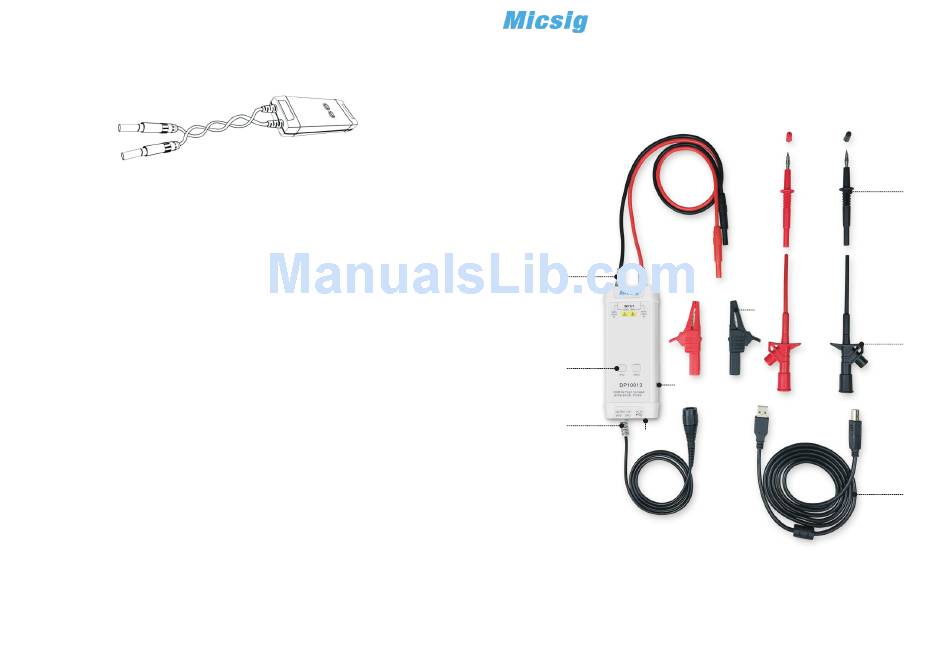

High Voltage Differential Probe
①
⑤
②
④
③

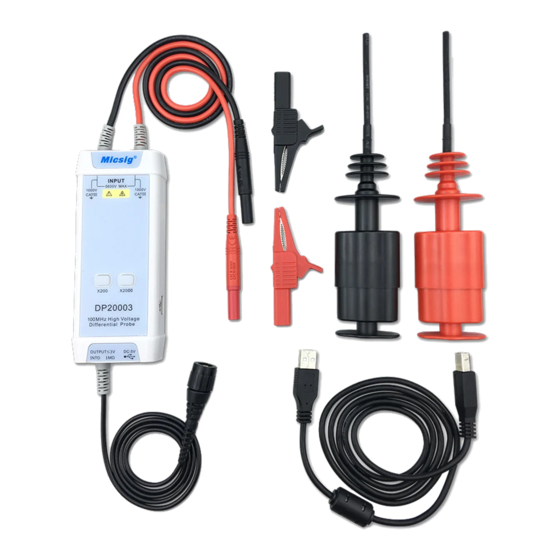

①Signal Input ②Power Output ③Power Input ④Signal Output
⑤Attenuation Range Buttons/Indicators(Over-range if flashing)
⑥Alligator Clips (red &black, 1 pair) ⑦Test Probes (red & black, 1 pair)
⑧Test Hooks (red & black, 1 pair) ⑨USB Cable
Please read this manual carefully before use!
DP5013/DP10013
User Manual
⑦
⑥
⑧
⑨
