Micsig DP10007 User Manual

High Voltage Differential Probe

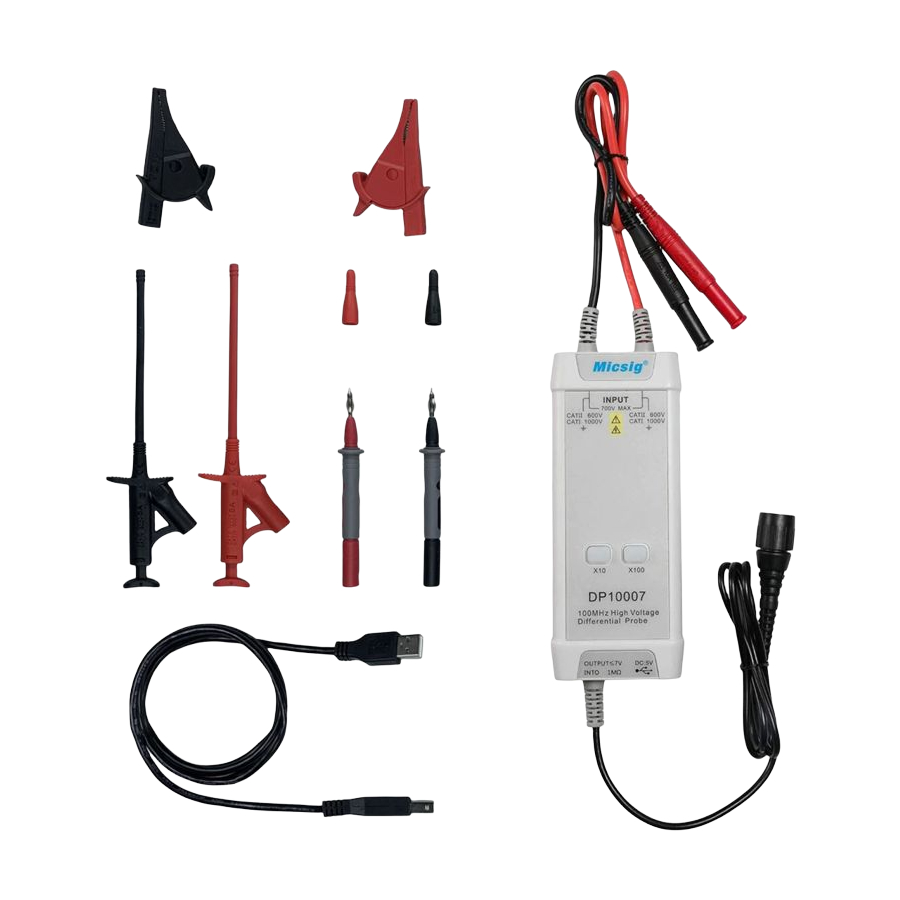

DP10007
General Usage Summary
Connecting the probe: First, connect the probe's USB power input to a USB
power source such as the oscilloscope's USB port and connect the probe's BNC
connector to an oscilloscope input. Then, set the proper attenuation rate and
connect the probe input to the device st.
Disconnecting the probe: First, disconnect the probe inputs from the device
under test, and then unplug the probe output and power input.
Use proper grounding: To avoid an electric shock, all devices that require
grounding must be connected to earth ground. Before making connections to
the input or output terminals of the probe, ensure that the test instrument is
properly grounded if necessary.
Measurement safety: Always be aware of the voltage rating of the probe and
the measurement accessories you are using and of the maximum amplitude of
the signal you intend to measure. Never apply a potential that exceeds the
voltage ratings of the probe and/or its accessories to avoid damaging the
product and creating a hazardous situation.
Only qualified personnel should perform service on this product.
Do not touch exposed connections and components when power is present.
If an over-range condition occurs, please disconnect power and signal input
from the probe immediately.
Do Not Operate in an Explosive Atmosphere.
Do Not Operate in Wet/Damp Conditions.
Keep Product Surfaces Clean and Dry.
DP10007/DP10013/DP20003
User Manual
