OPERATION

Functional Overview
The Talos performs on the following processes to accept, validate and process a bill:
Process
Bill detection
Bill transport
Bill recognition
Bill validation
Credit or return
Bill Storage
Enabling Bills and Vend Coupons
Follow this process to enable or disable bills or vend coupons:

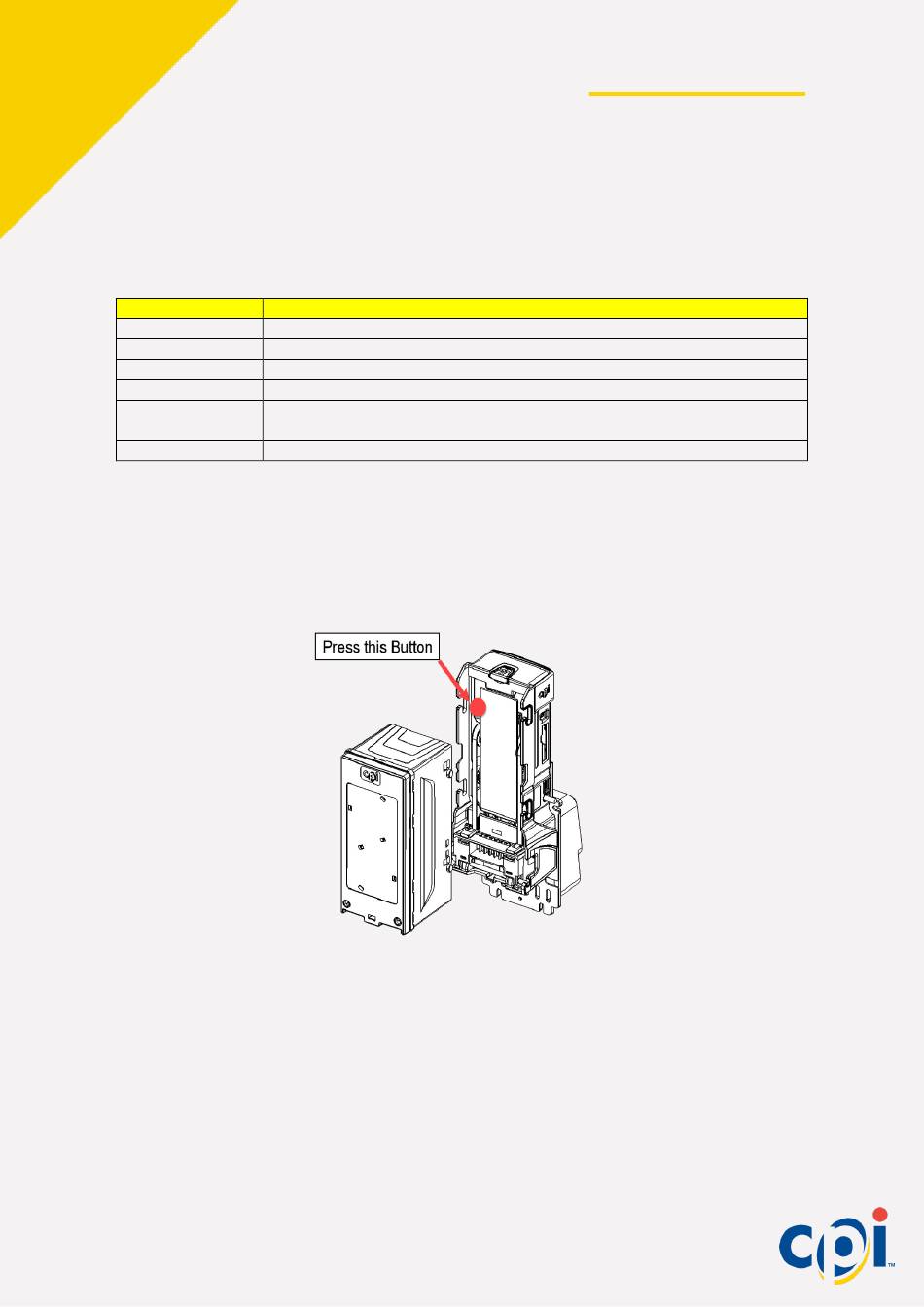

1. Remove the bill magazine, then use a pencil or a screwdriver to press the button to
enter configuration mode:
2. Reattach the bill magazine.
3. Insert the bill or vend coupon.
4. The bezel LEDs flash when the bill or vend coupon is returned.
5. Count the flashes to determine the outcome using the chart on the next section.
8
Talos Operation and Service Guide
Details
Talos senses the bill and prepares the drive motor.
Drive belts pull the bill into the machine.
Internal sensors scan the bill to determine value.
The bill is held in escrow as it is validated as a real bill.
Credit is applied if the bill is valid or the bill is returned to the
customer if not.
The bill is stacked into the cassette or recycler.
