Summary of Contents for BOERPLAY BBPE038.2H

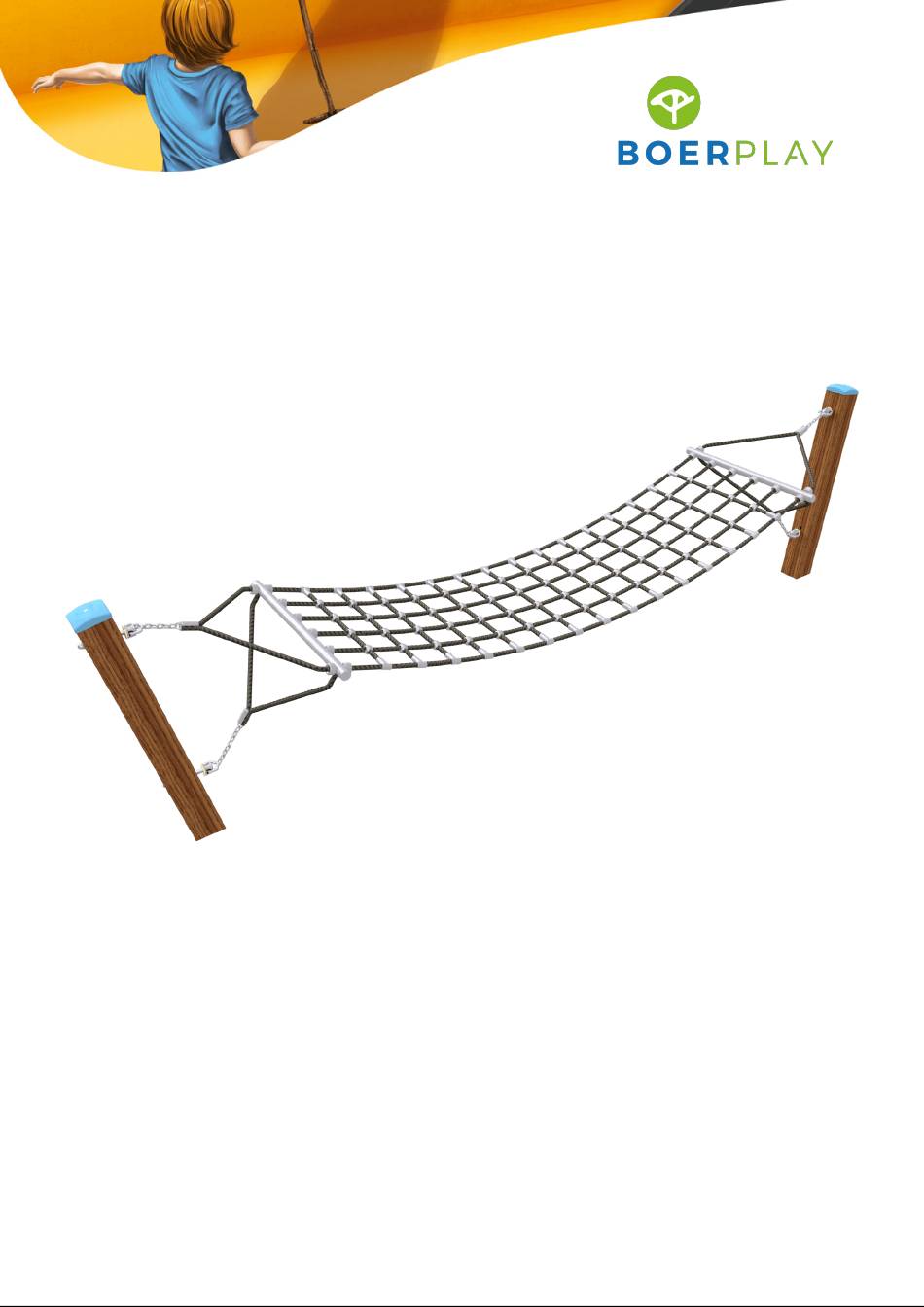

- Page 1 Hammock BBPE038.2H...
- Page 2 0,91 m 0,80 m 0,00 m > 0,40 m Benaming TOE BBP 038 2H A Hangmat Title Tekening Opmerking Drawing Comment Datum Hoofdafmetingen Main dimensions 13-10-2020 Date...
- Page 3 Opvangzone Impact area Obstakelvrije zone Obstacle free zone Benaming TOE BBP 038 2H A Hangmat Title Tekening Opmerking Drawing Comment Datum Obstakelvrije zone Obstacle free zone 13-10-2020 Date...
- Page 4 1,82 m 1,82 m 0,80 m Grondmarkering Ground level marker Benaming TOE BBP 038 2H A Hangmat Title Tekening Opmerking Drawing Comment Datum Bodemplan Groundplan 13-10-2020 Date...
- Page 5 Geleverde modules: Supplied modules: Zie tabel See table Montageinstructie: Assembly instruction: - De hoofdmaten geven de maten van de staanders en vloeren aan - The main dimensions indicate the dimensions of the posts and floors - De detailtekeningen geven specifiek de maten van de verbindingen aan - The detailed dimensions show the specific dimensions of the connections - The modules which contain tubes are dimensioned at the top of the flanges - De modules met buizen zijn op de tekeningen bemaat op bovenkant kopplaat...
- Page 6 LOGBOOK Type indication Basic Play Article number BBPE038.2H Product Name Hammock Maximum fall height 1,0 m Construction year 2023 Certificate 146461 Inspection body Keurmerkinstituut Groeneweg 2e, Zoetermeer 2718AA Zoetermeer Manufacturer name Boer Speeltoestellen Hyacintstraat 2 - 4255 HX Nieuwendijk Phone: +31 (0)183 40 23 66...
- Page 7 LOGBOOK Inspection and maintenance Date of Time of Name Name Parts to be inspection inspection executor of executor of Found defects replaced maintenance maintenance inspection maintenance Accidents Date Age of Measures taken Probable cause of injury Occurred injury accident victim after accident...
-
Page 8: Inspection And Maintenance Intervals
Inspection and maintenance intervals months Nr. Inspection Maintenance between inspections Verify equipment's stability, junctions and Add missing parts, secure joints, apply missing parts. Inspect bolts, screws and nuts for missing fixing agent and replace absence, jams, corrosion and wear. corroded parts. Replace worn parts and/or remove non- Check suspension for wear. - Page 9 7. Remember that bad maintenance leads to unsafe conditions and notably faster impoverishment of the playground area. 8. Replacement parts can be ordered at the manufacturer with the OEM part numbers on the module drawing. Drawings can be found in the user guide. 9.
- Page 11 A ( 1 : 2 ) In het werk inkorten Type Progr. Volgnr. Bew. Rev. Benaming Opmerking Scharnier hangmat Net hangmat Robinia Benaming MOD BBP 672 G Hangmat Title Tekening Opmerking Drawing Comment Datum Samenstelling module Assembly module 13-10-2020 Date...
- Page 12 Type Progr. Volgnr. Bew. Rev. Benaming Opmerking Borgmoer M10 - VZ 8.8 SLUITRING M10 VZ Draadeind M10 x 450 - VZ 8.8 Beton stort 80x80x30 cm Benaming MOD RBP 999 999 Beton voor staander Title Tekening Opmerking 192 Liter cement Drawing Comment Datum...
- Page 13 Type Progr. Volgnr. Bew. Rev. Benaming Opmerking 5 x 50 - RVS A2-70 Schroef Assy Staander hangmat L = 1700 Paalkap 100x100 Benaming MOD BBP 673 H Staander Hangmat Title Tekening Opmerking H = 900 Drawing Comment Datum Samenstelling module Assembly module 13-10-2020 Date...
