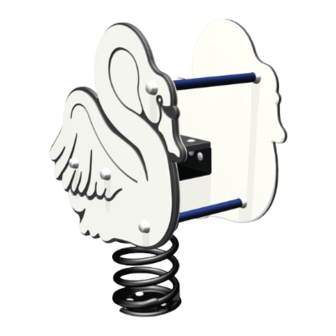

Springer Swan
BBPE011.4K

Advertisement

loading
Need help?

Need help?

Do you have a question about the Springer Swan and is the answer not in the manual?

Questions and answers

Related Manuals for BOERPLAY Springer Swan

Summary of Contents for BOERPLAY Springer Swan

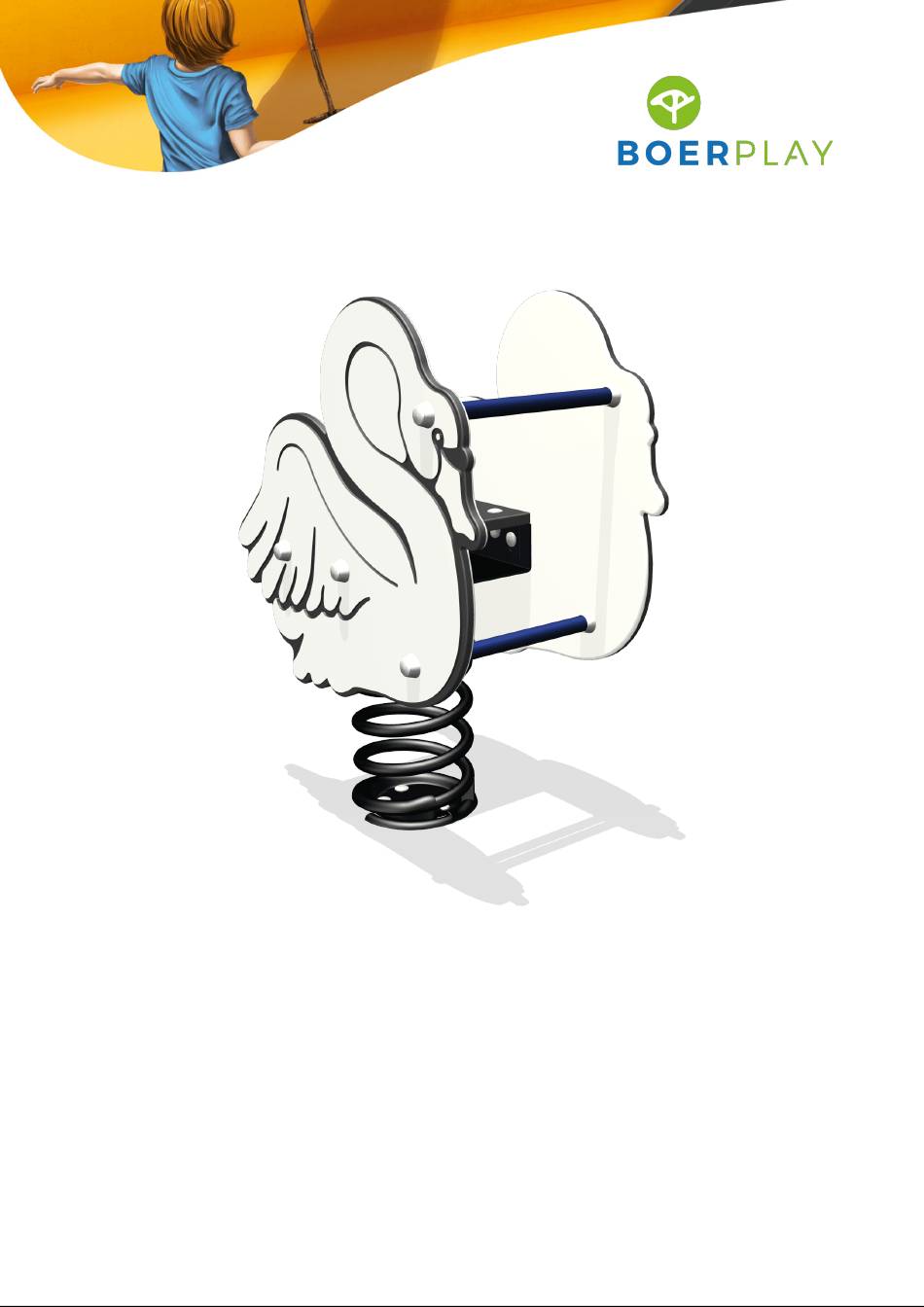

  • Page 1 Springer Swan BBPE011.4K...

  • Page 2: Main Dimensions

    Hoofdafmetingen Hauptabmessungen Dimensiones principales Dimensions principales 0,67 m BBP 011 4K © Copyright BOERplay 4-8-2021 Revision: A...
  • Page 3 Obstakelvrije zone Hindernissfreie raum Zona libre de obstáculos Zone libre d’obstacles 3,50 m BBP 011 4K © Copyright BOERplay 4-8-2021 Revision: A...
  • Page 4 Bodemplan Bodenplan Plan de superficie Plan de surface 1,75 m 1,75 m 0,48 m Grondmarkering Ground level marker 0,49 m BBP 011 4K © Copyright BOERplay 4-8-2021 Revision: A...

  • Page 5: Order Of Assembly

    2 - Check the dimensions of the safety area with regard to the play equipment 2 - Controleer de afmetingen van de valbodem t.o.v. het toestel Typeplaatje Identification plate Type Progr. Volgnr. Bew. Rev. Benaming Opmerking Veerwip Onderstel Zwanen Hobbel Handgreep Hobbel BBP 011 4K © Copyright BOERplay 4-8-2021 Revision: A...
  • Page 6 LOGBOOK Type indication Basic Play Article number BBPE011.4K Product Name Springer Swan Maximum fall height > 0,6 m Construction year 2023 Certificate 138144 Inspection body Keurmerkinstituut Groeneweg 2e, Zoetermeer 2718AA Zoetermeer Manufacturer name Boer Speeltoestellen Hyacintstraat 2 - 4255 HX Nieuwendijk...
  • Page 7 LOGBOOK Inspection and maintenance Date of Time of Name Name Parts to be inspection inspection executor of executor of Found defects replaced maintenance maintenance inspection maintenance Accidents Date Age of Measures taken Probable cause of injury Occurred injury accident victim after accident...

  • Page 8: Inspection And Maintenance Intervals

    Inspection and maintenance intervals months Nr. Inspection Maintenance between inspections Verify equipment's stability, junctions and Add missing parts, secure joints, apply missing parts. Inspect bolts, screws and nuts for missing fixing agent and replace absence, jams, corrosion and wear. corroded parts. Replace worn parts and/or remove non- Check suspension for wear.
  • Page 9 7. Remember that bad maintenance leads to unsafe conditions and notably faster impoverishment of the playground area. 8. Replacement parts can be ordered at the manufacturer with the OEM part numbers on the module drawing. Drawings can be found in the user guide. 9.
  • Page 11 - module Montagehandleiding - module Montageanleitung - Modul Manual de ensamblado - módulo Manuel de montage - module MOD BBI 715 © Copyright BOERplay 12-1-2022 Revision:...
  • Page 12 1 / 1 OME.MNP.212.905 SMD.VER.200.905 BSV.026.010.035 BSV.030.010.002 BSV.010.010.010 SME.MNP.149.372 BSV.010.010.010 BSV.026.010.035 BSV.030.010.002 OME.MNP.212.905 SMD.VER.200.905 SME.MNP.149.372 MOD BBI 715 © Copyright BOERplay 12-1-2022 Revision:...
  • Page 13 M10 x 40 - VZ 8.8 Slotbout SLUITRING M10 VZ Veerring M10 - VZ 8.8 interplay donut M10 wit 84395000012 interplay dop M10 wit 84395000014 Hoekje mini play Zwaan Rechts Zwaan Links Zitje Hobbel MOD BBP 598 K © Copyright BOERplay 4-8-2021 Revision: A...
  • Page 14 Type Progr. Volgnr Bew. Rev. Benaming Opmerking Zeskantmoer M10 - VZ 8.8 SLUITRING M10 VZ Veerring M10 - VZ 8.8 Draadeind M10 x 365 - VZ 8.8 interplay donut M10 wit 84395000012 interplay dop M10 wit 84395000014 Buis staal blauw Ø24x2 L=295 Benaming MOD BBP 600 K...
