Solo Swing Anti-wrap H2.48

BBPE039.1H

Need help?

Do you have a question about the Solo Swing Anti-wrap H2.48 and is the answer not in the manual?

Questions and answers

Summary of Contents for BOERPLAY Solo Swing Anti-wrap H2.48

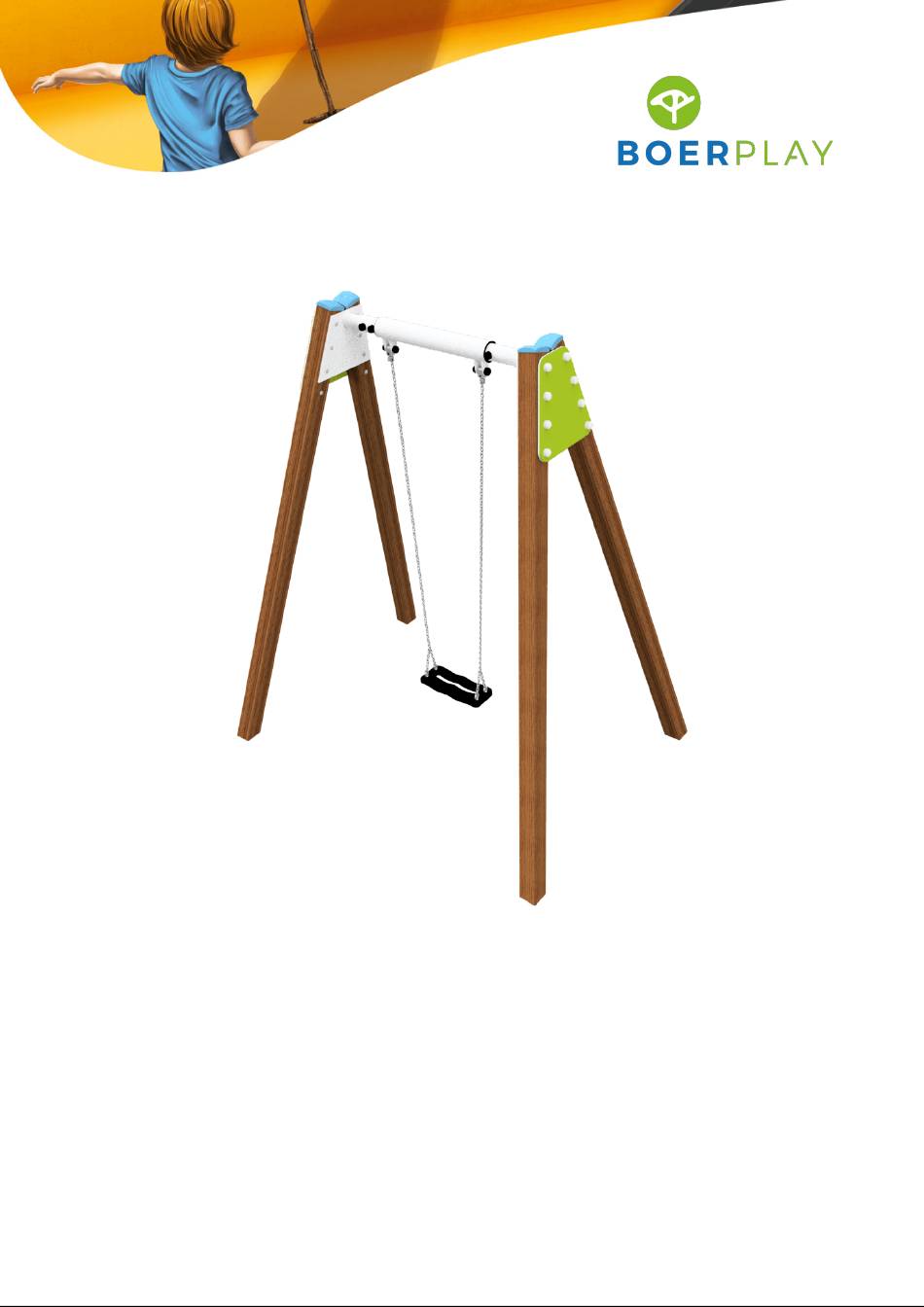

Page 1 Solo Swing Anti-wrap H2.48 BBPE039.1H...
Page 2 1,64 m 0,82 m 0,00 m 2,63 m 2,48 m 0,00 m Benaming TOE BBP 039 1H Enkele schommel Title Tekening Opmerking H = 2,5 m Drawing Comment Datum Hoofdafmetingen Main dimensions 11-8-2020 Date...
Page 3 2,75 m 1,75 m 1,37 m Obstakelvrij EN-1176 Obstacle free EN-1176 Opvangzone Impact area Obstakelvrij WAS Obstacle free WAS Benaming TOE BBP 039 1H Enkele schommel Title Tekening Opmerking H = 2,5 m Drawing Comment Datum Obstakelvrije zone Obstacle free zone 11-8-2020 Date...
Page 4 0,36 m 0,06 m 2,33 m 0,01 m Grondmarkering Ground level marker 0,50 m Benaming TOE BBP 039 1H Enkele schommel Title Tekening Opmerking H = 2,5 m Drawing Comment Datum Bodemplan Groundplan 11-8-2020 Date...
Page 5 Geleverde modules: Supplied modules: Zie tabel See table Montageinstructie: Assembly instruction: - De hoofdmaten geven de maten van de staanders en vloeren aan - The main dimensions indicate the dimensions of the posts and floors - De detailtekeningen geven specifiek de maten van de verbindingen aan - The detailed dimensions show the specific dimensions of the connections - The modules which contain tubes are dimensioned at the top of the flanges - De modules met buizen zijn op de tekeningen bemaat op bovenkant kopplaat...
Page 6 LOGBOOK Type indication Basic Play Article number BBPE039.1H Product Name Solo Swing Anti-wrap H2.48 Maximum fall height 1,5 m Construction year 2023 Certificate 066455 Inspection body TUV Nederland QA BV Ekkersrijt 4401 5692 DL Son Manufacturer name Boer Speeltoestellen Hyacintstraat 2 - 4255 HX Nieuwendijk...
Page 7 LOGBOOK Inspection and maintenance Date of Time of Name Name Parts to be inspection inspection executor of executor of Found defects replaced maintenance maintenance inspection maintenance Accidents Date Age of Measures taken Probable cause of injury Occurred injury accident victim after accident...
Page 8: Inspection And Maintenance Intervals
Inspection and maintenance intervals months Nr. Inspection Maintenance between inspections Verify equipment's stability, junctions and Add missing parts, secure joints, apply missing parts. Inspect bolts, screws and nuts for missing fixing agent and replace absence, jams, corrosion and wear. corroded parts. Replace worn parts and/or remove non- Check suspension for wear.
Page 9 7. Remember that bad maintenance leads to unsafe conditions and notably faster impoverishment of the playground area. 8. Replacement parts can be ordered at the manufacturer with the OEM part numbers on the module drawing. Drawings can be found in the user guide. 9.
Page 11 Type Progr. Bew. Rev. Benaming Volgnr. Opmerking Schroef Assy 5 x 50 - RVS A2-70 Borgmoer M10 - VZ 8.8 ZESKANT MOER Zeskantbout ISO 4014 M10 x 100 - VZ 8.8 Slotbout M10 x 145 - VZ 8.8 Slotbout M10 x 135 - VZ 8.8 SLUITRING M10 VZ Veerring...
Page 12 Type Progr. Volgnr. Bew. Rev. Benaming Opmerking Borgmoer M10 - RVS A2-70 M10 x 70 - RVS A2-70 Zeskantbout SLUITRING Schommelscharnier RVS A2-70 Donut zwart Beschermdop M10-M12 Beschermdop M10-M12 Dop zwart Lagerring BBP Schommel Zitje incl. ketting Zeskantbout M8 x 25 - RVS A2-70 Sluitring M8 - RVS A2-70 Zwart...
