echoflex ELED3 Installation Manual

Echoflex Installation Guide
Tri-Zone Dimming Controller
Overview
The Tri-Zone Dimming Controller,
models ELED3 and ELED3H, provide
wireless lighting control. The con-
troller includes three channels to
control lights in larger spaces based
on room occupancy state, manual
switch operation, ambient light
level, and gateway commands.
This document covers installation of
all ELED3 models. The Echoflex
Tri-Zone Dimming Controller
Configuration Guide is available for
download at echoflexsolutions.com.
The product package includes the controller and the installation guide.
Prepare for Installation
To ensure optimal function, consider the installation environment and the
following guidelines:
• Avoid spaces with high density construction materials and large
metal appliances or fixtures as they may disrupt wireless reception.
• For optimal performance, switches and sensors should be installed
within a 24 m (80 ft) unobstructed view of the controller.
• Mount the controller to an electrical junction box (preferably
non-metallic) or a panel in a location and at a height where it is not
subject to tampering by unauthorized personnel.
• Do not install clusters of Echoflex controllers in one location.
Rather, distribute them in the lighting zones they control to provide
the best wireless reception from linked transmitting devices.
Consider adding a repeater to extend the signal, if required.
• Make sure the antenna wire is unrestricted and not in contact with
any metal surface.
Supplies required to install the controller (not provided):
• Appropriately sized wire nuts
• Wire insulation
• Small cable ties
Corporate Headquarters n Middleton, WI, USA | +1 608 831 4116
© 2023 Echoflex Solutions, Inc. | Trademark and patent info:
Web echoflexsolutions.com
Third-party license agreement
change. Echoflex intends this document to be provided in its entirety.
8189M2110 Rev C Released 2023-12
| Email info@echoflexsolutions.com
info: etcconnect.com/licenses
echoflexsolutions.com/ip
| Support service@echoflexsolutions.com
| Product information and specifications subject to

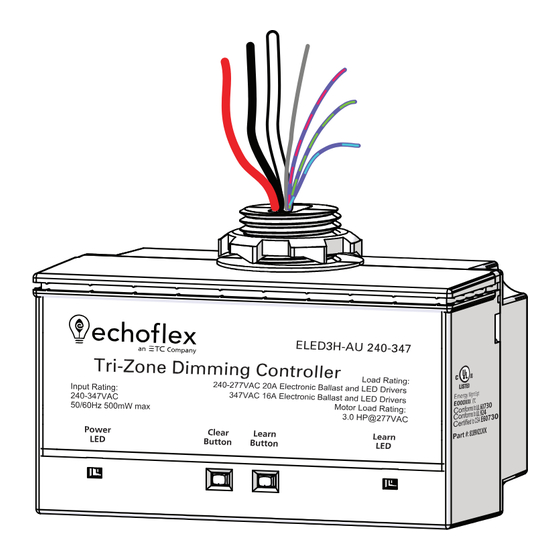

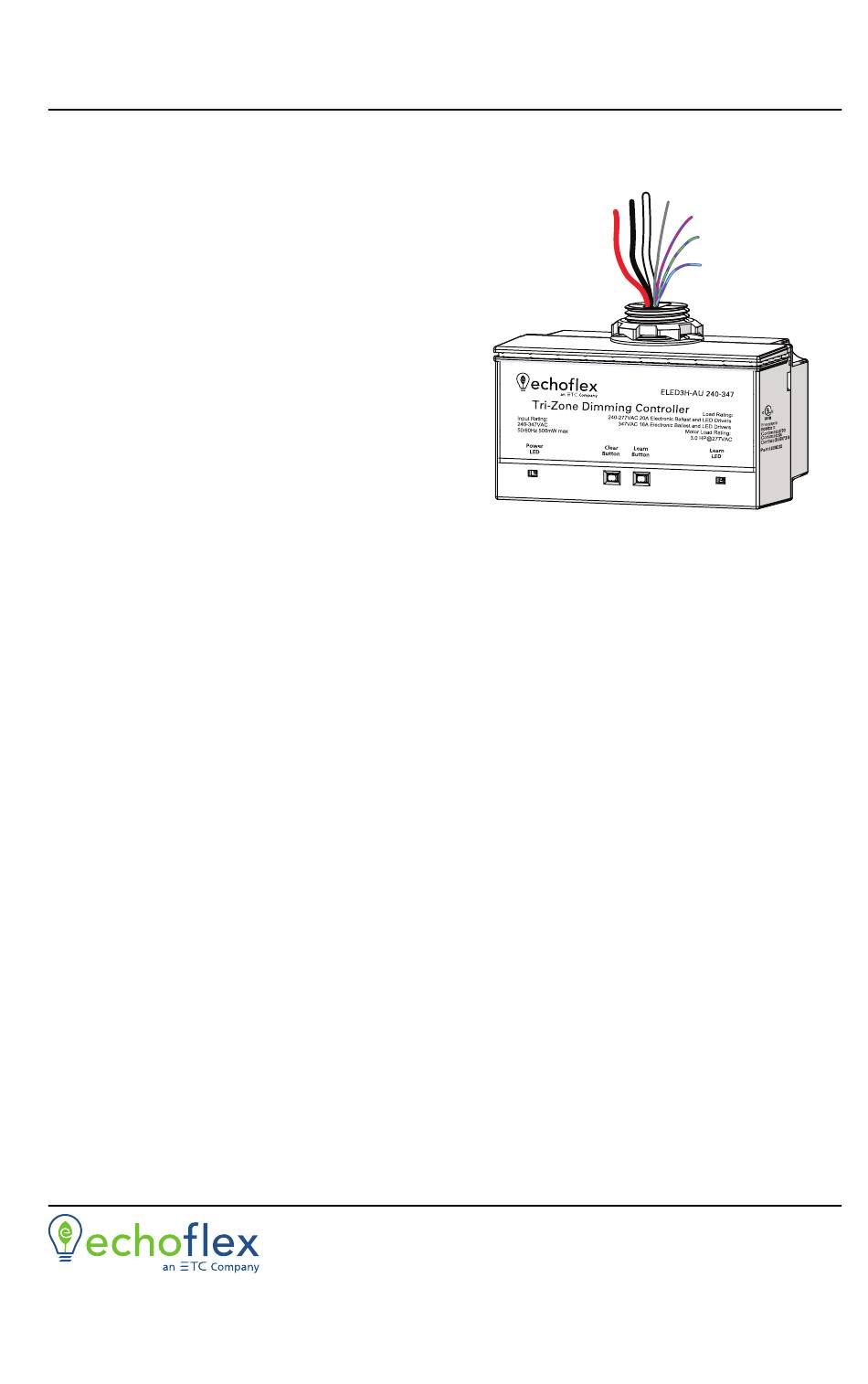

ELED3(H)
High voltage
model shown
