Echoflex Solutions Installation Guide

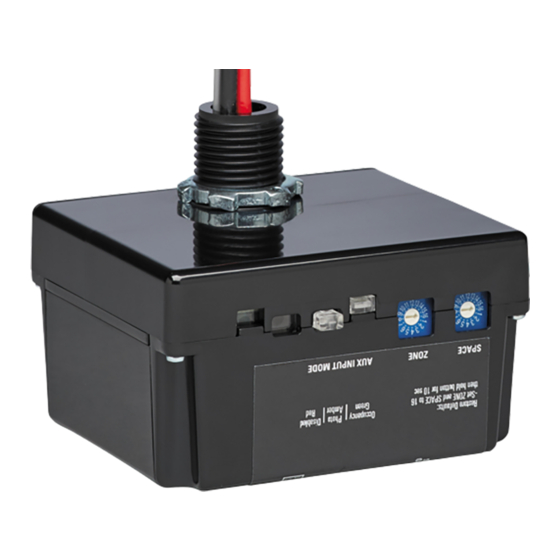

Elaho SmartSpace Controller–Gen 2
Overview
The Elaho SmartSpace Controller–Gen 2 provides fully-rated 20 A relays for
direct control of individual fixtures or zone power, and offers fully isolated 0–
10 V dimming control for compatible LED drivers and fluorescent ballasts.
Through its 24 V power supply, the Elaho SmartSpace Controller–Gen 2 can
power an auxiliary device, such as an Echoflex Solutions or third-party
occupancy, vacancy, or photo sensor. A dry contact input allows responsive
controls to initiate control events across the Elaho control system.
Two models are available:
Single Zone (ESSC-G2)
•
Dual Zone (EDSSC-G2)
•
M a in Offic e Squamish, BC, Canada Phone +1 778 733 0111
E ma il
info@echoflexsolutions.com
© 2019 Echoflex Solutions, Inc. Trademark and patent
Echoflex Solutions intends this document to be provided in its entirety.
Product information and specifications subject to change.
8 1 8 7 M 2 1 0 3 Rev C Released 2019-12
We b
echoflexsolutions.com
info: echoflexsolutions.com/ip

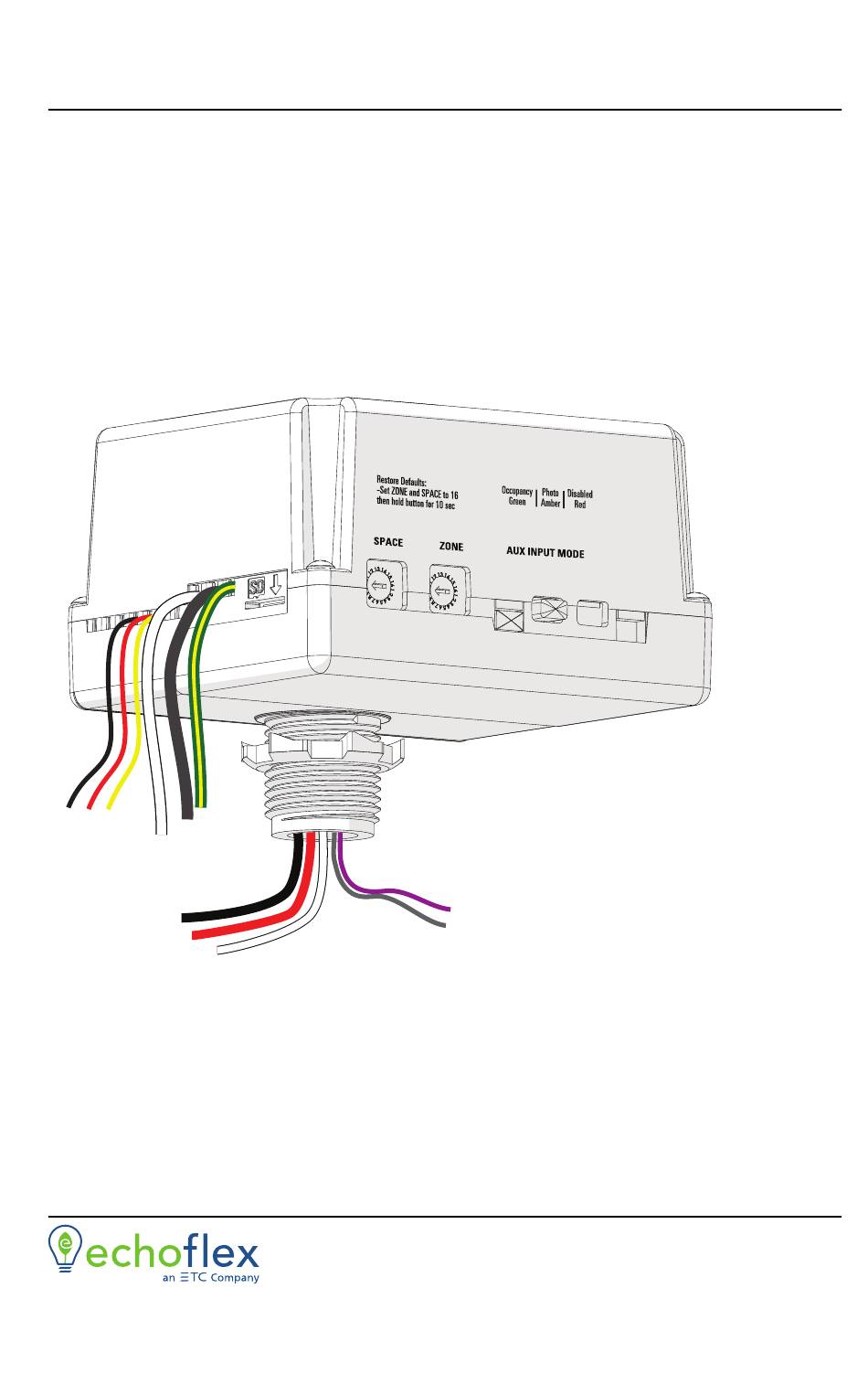

Single Zone
model shown
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for echoflex Elaho SmartSpace Controller-Gen2
Summary of Contents for echoflex Elaho SmartSpace Controller-Gen2
- Page 1 10 V dimming control for compatible LED drivers and fluorescent ballasts. Through its 24 V power supply, the Elaho SmartSpace Controller–Gen 2 can power an auxiliary device, such as an Echoflex Solutions or third-party occupancy, vacancy, or photo sensor. A dry contact input allows responsive controls to initiate control events across the Elaho control system.
-
Page 2: Custom Configuration
See the Elaho Inspire Station Installation Guide , Elaho Occupancy/Vacancy Sensor Installation Guide , or Elaho Light Sensor Installation Guide for more information about how to set levels and controls. You can download Echoflex Solutions manuals free of charge from the Echoflex Solutions website (see page 1). -
Page 3: Specifications
Echoflex Solutions Installation Guide SmartSpace Controller–Gen 2 Specifications For use with Echoflex Solutions dimming and relay products. Ambient Environment For indoor use only. Rated for plenum use. 32°F to 104°F (0°C to 40°C) operating temperatures in 5–95% non- • condensing humidity... -
Page 4: Prepare For Installation
The SmartSpace Controller–Gen 2 connects to the EchoConnect station communication bus for control. EchoConnect is a bidirectional protocol that uses one pair of wires (data + and data -) for both data and power. Echoflex Solutions recommends using Belden 8471 (or approved equal) Class 2 wire. -
Page 5: Installation
Echoflex Solutions Installation Guide SmartSpace Controller–Gen 2 Installation Installation should follow all local codes and standard electrical practices. Ensure that the junction box is clean and free of obstructions and that all wiring is installed correctly. WARNING: Risk of electric shock! This device utilizes high voltage and should only be installed by a qualified installer or electrician. - Page 6 Echoflex Solutions Installation Guide SmartSpace Controller–Gen 2 Connect EchoConnect The EchoConnect wire terminations are bound together and include a black wire (data -), a white wire (data +), and a green/yellow wire (ESD). Because EchoConnect is topology free, you can install the wires in any combination of bus, star, loop, or home-run.
- Page 7 Echoflex Solutions Installation Guide SmartSpace Controller–Gen 2 Connect Power Input and Relay Output The power input and relay output wiring exits the SmartSpace Controller–Gen 2 through the knockout mount on the enclosure. Connect the power input wiring. Connect the white wire (14 AWG) to the incoming neutral wire from the breaker panel and the neutral wire of the lighting load.
-
Page 8: Connect Sensor Wiring
Echoflex Solutions Installation Guide SmartSpace Controller–Gen 2 24 VDC Red Gray (-) Single Zone Occupancy Dimming Common Black 0–10 V SmartSpace Sensor Ballast 1 Violet (+) (24 VDC) Sensor Input Yellow Black 120–277 VAC Load 1 White Neutral White Black... - Page 9 Echoflex Solutions Installation Guide SmartSpace Controller–Gen 2 Connect 0–10V Dimming Output WARNING: RISK OF DEATH OR INJURY BY ELECTRIC SHOCK! 0–10V wiring may not be fully isolated from high-voltage AC power. Do not assume that 0–10V wiring is safe to touch, even when run as an NEC Class 2 signal.
-
Page 10: Power Up And Test
Echoflex Solutions Installation Guide SmartSpace Controller–Gen 2 Assign Zones and Spaces You can assign zones and spaces using the two rotary switches on the side panel of the controller. The Dual Zone controller assigns two zones by using the Zone switch setting as... -
Page 11: Troubleshooting
Echoflex Solutions Installation Guide SmartSpace Controller–Gen 2 Set the Sensor Type Press and release the Aux Input Mode button repeatedly to cycle through the available sensor types. The LED indicator shows the currently selected sensor type. LED Indicator Sensor Type... -
Page 12: Update Firmware
If the LED continues the double-blink pattern, contact Echoflex Solutions Technical Services using the information at the bottom of page 1. When the LED returns to its previous state, remove the microSD card.
