Installation Guide
ELEDR(H)
IMPORTANT SAFEGUARDS
READ AND FOLLOW ALL
SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS
CAUTION - This equipment has more than one
•
power supply connection point. To reduce the risk
of electric shock, disconnect both the branch circuit-
breakers or fuses and emergency power supplies
before servicing.
CAUTION – Risk of Electric shock hazard. The
•
controller uses high voltage and should only be in-
stalled by qualified personnel in accordance with
National Electrical Code and any local regulations.
CAUTION - To avoid electrical overload, total
•
connected load should not exceed output rating.
•
This product is suitable for use in dry locations
where the ambient temperature is -5°C to +50°C
(23°F to 122°F).
•
Do not use outdoors.
•
Do not mount near gas or electric heaters
•
Equipment should be mounted in locations and
at heights where it will not be subjected to
Power Load Controller
ELEDR(H) Installation Guide
Page 1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for echoflex ELEDR
Summary of Contents for echoflex ELEDR
- Page 1 -5°C to +50°C (23°F to 122°F). • Do not use outdoors. • Do not mount near gas or electric heaters • Equipment should be mounted in locations and at heights where it will not be subjected to ELEDR(H) Installation Guide Page 1...
- Page 2 The use of accessory equipment not recommended by the manufacturer may cause an unsafe condition. • Do not use this equipment for other than its intended use. • Servicing should be performed by qualified ser- vice personnel. • Pollution Degree:2 Page 2 ELEDR(H) Installation Guide...

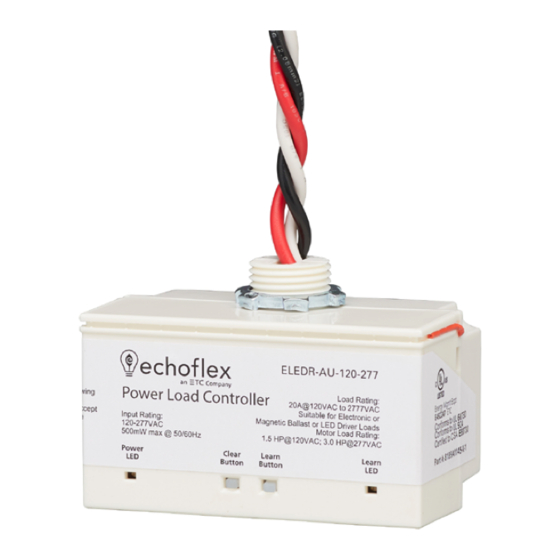

- Page 3 Scan the QR code to link to the programming guide The ELEDR is designed to provide control of 120-277 VAC loads. The ELEDRH is designed to provide control of 240-347 VAC loads. The motor load rating for the power load controller is 1.5 HP @ 120VAC and 3.0 HP @ 277VAC.
- Page 4 The controller has an external orange antenna wire. Do not cut, cap or connect this wire. Power to the controller is connected between the White (Neutral) and the Black Line power: ELEDR (120-277VAC) or ELEDRH (240-347VAC) Use only UL approved wire when making connections, see table below. Controller's Wire Details for ELEDR(H)
- Page 5 500 mW max Antenna (orange) Max. Switching Load: Do not cut or cap (ELEDR) 20A@120-277VAC Electronic Ballast or LED Driver (ELEDRH) 20A@240-277VAC Electronic Ballast or LED Driver (ELEDRH)16A@347VAC Electronic Ballast or LED Driver Power Load Controller Max. Impulse Voltage: 4000V Internal Relay: Type 1.C...
- Page 6 Wiring Diagrams - For use in Emergency Fixtures (2 of 2) Normal Hot Neutral Normal Neutral Load Control Power Load Controller Power Clear Learn Learn Button Button LED + LED Driver LED + Battery Backup Emmitter LED - LED - Page 6 ELEDR(H) Installation Guide...
- Page 7 The type is indicated by long blinks followed by short blinks counting the number of devices linked. This pattern will repeat after a short pause See the ELEDR programming guide for more information: https://www.echoflexsolutions.com/files/8DC-5997-ELEDR-Programming-Guide.pdf The table below describes the number of LED blinks for each device type.
- Page 8 (i.) this device may not cause harmful interference and (ii.) this device must accept any interference received, including interference that may cause undesired operation. Copyright © 2020 Echoflex Solutions, Inc. Product information and specifications subject to change without notice. Echoflex Solutions...
