Echoflex Installation Guide
ELED2 Controller
Overview
The ELED2 Controller provides wireless lighting control of light intensity
and correlated color temperature (CCT). The controller includes two
0-10 V outputs and is available in models intended for general lighting
and for horticultural applications.
The Tunable White Dimming Controller
models control light intensity and color
temperature levels for general lighting
applications, whether for a single com-
patible fixture or an entire zone. It also
supports external set point input from a
gateway or outdoor CCT sensor.
Available in regular and high-voltage.
The Bicolor Luminaire Controller mod-
ulates light intensity and blends cool and
warm LEDs to provide the desired CCT
output for horticultural applications.
This document covers installation of all ELED2 models. The configuration
guide for general lighting applications, models ELED2 and ELED2H, is
available for download at echoflexsolutions.com. The configuration guide
for the horticultural lighting applications, model ELED2-BCHL, is available
for download at rayngrowingsystems.com.
Prepare for Installation
To ensure optimal function, consider the installation environment and the
following guidelines:
• Avoid spaces with high density construction materials and large
metal appliances or fixtures as they may disrupt wireless reception.
• For optimal performance, switches and sensors should be installed
within a 24 m (80 ft) unobstructed view of the controller.
• Mount the controller to an electrical junction box (preferably
non-metallic) or a panel in a location and at a height where it is not
subject to tampering by unauthorized personnel.
• Do not install clusters of Echoflex controllers in one location.
Rather, distribute them in the lighting zones they control to provide
the best wireless reception from linked transmitting devices.
Consider adding a repeater to extend the signal, if required.
Corporate Headquarters n Middleton, WI, USA | +1 608 831 4116
© 2024 Echoflex Solutions, Inc. | Trademark and patent info:
Web echoflexsolutions.com
Third-party license agreement
change. Echoflex intends this document to be provided in its entirety.
8189M2111 Rev D Released 2024-01
| Email info@echoflexsolutions.com
info: etcconnect.com/licenses
echoflexsolutions.com/ip
| Support service@echoflexsolutions.com
| Product information and specifications subject to

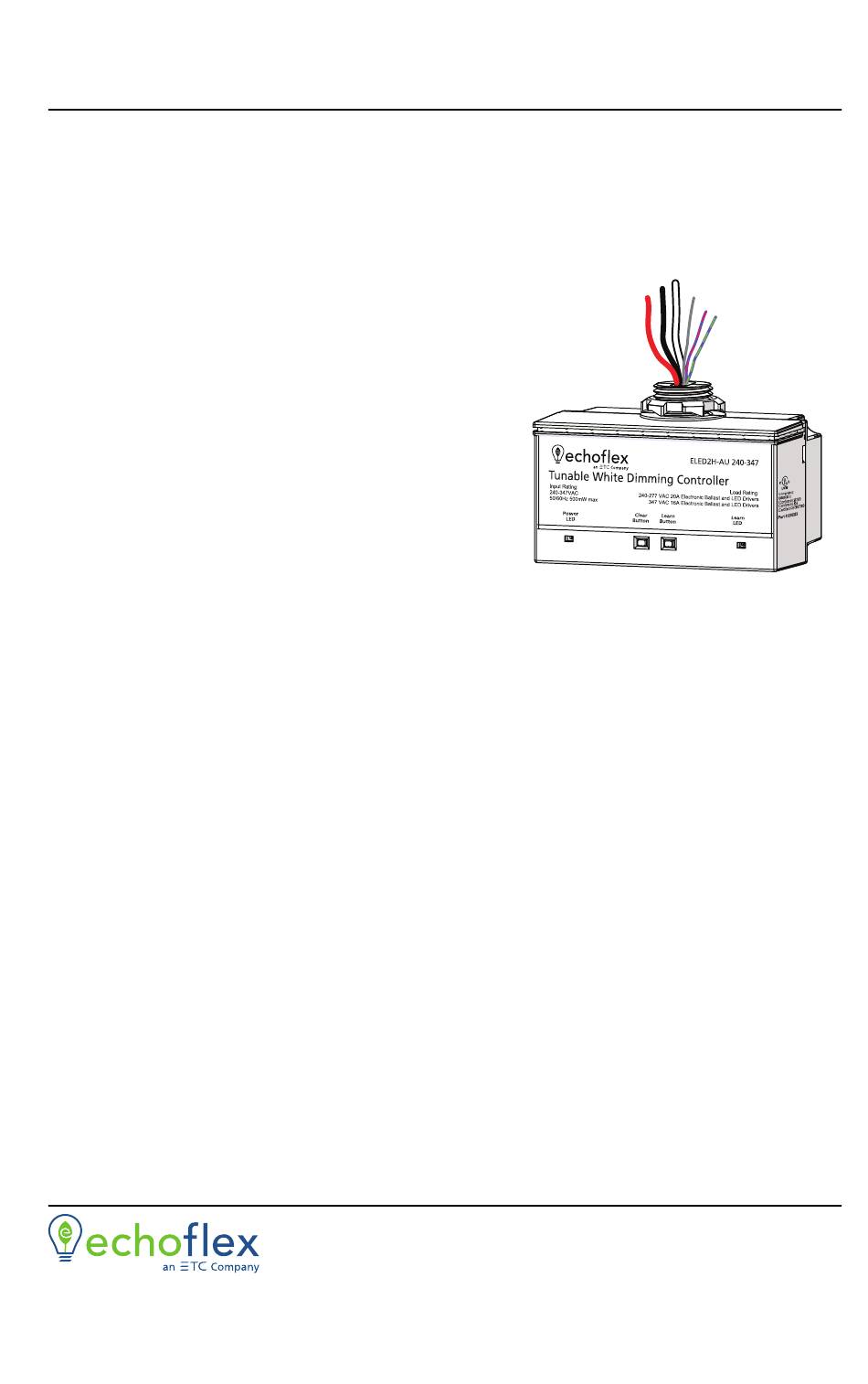

ELED2

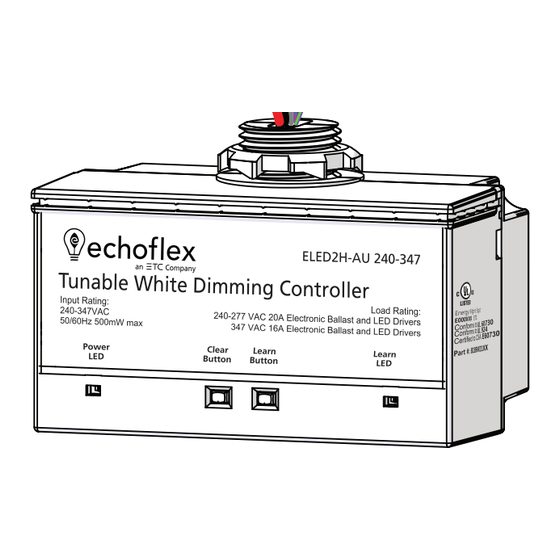

ELED2H-AU
