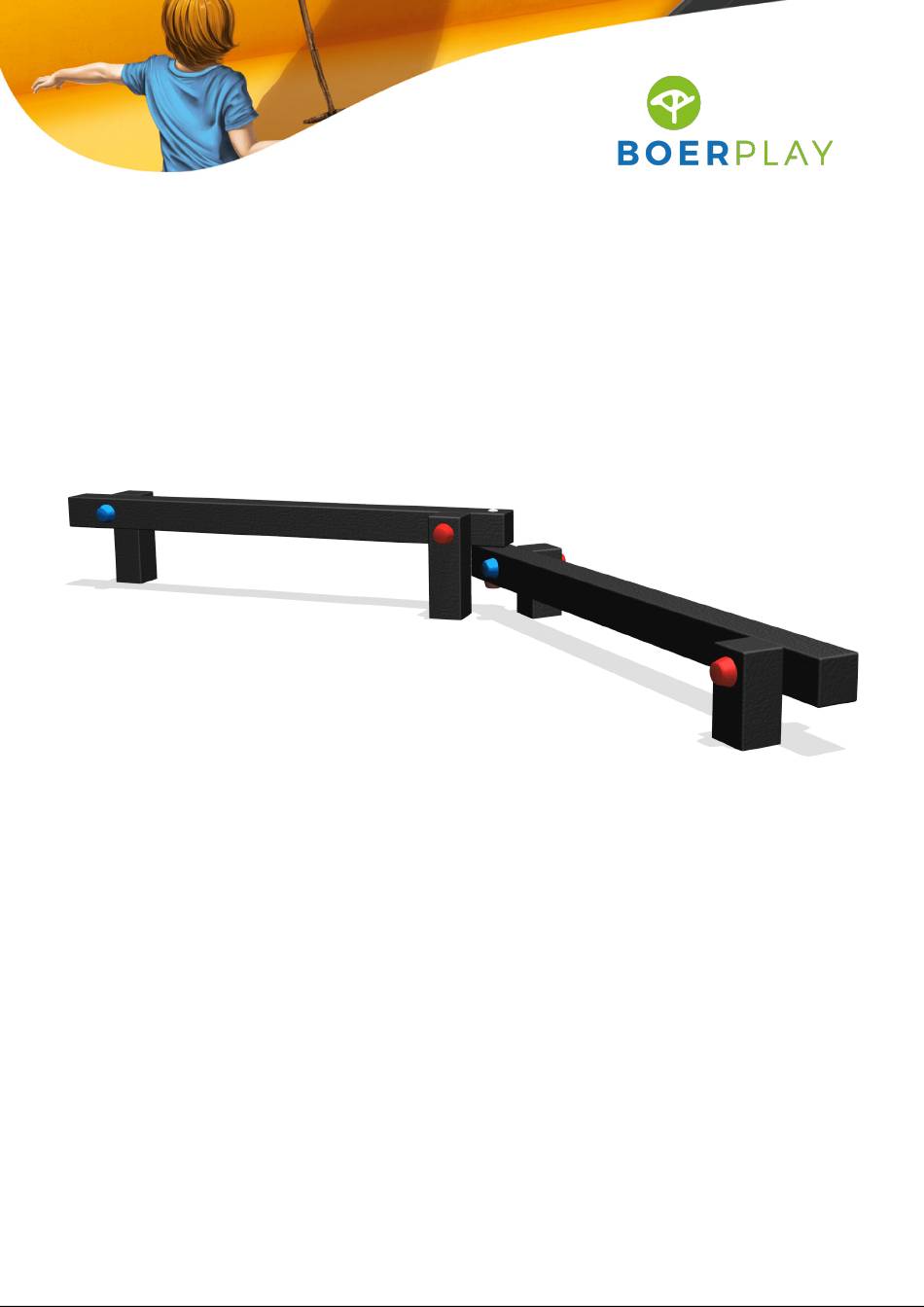

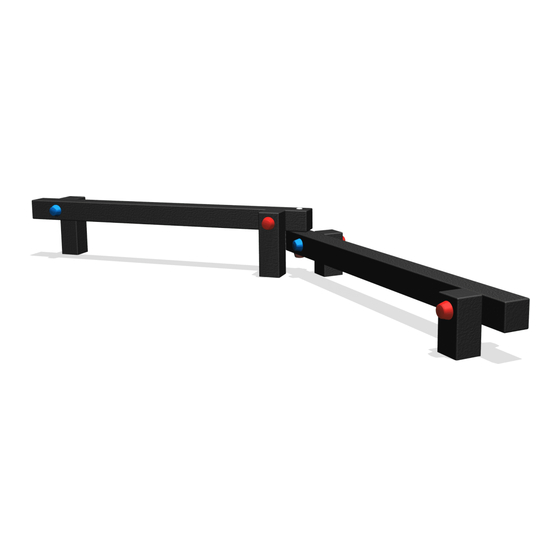

- Page 1 MP 603 Balance beam duo MNPE603.021...
- Page 2 2,51 m Benaming TOE MNP 603 021 Dubbele evenwichtsbalk Title Tekening Opmerking Mini Play Drawing Comment BOER Datum Hoofdafmetingen Main dimensions 24-11-2015 Date SPEELTOESTELLEN...
- Page 3 4,10 m Opvangzone Impact area Obstakelvrije zone Obstacle free zone Benaming TOE MNP 603 021 Dubbele evenwichtsbalk Title Tekening Opmerking Mini Play Drawing Comment BOER Datum Obstakelvrije zone Obstacle free zone 24-11-2015 Date SPEELTOESTELLEN...
- Page 4 1,43 m 0,99 m 0,14 m 1,20 m 1,65 m Grondmarkering Ground level marker Benaming TOE MNP 603 021 Dubbele evenwichtsbalk Title Tekening Opmerking Mini Play Drawing Comment BOER Datum Bodemplan Groundplan 24-11-2015 Date SPEELTOESTELLEN...
- Page 5 Geleverde modules: Supplied modules: Zie tabel See table Montageinstructie: Assembly instruction: - De modules kunnen correct geassembleerd worden met de voorgeboorde gaten. - The modules can be assembled correctly using the predrilled holes. Montagevolgorde: Assembly sequence: 1 - Graaf de gaten volgens het bodemplan 1 - Dig the holes according to the ground plan 2 - Assembleer evenwichtsbalk (2,3,4) 2 - Assemble the balance beam (2,3,4)
- Page 6 LOGBOOK Type indication Basic Play Article number MNPE603.021 Product Name MP 603 Balance beam duo Maximum fall height < 0,6 m Construction year 2023 Certificate 137951 Inspection body Keurmerkinstituut Groeneweg 2e, Zoetermeer 2718AA Zoetermeer Manufacturer name Boer Speeltoestellen Hyacintstraat 2 - 4255 HX Nieuwendijk...
- Page 7 LOGBOOK Inspection and maintenance Date of Time of Name Name Parts to be inspection inspection executor of executor of Found defects replaced maintenance maintenance inspection maintenance Accidents Date Age of Measures taken Probable cause of injury Occurred injury accident victim after accident...
-
Page 8: Inspection And Maintenance Intervals
Inspection and maintenance intervals months Nr. Inspection Maintenance between inspections Verify equipment's stability, junctions and Add missing parts, secure joints, apply missing parts. Inspect bolts, screws and nuts for missing fixing agent and replace absence, jams, corrosion and wear. corroded parts. Replace worn parts and/or remove non- Check suspension for wear. - Page 9 7. Remember that bad maintenance leads to unsafe conditions and notably faster impoverishment of the playground area. 8. Replacement parts can be ordered at the manufacturer with the OEM part numbers on the module drawing. Drawings can be found in the user guide. 9.
- Page 11 Type Progr. Volgnr Bew. Rev. Benaming Opmerking St pijp Ø31,8 L=300 Benaming MOD MNP 019 030 Ankerbuisje Title Tekening Opmerking Drawing Comment BOER Datum Samenstelling module Assembly module 24-4-2015 Date SPEELTOESTELLEN...
- Page 12 Type Progr. Bew. Rev. Benaming Volgnr Opmerking M12 - VZ 8.8 Zeskantmoer Slotbout M12 x 220 - VZ 8.8 Veerring M12 - VZ 8.8 Carrosseriering M12 x 35 - VZ 8.8 miniplay donut M12 geel 823950000151 miniplay dop M12 - M20 geel 823950000152 Benaming MOD MNP 098 001...
- Page 13 Type Progr. Volgnr Bew. Rev. Benaming Opmerking M12 - VZ 8.8 Zeskantmoer Zeskantbout ISO 4014 M12 x 220 - VZ 8.8 Veerring M12 - VZ 8.8 Carrosseriering M12 x 35 - VZ 8.8 SLUITRING miniplay donut M12 rood 823950000101 miniplay donut M12 blauw 823950000141 miniplay dop M12 - M20 rood 823950000102...
- Page 14 Type Progr. Volgnr Bew. Rev. Benaming Opmerking Rebo 750 Paal 99x99 Rebo 1500 Paal 99x99 Rebo 850 Paal 99x99 Benaming MOD MNP 603 021 Rebo pakket Title Tekening Opmerking Mini Play Drawing Comment BOER Datum Samenstelling module Assembly module 24-11-2015 Date SPEELTOESTELLEN...
- Page 15 1350 1500 1500 All holes Ø13 unless otherwise stated. All holes pierce unless otherwise stated. All the holes in the heart of the post, unless otherwise stated. Alle gaten Ø13 tenzij anders vermeld. Alle gaten doorboren tenzij anders vermeld. Alle gaten in hart van de paal tenzij anders vermeld. Benaming MOD MNP 603 021 Rebo pakket...
