Summary of Contents for BOERPLAY Daisy MNPE714.001

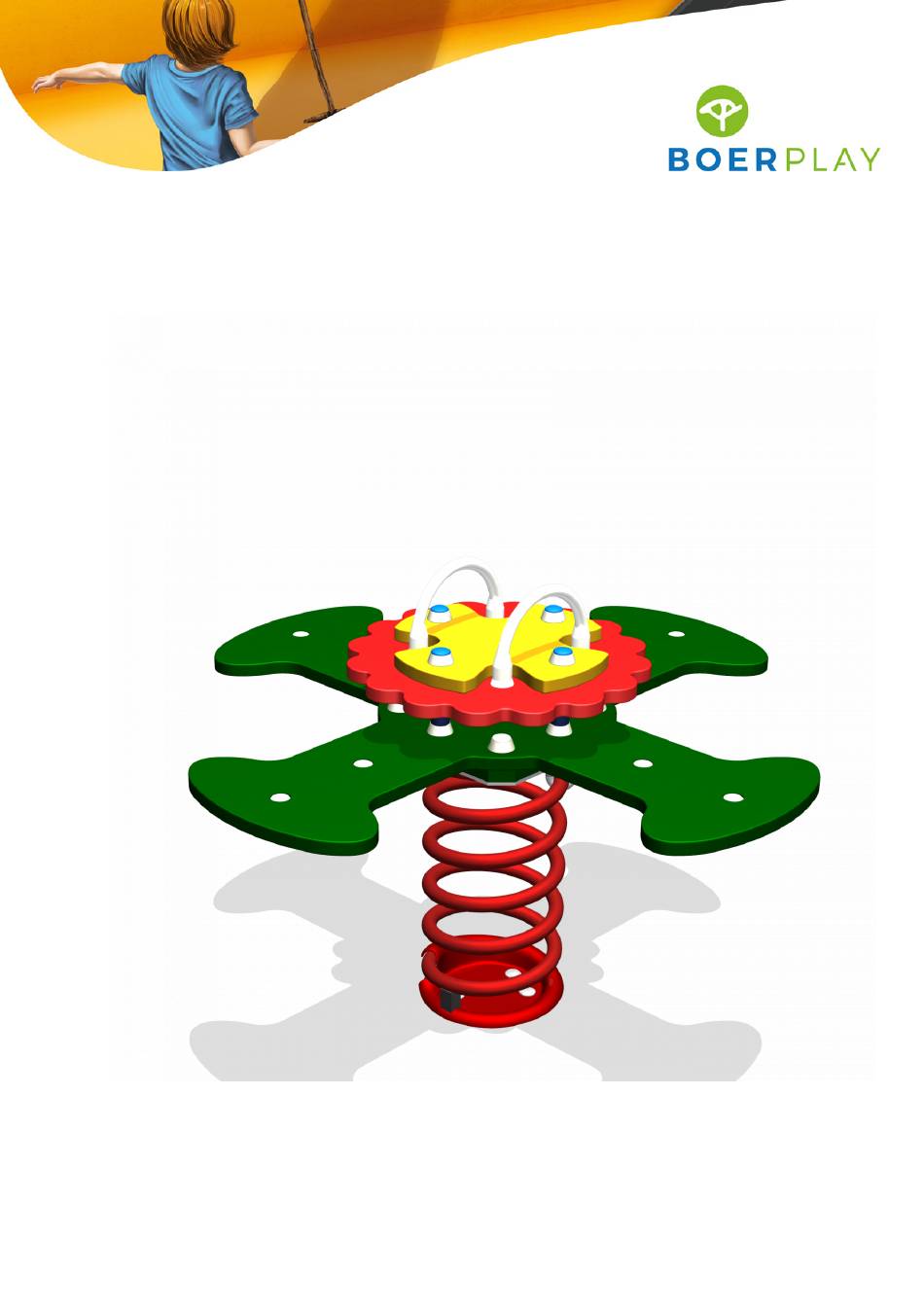

- Page 1 Daisy MNPE714.001...
- Page 2 0,79 m 0,64 m 0,54 m 0,44 m 0,00 m Benaming TOE MNP 714 001 Margriet Title Tekening Opmerking Mini Play Drawing Comment BOER Datum Hoofdafmetingen Main dimensions 16-3-2015 Date SPEELTOESTELLEN...
- Page 3 3,50 m Opvangzone Impact area Obstakelvrije zone Obstacle free zone Benaming TOE MNP 714 001 Margriet Title Tekening Opmerking Mini Play Drawing Comment BOER Datum Obstakelvrije zone Obstacle free zone 16-3-2015 Date SPEELTOESTELLEN...
- Page 4 1,75 m 1,75 m 0,95 m Grondmarkering Ground level marker Benaming TOE MNP 714 001 Margriet Title Tekening Opmerking Mini Play Drawing Comment BOER Datum Bodemplan Groundplan 16-3-2015 Date SPEELTOESTELLEN...
- Page 5 Geleverde modules: Supplied modules: Zie tabel See table Montageinstructie: Assembly instruction: - De hoofdmaten geven de maten van de staanders en vloeren aan - The main dimensions indicate the dimensions of the posts and floors - De detailtekeningen geven specifiek de maten van de verbindingen aan - The detailed dimensions show the specific dimensions of the connections - The modules which contain tubes are dimensioned at the top of the flanges - De modules met buizen zijn op de tekeningen bemaat op bovenkant kopplaat...
- Page 6 2017 Certificate 4432004346570008 inspection authority TUV Nord Langemarckstrasse 20, Essen - 45141 Essen Name manufacturer BOERplay Hyacintstraat 2 - 4255 HX Nieuwendijk Phone: +31 (0)183 40 23 66 Fax: +31 (0)183 40 35 64 name installer Description of equipment Daisy...
-
Page 7: Maintenance
LOGBOOK Inspection and maintenance intervals months Inspection Maintenance between inspections Verify equipment's stability, junctions and missing parts. Add missing parts, secure joints, apply missing fixing Inspect bolts, screws and nuts for absence, jams, corrosion agent and replace corroded parts. and wear. Replace worn parts and/or remove non-functioning Check suspension for wear. - Page 11 Type Progr. Volgnr Bew. Rev. Benaming Opmerking Borgmoer M10 - VZ 8.8 SLOTBOUT M10x35 Sluitring M10 - VZ 8.8 Veer 40 cm, Ø 20 cm Schotel en U-bouten Borgmoer M12 - VZ 8.8 Sluitring M12 - VZ 8.8 M12 x 66 U-Beugel M12 x 90 U-Beugel...
- Page 12 8 10 9 10 12 6 10 8 10 Type Progr. Volgnr Bew. Rev. Benaming Opmerking Zeskantmoer M10 - VZ 8.8 Zeskantbout ISO 4014 M10 x 35 - VZ 8.8 SLOTBOUT M10x55 Slotbout M10 x 25 - VZ 8.8 Slotbout M10 x 140 - VZ 8.8 Sluitring M10 - VZ 8.8...
