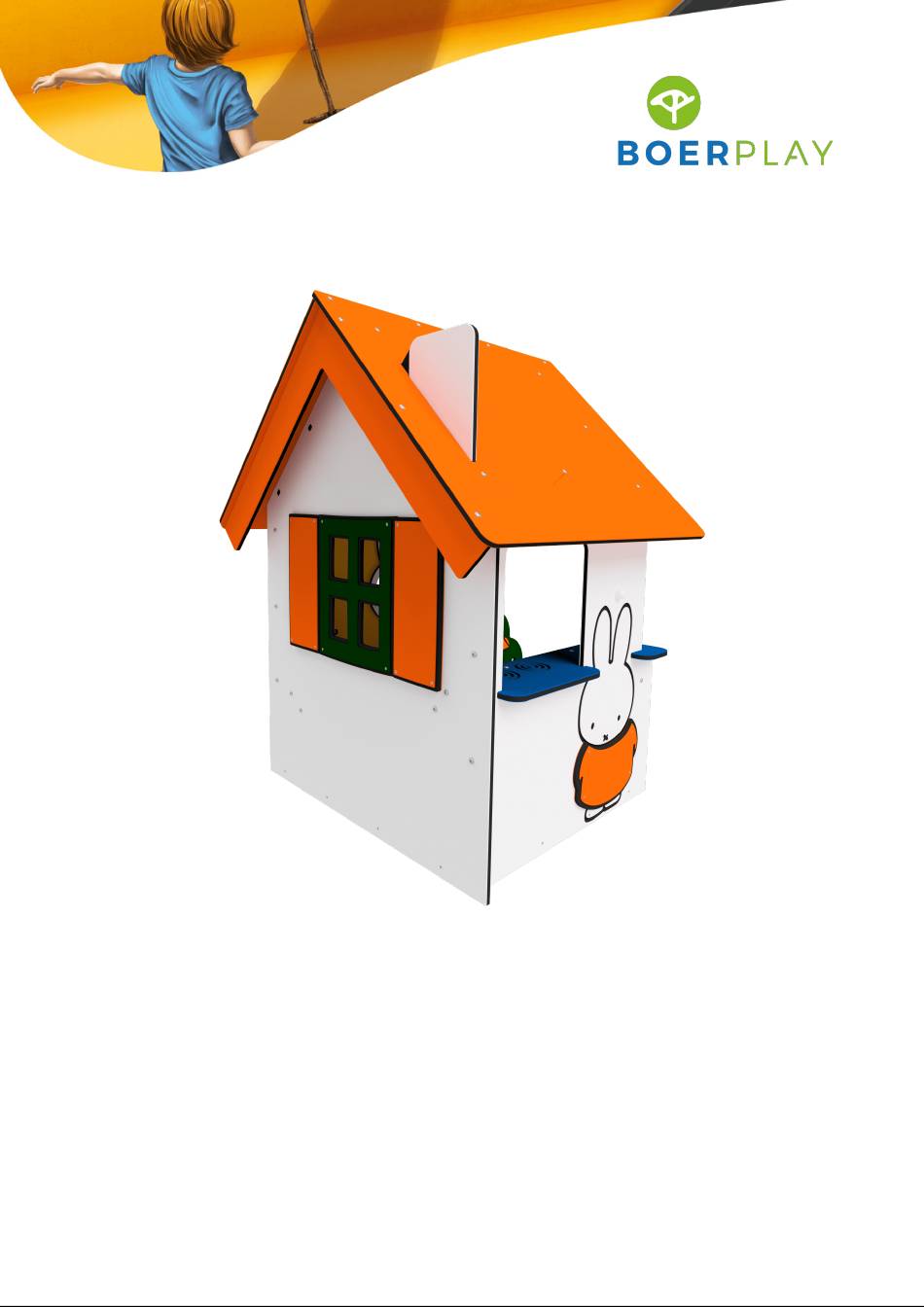

  • Page 1 miffy’s house IPPE001...

  • Page 2: Installation Instructions

    Si el tierra no ayuda a la estabilidad del equipo que se está colocando, vierta 50L de hormigón por poste. FR - Important ! Si le sol ne contribue pas à la stabilité de l’équipement à placer, versez 50L de béton par poteau. IPP 001 © Copyright BOERplay 8-3-2022 Revision:...
  • Page 3 Hoofdafmetingen Hauptabmessungen Dimensiones principales Dimensions principales 1,64 m 0,45 m 0,00 m 1,74 m 0,58 m 0,09 m 0,00 m IPP 001 © Copyright BOERplay 8-3-2022 Revision:...
  • Page 4 Zona libre de obstáculos Zone libre d’obstacles 4,42 m 1,50 m Impact area Opvangzone Ausprallbereich Zona de impacto Zone d‘impact Obstacle free zone Obstakelvrije zone Hindernissfreie raum Zona libre de obstáculos Zone libre d’obstacles IPP 001 © Copyright BOERplay 8-3-2022 Revision:...
  • Page 5 Bodemplan Bodenplan Plan de superficie Plan de surface 0,20 m 1,72 m 0,89 m 1,82 m Ground level Maaiveld Bodennahe Nivel del suelo Niveau au sol IPP 001 © Copyright BOERplay 8-3-2022 Revision:...

  • Page 6: Assembly Manual

    Orden de esemblado Ordre de montage - assembly manual - module Montagehandleiding - module Montageanleitung - Modul Manual de ensamblado - módulo Manuel de montage - module MOD.IPP.001 MOD.BBI.155 MOD.BBI.157 MOD.BBI.155 MOD.BBI.157 MOD.IPP.001 IPP 001 © Copyright BOERplay 8-3-2022 Revision:...
  • Page 7 Benodigde gereedschappen Benötigtes Werkzeug Herramientas requeridas Outils nécessaires TX-25 No. 10 (2x) TX-40 No. 13 (2x) No. 17 (2x) TX-25 No. 10 No. 13 No. 17 Ø3 mm Ø5 mm Ø11 mm Ø12 mm IPP 001 © Copyright BOERplay 8-3-2022 Revision:...
  • Page 8 Montagevolgorde Montagereihenfolge Orden de esemblado Ordre de montage MOD.BBI.155 MOD.IPP.001 IPP 001 © Copyright BOERplay 8-3-2022 Revision:...
  • Page 9 MOD.BBI.157 BOER PLAY xxx.xxx.xxx EN 1176 www.boerplay.com IPP 001 © Copyright BOERplay 8-3-2022 Revision:...
  • Page 10 LOGBOOK Type indication Nijntje Article number IPPE001 Product Name miffy’s house Maximum fall height 0,6 m Construction year 2023 Certificate 068051 Inspection body TUV Nederland QA BV Ekkersrijt 4401 5692 DL Son Manufacturer name Boer Speeltoestellen Hyacintstraat 2 - 4255 HX Nieuwendijk Phone: +31 (0)183 40 23 66 Fax: +31 (0)183 40 35 64 Installer name...
  • Page 11 LOGBOOK Inspection and maintenance Date of Time of Name Name Parts to be inspection inspection executor of executor of Found defects replaced maintenance maintenance inspection maintenance Accidents Date Age of Measures taken Probable cause of injury Occurred injury accident victim after accident...

  • Page 12: Inspection And Maintenance Intervals

    Inspection and maintenance intervals months Nr. Inspection Maintenance between inspections Verify equipment's stability, junctions and Add missing parts, secure joints, apply missing parts. Inspect bolts, screws and nuts for missing fixing agent and replace absence, jams, corrosion and wear. corroded parts. Replace worn parts and/or remove non- Check suspension for wear.
  • Page 13 7. Remember that bad maintenance leads to unsafe conditions and notably faster impoverishment of the playground area. 8. Replacement parts can be ordered at the manufacturer with the OEM part numbers on the module drawing. Drawings can be found in the user guide. 9.
  • Page 15 - module Montagehandleiding - module Montageanleitung - Moduls Manual de ensamblado - módulo Manuel de montage - module © Copyright BOERplay 28-5-2019 Revision: MOD BBI 155...
  • Page 16 1 / 1 SMD.BBI.551 A (17x) KST.BBI.017.LPE ORE.BBI.002 ORE.BBI.003 B (12x) ORE.BBI.002 ORE.BBI.003 ORE.BBI.001 Detail A (17x) BSR.002.005.050 50 mm Detail B (12x) BSR.002.006.120 BSR.002.005.050 BSR.002.006.120 KST.BBI.017.LPE ORE.BBI.001 ORE.BBI.002 ORE.BBI.003 © Copyright BOERplay 28-5-2019 Revision: MOD BBI 155...
  • Page 17 - module Montagehandleiding - module Montageanleitung - Moduls Manual de ensamblado - módulo Manuel de montage - module © Copyright BOERplay 28-5-2019 Revision: MOD BBI 157...
  • Page 18 ✔ SME.SOL.032.372 SME.SOL.032.372 SME.SOL.032.372 ✔ Detail A (6x) Detail B (2x) KST.DOP.010.020 KST.DOP.010.020 BSR.010.010.010 BSR.010.010.010 BSR.030.010.002 BSR.030.010.002 KST.DON.010.020 KST.DON.010.020 BSR.026.010.110 BSR.026.010.090 110 mm 90 mm BSR.010.010.010 BSR.026.010.090 BSR.026.010.110 BSR.030.010.002 KST.DON.010.020 KST.DOP.010.020 SME.SOL.032.372 © Copyright BOERplay 28-5-2019 Revision: MOD BBI 157...
  • Page 19 - module Montagehandleiding - module Montageanleitung - Modul Manual de ensamblado - módulo Manuel de montage - module MOD IPP 001 © Copyright BOERplay 3-3-2022 Revision: A...
  • Page 20 / 14 OPE.IPP.004.006 A (4x) A (4x) A (4x) OPE.IPP.004.006 OPE.IPP.015.022 OPE.IPP.015.022 OPE.IPP.002.062 Detail A (12x) BSR.053.005.035 35 mm BSR.053.005.035 OPE.IPP.002.062 OPE.IPP.004.006 OPE.IPP.015.022 MOD IPP 001 © Copyright BOERplay 3-3-2022 Revision: A...
  • Page 21 35 mm Detail B (1x) C (4x) OPE.BBI.136.012 KST.DOP.010.020 BSR.010.010.010 OPE.BBI.119.006 BSR.010.010.010 KST.BBI.021 BSR.026.010.080 BSR.030.010.002 BSR.053.005.035 BSR.030.010.002 KST.BBI.021 KST.DON.010.020 BSR.026.010.080 KST.BUS.012.020 KST.DON.010.020 OPE.BBI.137.090 KST.DOP.010.020 KST.BUS.012.020 KST.ROR.006.000 BSR.030.010.002 OPE.BBI.119.006 OPE.BBI.136.012 OPE.BBI.137.090 OPE.IPP.005.006 OPE.IPP.017.022 MOD IPP 001 © Copyright BOERplay 3-3-2022 Revision: A...
  • Page 22 Detail D (1x) 80 mm KST.DOP.010.010 BSR.010.010.010 BSR.023.010.080 BSR.030.010.002 KST.DON.010.010 BSR.030.010.002 BSR.010.010.010 BSR.023.010.060 OPE.IPP.019.006 BSR.023.010.080 OPE.BBI.032.010 BSR.031.005.000 BSR.030.010.002 BSR.031.005.000 BSR.053.005.035 OPE.IPP.016.072 KET.005.002.029 KST.BUS.012.020 KET.005.002.029 KST.DON.010.010 KST.DOP.010.010 OPE.BBI.032.010 OPE.IPP.006.012 OPE.IPP.016.072 OPE.IPP.019.006 OPE.IPP.020.006 OPE.IPP.021.012 OPE.IPP.022.006 MOD IPP 001 © Copyright BOERplay 3-3-2022 Revision: A...
  • Page 23 BSR.010.010.010 BSR.023.010.080 BSR.030.010.002 KST.DOP.010.010 KST.DON.010.010 BSR.030.010.002 KST.BUS.012.020 KST.DON.010.010 Detail G (1x) 80 mm OPE.IPP.019.006 KST.DOP.010.010 KST.BUS.012.020 BSR.010.010.010 BSR.023.010.080 BSR.030.010.002 BSR.010.010.010 BSR.023.010.080 KST.DON.010.010 BSR.030.010.002 OPE.IPP.018.022 BSR.030.010.002 KST.BUS.012.020 KST.DON.010.010 KST.DOP.010.010 OPE.IPP.010.062 OPE.IPP.018.022 OPE.IPP.019.006 MOD IPP 001 © Copyright BOERplay 3-3-2022 Revision: A...
  • Page 24 / 14 OPE.IPP.014.022 Detail H (2x) KST.DOP.010.xxx 40 mm mm BSR.023.010.040 BSR.030.010.002 KST.DON.010.xxx KST.BUS.012.020 KST.DON.010.xxx BSR.030.010.002 BSR.010.010.010 BSR.010.010.010 BSR.023.010.040 KST.DOP.010.xxx BSR.030.010.002 KST.BUS.012.020 KST.DON.010.060 KST.DOP.010.060 OPE.IPP.014.022 MOD IPP 001 © Copyright BOERplay 3-3-2022 Revision: A...
  • Page 25 / 14 Detail I (3x) ✔ BSR.010.008.008 OME.BBI.021 BSR.052.008.060 Detail J (4x) BSR.002.005.070 70 mm BSR.002.005.070 BSR.010.008.008 BSR.052.008.060 OME.BBI.021 MOD IPP 001 © Copyright BOERplay 3-3-2022 Revision: A...
  • Page 26 / 14 Detail I (3x) ✔ BSR.010.008.008 OME.BBI.021 BSR.052.008.060 Detail J (4x) BSR.002.005.070 70 mm BSR.002.005.070 BSR.010.008.008 BSR.052.008.060 OME.BBI.021 MOD IPP 001 © Copyright BOERplay 3-3-2022 Revision: A...
  • Page 27 / 14 Detail I (4x) ✔ ✔ BSR.010.008.008 OME.BBI.021 BSR.052.008.060 OPE.IPP.014.022 OPE.IPP.013.052 BSR.010.008.008 BSR.052.008.060 OME.BBI.021 OPE.IPP.013.052 OPE.IPP.014.022 MOD IPP 001 © Copyright BOERplay 3-3-2022 Revision: A...
  • Page 28 / 14 OPE.IPP.011.052 OPE.IPP.012.006 Detail I (7x) ✔ BSR.010.008.008 OME.BBI.021 BSR.052.008.060 BSR.010.008.008 BSR.052.008.060 OME.BBI.021 OPE.IPP.011.052 OPE.IPP.012.006 MOD IPP 001 © Copyright BOERplay 3-3-2022 Revision: A...
  • Page 29 / 14 Detail I (9x) Detail J (7x) BSR.002.005.070 ✔ 70 mm BSR.010.008.008 OME.BBI.021 BSR.052.008.060 BSR.002.005.070 BSR.010.008.008 BSR.052.008.060 OME.BBI.021 MOD IPP 001 © Copyright BOERplay 3-3-2022 Revision: A...
  • Page 30 / 14 Detail K (2x) OPE.BBI.022.006 OPE.IPP.001.022 Detail I (4x) ✔ BSR.010.008.008 OME.BBI.021 BSR.052.008.060 BSR.010.008.008 BSR.052.008.060 OME.BBI.021 OPE.BBI.022.006 OPE.IPP.001.022 MOD IPP 001 © Copyright BOERplay 3-3-2022 Revision: A...
  • Page 31 / 14 OPE.IPP.008.022 OPE.IPP.003.022 Detail I (16x) ✔ BSR.010.008.008 OME.BBI.021 BSR.052.008.060 BSR.010.008.008 BSR.052.008.060 OME.BBI.021 OPE.IPP.003.022 OPE.IPP.008.022 MOD IPP 001 © Copyright BOERplay 3-3-2022 Revision: A...
  • Page 32 / 14 OPE.IPP.009.022 Detail I (6x) ✔ BSR.010.008.008 OME.BBI.021 BSR.052.008.060 BSR.010.008.008 BSR.052.008.060 OME.BBI.021 OPE.IPP.009.022 MOD IPP 001 © Copyright BOERplay 3-3-2022 Revision: A...
  • Page 33 / 14 Detail L (1x) OME.IPP.001 OME.IPP.001 MOD IPP 001 © Copyright BOERplay 3-3-2022 Revision: A...
