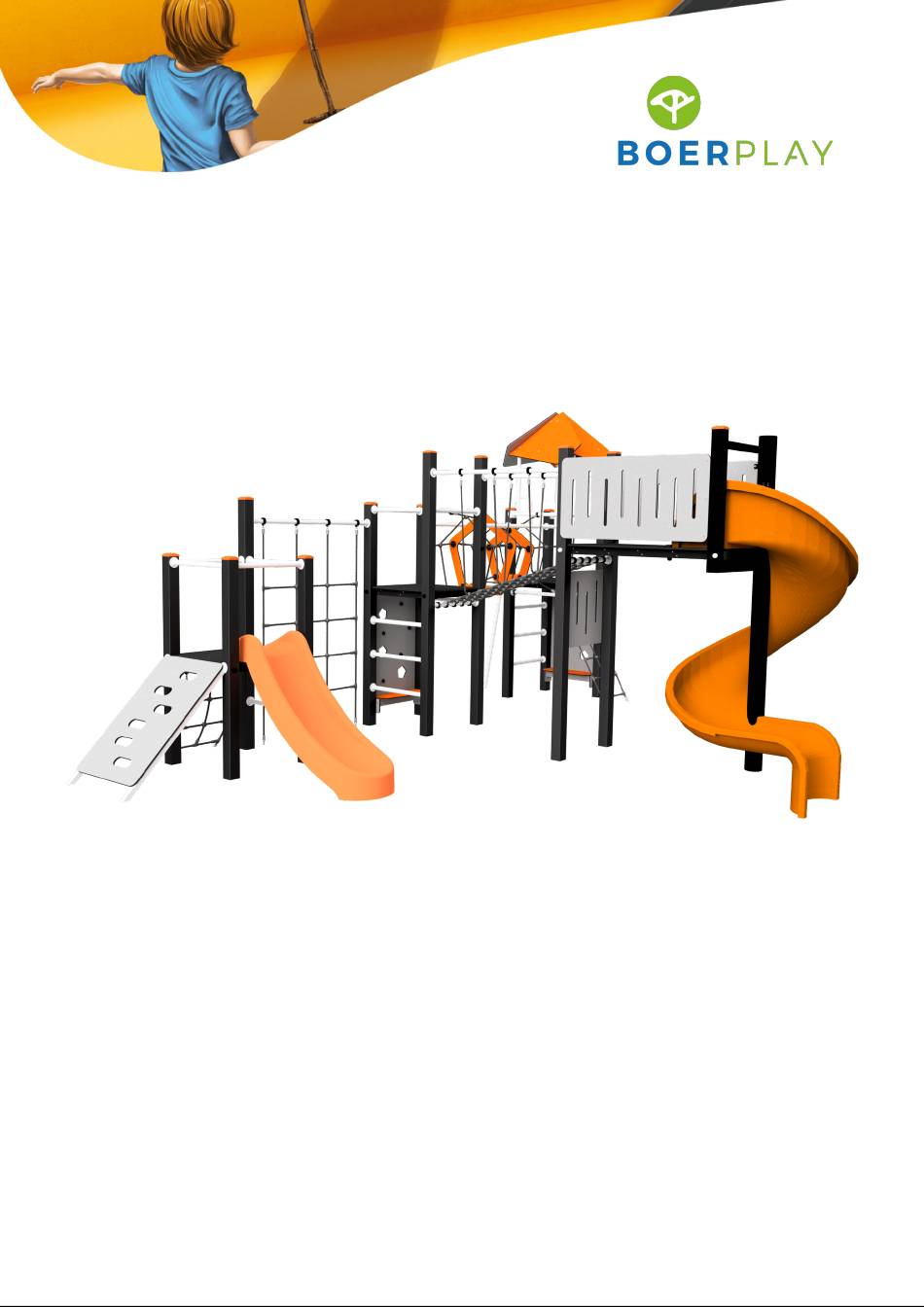

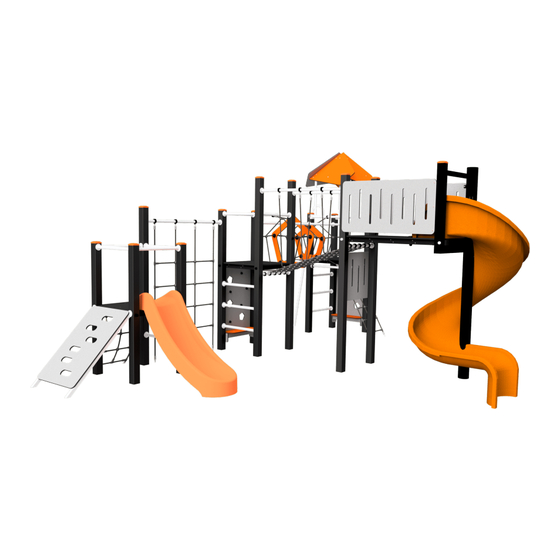

  • Page 1 Multi-play equipment Peridot BBPE412.6BP...
  • Page 2 Si le sol ne contribue pas à la stabilité de l’équipement à Il est conseillé de ne pas orienter de placer, versez 50L de béton par poteau. l’équipement avec toboggans vers le sud. BBP 412 6xP © Copyright BOERplay 15-8-2023 Revision: B...
  • Page 3 Hauptabmessungen Dimensiones principales Dimensions principales 6,74 m 3,47 m 2,92 m 2,32 m 1,95 m 1,82 m 1,45 m 0,95 m 0,00 m 0,00 m ≤ 0,35 m ≤ 0,20 m BBP 412 6xP © Copyright BOERplay 15-8-2023 Revision: B...
  • Page 4 Zona libre de obstáculos Zone libre d’obstacles 8,36 m Impact area Opvangzone Ausprallbereich Zona de impacto Zone d‘impact Obstacle free zone Obstakelvrije zone Hindernissfreie raum Zona libre de obstáculos Zone libre d’obstacles BBP 412 6xP © Copyright BOERplay 15-8-2023 Revision: B...
  • Page 5 0,3 m 0,1 m 0,5 m 0,5 m 0,5 m 0,7 m Detail (1x) Detail (1x) Detail (1x) 0,35 m 0,3 m 0,40 m 0,35 m 0,6 m 0,7 m 0,5 m BBP 412 6xP © Copyright BOERplay 15-8-2023 Revision: B...
  • Page 6 Manuel de montage - module MOD.BBP.006.X MOD.BBP.009.x MOD.BBP.015.x MOD.BBP.016.x MOD.BBP.020.X MOD.BBP.036.x MOD.BBP.046.x MOD.BBP.075.X MOD.BBP.103.X MOD.BBP.203.x MOD.BBP.658.X MOD.BBP.742.x MOD.BBP.746.x MOD.BBP.773.x MOD.BBP.784.x MOD.BBP.806.B MOD.BBP.808 MOD.BBP.814.x MOD.BBP.815.x MOD.BBP.821.x MOD.BBP.829.x MOD.BBP.830.x 15 x 25L MOD.BBP.828.X BBP 412 6xP © Copyright BOERplay 15-8-2023 Revision: B...
  • Page 7 Herramientas requeridas Outils nécessaires TX-25 No. 10 (2x) No. 17 (2x) TX-30 12 Nm No. 10 No. 17 Ø3 mm Ø5 mm Ø11 mm Ø12 mm 40 kg > Ø4.8 mm BBP 412 6xP © Copyright BOERplay 15-8-2023 Revision: B...
  • Page 8 Montagereihenfolge Toren / Turm / Torre / Tour Orden de esemblado / 19 Ordre de montage MOD.BBP.046.x MOD.BBP.806.B MOD.BBP.815.x MOD.BBP.814.x / 19 MOD.BBP.009.x 2,48 m 1,54 m 1,19 m 0,00 m BBP 412 6xP © Copyright BOERplay 15-8-2023 Revision: B...
  • Page 9 Metalen staanders Kunststof of houten staanders Pfosten aus Metall Pfosten aus Kunststoff oder Holz Postes de metal Postes de plástico o madera Poteaux en métal Poteaux en plastique ou en bois BBP 412 6xP © Copyright BOERplay 15-8-2023 Revision: B...
  • Page 10 / 19 ✔ ✔ MOD.BBP.046.x MOD.BBP.046.x MOD.BBP.806.B MOD.BBP.829.x MOD.BBP.742.x / 19 2,98 m ✔ MOD.BBP.009.x ✔ 1,84 m 1,49 m 1,14 m 0,00 m BBP 412 6xP © Copyright BOERplay 15-8-2023 Revision: B...
  • Page 11 2,09 m 2,04 m MOD.BBP.784.x Tower 0,00 m 0,00 m Toren / Turm / Torre / Tour Tower / 19 Toren / Turm / Torre / Tour MOD.BBP.046.x MOD.BBP.806.B MOD.BBP.829.x MOD.BBP.742.x BBP 412 6xP © Copyright BOERplay 15-8-2023 Revision: B...
  • Page 12 1,49 m 1,14 m 0,00 m 0,00 m MOD.BBP.784.x / 19 MOD.BBP.009.x 2,89 m MOD.BBP.203.x 2,04 m 2,04 m 0,00 m 0,00 m Tower Toren / Turm / Torre / Tour BBP 412 6xP © Copyright BOERplay 15-8-2023 Revision: B...

  • Page 13: Table Of Contents

    Pfosten aus Kunststoff oder Holz Postes de metal Postes de plástico o madera Poteaux en métal Poteaux en plastique ou en bois MOD.BBP.046.x / 19 MOD.BBP.103.X MOD.BBP.016.x Tower Toren / Turm / Torre / Tour BBP 412 6xP © Copyright BOERplay 15-8-2023 Revision: B...
  • Page 14 Tower Toren / Turm / Torre / Tour Toren / Turm / Torre / Tour Tower Tower Toren / Turm / Torre / Tour Toren / Turm / Torre / Tour BBP 412 6xP © Copyright BOERplay 15-8-2023 Revision: B...
  • Page 15 Nivel del suelo para postes de metal Nivel del suelo para postes de plástico o madera Niveau au sol pour poteaux en métal Niveau au sol pour poteaux en plastique ou en bois BBP 412 6xP © Copyright BOERplay 15-8-2023 Revision: B...
  • Page 16 Im Boden platzieren Coloque en el suelo Placez dans le sol MOD.BBP.828.X Tower Tower Toren / Turm / Torre / Tour Toren / Turm / Torre / Tour ✔ 1,50 m ✔ ✔ BBP 412 6xP © Copyright BOERplay 15-8-2023 Revision: B...
  • Page 17 Im Boden platzieren Coloque en el suelo Placez dans le sol Tower Tower Toren / Turm / Torre / Tour Toren / Turm / Torre / Tour MOD.BBP.075.X ✔ 1,50 m ✔ ✔ BBP 412 6xP © Copyright BOERplay 15-8-2023 Revision: B...
  • Page 18 / 19 MOD.BBP.773.x 40 kg > MOD.BBP.658.X MOD.BBP.006.X / 19 MOD.BBP.015.x BBP 412 6xP © Copyright BOERplay 15-8-2023 Revision: B...
  • Page 19 ¡Importante! Asegúrese de que el concreto esté lo suficientemente endurecido antes de cerrar el agujero Important! Assurez-vous que le béton est suffisamment durci avant de fermer le trou / 19 BOER PLAY xxx.xxx.xxx EN 1176 www.boerplay.com BBP 412 6xP © Copyright BOERplay 15-8-2023 Revision: B...
  • Page 20 LOGBOOK Type indication Rocks Article number BBPE412.6BP Product Name Multi-play equipment Peridot Maximum fall height 2,0 m Construction year 2023 Certificate 150005 Inspection body Keurmerkinstituut Groeneweg 2e, Zoetermeer 2718AA Zoetermeer Manufacturer name Boer Speeltoestellen Hyacintstraat 2 - 4255 HX Nieuwendijk...
  • Page 21 LOGBOOK Inspection and maintenance Date of Time of Name Name Parts to be inspection inspection executor of executor of Found defects replaced maintenance maintenance inspection maintenance Accidents Date Age of Measures taken Probable cause of injury Occurred injury accident victim after accident...
  • Page 22 Inspection and maintenance intervals months Nr. Inspection Maintenance between inspections Verify equipment's stability, junctions and Add missing parts, secure joints, apply missing parts. Inspect bolts, screws and nuts for missing fixing agent and replace absence, jams, corrosion and wear. corroded parts. Replace worn parts and/or remove non- Check suspension for wear.
  • Page 23 7. Remember that bad maintenance leads to unsafe conditions and notably faster impoverishment of the playground area. 8. Replacement parts can be ordered at the manufacturer with the OEM part numbers on the module drawing. Drawings can be found in the user guide. 9.
  • Page 24 Certificate Playground Equipment Certificate of approval issued by Keurmerkinstituut (Certification Institute), appointed by ministerial disposal of 16 November 2020, nr. 1778239-213859-VGP. Certificate number: 150009 File number: 16979 .03 Concerns: TOE.BBP.412.6xy Description: Owner/keeper: Boer speeltoestellen b.v. Postbus 10 4255 ZG Nieuwendijk The Netherlands Equipment type: Playground equipment, two towers, 2 slides, climbing ropes,...

  • Page 25: Mod.bbp.016

    Type Progr. Bew. Rev. Benaming Volgnr Opmerking SCHROEF 5 x 50 Let op: toestel bij voorkeur niet met DOPMOER BORG RVS M10 de glijbaan op het zuiden plaatsen. Bolkopbout ISO 7380 M10 x 50 - RVS A2-70 SLUITRING Attention: it is advisable not to oriënt Carrosserie ring M10 - RVS A2-70 playground equipment with the slide...

  • Page 26: Mod.bbp.046

    - module Montagehandleiding - module Montageanleitung - Modul Manual de ensamblado - módulo Manuel de montage - module MOD BBP 009 x © Copyright BOERplay 22-2-2022 Revision: A...

  • Page 27: Mod.bbp.746

    Postes de metal Postes de plástico o madera Poteaux en métal Poteaux en plastique ou en bois 18 mm 50 mm BSR.014.005.052 BSR.002.005.050 KST.ROR.006.000 ø5mm ø3mm x 30 BSR.002.005.050 BSR.014.005.052 KST.ROR.006.000 MOD BBP 009 x © Copyright BOERplay 22-2-2022 Revision: A...

  • Page 28: Mod.bbp.046

    - module Montagehandleiding - module Montageanleitung - Modul Manual de ensamblado - módulo Manuel de montage - module MOD BBP 015 x © Copyright BOERplay 24-2-2022 Revision:...

  • Page 29: Mod.bbp.103

    Postes de metal Postes de plástico o madera Poteaux en métal Poteaux en plastique ou en bois 18 mm 50 mm BSR.014.005.052 BSR.002.005.050 KST.ROR.006.000 ø5mm ø3mm x 30 BSR.002.005.050 BSR.014.005.052 KST.ROR.006.000 MOD BBP 015 x © Copyright BOERplay 24-2-2022 Revision:...
  • Page 30 - module Montagehandleiding - module Montageanleitung - Modul Manual de ensamblado - módulo Manuel de montage - module MOD BBP 016 x © Copyright BOERplay 24-2-2022 Revision:...
  • Page 31 Postes de metal Postes de plástico o madera Poteaux en métal Poteaux en plastique ou en bois 30 mm 70 mm BSR.014.005.053 BSR.002.005.070 KST.ROR.006.000 ø5mm ø3mm x 30 BSR.002.005.070 BSR.014.005.053 KST.ROR.006.000 MOD BBP 016 x © Copyright BOERplay 24-2-2022 Revision:...
  • Page 32 - module Montagehandleiding - module Montageanleitung - Modul Manual de ensamblado - módulo Manuel de montage - module © Copyright BOERplay 17-5-2022 Revision: D MOD BBP 020 X...
  • Page 33 Postes de metal Postes de plástico o madera Poteaux en métal Poteaux en plastique ou en bois 18 mm 50 mm BSR.014.005.052 BSR.002.005.050 KST.ROR.006.000 ø5mm ø3mm x 30 KST.ROR.006.000 BSR.014.005.052 BSR.002.005.050 © Copyright BOERplay 17-5-2022 Revision: D MOD BBP 020 X...
  • Page 34 SME.BBP.077.xxx xxx: 320 Red Rood / Rot / Rojo / Rouge xxx: 905 Black Zwart / Schwarz / Negro / Noir BSR.011.006.012 BSR.030.006.002 SNT.BBP.003.xxx BSR.030.006.002 SME.BBP.077.xxx BSR.025.006.030 BSR.025.006.030 BSR.030.006.002 BSR.011.006.012 © Copyright BOERplay 17-5-2022 Revision: D MOD BBP 020 X...
  • Page 35 Detail C (4x) 40 mm BSV.020.006.040 BSV.035.006.020 C (4x) BSV.035.006.020 KST.APL.146 BSV.010.006.006 KST.APL.146 BSV.020.006.040 BSV.010.006.006 BSV.035.006.020 © Copyright BOERplay 17-5-2022 Revision: D MOD BBP 020 X...
  • Page 36 - module Montagehandleiding - module Montageanleitung - Modul Manual de ensamblado - módulo Manuel de montage - module MOD BBP 036 x © Copyright BOERplay 22-4-2022 Revision: D...
  • Page 37 Postes de metal Postes de plástico o madera Poteaux en métal Poteaux en plastique ou en bois 18 mm 50 mm BSR.014.005.052 BSR.002.005.050 KST.ROR.006.000 ø5mm ø3mm x 30 BSR.002.005.050 BSR.014.005.052 KST.ROR.006.000 MOD BBP 036 x © Copyright BOERplay 22-4-2022 Revision: D...
  • Page 38 SME.BBP.077.xxx xxx: 320 Red Rood / Rot / Rojo / Rouge xxx: 905 Black Zwart / Schwarz / Negro / Noir BSR.011.006.012 BSR.030.006.002 BSR.011.006.012 BSR.025.006.030 BSR.030.006.002 BSR.030.006.002 BSR.025.006.030 SME.BBP.077.xxx SNT.BBP.009.xxx MOD BBP 036 x © Copyright BOERplay 22-4-2022 Revision: D...
  • Page 39 Detail C (2x) BSV.020.006.040 BSV.035.006.020 BSV.035.006.020 BSV.010.006.006 KST.APL.075 BSV.010.006.006 BSV.020.006.040 BSV.035.006.020 KST.APL.075 MOD BBP 036 x © Copyright BOERplay 22-4-2022 Revision: D...
  • Page 40 ✔ 0,25 m 0,70 m MOD BBP 036 x © Copyright BOERplay 22-4-2022 Revision: D...
  • Page 41 - module Montagehandleiding - module Montageanleitung - Modul Manual de ensamblado - módulo Manuel de montage - module MOD BBP 046 x © Copyright BOERplay 24-2-2022 Revision:...
  • Page 42 Poteaux en plastique ou en bois OME.KAP.100.xxx xxx: 204 Orange RAL2004 Oranje / Orange / Naranja / Orange xxx: 524 Light blue RAL5024 Licht blauw, Hellblau, Azul claro, Bleu clair BSR.002.005.050 OME.KAP.100.xxx MOD BBP 046 x © Copyright BOERplay 24-2-2022 Revision:...
  • Page 43 - module Montagehandleiding - module Montageanleitung - Modul Manual de ensamblado - módulo Manuel de montage - module MOD BBP 075 X © Copyright BOERplay 28-4-2022 Revision: C...
  • Page 44 Postes de metal Postes de plástico o madera Poteaux en métal Poteaux en plastique ou en bois 18 mm 50 mm BSR.014.005.052 BSR.002.005.050 KST.ROR.006.000 ø5mm ø3mm x 30 BSR.002.005.050 BSR.014.005.052 KST.ROR.006.000 MOD BBP 075 X © Copyright BOERplay 28-4-2022 Revision: C...
  • Page 45 SME.BBP.077.xxx xxx: 320 Red Rood / Rot / Rojo / Rouge xxx: 905 Black Zwart / Schwarz / Negro / Noir BSR.011.006.012 BSR.030.006.002 BSR.011.006.012 BSR.030.006.002 BSR.025.006.030 BSR.025.006.030 BSR.030.006.002 SME.BBP.077.xxx SNT.BBP.036.xxx MOD BBP 075 X © Copyright BOERplay 28-4-2022 Revision: C...
  • Page 46 - module Montagehandleiding - module Montageanleitung - Modul Manual de ensamblado - módulo Manuel de montage - module MOD BBP 103 X © Copyright BOERplay 18-10-2022 Revision: D...
  • Page 47 BSR.030.012.003 Zwart BSR.030.012.003 Black Schwarz KST.DON.010.060 Negro Zwart BSR.070.012.285 Noir Schwarz BSV.010.010.010 Negro BSV.021.010.210 Noir BSV.030.010.002 KST.DON.110.060 KST.DON.010.020 BSR.030.012.003 KST.DON.010.060 BSR.070.012.285 BSR.010.012.012 KST.DON.110.060 KST.DOP.010.060 KST.DOP.010.020 KST.DOP.010.060 285 mm SMD.BBP.013 SME.BBP.060.xxx MOD BBP 103 X © Copyright BOERplay 18-10-2022 Revision: D...
  • Page 48 C (2x) Detail C (2x) White Weiß KST.DOP.010.020 Blanco Blanc BSV.030.010.002 KST.DON.010.020 KST.DON.010.020 BSV.030.010.002 White BSV.021.010.190 BSV.010.010.010 KST.DOP.010.020 Weiß Blanco Blanc 190 mm BSV.010.010.010 BSV.021.010.190 BSV.030.010.002 KST.DON.010.020 KST.DOP.010.020 MOD BBP 103 X © Copyright BOERplay 18-10-2022 Revision: D...
  • Page 49 Lime groen / Lindgrün / Verde lima / Vert citron xxx: 072 Grey Grijs / Grau / Gris / Gris D (3x) ✔ 65 mm ✔ 50 mm Detail D (3x) 30 mm BSR.014.005.053 ø5mm BSR.014.005.053 OPE.BBP.124.xxx MOD BBP 103 X © Copyright BOERplay 18-10-2022 Revision: D...
  • Page 50 Postes de metal Postes de plástico o madera Poteaux en métal Poteaux en plastique ou en bois 30 mm 70 mm BSR.014.005.053 BSR.002.005.070 KST.ROR.006.000 ø5mm ø3mm x 30 BSR.002.005.070 BSR.014.005.053 KST.ROR.006.000 MOD BBP 103 X © Copyright BOERplay 18-10-2022 Revision: D...
  • Page 51 Detail H (1x) Black Zwart KST.DOP.010.060 Schwarz Black BSR.035.010.030 Negro Zwart Noir Schwarz BSR.011.010.020 Negro Noir KST.DON.110.060 BSR.035.010.030 BSR.011.010.020 BSR.021.010.180 BSR.026.010.080 BSR.030.010.002 BSR.021.010.180 BSR.030.012.003 KST.DON.110.060 KST.DOP.010.060 BSR.011.010.020 180 mm POL.JGP.027.xxx MOD BBP 103 X © Copyright BOERplay 18-10-2022 Revision: D...
  • Page 52 Doorboren Detail I (2x) Drill through Ø14 (2x) BSR.010.012.012 BSR.030.012.003 BSR.070.012.290 290 mm OME.119.012.ALU OBT.POE.009.033 BSR.010.012.012 BSR.030.012.003 BSR.070.012.290 OBT.POE.009.033 OME.119.012.ALU MOD BBP 103 X © Copyright BOERplay 18-10-2022 Revision: D...
  • Page 53 Detail J (2x) BSR.010.010.010 KST.DOP.010.060 BSR.026.010.120 120 mm Black Zwart Schwarz Negro Noir KST.DON.010.060 Detail K (2x) BSR.030.010.002 BSR.010.010.010 KST.DOP.010.060 BSR.010.008.008 BSR.026.010.055 BSR.026.010.055 BSR.026.010.120 BSR.030.010.002 55 mm KST.BBP.042.LPE KST.DON.010.060 KST.DOP.010.060 BSR.010.010.010 MOD BBP 103 X © Copyright BOERplay 18-10-2022 Revision: D...
  • Page 54 OME.JGP.129.xxx 25 mm BSV.005.005.025 ✔ ✔ BSV.005.005.025 OME.JGP.129.xxx MOD BBP 103 X © Copyright BOERplay 18-10-2022 Revision: D...
  • Page 55 Detail M (1x) Black Zwart KST.DOP.010.060 Schwarz Black Negro Zwart Noir Schwarz Negro Noir KST.DON.110.060 BSR.035.010.030 Detail L (8x) BSR.021.010.180 BSR.014.005.052 BSR.011.010.020 180 mm BSR.011.010.020 ø5mm BSR.014.005.052 BSR.021.010.180 BSR.030.010.002 BSR.030.012.003 KST.DON.110.060 KST.DOP.010.060 MOD BBP 103 X © Copyright BOERplay 18-10-2022 Revision: D...
  • Page 56 - module Montagehandleiding - module Montageanleitung - Modul Manual de ensamblado - módulo Manuel de montage - module MOD BBP 203 x © Copyright BOERplay 24-2-2022 Revision:...
  • Page 57 Postes de metal Postes de plástico o madera Poteaux en métal Poteaux en plastique ou en bois 18 mm 50 mm BSR.014.005.052 BSR.002.005.050 KST.ROR.006.000 ø5mm ø3mm x 30 BSR.002.005.050 BSR.014.005.052 KST.ROR.006.000 MOD BBP 203 x © Copyright BOERplay 24-2-2022 Revision:...
  • Page 58 Detail B (3x) SME.BBP.077.xxx xxx: 320 Red Rood / Rot / Rojo / Rouge xxx: 905 Black Zwart / Schwarz / Negro / Noir BSR.011.006.012 BSR.011.006.012 BSR.030.006.002 BSR.025.006.030 BSR.030.006.002 SME.BBP.077.xxx BSR.030.006.002 SNT.BBP.057.xxx BSR.025.006.030 MOD BBP 203 x © Copyright BOERplay 24-2-2022 Revision:...
  • Page 59 Detail C (2x) BSV.020.006.040 BSV.035.006.020 BSV.035.006.020 BSV.010.006.006 KST.APL.075 BSV.010.006.006 BSV.020.006.040 BSV.035.006.020 KST.APL.075 MOD BBP 203 x © Copyright BOERplay 24-2-2022 Revision:...
  • Page 60 ✔ 0,49 m MOD BBP 203 x © Copyright BOERplay 24-2-2022 Revision:...
  • Page 61 - module Montagehandleiding - module Montageanleitung - Modul Manual de ensamblado - módulo Manuel de montage - module MOD BBP 658 X © Copyright BOERplay 9-6-2022 Revision:...
  • Page 62 072 Grey Grijs / Grau / Gris / Gris A (8x) ✔ ✔ 5 mm 5 mm 710 mm SME.BBP.020 SME.BBP.021 Detail A (8x) 30 mm BSR.014.005.053 ø5mm BSR.014.005.053 OPE.BBP.201.xxx SME.BBP.020 SME.BBP.021 MOD BBP 658 X © Copyright BOERplay 9-6-2022 Revision:...
  • Page 63 Postes de metal Postes de plástico o madera Poteaux en métal Poteaux en plastique ou en bois 18 mm 50 mm BSR.014.005.052 BSR.002.005.050 KST.ROR.006.000 ø5mm ø3mm x 30 BSR.002.005.050 BSR.014.005.052 KST.ROR.006.000 MOD BBP 658 X © Copyright BOERplay 9-6-2022 Revision:...
  • Page 64 Manuel de montage - module Schwarzes Aluminium Aluminio negro Aluminium noir OME.BBP.478.905 Ground level Maaiveld Bodennahe Nivel del suelo Niveau au sol Detail A Ø5mm BSR.014.005.052 18 mm BSR.014.005.052 OME.BBP.478.905 OME.VRB.903.VZP OME.VRB.903.VZP © Copyright BOERplay 19-1-2022 Revision: MOD BBP 742 x...
  • Page 65 Manuel de montage - module Schwarzes Aluminium Aluminio negro Aluminium noir OME.BBP.486.905 Ground level Maaiveld Bodennahe Nivel del suelo Niveau au sol Detail A Ø5mm BSR.014.005.052 18 mm BSR.014.005.052 OME.BBP.486.905 OME.VRB.903.VZP OME.VRB.903.VZP MOD BBP 746 x © Copyright BOERplay 19-9-2022 Revision: A...
  • Page 66 - module Montagehandleiding - module Montageanleitung - Modul Manual de ensamblado - módulo Manuel de montage - module MOD BBP 773 A22 © Copyright BOERplay 21-9-2023 Revision:...
  • Page 67 (2x) OPE.BBP.328.022 OPE.BBP.329.022 ✔ OPE.BBP.329.072 OPE.BBP.328.xxx OPE.BBP.329.xxx MOD BBP 773 A22 © Copyright BOERplay 21-9-2023 Revision:...
  • Page 68 A (8x) Detail B (16x) Detail A (8x) ✔ BSR.010.008.008 OME.BBI.021 BSR.052.008.060 BSR.010.008.008 OPE.BBP.288.072 BSR.052.008.060 OME.BBI.021 OPE.BBP.288.xxx MOD BBP 773 A22 © Copyright BOERplay 21-9-2023 Revision:...
  • Page 69 Postes de metal Postes de plástico o madera Poteaux en métal Poteaux en plastique ou en bois 18 mm 50 mm BSR.014.005.052 BSR.002.005.050 KST.ROR.006.000 ø5mm ø3mm x 30 BSR.002.005.050 BSR.014.005.052 KST.ROR.006.000 MOD BBP 773 A22 © Copyright BOERplay 21-9-2023 Revision:...
  • Page 70 MOD.BBP.808 ... m 40 kg > Check 'order of assembly' controleer 'Montagevolgorde' überprüfen Sie die ,Montagereihenfolge' verifica el 'Orden de esemblado'   vérifiez Ordre de montage MOD BBP 773 A22 © Copyright BOERplay 21-9-2023 Revision:...
  • Page 71 Detail D (6x) D (6x) BSR.024.010.040 KST.DON.010.060 BSR.030.010.002 BSR.010.010.010 KST.DOP.010.060 BSR.010.010.010 BSR.024.010.040 BSR.030.010.002 KST.DON.010.060 KST.DOP.010.060 Remove NL Verwijder DE Entfernen ES Eliminar FR Supprimez MOD BBP 773 A22 © Copyright BOERplay 21-9-2023 Revision:...
  • Page 72 - module Montagehandleiding - module Montageanleitung - Modul Manual de ensamblado - módulo Manuel de montage - module MOD BBP 784 A22 © Copyright BOERplay 21-9-2023 Revision: A...
  • Page 73 OPE.BBP.301.072 A (5x) Detail A (5x) 7 mm KST.DOP.006.030 BSR.024.010.055 BSR.002.005.030 KST.KNP.010.090 Black Zwart Schwarz Negro Noir KST.DON.010.060 BSR.002.005.030 BSR.030.010.002 BSR.010.010.010 BSR.024.010.055 BSR.030.010.002 BSR.010.010.010 KST.DON.010.060 KST.DOP.006.030 KST.DOP.010.060 KST.DOP.010.060 KST.KNP.010.090 OPE.BBP.301.xxx MOD BBP 784 A22 © Copyright BOERplay 21-9-2023 Revision: A...
  • Page 74 B (2x) Detail B (2x) OPE.BBP.311.072 ✔ BSR.010.008.008 OME.BBI.021 BSR.010.008.008 BSR.052.008.060 OME.BBI.021 BSR.052.008.060 OPE.BBP.299.xxx OPE.BBP.311.xxx B (2x) OPE.BBP.322.072 Detail B (2x) OPE.BBP.341.072 ✔ BSR.010.008.008 BSR.010.008.008 OME.BBI.021 BSR.052.008.060 OME.BBI.021 OPE.BBP.322.xxx BSR.052.008.060 OPE.BBP.341.xxx MOD BBP 784 A22 © Copyright BOERplay 21-9-2023 Revision: A...
  • Page 75 B (3x) Detail B (3x) ✔ BSR.010.008.008 OME.BBI.021 BSR.010.008.008 BSR.052.008.060 BSR.052.008.060 OME.BBI.021 MOD BBP 784 A22 © Copyright BOERplay 21-9-2023 Revision: A...
  • Page 76 Postes de plástico o madera Postes de metal Poteaux en plastique ou en bois Poteaux en métal 30 mm 70 mm BSR.014.005.053 BSR.002.005.070 KST.ROR.006.000 ø5mm ø3mm x 30 BSR.002.005.070 BSR.014.005.053 KST.ROR.006.000 MOD BBP 784 A22 © Copyright BOERplay 21-9-2023 Revision: A...
  • Page 77 - module Montagehandleiding - module Montageanleitung - Modul Manual de ensamblado - módulo Manuel de montage - module MOD BBP 806 B © Copyright BOERplay 7-2-2022 Revision:...
  • Page 78 1 / 1 SMD.BBP.072 A (4x) ! max. 12 Nm ! Detail A (4x) KST.DOP.010.060 BSV.021.010.190 KST.DON.010.060 BSV.030.010.002 BSV.010.010.010 KST.DOP.010.060 BSV.010.010.010 BSV.021.010.190 BSV.030.010.002 BSV.030.010.002 KST.DON.010.060 KST.DON.010.060 KST.DOP.010.060 SMD.BBP.072 MOD BBP 806 B © Copyright BOERplay 7-2-2022 Revision:...
  • Page 79 - module Montagehandleiding - module Montageanleitung - Modul Manual de ensamblado - módulo Manuel de montage - module MOD BBP 808 © Copyright BOERplay 3-8-2022 Revision:...
  • Page 80 BSV.015.016.045 OPE.BBP.332.xxx BSR.030.016.003 BSR.021.016.040 BSV.015.016.045 BSR.021.016.040 BSR.030.016.003 OPE.BBP.332.xxx MOD BBP 808 © Copyright BOERplay 3-8-2022 Revision:...
  • Page 81 Manuel de montage - module Schwarzes Aluminium Aluminio negro Aluminium noir OME.BBP.535.905 Ground level Maaiveld Bodennahe Nivel del suelo Niveau au sol Detail A Ø5mm BSR.014.005.052 18 mm BSR.014.005.052 OME.BBP.535.905 OME.VRB.903.VZP OME.VRB.903.VZP © Copyright BOERplay 16-3-2022 Revision: MOD BBP 814 x...
  • Page 82 Manuel de montage - module Schwarzes Aluminium Aluminio negro Aluminium noir OME.BBP.536.905 Ground level Maaiveld Bodennahe Nivel del suelo Niveau au sol Detail A Ø5mm BSR.014.005.052 18 mm BSR.014.005.052 OME.BBP.536.905 OME.VRB.903.VZP OME.VRB.903.VZP MOD BBP 815 x © Copyright BOERplay 1-9-2022 Revision:...
  • Page 83 Manuel de montage - module Schwarzes Aluminium Aluminio negro Aluminium noir OME.BBP.540.905 Ground level Maaiveld Bodennahe Nivel del suelo Niveau au sol Detail A Ø5mm BSR.014.005.052 18 mm BSR.014.005.052 OME.BBP.540.905 OME.VRB.903.VZP OME.VRB.903.VZP MOD BBP 821 x © Copyright BOERplay 19-9-2022 Revision: A...
  • Page 84 - module Montagehandleiding - module Montageanleitung - Modul Manual de ensamblado - módulo Manuel de montage - module © Copyright BOERplay 5-9-2022 Revision: MOD BBP 828 X...
  • Page 85 Postes de metal Postes de plástico o madera Poteaux en métal Poteaux en plastique ou en bois 18 mm 50 mm BSR.014.005.052 BSR.002.005.050 KST.ROR.006.000 ø5mm ø3mm x 30 BSR.002.005.050 BSR.014.005.052 KST.ROR.006.000 © Copyright BOERplay 5-9-2022 Revision: MOD BBP 828 X...
  • Page 86 Rood / Rot / Rojo / Rouge BSR.010.010.010 xxx: 905 Black BSR.011.006.012 Zwart / Schwarz / Negro / Noir BSR.021.010.140 BSR.025.006.030 BSR.011.006.012 BSR.030.006.002 BSR.030.006.002 BSR.030.010.002 KST.DON.010.xxx BSR.030.006.002 KST.DOP.010.xxx BSR.025.006.030 SME.BBP.004 SME.BBP.077.xxx SNT.BBP.066.xxx © Copyright BOERplay 5-9-2022 Revision: MOD BBP 828 X...
  • Page 87 Manuel de montage - module Schwarzes Aluminium Aluminio negro Aluminium noir OME.BBP.547.905 Ground level Maaiveld Bodennahe Nivel del suelo Niveau au sol Detail A Ø5mm BSR.014.005.052 18 mm BSR.014.005.052 OME.BBP.547.905 OME.VRB.903.VZP OME.VRB.903.VZP MOD BBP 829 x © Copyright BOERplay 3-5-2022 Revision:...
  • Page 88 Manuel de montage - module Schwarzes Aluminium Aluminio negro Aluminium noir OME.BBP.548.905 Ground level Maaiveld Bodennahe Nivel del suelo Niveau au sol Detail A Ø5mm BSR.014.005.052 18 mm BSR.014.005.052 OME.BBP.548.905 OME.VRB.903.VZP OME.VRB.903.VZP MOD BBP 830 x © Copyright BOERplay 19-9-2022 Revision: A...

This manual is also suitable for:

Bbpe412.6bp
