- Page 1 Installation Guide Smart Link Series 15K Smart Link Deluxe...
-
Page 2: Package Contents

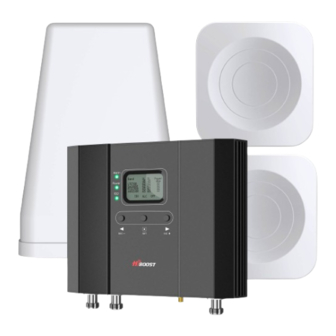

15K Smart Link Deluxe Package Contents Signal Booster Outdoor Antenna 50ft Outdoor Cable Indoor Antenna*2 49.2' Indoor Cable 30' Indoor Cable waterproof tape Power Supply Accessories for main parts Bluetooth and are all provided to protect connections Wi-Fi antenna Booster Light Patterns STATUS INDICATION Solid Green... -
Page 3: Led Status Indicators
LED STATUS INDICATORS STATUS INDICATION Bluetooth Slow Flashing Green Bluetooth Disconnected Quick Flashing Green Bluetooth Connected Solid Green Wi-Fi Disconnected Wi-Fi Slow Flashing Green Wi-Fi Connected Bands contained in the Gauges on Signal Supervisor Gauge Band Uplink Downlink 12/17 698-716MHz 728-746MHz LTE700 776-787MHz... - Page 4 Find the cell tower & Determine the outdoor antenna’s position Step 3 3.1 Find the band you are using For Android Download NetWork Cell Info Lite in the Google store and open it. It can be seen from the example picture that the frequency band is band 13. (According to the form before, you need to pay attention to Gauge LTE700) Then click MAP.
- Page 5 For ios AT & T AT & T (1) Dial *3001#12345#* (2) Follow the instructions, take the screenshots as required. 3.2 Find the cell tower (1) Enter cellmapper.net (2) Choose your own carrier and band here.
- Page 6 (3) Then enter the coordinate of where you are trying to install the signal booster, and press Enter key. (In fact when you open Cellmapper, the map on the right will automatically locate your area if you've given the site permission to access your location. If you found tower sites not even displayed on the map, it might because the app intercepts the locations for security reasons.) (4) After the map jumps to the location, you can scroll the mouse pulley and zoom it out,...
- Page 7 3.3 Determine the outdoor antenna’ s position The outdoor antenna is usually placed at one of the 4 ends of the roof. Please choose the position according to the tower’ s location. Make sure there are no barriers between the antenna and the tower. Connect the outdoor antenna with the booster Step 4 Outside Antenna...
- Page 8 Adjust and fix the Outdoor Antenna Step 5 Have your outdoor antenna pointed to the cell tower you found before and observe the reading on the app. Adjust the outdoor antenna accordingly. Notes: (1) The output power should be the higher the better. (2) The full output power for 15k Smartlink Deluxe is 13dBm.
- Page 9 Signal quality test Step 8 You could do the following: (1)First make sure the signal gauge value is unchanged from that during the outdoor antenna installation. (2)Do speed tests with the booster on and off, and make a comparison. (3)Check if the number of signal bars increases. (4)Make a phone call or send messages and check if the voice and streaming are better.
- Page 10 Step 11 Fix the 2nd Indoor Antenna and the Booster Fix the indoor antenna with the provided expansion bolt and hook. Fix the ibooster with the provided expansion bolt and hook.
- Page 11 4 Regular Problems and 1 normal status If the booster is working normally, no further adjustment is required OVERLOAD DL GAIN OUTPUT POWER LED LIGHT PATTERN REASON SOLUTION LTE700 <60dB >=10dBm Have your outdoor antenna Alarm light quick CELL800 <60dB >=10dBm Outdoor signal is pointed slightly away from the...
-
Page 12: Technical Specifications
Technical Specifications Model No. HiBoost 15K Smart Link Deluxe Working Band Band 12/17/ Band 13/ Band 5/ Band 25/2/ Band 4 UL Frequency Range(MHz) - Page 13 For more information Download Signal Supervisor or enter our website. www.hiboost.com. a. You can download the specific user manual. b. You can reach our technical support for help.
- Page 14 3150 Premier Drive,Suite 130, Irving, TX 75063 (972) 870-5666 service@hiboost.com www.hiboost.com...
