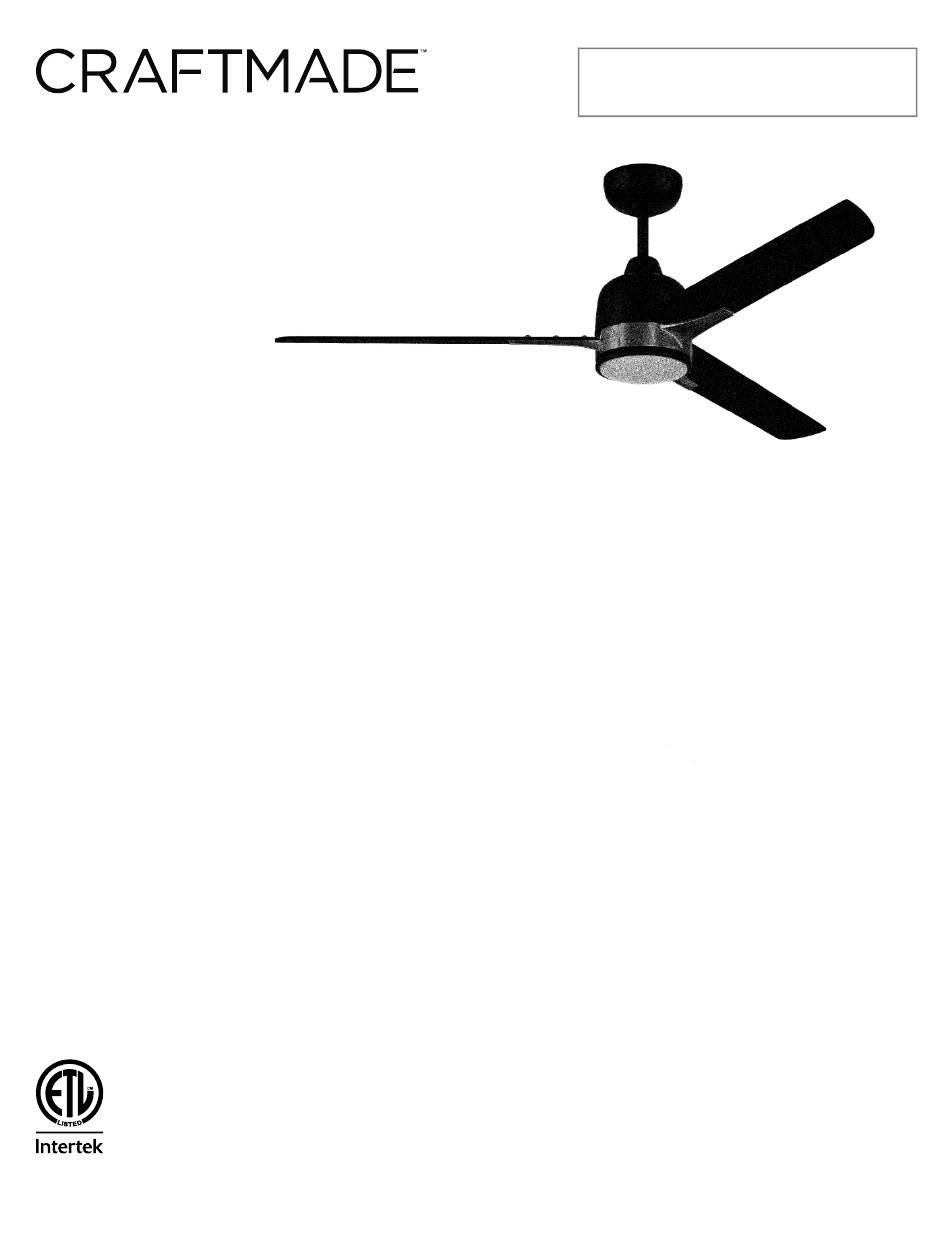

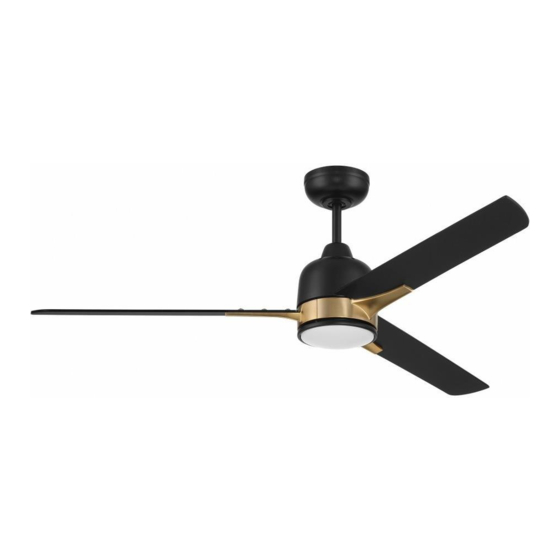

Fuller

Installation Guide

For Models:

FUL52

3170356

net weight of fan: 13.89 lb (6.3 kg)

READ THESE INSTRUCTIONS AND

AND SAVE THEM FOR FUTURE USE

Need help?

Do you have a question about the Fuller FUL52 and is the answer not in the manual?

Questions and answers

Summary of Contents for Craftmade Fuller FUL52

Page 1: Table Of Contents
READ THESE INSTRUCTIONS AND AND SAVE THEM FOR FUTURE USE Fuller Installation Guide Table of Contents: For Models: Safety Tips. pg. 2 FUL52 Unpacking Your Fan. pg. 3 Parts Inventory. pg. 3 Installation Preparation. pg. 4 Hanging Bracket Installation. pg. 4 Fan Assembly.
Page 2: Safety Tips
Light kit is dimmable to 10% with the wall control included. Distributed by: Craftmade, 3901 S 20th Avenue, DFW Airport, TX, 75261; 1-800-486-4892 NOTE: The important safety precautions and instructions appearing in the manual are not meant to cover all possible conditions and situations that may occur.
Page 3: Unpacking Your Fan
1. Unpacking Your Fan. Carefully open the packaging. Remove items from Styrofoam inserts. Remove motor housing and place on carpet or Styrofoam to avoid damage to finish. Do not discard fan carton or Styrofoam inserts should this fan need to be returned for repairs.
Page 4: Installation Preparation
3. Installation Preparation. blade edge To prevent personal injury and damage, ensure that the hanging location allows the blades a clearance of 7 feet inches (2.13 m) 7 feet (2.13m) from the floor and 30in. (76cm) from (76 cm) any wall or obstruction. This fan is suitable for room sizes up to 400 square feet (37.2 square meters).
Page 5: Fan Assembly. Pgs
5. Fan Assembly. Remove hanging ball from downrod provided by stop pin set screw loosening set screw on hanging ball. Lower hanging ball and remove stop pin and then slide hanging ball off of the downrod. [Refer to diagram 1.] hanging ball Loosen yoke set screws and nuts at top of motor housing.
Page 6 5. Fan Assembly. (cont.) With the hanging bracket secured to the outlet box wood ceiling joist and able to support the fan, you are now ready to hang your fan. Grab the fan firmly with two hands. safety cable loop Slide downrod through opening in hanging bracket and let hanging ball rest on the hanging bracket.
Page 7: Wiring
6. Wiring. WARNING: Turn off circuit breakers to current white supply wire fixture from breaker panel and be sure switch is ground (green or bare) turned to the OFF position. black supply wire CAUTION: Be sure outlet box is properly grounded from and that a ground wire (GREEN or Bare) is present.
Page 8: Canopy Assembly
7. Canopy Assembly. Locate 2 screws on underside of hanging bracket and remove screw closest to the open hanging end of the hanging bracket. Partially loosen bracket the other screw. Lift canopy to hanging bracket. Place rounded part of slotted hole in canopy over loosened screw in hanging screw bracket and push up.
Page 9: Light Kit Assembly (Optional)
9. Light Kit Assembly (Optional). Remove 1 screw from motor plate on underside of motor housing and partially loosen the other 2 motor housing screws. Align slotted holes in fitter plate with loosened screws in motor plate, allowing molex connections from motor housing to come through holes in middle of fitter plate.
Page 10: Wall Control Operation
10. Wall Control Operation. slide switch for fan 0 - fan is OFF FAN SPEEDS: H - turns fan to HIGH speed LOW 1 (L1) M - turns fan to MEDIUM speed LOW 2 (L2) L2 - turns fan to MEDIUM-LOW speed MEDIUM (M) L1 - turns fan to LOW speed HIGH (H)
Page 11: Troubleshooting
WARNING: Failure to disconnect power supply prior CRAFTMADE LIMITED LIFETIME WARRANTY: to troubleshooting any wiring issues may result in CRAFTMADE warrants this fan for use as intended under serious injury. the following provision: CRAFTMADE will replace any fan which has faulty performance due to a defect in Problem: Fan fails to operate.
