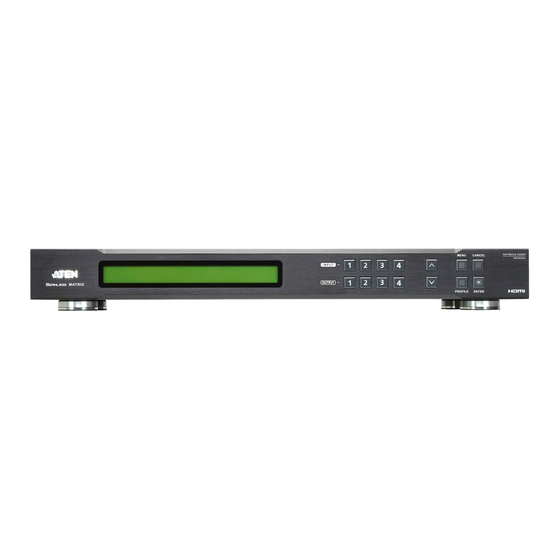

ATEN VM5404HA User Manual

Hdmi matrix switch with scaler
Hide thumbs Also See for VM5404HA:
Table of Contents

Advertisement

Quick Links

Download this manual
VM5404HA / VM5808HA
HDMI Matrix Switch with Scaler
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VM5404HA and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ATEN VM5404HA

Summary of Contents for ATEN VM5404HA

  • Page 1 VM5404HA / VM5808HA HDMI Matrix Switch with Scaler User Manual...

  • Page 2: Compliance Statements

    VM5404HA / VM5808HA User Manual Compliance Statements FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
  • Page 3 VM5404HA / VM5808HA User Manual Industry Canada Statement This Class A digital apparatus complies with Canadian ICES-003. HDMI Trademark Statement The terms HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

  • Page 4: User Information

    VM5404HA / VM5808HA User Manual User Information Online Registration Be sure to register your product at our online support center: International http://eservice.aten.com Telephone Support For telephone support, call this number: International 886-2-8692-6959 China 86-400-810-0-810 Japan 81-3-5615-5811 Korea 82-2-467-6789 North America...

  • Page 5: Product Information

    For information about all ATEN products and how they can help you connect without limits, visit ATEN on the Web or contact an ATEN Authorized Reseller. Visit ATEN on the Web for a list of locations and telephone numbers: International http://www.aten.com...

  • Page 6: Table Of Contents

    VM5404HA / VM5808HA User Manual Contents Compliance Statements ........ii User Information .
  • Page 7 VM5404HA / VM5808HA User Manual Serial Port Setting ........17 Operation Mode .
  • Page 8 VM5404HA / VM5808HA User Manual Port Settings ..........53 OSD/CEC .
  • Page 9 13. VR – Software version information ....113 ATEN Standard Warranty Policy....... 114...

  • Page 10: About This Manual

    VM5404HA / VM5808HA User Manual About this Manual This User Manual is provided to help you get the most from your VM5404HA / VM5808HA system. It covers all aspects of installation, configuration and operation. An overview of the information found in the manual is provided below.

  • Page 11: Conventions

    Indicates selecting the option (on a menu or dialog box, for  example), that comes next. For example, Start Run means to open the Start menu, and then select Run. Indicates critical information. Terminology Terminology Description matrix switch Refers to the VM5404HA and VM5808HA collectively.
  • Page 12 VM5404HA / VM5808HA User Manual This Page Intentionally Left Blank...

  • Page 13: Introduction

    You can easily configure the VM5404HA / VM5808HA via the front panel LCD display and pushbuttons. The LCD provides a quick view of all port connections, and lets operators access the unit’s built-in configuration utility.

  • Page 14: Features

    RS-232 commands, Ethernet (Telnet / Web GUI) connection, ATEN Video Matrix Control app, and ATEN Control System  Device status can be viewed and controlled via ATEN Video Matrix Control App  Video Wall – allows for customization of up to 8 / 16 layouts for any type of video walls via intuitive web console* ...

  • Page 15: Requirements

    Chapter 1. Introduction Requirements The following devices are required for a complete VM5404HA / VM5808HA installation: Source Devices  Computer or A/V source device with HDMI Type-A output connector(s) Note: A DVI/HDMI adapter is required when connecting a DVI source device.

  • Page 16: Supported Browsers

    VM5404HA / VM5808HA User Manual Supported Browsers Use the recommended web browsers below to access the VM5404HA / VM5808HA’s web console. Java Version Browser Version Windows 10_1903 x64 1.8.0_201 x64 Edge 44.18362.1.0 Firefox 68.0 x64 Chrome 75.0.3770.100 x64 Opera 62.0.3331.43 x64 Windows 8.1 x32...

  • Page 17: Components

    Chapter 1. Introduction Components VM5404HA Front View VM5404HA Rear View VM5808HA Front View VM5808HA Rear View Component Description LCD display The LCD display gives a quick view of all port connections, and shows the various options for configuring and operating the matrix switch. For full details, see Main Screen, page 11.
  • Page 18 Ethernet port In order to access the VM5404HA’s Browser Graphical User Interface (GUI), the VM5404HA must be connected to your network. The cable that connects the VM5404HA to your LAN plugs in here. See Installation, page 8, for further details...

  • Page 19: Hardware Setup

    Keyboard Power On function. Rack Mounting The VM5404HA / VM5808HA can be mounted in a 19” (1U) system rack. For the most convenient front panel pushbutton configuration and operation at the local site, mount the unit at the front of the rack, as follows: 1.

  • Page 20: Installation

    Note: Do not omit this step. Proper grounding helps to prevent damage to the unit from surges or static electricity. 2. Connect up to 4 (VM5404HA) or 8 (VM5808HA) HDMI video sources to the HDMI input ports 3. Connect up to 4 (VM5404HA) or 8 (VM5808HA) HDMI display devices to the HDMI output ports 4.

  • Page 21: Front Panel Configuration

    Front Panel Configuration Overview The VM5404HA / VM5808HA can be configured and operated locally via the front panel LCD and pushbuttons; remotely over a standard TCP/IP connection via graphical user interface (GUI) using a web browser; via a remote terminal session using Telnet;...

  • Page 22: Enter Password

    If the Password screen / LCD Menu fails to load, an error message displays. Reset the unit and try again. If you are accessing the VM5404HA / VM5808HA for the first time, the Password screen appears as soon as the LCD loading process is done. Enter the default password 1234 to continue to the Main Screen (see Main Screen, page 11).

  • Page 23: Main Screen

    Chapter 3. Front Panel Configuration Main Screen The Main Screen shows the Input ports in the top row, which are tied to the Output ports shown in sequential order (1–8) or (1–4) at the bottom row. INPUT 1 2 5 5 1 1 OUTPUT 1 2 3 4 5 6 7 8 ...
  • Page 24 VM5404HA / VM5808HA User Manual In the example below, Output port 2 has been disconnected from Input port 3. To switch to another Input port, press any Input port pushbutton. The Output port LED(s) tied to the said Input port light up.

  • Page 25: Output Port Selection

    Chapter 3. Front Panel Configuration Output Port Selection Configure the input-to-output assignment by selecting the output port(s) first. INPUT 1 2 5 5 1 1 3 4 OUTPUT 1 2 3 4 5 6 7 8 1. Press any Output port pushbutton (1–8) or (1–4) to select an output port. The LEDs of the output port and its assigned input port light up.

  • Page 26: Lcd Menu Organization

    VM5404HA / VM5808HA User Manual LCD Menu Organization The VM5404HA / VM5808HA has a built-in configuration utility via the front panel LCD, which can be controlled by pressing the MENU and front panel Input pushbuttons (1–8) or (1–4). User can cycle through the menu options,...

  • Page 27: Menu Pushbutton

    Browser GUI (Network Settings, page 81). IP Address / Subnet Mask To view the VM5404HA / VM5808HA’s IP address and Subnet Mask, do the following: 1. From the Menu page, press 1 to see the IP Setting submenu. The IP address and Subnet Mask are then shown.

  • Page 28: Gateway

    VM5404HA / VM5808HA User Manual Gateway To view the VM5404HA / VM5808HA’s gateway address, do the following: 1. From the Menu page, press 1 to see the IP Setting submenu, then press 8 or Next to get to the next page. The gateway address displays.

  • Page 29: Serial Port Setting

    Chapter 3. Front Panel Configuration Serial Port Setting To configure the VM5404HA / VM5808HA’s baud rate for its serial port connection, do the following: 1. From the Menu page, select Serial Port Setting. 1: IP Setting 2: Serial Port Setting 8: Next 2.

  • Page 30: Operation Mode

    Output Resolution To configure the VM5404HA / VM5808HA’s operation mode settings from the Main Screen, use the Menu pushbutton to access the Menu page, press 8 or Next to navigate to the next page, then press pushbutton 1 to access the Operation Mode page.

  • Page 31: Cec

    3: Remix Uses the EDID of each connected display according to its connection when the VM5404HA / VM5808HA is first powered on, or immediately after pressing 3 to select the Remix option. 4: Customized Automatically retrieves and saves the EDID settings of a connected monitor/display device to an input source port.

  • Page 32: Osd

    The On-Screen Display or OSD feature enables real-time text updates to appear on the display device’s screen for any configuration changes made to the Output port via the VM5404HA / VM5808HA’s front panel or Browser GUI. To configure the OSD setting for each output port, do the following: 1.

  • Page 33: Output Status

    Chapter 3. Front Panel Configuration Output Status You can configure the output settings for each output port, such as enabling/ disabling displays, select an input to extra its audio, and changing the output resolutions. Enabling/Disabling Displays 1. From the Operation Mode page, press 8 or Next to go to the next page, then press pushbutton 2: 7: Back 1: OSD...
  • Page 34 VM5404HA / VM5808HA User Manual 3. Press an input pushbutton to select an input source for audio extraction. Audio Input: 1 Mute: NA Profile: Mute Muting/Unmuting a Profile 1. From the Operation Mode page, press 8 or Next to go to the next page, and...

  • Page 35: Array Mode (Local Hdmi Out)

    Chapter 3. Front Panel Configuration 3. Press pushbuttons (1–8) or (1–4) to select an output port whose resolution will be changed. OUTPUT 1 4. Use the input port pushbuttons 7/8 or Prev/Next to navigate through the list of options, and then press the corresponding input port pushbutton to select the setting.

  • Page 36: Security Mode

    VM5404HA / VM5808HA User Manual Security Mode The Security Mode page allows users to manage the VM5404HA / VM5808HA’s security-related settings. Three security modes are available: None, Password Enable and Lock Screen. The VM5404HA / VM5808HA’s password can also be changed here.

  • Page 37: Change Password

    New Password: * * * * 4. Re-enter the new password in the following screen. The new password is applied by the VM5404HA / VM5808HA immediately. Re-enter New Password: * * * * If the password you entered does not match the one entered in the previous screen, an error message appears.

  • Page 38: Save To A Profile

    VM5404HA / VM5808HA User Manual Save to a Profile The switch allows users to store up to 8 (VM5404HA) or 16 (VM5808HA) (numbered P1–P16) different connection profiles that can be saved and recalled later. The active Input-to-Output port connections on the LCD Main Screen is the configuration saved to a profile.

  • Page 39: Play/Stop The Profile Schedule

    Chapter 3. Front Panel Configuration Play/Stop the Profile Schedule Inputting port pushbutton 2 will Play or Stop the active Profile Schedule. 1: Save to a Profile 7: Back 2: Play/Stop the Profile Schedule Turn Video Wall Off If a video wall is currently playing, a submenu will appear. 7: Back 1: Turn video wall off ...

  • Page 40: Profile Pushbutton

     Press the Cancel pushbutton to exit Note: If there are no profiles configured on the VM5404HA / VM5808HA device, an error message “No Available Profile” is displayed when the Profile pushbutton is pressed.

  • Page 41: Browser Operation

    Chapter 4 Browser Operation Overview The VM5404HA / VM5808HA can be configured over a standard TCP/IP connection via its built-in Graphical User Interface (GUI). Because it can be accessed from anywhere over a network or the Internet, operators can easily log in via web browser.

  • Page 42: Main Page

    VM5404HA / VM5808HA User Manual Main Page The Main Page opens to the Profile List. This is where you configure the input to output connections by creating profiles. The page is divided into three parts: the Menu Bar, Profile List, and Profile Scheduling.

  • Page 43: Profile List

    Profile List The Profile List lets you configure the input to output port connections by creating profiles to use. You can store up to 8 (VM5404HA) or 16 (VM5808HA) differently configured profiles that can be saved and played by two methods: locally via the unit’s front panel pushbuttons and via the web GUI.
  • Page 44 VM5404HA / VM5808HA User Manual 3. Configure the input to output connections for your profile, see Configuring Video Settings of a Profile, page 39. 4. New profiles appear in the Profile List, as shown here: 5. Select the profile and click Apply.

  • Page 45: Deleting A Profile

    Chapter 4. Browser Operation Deleting a Profile To delete a connection profile, do the following: 1. From the Profile List, click 2. From the Profile List, click on the top-right corner of the profile you want to remove. 3. A warning message appears and click OK. Exporting a Profile To export the matrix switch’s connection profiles, click Export Profiles.
  • Page 46 VM5404HA / VM5808HA User Manual 2. Browse to the configuration file, select it and click Open. Note: Importing a connection profile database will overwrite the current profiles.

  • Page 47: Profile List Options

    Chapter 4. Browser Operation Profile List Options Clicking a Profile or the Play window opens a pop-up menu with options. Profile Option Description Apply Click Apply to put the profile in the Play window. This allows you to start the profile connections. Edit Click Edit to configure the profile's input to output connections.

  • Page 48: Other

    VM5404HA / VM5808HA User Manual Option Description Change Input Click Change Input to configure the profile's input to output connections. Other Option Description Show OSD Check Show OSD to show text updates that appear on the display when configuration or port changes are made.

  • Page 49: Profile Scheduling

    Chapter 4. Browser Operation Profile Scheduling Profile Scheduling is located below the Profile List. Scheduling allows you to queue and play connection profiles in sequence for a specific amount of time. Option Description Click to edit profile schedule. Click to play profile schedule. Click to stop profile schedule.
  • Page 50 VM5404HA / VM5808HA User Manual After selecting Edit, you will be presented with the following options. Option Description Click to add profiles to the schedule in the order to be played, left to right, then set the amount of time each profile plays.

  • Page 51: Configuring Video Settings Of A Profile

    Chapter 4. Browser Operation Configuring Video Settings of a Profile To configure video settings of a profile, follow the steps below. 1. In the Profile List, locate the profile you wish to configure. Click the profile and then click Edit. 2.
  • Page 52 VM5404HA / VM5808HA User Manual 3. You can choose either the Normal View or the Grid View to edit the profile. Normal View  On top of video and audio assignments, the Normal View also allows you to configure the number of monitors and the bezel dimensions of the profile.
  • Page 53 Chapter 4. Browser Operation  For detailed information, see System Settings, page 50. 4. (Optional) Click Test to apply your configuration without saving it. 5. To save your configuration, click Save & Apply, Save, or Save As.

  • Page 54: Configuring Video Settings In Normal View

    VM5404HA / VM5808HA User Manual Configuring Video Settings in Normal View Profile Layout Settings...
  • Page 55 Note: To ensure synchronized video outputs on your video wall, configure the Hold Time setting of the VM5404HA / VM5808HA if you are using any VE805R / VE816R with the VM8514. For detailed information, please visit ATEN’s official website, go to Help Center (FAQ), and search for the information.

  • Page 56: Display Preferences

    VM5404HA / VM5808HA User Manual Display Preferences Option Description Output This indicates the selected displays. Video Input Click to select a video source for the output(s). The chosen video source (port number) is indicated at the center of the output(s) in the preview.

  • Page 57: Video Wall Settings

    Chapter 4. Browser Operation Video Wall Settings Each icon represents an output port and the connected display. Use the icons to create Independent and Grouped outputs. Independent outputs will display video on a single monitor. Grouped outputs will display video across multiple monitors as one large screen, ...

  • Page 58: Blank Output

    VM5404HA / VM5808HA User Manual Blank Output Option Description Blank Icon Click Blank Output icons to highlight icons in green and use the Display Preferences menu to set the video options (see , page 48). Select a single icon to set the Output and Video Input for an independent display (see Independent Output, page 46).

  • Page 59: Grouping

    Chapter 4. Browser Operation Grouping Option Description Grouping Click multiple icons to Group Outputs (highlighted in green) and  click to group the displays into one screen*. Use the Display Preferences menu to select the Video Input for the group - each Output icon in the Group will appear with the same Video Input number and icon color (see Group, page 48).

  • Page 60: Group

    VM5404HA / VM5808HA User Manual Group Option Description Group A Group (of Outputs) shares the same Video Input and displays the video together as one large screen. A Group of Outputs:  Displays video across multiple monitors to form one screen ...

  • Page 61: Configuring Video Settings In Grid View

    Chapter 4. Browser Operation Configuring Video Settings in Grid View In a grid view, the audio and video outputs are assigned by mapping the audio / video input on the vertical axis to the audio / video output on a horizontal axis. ...

  • Page 62: System Settings

    VM5404HA / VM5808HA User Manual System Settings In the web console, click the Settings icon from the Main page for the System Settings to open on the General page: The table below provides an overview of the available settings for each tab.
  • Page 63  Maintenance See Maintenance, Upgrade the firmware for the installed page 77. input and output boards  Back up or restore the VM5404HA / VM5808HA’s configuration  Add, edit, or remove user accounts  Configure the system network settings Option Description Click Save to apply the settings.

  • Page 64: General

    General The General page has three sections: Basic, Fan Status, and Serial Settings. Basics  Device Name: Type to name your VM5404HA / VM5808HA.  Language: Click to select a language for the web interface. Fan Status  Fan Speed: Click to select a fan speed.

  • Page 65: Port Settings

    Chapter 4. Browser Operation Port Settings OSD/CEC The OSD/CEC page lets users view and set OSD and CEC settings for all ports.  OSD: Sets the default OSD option for the port. When OSD is on, real- time text updates appear on the display for 10 seconds when configuration and port changes are made to its output.

  • Page 66: Hdcp

    Here users can define whether or not HDCP settings are fixed, either by individual port or by applying one setting to all ports. By prearranging and fixing keys, this setting ensures that the VM5404HA / VM5808HA feature is possible even when switching between HDCP and non-HDCP enabled devices.

  • Page 67: Scaler

    Enable Seamless Switch™ to remove the video distortion and delay seen when an input port is switched. Use the drop-down menu to apply options to all ports, or the On/Off button to enable/disable VM5404HA / VM5808HA per port. With Seamless Switch™ enabled, the following options are made available: ...
  • Page 68 VM5404HA / VM5808HA User Manual  Period: Sets the fade speed for the Transition option.  Use the drop-down menu to apply an option (Slow, Normal, or Fast) to all ports, or lower drop-down menus to apply options per port.

  • Page 69: Port Name

    Chapter 4. Browser Operation Port Name The Port Name page lets you name the input and output ports for easy identification.  To name an Input/Output port, enter a descriptive name of up to 16 characters (including 0-9, a-z, A-Z, _, -) in the corresponding field. ...

  • Page 70: Edid Settings

    The EDID Setting page lets users view and select an EDID Mode so that the VM5404HA / VM5808HA can use the best resolution for its displays. Note: The EDID Mode can also be selected via the Front Panel pushbuttons –...

  • Page 71: Edid Mode

    In the left panel of the page, users can select a pre-configured EDID Mode using the EDID Mode radio buttons. Select the EDID Mode to use and click Apply. The VM5404HA / VM5808HA uses the settings configured for that EDID mode.

  • Page 72: Edid & Cea Description

    VM5404HA / VM5808HA User Manual EDID & CEA Description The middle panel of the screen lets users view and configure the EDID or the CEA mode.  From the middle column, click the option that you want to view and/or edit.

  • Page 73: Customized Mode

    Chapter 4. Browser Operation Customized Mode Use the Customized mode to automatically retrieve and save the EDID of a connected monitor/display device to an input source port.  In the left panel, select Customized from the EDID Mode section and click Apply.

  • Page 74: Customized Edid Parameters

    VM5404HA / VM5808HA User Manual Customized EDID Parameters The EDID structure is comprised of 128 bytes in total – each heading shown in the left column corresponds to a specific number of bytes. The pages for the pre-configured EDID Modes (Port 1, Default and Remix) cannot be edited.
  • Page 75 Chapter 4. Browser Operation Standard Timings This page shows eight resolutions/timings that display devices can support in addition to those listed in the Established Timings page.  Select the H Active Pixel from the drop-down menu.  Select the Aspect Ratio from the drop-down menu. ...
  • Page 76 VM5404HA / VM5808HA User Manual Detail Timing / Display Description This screen gives more video resolution options, and provides resolution/ timing details. In the drop down menu, choose a resolution with values that fit the attached monitor/display device and click Save.
  • Page 77 Chapter 4. Browser Operation Monitor Description This screen lets you specify the viewing specifications, namely horizontal and vertical scan ranges and pixel clock rate, of your monitor/display device. Enter the values that correspond to your device and click Save to apply the changes.

  • Page 78: Cea Settings

    VM5404HA / VM5808HA User Manual CEA Settings CEA is an extension data of the EDID structure, which further extends the standard definitions of EDID to support advanced features of monitors/display devices. Display Support This screen describes the display’s basic digital components.

  • Page 79: Video Data

    Chapter 4. Browser Operation Video Data This screen lists additional video resolution/timing displays that may be supported by other devices, other than PC monitors (for example, 1080i).  Select the native resolution of the attached display device.  Select the resolutions that work with the attached monitor/display device. ...

  • Page 80: Audio Data

    VM5404HA / VM5808HA User Manual Audio Data This screen lets you select advanced audio configurations for your device. Use the drop down menu to select the Audio Format (1~6) applicable to your audio output device, and click Save to apply the changes.

  • Page 81: Hdmi Forum Vendor Specific Block

    Chapter 4. Browser Operation HDMI Forum Vendor Specific Block This screen shows the display device’s supported video parameters. Use the toggle button to enable or disable this function.  3D OSD Disparity: Select this option to have Sink support receiving 3D OSD Disparity Indication in the HF-VSIF.

  • Page 82: Ycbcr 4:2:0 Video Data Block

    VM5404HA / VM5808HA User Manual YCBCR 4:2:0 Video Data Block Use this page to configure a list of supported YCBCR 4:2:0 video resolutions and select one to be applied. Use the toggle button at the top-right to enable or disable this feature.

  • Page 83: Ycbcr 4:2:0 Compatibility Map Data Block

    Chapter 4. Browser Operation YCBCR 4:2:0 Compatibility Map Data Block Use this page to configure a list of supported video resolutions for YCBCR 4:2:0 Compatibility Map Data Block and select one to be applied. Use the toggle button at the top-right to enable or disable this feature. ...

  • Page 84: Detail Timing / Display Description

    VM5404HA / VM5808HA User Manual Detail Timing / Display Description This screen gives more video resolution options, and provides resolution/ timing details (in addition to those specified in the EDID structure). In the Resolution drop down menu, choose a resolution with values that fit the...

  • Page 85: Configuring A Multiview

    Chapter 4. Browser Operation Configuring a Multiview You can monitor multiple input sources in a multiview screen by installing an HDMI display to the local output port on the rear panel of the video matrix. To configure the display resolution, array mode, and fit mode, follow the steps below.
  • Page 86 VM5404HA / VM5808HA User Manual  Select an array (view) mode for the local display, such as single view, quad view, or manual (to specify the number of horizontal and vertical divisions, as illustrated in step 1).  Use the drop-down menu in the preview to change the input source.

  • Page 87: Status

    Connections The connections tab provides a status summary of the input/output boards installed to the VM5404HA / VM5808HA and the devices that are connected to the ports on the input/output boards. If the connected devices support FrameSync, you can also enable/disable the function on this page.

  • Page 88: System Information

    VM5404HA / VM5808HA User Manual System Information Use this page to look up information and settings, such as system network settings, firmware version, video/audio input assignments, CED/OSD settings, and output resolutions. Hint: Click to view details and to refresh the system.

  • Page 89: Maintenance

    You can use the System Setup page to do any of the following:  Upgrade the firmware of the VM5404HA / VM5808HA.  Back up and restore the VM5404HA / VM5808HA’s system settings. Note that account settings cannot be backed up or restored.
  • Page 90 3. Click Restore to begin the restoration procedure. Restoring Factory Defaults To reset the VM5404HA / VM5808HA to its default settings, do the following. 1. In the VM5404HA / VM5808HA’s web console, go to Settings > Maintenance > System Setup.

  • Page 91: User Account

    Note: This is an Administrator-only function.  Add account – Click the Add account button to add another user to the list. The VM5404HA / VM5808HA supports up to 32 users and allows up to 16 concurrent logins (see page 80 for more details).
  • Page 92 VM5404HA / VM5808HA User Manual Adding an Account 1. In the VM5404HA / VM5808HA web interface, go to Settings > Maintenance > User Account. 2. Click +Add Account. This dialog box appears. 3. Configure the account settings.  Enter a user name and password Note: ...

  • Page 93: Network Settings

    (DHCP or fixed IP address), IP address for the web console, and Telnet connection. To configure the system network settings, do the following: 1. In the VM5404HA / VM5808HA web interface, go to Settings > Maintenance > Network. This page appears. 2. Configure the settings as needed.
  • Page 94 Note:  The Website Timeout setting controls how long an inactive web connection stays logged into the VM5404HA / VM5808HA. Any changes will take effect immediately. The default setting is 5 minutes.  To reset the system network settings, go to Settings > Maintenance >...

  • Page 95: Cli Commands

    VM5404HA / VM5808HA via RS-232/Telnet and command syntax. Connecting to the Matrix Switch via Telnet To establish a Telnet session with the VM5404HA / VM5808HA, do the following: 1. Connect a host computer or control system to a shared network with the VM5404HA / VM5808HA.

  • Page 96: Connecting To The Matrix Switch Via Rs-232

    Connecting to the Matrix Switch via RS-232 You can control and operate the VM5404HA / VM5808HA using a high-end controller or PC. To connect to the VM5404HA / VM5808HA via RS-232, do the following: 1. Connect the RS-232 serial port on the VM5404HA / VM5808HA to the RS-232 serial port on your computer using a 9-wire straight cable, with only pin 2 to pin 2, pin 3 to pin 3, and pin 5 to pin 5 connected.

  • Page 97: Command Verification

    After connecting to the VM5404HA / VM5808HA via Telnet or RS-232, you can operate the system using the following commands. Switch Port Command The Switch Port command allows you to switch ports on the VM5404HA / VM5808HA. The formula for the Switch command is as follows: Command + Input + Number + Output + Number + Control + [Enter] 1.
  • Page 98 VM5404HA / VM5808HA User Manual Port number Description 01-08 port Output Command Description Output command Port number Description 01-08 port All output ports Group Description normal default HDMI audio outputs console audio Switch the audio to the stereo audio output...
  • Page 99 Chapter 5. CLI Commands Input Input Output Output Command Control Enter Description Command Port Command Port [Enter] Switch Output port yy to next Output port. Switch Output port yy to previous Output port. (yy:01~08, *)

  • Page 100: Edid Mode Command

    Implement the EDID of each connected display according to its connection when the VM5404HA / VM5808HA is first powered on, or immediately after selecting the Remix option. default Implements ATEN’s default EDID. (default)

  • Page 101: Mute Command

    Chapter 5. CLI Commands Mute Command Mute allows you to enable or disable an output port(s) audio. The formula for the Mute command is as follows: Command + Output + Number + Control + [Enter] 1. For example, to mute the audio coming from output port 1, type: mute o01 on [enter] The following tables show the possible values for the Mute command: Command...
  • Page 102 VM5404HA / VM5808HA User Manual The following table lists the available Mute commands: Output Output Command Control Enter Description Command Port mute [Enter] Audio on for output port yy (yy:01~08, *) mute [Enter] Audio off for output port yy (default)

  • Page 103: Cec Command

    Chapter 5. CLI Commands CEC Command Consumer Electronics Control (CEC) allows interconnected HDMI devices to communicate and respond to the same remote control. The formula for the CEC command is as follows: Command + Output + Number + Control + [Enter] 1.

  • Page 104: Scaling Command

    VM5404HA / VM5808HA User Manual Scaling Command The Scaling command allows you to set a resolution for scaling the display connected to an output port. The formula for the Scaling command is as follows: Command + Output + Number 1 + Horizontal Resolution + Number 2...
  • Page 105 Chapter 5. CLI Commands Resolution Number Description vvvv Vertical resolution Frequency Description freq Frequency command for scaling Frequency Number Description Frequency resolution Control Description Turn off the scaling function (by pass mode) native Map display's native resolution for scaling (default) Note: 1.
  • Page 106 VM5404HA / VM5808HA User Manual Horizo- Vertical Port ntal Command Output Number Resolu- Number Frequency Number Control Enter Description Number Resolu- tion tion scaling 1600 1200 freq [Enter] Scale output port yy to 1600x1200@60H yy: 01 ~ 08 or *...

  • Page 107: Fan Speed Command

    Chapter 5. CLI Commands Fan Speed Command The Fan Speed command allows you to set the internal fan speed that cools the VM5404HA/VM5808HA. To set the fan speed, use the following command: Command + Control + [Enter] 1. For example, to set the fan to low speed, type:...

  • Page 108: Echo Command

    VM5404HA / VM5808HA User Manual Echo Command The Echo function updates the RS-232 controller when operations are made via the front panel pushbuttons, web browser, or telnet. The changes echo back to the RS-232 controller to keep the settings in sync with the device.

  • Page 109: Black Screen Command

    Chapter 5. CLI Commands Black Screen Command The Black Screen command turns a display screen black when no source signal is detected. This prevents the display from showing the default blue or other color used when no source signal is detected. The formula for the Black Screen command is as follows: Command + Control + [Enter] 1.

  • Page 110: Read Command

    [Enter] View information about the device Reset Command The Reset command allows you to reset the VM5404HA / VM5808HA to the default factory settings. The formula for the Reset command is as follows: Command + [Enter] The following tables show the possible values for the Reset command:...

  • Page 111: Baud Rate Command

    Baud Rate Command The Baud Rate command allows you to set the RS-232 data rate for the VM5404HA / VM5808HA to use. Options are 9600, 19200 (default) 38400 and 115200. The formula for the Baud Rate command is as follows: Command + Control + [Enter] 1.

  • Page 112: Save/Load Profile Command

    VM5404HA / VM5808HA User Manual Save/Load Profile Command The Save/Load Profile command allows you to save and load connection profiles. Saving profiles will save the connections currently in use. The formula for the Save/Load Profile command is as follows: Command + Profile + Number + Control + [Enter] 1.

  • Page 113: Osd Command

    Chapter 5. CLI Commands OSD Command To enable or disable the On-Screen Display (OSD) for displays, use the following command: Command + Output + Number + Control + [Enter] 1. For example, to enable the OSD for output 07, type: osd o07 on [Enter] 2.

  • Page 114: Array Command

    VM5404HA / VM5808HA User Manual Array Command To set up an viewing mode (1x1, 1x2, 2x2, or 4x1 VM5404HA only; 8x1 VM5808HA only) for the local display, use the following command: Command + Vertical + Number + Horizontal + Number + Input + Sequence + [Enter] 1.
  • Page 115 Note: 1. Each command string should be separated with a space. 2. The viewing array supports modes of 1x1 (single), 1x2 (side by side), 2x2 (quad mode), or 4x1 (VM5404HA only) and 8x1 (VM5808HA only) (show all) only. 3. Use commas to separate the Input Ports when setting the Input Sequence.

  • Page 116: Alert Command

    VM5404HA / VM5808HA User Manual Alert Command To trigger a warning when issues arise for a specific input port, use the following command: Command + Input + Number + Control + [Enter] 1. For example, to enable the basic Alert function for input port 1, type:...

  • Page 117: Appendix

    Appendix Safety Instructions General  Read all of these instructions. Save them for future reference.  Follow all warnings and instructions marked on the device.  This product is for indoor use only.  Do not place the device on any unstable surface (cart, stand, table, etc.). If the device falls, serious damage will result.
  • Page 118 VM5404HA / VM5808HA User Manual  If an extension cord is used with this device make sure that the total of the ampere ratings of all products used on this cord does not exceed the extension cord ampere rating. Make sure that the total of all products plugged into the wall outlet does not exceed 15 amperes.

  • Page 119: Rack Mounting

    Appendix Rack Mounting  Before working on the rack, make sure that the stabilizers are secured to the rack, extended to the floor, and that the full weight of the rack rests on the floor. Install front and side stabilizers on a single rack or front stabilizers for joined multiple racks before working on the rack.

  • Page 120: Technical Support

    VM5404HA / VM5808HA User Manual Technical Support International  For online technical support – including troubleshooting, documentation, and software updates: http://eservice.aten.com  For telephone support, see Telephone Support, page iv: North America Email Support support@aten-usa.com Online Troubleshooting http://www.aten-usa.com/support Technical Documentation...

  • Page 121: Specifications

    Appendix Specifications VM5404HA VM5808HA Video Input Interface 4 x HDMI Type A Female (Black) 8 x HDMI Type A Female (Black) Impedance 100 Ω Max. Distance 5.0 m Video Output Interface 4 x HDMI Type A Female (Black) 8 x HDMI Type A Female (Black)
  • Page 122 VM5404HA / VM5808HA User Manual VM5404HA VM5808HA Operating Temp. 0–40ºC Storage Temp. -20–60ºC Humidity 0–80% RH, Non-condensing Physical Properties Housing Metal Weight 5.12 kg (11.28 lb) 5.54 kg (12.2 lb) Dimensions 43.24 x 37.82 x 4.40 cm (L x W x H)

  • Page 123: Telnet Operation

    Appendix Telnet Operation To connect to VM5404HA / VM5808HA via Telnet, follow the steps in Connecting to the Matrix Switch via Telnet, page 83. Configuration Menu Once a Telnet connection to the VM5404HA / VM5808HA is established, the device’s text-based Configuration Menu comes up, with the following items: 1.

  • Page 124: Ip - Set Ip Address

    VM5404HA / VM5808HA User Manual New IP subnet mask: 4. IP – Set IP address Old IP address: 192.168.0.60 New IP address: 5. LO – Load connections from profile LO 01 Load profile 01 OK. 6. PW – Change password...

  • Page 125: 11. Sv - Save The Current Connections Into A Profile

    Appendix 11. SV – Save the current connections into a profile SV 01 Save the current connections into profile 01 12. TI – Set timeout TI 30 Set 30 minute timeout 13. VR – Software version information Software version 1.0.

  • Page 126: Aten Standard Warranty Policy

    © Copyright 2023 ATEN® International Co., Ltd. Released: 2023-12-05 ATEN and the ATEN logo are registered trademarks of ATEN International Co., Ltd. All rights reserved. All other brand names and trademarks are the registered property of their respective owners.

This manual is also suitable for:

Vm5808ha

Table of Contents
