ATEN VM0808H User Manual

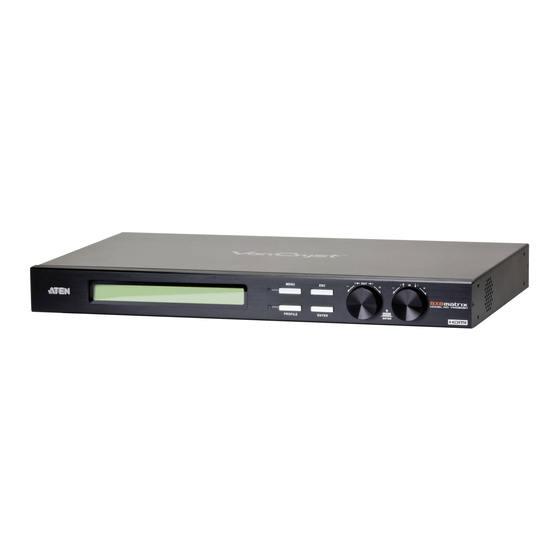

8x8 hdmi matrix switch
Hide thumbs Also See for VM0808H:
Table of Contents

Advertisement

Quick Links

8x8 HDMI Matrix Switch
VM0808H
User Manual
www.aten.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VM0808H and is the answer not in the manual?

Questions and answers

Related Manuals for ATEN VM0808H

Summary of Contents for ATEN VM0808H

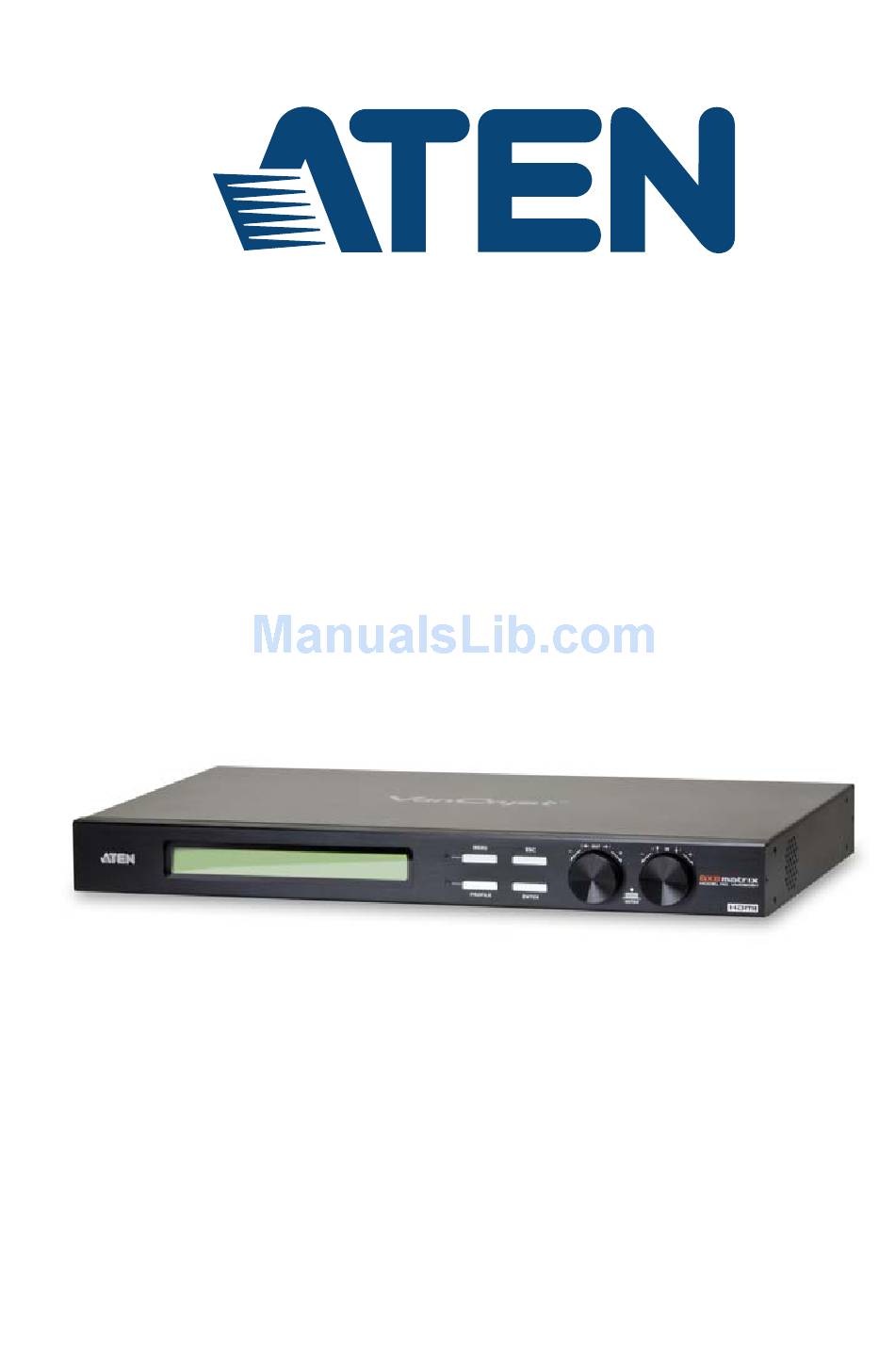

  • Page 1 8x8 HDMI Matrix Switch VM0808H User Manual www.aten.com...

  • Page 2: Emc Information

    VM0808H User Manual EMC Information FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.

  • Page 3: User Information

    VM0808H User Manual User Information Online Registration Be sure to register your product at our online support center: International http://eservice.aten.com Telephone Support For telephone support, call this number: International 886-2-8692-6959 China 86-10-5255-0110 Japan 81-3-5615-5811 Korea 82-2-467-6789 North America 1-888-999-ATEN ext 4988...

  • Page 4: Package Contents

    © Copyright 2010–2014 ATEN® International Co., Ltd. Manual Part No. PAPE-0349-AT1G Manual Date: 2014-03-21 ATEN and the ATEN logo are registered trademarks of ATEN International Co., Ltd. All rights reserved. All other brand names and trademarks are the registered property of their respective owners.

  • Page 5: Table Of Contents

    VM0808H User Manual Contents EMC Information ..........ii RoHS.
  • Page 6 VM0808H User Manual Gateway ..........20 Default IP Settings.
  • Page 7 VM0808H User Manual 5. RS-232 Commands Overview ..........47 RS-232 Control Tool .

  • Page 8: About This Manual

    VM0808H User Manual About this Manual This User Manual is provided to help you get the most from your VM0808H system. It covers all aspects of installation, configuration and operation. An overview of the information found in the manual is provided below.

  • Page 9: Conventions

    For information about all ATEN products and how they can help you connect without limits, visit ATEN on the Web or contact an ATEN Authorized Reseller. Visit ATEN on the Web for a list of locations and telephone numbers: International http://www.aten.com...
  • Page 10 VM0808H User Manual This Page Intentionally Left Blank...

  • Page 11: Introduction

    8 HDMI video sources to any of 8 HDMI displays, and view them in any arrangement. As a matrix switch the VM0808H allows eight HDMI source devices to cross connect to eight HDMI displays at the same time, while giving you independent input/output control of each in any array possible.

  • Page 12: Features

    EDID Library with 14 default EDID configurations Built-in EDID Mode selection Copies a display's EDID to selected source devices Power on Detection - If an HDMI source is powered off, the VM0808H can automatically switch to the next powered-on source Firmware upgradeable...

  • Page 13: Requirements

    Chapter 1. Introduction Requirements The following devices are required for a complete VM0808H installation: Source Devices HDMI Type A output connector(s) Note: A DVI/HDMI adapter is required when connecting a DVI source device. Display Devices Display devices or receivers with an HDMI Type A input connector...

  • Page 14: Source Device Operating Systems

    VM0808H User Manual Source Device Operating Systems Supported operating systems are shown in the table, below: Version Windows 2000 and higher Linux RedHat 6.0 and higher SuSE 8.2 and higher Mandriva 9.0 and higher (Mandrake) UNIX 4.3 and higher FreeBSD 3.51 and higher...

  • Page 15: Components

    LCD Display The LCD Display gives a quick view of all port connections, and shows the various options for configuring and operating the VM0808H. For full details, see Front Panel Pushbuttons, page 15. Function Pushbuttons The function pushbuttons (MENU, PROFILE, ENTER...

  • Page 16: Rear View

    In order to access the VM0808H’s Browser Graphical User Interface (GUI), the VM0808H must be connected to your network. The cable that connects the VM0808H to your LAN plugs in here. See Cable Connection, page 12, for further details HDMI Input Ports The cables from your HDMI source devices plug into these ports.

  • Page 17: Ir Remote Control

    Chapter 1. Introduction IR Remote Control Component Description Power ON/OFF Use the ON and OFF pushbuttons to turn the Output displays on or off – by individual port, or all ports (see Profile Pushbutton, page 29). Output Pushbuttons Press Output display pushbuttons 1–8 to select the Output display you want to configure (see Profile 1–8 Pushbutton, page 29).
  • Page 18 VM0808H User Manual This Page Intentionally Left Blank...

  • Page 19: Hardware Setup

    Keyboard Power On function. Rack Mounting The VM0808H can be mounted in a 19” (1U) system rack. For the most convenient front panel pushbutton configuration and operation at the local site, mount the unit at the front of the rack, as follows: 1.
  • Page 20 VM0808H User Manual 2. Position the unit in the front of the rack and align the holes in the mounting brackets with the holes in the rack. 3. Screw the mounting brackets to the rack.

  • Page 21: Grounding

    To prevent damage to your installation, it is important that all devices are properly grounded. 1. Use a grounding wire to ground the VM0808H by connecting one end of the wire to the grounding terminal, and the other end of the wire to a suitable grounded object.

  • Page 22: Cable Connection

    5. Connect up to 8 HDMI display devices to the HDMI Output ports 6. Connect the IR Receiver into the External IR Receiver input Port 7. Plug the power cord supplied with the package into the VM0808H’s 3- prong AC socket, and then into an AC power source.

  • Page 23: Installation Diagram

    Chapter 2. Hardware Setup Installation Diagram...
  • Page 24 VM0808H User Manual This Page Intentionally Left Blank...

  • Page 25: Front Panel Operation

    Front Panel Operation Overview The VM0808H can be configured and operated locally from the front panel via the LCD using the built-in tuner dials, pushbuttons and the IR Remote Control. It can also be controlled remotely over a standard TCP/IP connection via graphical user interface (GUI) using a web browser;...

  • Page 26: Enter Password

    VM0808H User Manual Enter Password If you are accessing the VM0808H for the first time, or the VM0808H has been configured to require a password for local operation (see Security Mode, page 26), the password screen appears when the VM0808H is powered on. The cursor flashes on the first digit.

  • Page 27: Main Screen

    Chapter 3. Front Panel Operation Main Screen The Main screen displays Output Ports 1–8 in sequential order across the top. The Input source displaying on each Output port is shown directly beneath it. From the Main screen, you can set the Input-to-Output connections that route the signals from a selected Input port to the selected Output port.

  • Page 28: Menu Organization

    VM0808H User Manual Menu Organization The VM0808H has a built-in configuration utility via the front panel LCD, which can be controlled by pressing the MENU pushbutton. Cycle through the menu options using the tuner dials, starting from Set IP Port, in the order show...

  • Page 29: Menu Pushbutton

    Use the OUT, IN, or ENTER pushbutton to make a selection Press MENU or ESC to return to the Main Screen Set IP Port To configure the VM0808H’s IP port settings, from the Menu page, select Set IP Port. MENU...

  • Page 30: Subnet Mask

    VM0808H User Manual Subnet Mask To set the VM0808H’s Subnet Mask, do the following: 1. Select Subnet Mask from the Set IP Port submenu. The cursor flashes on the first number: MENU IP Address: 192.168.0.60 Subnet Mask: 255.255.255.0 PROFILE ENTER 2.

  • Page 31: Default Ip Settings

    Chapter 3. Front Panel Operation Default IP Settings To use / not use the VM0808H’s Default IP Settings, do the following: 1. Select Default IP Settings from the Set IP Port submenu. The cursor flashes on the entry: MENU Gateway: 192.168.0.1...

  • Page 32: Set Serial Port

    The submenu provides two options: Default Serial Settings, and Baud Rate, as follows: Default Serial Settings To use / not use the VM0808H’s Default Serial Settings, do the following: 1. Select Default Serial Settings from the Set Serial Port submenu. The cursor flashes on the entry.

  • Page 33: Baud Rate

    Chapter 3. Front Panel Operation Baud Rate To set the VM0808H’s baud rate, do the following: 1. Select Baud Rate from the Set Serial Port submenu. The cursor flashes on the first number: MENU Default Serial Setting: NO Baud Rate: 19200...

  • Page 34: Operation Mode

    Security Mode ENTER PROFILE Power on Detection To configure the VM0808H’s Power On Detection settings, do the following: 1. With the arrow on Power On Detection, press the OUT, IN, or ENTER pushbutton to access the Power On Detection options. MENU...
  • Page 35 RS-232 command (see EDID Commands, page 50) Port 1 - Implements the EDID of the connected display to Port 1, and passes it to the video source. The VM0808H is able to copy the EDID of any connected display to the input source (see EDID Commands, page 50) Remix - Implements the EDID of all connected displays.

  • Page 36: Security Mode

    Password Required: YES Change Password ENTER PROFILE 2. To set the VM0808H to require a password for local operation, turn the IN/ OUT tuner dial to select Yes or No. 3. Press the OUT, IN, or ENTER pushbutton to confirm.

  • Page 37: Change Password

    Chapter 3. Front Panel Operation Change Password To change the VM0808H’s password, do the following: 1. With the arrow on Change Password, press the OUT, IN, or ENTER pushbutton to access the Change Password options. MENU Password Required: YES Change Password...

  • Page 38: Save/Load Profile

    VM0808H User Manual Save / Load Profile The VM0808H allows you to store up to 32 (numbered 0–31) different connection profiles that can be saved and recalled later. When profiles are saved, they are saved according to the current connection configuration reflected on the Main Screen.

  • Page 39: Profile Pushbutton

    Chapter 3. Front Panel Operation Call a Saved Profile No. To call/use a saved profile, do the following: 1. With the arrow on Call a Saved Profile No., press the OUT, IN, or ENTER pushbutton to access the options 2. Turn the IN/OUT tuner dial to cycle through the stored profiles (0–31). MENU Save to a Profile No.

  • Page 40: Ir Remote Control Operation

    Before using the remote control you must first plug the IR External Receiver into the rear of the VM0808H and place the receiver where the IR signal can be reached (see External IR Receiver Port, page 6). Change the Input source of an Output display...

  • Page 41: Power On/Off All Output Displays

    Chapter 3. Front Panel Operation Power on/off all Output displays To power on/off all Output displays simultaneously, with the remote control, do the following: 1. Press the ON or OFF pushbutton.* 2. Repeat step 1 to simultaneously change back the power status of all Output ports, to on or off, respectively.
  • Page 42 VM0808H User Manual This Page Intentionally Left Blank...

  • Page 43: Remote Operation

    For full details, see the sections that follow. Logging In To access the Browser GUI, type the VM0808H’s IP address into the address bar of any browser. If a Security Alert dialog box appears, accept the certificate - it can be trusted. The welcome screen appears: The VM0808H’s default IP address is http://192.168.0.60.

  • Page 44: Connections Page

    VM0808H User Manual Connections Page The VM0808H’s GUI main page is the Connections page. This displays all active connections for control and configuration:...

  • Page 45: Toolbar

    Chapter 4. Remote Operation Toolbar Icon Description Connections This page displays the VM0808H’s active connections and enables you to control them. Setup This page enables you to configure the VM0808H’s IP settings, serial settings and port names. Firmware The page enables you to upgrade the VM0808H’s firmware.

  • Page 46: Configuring Connections

    Or, click the Clear button to revert to the stored configuration. Status Colors Connections display in colors to indicate their status, as follows: Gray – Connected White – Not Connected Note: The latest connections will load automatically when the VM0808H is reset.

  • Page 47: Save / Load Connection Profiles

    Chapter 4. Remote Operation Save / Load Connection Profiles The VM0808H allows you to store up to 32 (numbered 00–31) differently configured connection profiles that can be saved and recalled later by either connection method (locally via the unit’s front panel pushbuttons and over IP via the GUI).

  • Page 48: Setup

    VM0808H User Manual Setup Click the Setup icon to configure the VM0808H’s IP and serial settings, and to name all the ports in your installation. IP Setup The Web Setup settings enable you to configure the VM0808H’s Web interface connection. Changes take a few seconds and automatically redirect you to the IP address specified.

  • Page 49: Serial Setup

    Chapter 4. Remote Operation Serial Setup The Serial Setup settings enable you to configure the VM0808H’s serial connection. Use the drop-down menu to select the value and then click Save or Clear. Click Default Setting to use the following defaults:...

  • Page 50: Port Name

    VM0808H User Manual Port Name The Port Name page enables Administrators and Super Users to change the display name of the input and output ports. To change the display name, enter a value and click Save. Click Clear to revert to the previous stored name.

  • Page 51: Firmware

    1. Use the Browse button to locate the firmware upgrade file. 2. Click Upgrade Firmware to start the upgrade. Note: Check the box to enable the utility to compare the VM0808H’s current firmware version with that of the upgrade files. If it finds that the VM0808H’s firmware version is the same or higher than the...

  • Page 52: Profile Selection

    VM0808H User Manual Profile Selection The profile selection page allows you to set a series of connections profiles, that can be cycled through using the front panel PROFILE pushbutton. Once you have added connection profiles to the Profile Selection List, you can press the front panel PROFILE pushbutton to switch between the profiles which have been added to the Profile List.

  • Page 53: Profile Selection Name

    Chapter 4. Remote Operation Profile Selection Name The Name page enables Administrators and Super Users to change the name of the selection profiles in the profile list. To change the display name, enter a value and click Save. Click Clear to revert to the previous stored name.

  • Page 54: User Management

    Note: This is an Administrator only function. Operations are as follows: Add User – Click Add to add another user to the list. The VM0808H supports up to 32 users at one time Edit User – Use the radio button to select a user and click Edit to change the information.

  • Page 55: Add User

    Edit User Use this page to rename a user, set/reset a user’s password, add a description of a user, and to set a user’s privileges for accessing the VM0808H’s GUI. Usernames and passwords are case sensitive, and must be 5–16 alphanumeric characters.

  • Page 56: Privileges

    Use the Edit User function to set a user’s privileges. The three available levels are as follows: Administrator – this level provides full access and control of the VM0808H functions in addition to full User Management privileges Super User – this level provides full access and control with no User Management privileges User –...

  • Page 57: Rs-232 Commands

    RS-232 Control Tool RS-232 serial operations in a VM0808H installation can be managed via a Graphical User Interface (GUI) on systems that are running Windows. In order to use this Control Tool, two separate items of software must be installed on all of the PCs in your installation –...

  • Page 58: Switch Port Commands

    VM0808H User Manual Switch Port Commands The formula for Switch Port commands is as follows: Switch Command + Input Command + Port number + Output Command + Port Number + Control + [Enter] 1. For example, to switch input port 02 to output port 05, type the following: sw i02 o05 [Enter] 2.
  • Page 59 Chapter 5. RS-232 Commands The following table shows the available command list: Enter Description [Enter] Switch Input Port xx to Output Port yy (xx:01~08; yy:01~08, *) [Enter] Turn on Output Port yy Turn off Output Port yy (yy:01~08, *) [Enter] Switch Next Input to Output Port yy Switch Previous Input to Output Port yy...

  • Page 60: Edid Commands

    VM0808H User Manual EDID Commands You can set up which EDID mode the VM0808H uses, select one of the 14 available ATEN default EDID configurations, and copy the EDID of any connected display to the input source with the following command:...
  • Page 61 [Enter] ATEN’s default EDIDyy is passed to the video source (yy: 00-13, default is 00) The ATEN default EDID configuration can be selected via the RS-232 command line: Default EDID No. Configuration 720p video, 2 ch audio (default) 1080p video, 2 ch audio 1080p video, 5.1 ch audio...

  • Page 62: Mute Commands

    VM0808H User Manual Mute Commands Enable or disable audio coming from the output port(s) using the following command: Mute Command + Output Command + Port Number + Control + [Enter] For example, to mute the audio coming from output port 1, type the following:...

  • Page 63: Save / Load Profile Commands

    Chapter 5. RS-232 Commands Save / Load Profile Commands The formula for Save/Load Profile commands is as follows: Command + Profile + Number + Control + [Enter] 1. For example, to save the current connection configuration to profile 12, type the following: profile f 12 save [Enter] 2.

  • Page 64: Power On Detection Commands

    VM0808H User Manual Power On Detection Commands Enabling Power On Detection means that the VM0808H automatically switches to the next powered on device when one of the HDMI source devices is powered off. The formula for Power On Detection commands is as follows:...

  • Page 65: Read Commands

    To Reads and displays information from the device, type: read [Enter] The following table show the possible values and formats for the command: Command Description read Reads and displays information from the VM0808H, including the input/ output connections, audio/video and CEC status, EDID settings and the firmware version...

  • Page 66: Cec Commands

    VM0808H User Manual CEC Commands Consumer Electronics Control (CEC) allows interconnected HDMI devices to communicate and respond to one remote control. The formula for CEC mode selection commands is as follows: CEC Command + Output Command + Port Number + Control (Off /...

  • Page 67: Baud Rate Setting

    Chapter 5. RS-232 Commands Baud Rate Setting You can select the RS-232 Baud Rate you want the VM0808H to use. Options are 9600, 19200 (default) 38400 and 115200. The formula for Baud Rate setting command is as follows: Baud Command + Control [Enter]...

  • Page 68: Osd Commands

    VM0808H User Manual OSD Commands Enable or disable the On-Screen Display (OSD) using the following command: OSD Command + Control (On / Off) [Enter] For example, to mute the audio, type the following: osd on [enter] The following tables show the possible values and formats for the Control...

  • Page 69: Echo Commands

    Chapter 5. RS-232 Commands Echo Commands If the Echo feature is enabled: for each action from the front panel (pushbuttons), web GUI or IR interface, the VM0808H sends a corresponding acknowledgement message to the attached controller or management device via the RS-232 port.

  • Page 70: Blackscreen Commands

    VM0808H User Manual Blackscreen Commands The Blackscreen function, when enabled, keeps connected displays awake even if there is no source input device detected or when a port is turned off (via the Switch port command). The formula for the Blackscreen command is as follows:...

  • Page 71: Reset

    Chapter 5. RS-232 Commands Reset You can reset the VM0808H to default factory settings. The formula for the Reset command is as follows: Reset Command [Enter] The following tables show the possible values and formats for the Control command: Command...
  • Page 72 VM0808H User Manual This Page Intentionally Left Blank...

  • Page 73: Appendix

    Appendix Safety Instructions General Read all of these instructions. Save them for future reference. Follow all warnings and instructions marked on the device. This product is for indoor use only. Do not place the device on any unstable surface (cart, stand, table, etc.). If the device falls, serious damage will result.
  • Page 74 VM0808H User Manual If an extension cord is used with this device make sure that the total of the ampere ratings of all products used on this cord does not exceed the extension cord ampere rating. Make sure that the total of all products plugged into the wall outlet does not exceed 15 amperes.

  • Page 75: Rack Mounting

    Appendix Rack Mounting Before working on the rack, make sure that the stabilizers are secured to the rack, extended to the floor, and that the full weight of the rack rests on the floor. Install front and side stabilizers on a single rack or front stabilizers for joined multiple racks before working on the rack.

  • Page 76: Technical Support

    VM0808H User Manual Technical Support International For online technical support – including troubleshooting, documentation, and software updates: http://eservice.aten.com For telephone support, see Telephone Support, page iii: North America Email Support support@aten-usa.com Online Troubleshooting http://www.aten-usa.com/support Technical Documentation Support Software Updates Telephone Support...

  • Page 77: Specifications

    Appendix Specifications Function VM0808H Connectors HDMI In 8 x HDMI Type A Female (Black) HDMI Out 8 x HDMI Type A Female (Black) Ethernet 1 x RJ-45 Female RS-232 1 x DB-9 Female (Black) IR Input Port 1 x Mini Stereo Jack Female (Black)

  • Page 78: Limited Warranty

    VM0808H User Manual Limited Warranty IN NO EVENT SHALL THE DIRECT VENDOR'S LIABILITY EXCEED THE PRICE PAID FOR THE PRODUCT FROM DIRECT, INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THE PRODUCT, DISK, OR ITS DOCUMENTATION. The direct vendor makes no warranty or representation, expressed, implied, or statutory with respect to the contents or use of this documentation, and especially disclaims its quality, performance, merchantability, or fitness for any particular purpose.
