Operation and maintenance instructions

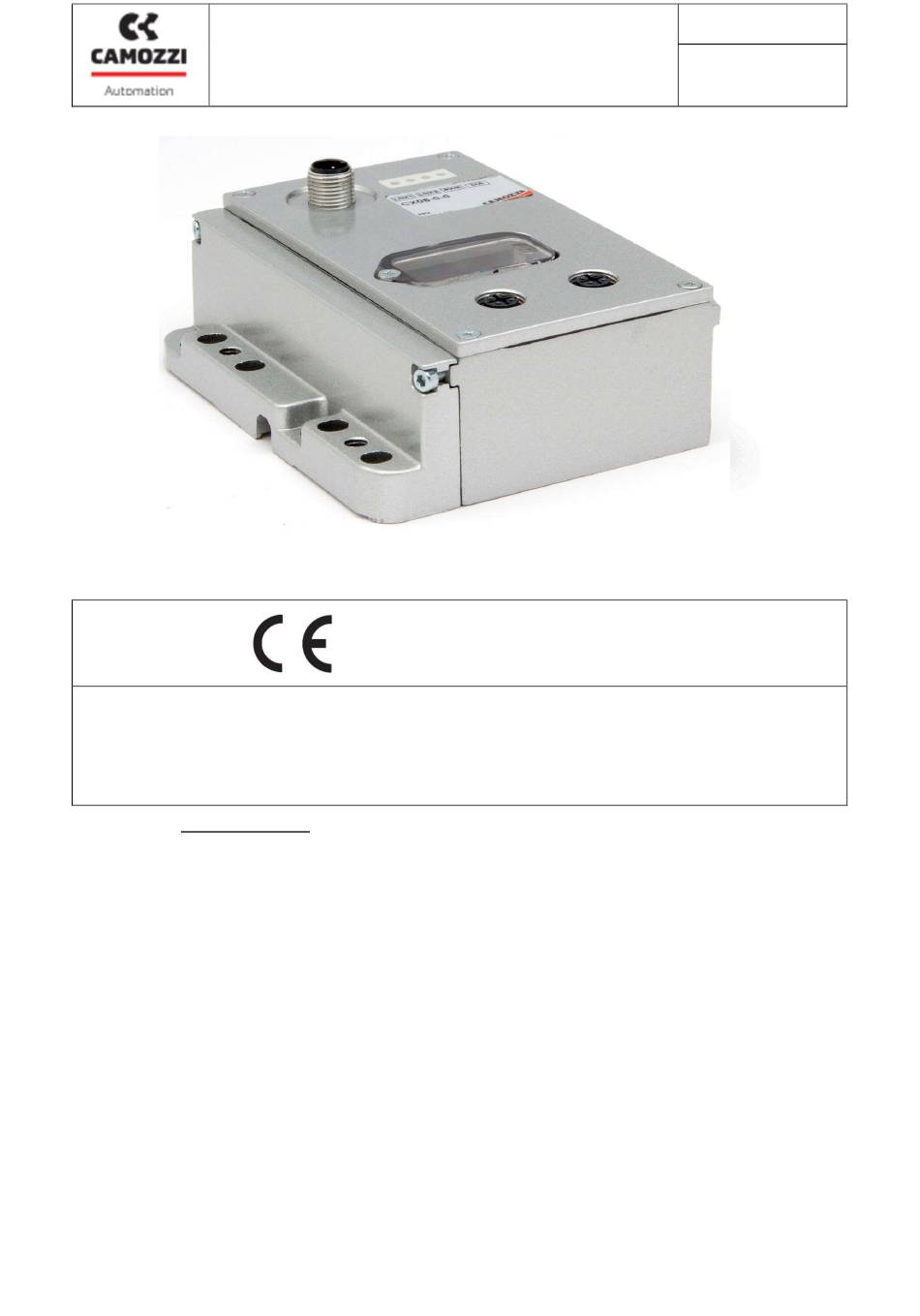

Operation and maintenance instructions CPU PROFINET Series CX06 fieldbus node
The products are designed and manufactured in conformity with the following directives:
-
2004/108/CE
They also comply partially or totally with regard to the applicable parts of the following standards:
-
CEI EN 61131-2
The website www.camozzi.it contains a section to download the relative CE Declarations of
Conformity
CPU PROFINET Series CX06 module
29
5000004825
Versione 01
Made in Italy

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CX06 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Camozzi CX06 Series

Summary of Contents for Camozzi CX06 Series

  • Page 1 The products are designed and manufactured in conformity with the following directives: 2004/108/CE They also comply partially or totally with regard to the applicable parts of the following standards: CEI EN 61131-2 The website www.camozzi.it contains a section to download the relative CE Declarations of Conformity...

  • Page 2: Product Identification

    5000004825 Operation and maintenance instructions CPU PROFINET Series CX06 module Versione 01 1. Product identification...

  • Page 3: General Recommendations

     For all situations not contemplated in this manual and in situations in which there is the risk of potential damage to objects, or injury to persons or animals, contact Camozzi for advice.  Never make unauthorized modifications to the product. In this case, any damage or injury to objects, persons or animals will be the responsibility of the user.
  • Page 4  The product may only be used in observance of the specifications provided; if these requirements are not met, the product may only be used on authorisation by Camozzi.  Avoid covering the equipment with paint or other substances that may reduce heat...
  • Page 5 5000004825 Operation and maintenance instructions CPU PROFINET Series CX06 module Versione 01 3. General characteristics and conditions of use General characteristics and conditions of use Assembly position Overall dimensions L = 122,6 mm; W = 90,7 mm; H = 48,9 mm Weight 425 gr approximately Ambient temperature...

  • Page 6: Electrical Circuit

    In addition a number of modules that allow you to remotely locate the modules above. For more details refer to the "Operation and maintenance - Bus System Internal Camozzi" manual.

  • Page 7: Installation And Start-Up

    5000004825 Operation and maintenance instructions CPU PROFINET Series CX06 module Versione 01 POWER LEDS BUS OUT BUS IN 7. Installation and start-up  During unpacking, take great care not to damage the product.  Check whether there are any fault caused by product transport or storage. ...
  • Page 8 5000004825 Operation and maintenance instructions CPU PROFINET Series CX06 module Versione 01  Envisage the installation of dehumidifiers to avoid the formation of humidity or condensation on internal components.  If the device is used to activate an actuator on which any accidental movement can generate a hazard, envisage suitable locking devices on the mobile section of the actuator.
  • Page 9 5000004825 Operation and maintenance instructions CPU PROFINET Series CX06 module Versione 01  This illustrates the pins of the M12 connector located on the upper section CPU module: POWER Connector M12A 5 poles male Signal Description 24Vdc power supply (logic, digital input, analog I/O): connect to the L24V positive pole of the 24Vdc power supply (ref.
  • Page 10 5000004825 Operation and maintenance instructions CPU PROFINET Series CX06 module Versione 01  Use only power able to ensure a reliable electrical isolation of the supply voltage according to IEC 742 / EN 60742 / VDE 0551 with a minimum strength of 4 kV isolation Protected Extra Low Voltage, PELV.
  • Page 11 5000004825 Operation and maintenance instructions CPU PROFINET Series CX06 module Versione 01 o Il = Logic currente + SPI input current o Ip = Power current (loads) o Rc1 + Rc2 = Cable resistance o Rc0 = Common cable resistance o L = Cable length In order to calculate the cable length use this formula: Where:...
  • Page 12  In order to configure the CX06 CPU module with a programmer/PC it is necessary to use the archive GSDML-V2.31-Camozzi-CX-20160111.xml. In addition to the slave characteristic data (ID Number, revision, etc.), the GSDML file contains the identifiers of the modules that are used for the hardware configuration of the PLC.
  • Page 13 5000004825 Operation and maintenance instructions CPU PROFINET Series CX06 module Versione 01 64 Byte In 64 Byte Out 128 Byte In 128 Byte Out  The CPU module CX06 is compatible with isochronous networks (IRT) Class 3. The management of I / O is not isochronous. ...
  • Page 14 5000004825 Operation and maintenance instructions CPU PROFINET Series CX06 module Versione 01...
  • Page 15 5000004825 Operation and maintenance instructions CPU PROFINET Series CX06 module Versione 01...
  • Page 16 5000004825 Operation and maintenance instructions CPU PROFINET Series CX06 module Versione 01...
  • Page 17 5000004825 Operation and maintenance instructions CPU PROFINET Series CX06 module Versione 01...
  • Page 18  When the procedure is completed, the slave node CX06 will be available with all its modules in the catalog of the HW configurator, on the folder: “Ulteriori apparecchiature da campo\ PROFINET IO\I/O\CAMOZZI SPA\Camozzi Spa\Serie CX\CX06 PNS Adapter.  The slave node CX06 can be dragged around the window that displays the network.
  • Page 19 (correspondence between bits and input / physical output) are contained in the manual "Operating and Maintenance Instructions - Bus System Internal Camozzi". Furthermore the CX-Configurator software calculates automatically the size of the data used by the CX06 node and by the modules connected to it.
  • Page 20 5000004825 Operation and maintenance instructions CPU PROFINET Series CX06 module Versione 01 By default in the CPU module there isn’t any name so it’s necessary set its to start the communication. Is possible to change the node name within the TIA Portal Configurator using the following procedure.
  • Page 21 5000004825 Operation and maintenance instructions CPU PROFINET Series CX06 module Versione 01...
  • Page 22 5000004825 Operation and maintenance instructions CPU PROFINET Series CX06 module Versione 01...
  • Page 23 5000004825 Operation and maintenance instructions CPU PROFINET Series CX06 module Versione 01 You can also change the name of the node within the CX-Configurator configuration software. For more details on using the configurator and in particular of this feature, refer to the manual "Operating and Maintenance Instructions - CX Configurator".
  • Page 24  The product may only be used in observance of the specifications provided; if these requirements are not met, the product may only be used on authorization by Camozzi.  Observe the specifications on the identification data plate.

  • Page 25: Maintenance

     Always wear the correct personal protective equipment as envisaged by local authorities and in compliance with current legislation.  In the event of maintenance, replacement of worn parts, use exclusively the original Camozzi kits and ensure that operations are only performed by specialized and authorized personnel.

  • Page 26: Environmental Notes

    5000004825 Operation and maintenance instructions CPU PROFINET Series CX06 module Versione 01 12. Environmental notes  At the end of the product's life cycle, separate the relative materials to enable recycling.  Observe all current standards in the country of use governing waste disposal. ...

  • Page 27: Product Certification

    5000004825 Operation and maintenance instructions CPU PROFINET Series CX06 module Versione 01 13. Contacts Camozzi spa Società Unipersonale Via Eritrea, 20/I 25126 Brescia - Italy Tel. +39 030 37921 Fax +39 030 2400464 info@camozzi.com www.camozzi.com Product Certification National and International Directives, Regulations and Standards productcertification@camozzi.com...
