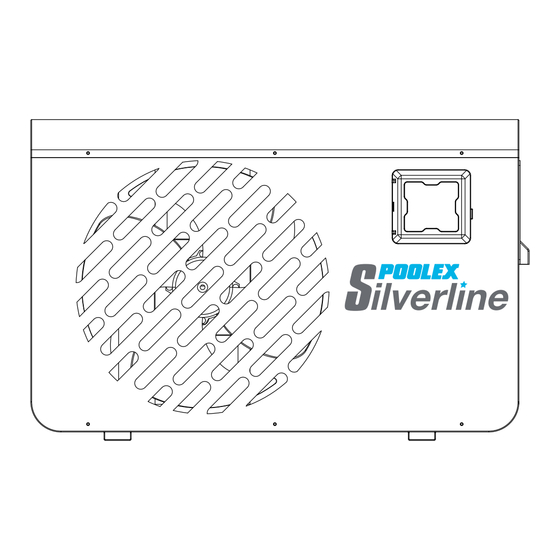

  • Page 1 INSTALLATION USER MANUAL your heat pump MINI / 55 / 70 / 90 / 120 / 150 / 180 / 220 Models:...
  • Page 3 These are the result of many years of research in the field of design and production of heat pumps for swimming pools. Our aim is to provide you with an exceptional high performance quality product. We have produced this manual with the utmost care so that you get maximum benefit from your Poolex heat pump.
  • Page 4 They must be given to the installer and retained by the user. If the manual is lost, please consult the website: www.poolex.fr The instructions and recommendations contained in this manual should be read carefully and understood since they provide valuable information concerning the heat pump’s safe handling and operation. Keep this manual in an accessible place for easy future reference.
  • Page 5: Table Of Contents

    Contents 1. General ......................................6 General Terms of Delivery ................................. 6 Safety instructions..................................6 Water treatment ..................................7 2. Description ...................................... 8 Package contents ..................................8 General characteristics ................................8 Technical specifications ................................9 Unit dimensions ..................................10 Exploded view ....................................11 3.
  • Page 6: General

    1. General General Terms of Delivery All equipment, even if shipped ‘free of carriage and packing’, is dispatched at the consignee’s own risk The person responsible for receiving the equipment must carry out a visual inspection to identify any dam- age to the heat pump during transport (refrigerant system, body panels, electrical control box, frame).
  • Page 7: Water Treatment

    The low and high side test pressure must not exceed 42 bar. Water treatment Poolex heat pumps for swimming pools can be used with all types of water treatment systems. Nevertheless, it is essential that the treatment system (chlorine, pH, bromine and/or salt chlorinator meter- ing pumps) is installed after the heat pump in the hydraulic circuit.
  • Page 8: Description

    2. Description Package contents Heat pump Poolex Silverline 2 hydraulic inlet/outlet connectors 50mm diameter (Silverline MINI : 32/38mm) Extension cable for remote control panel (except Silverline MINI) This installation and user manual Condensation draining kit Winter storage cover 4 anti-vibration pads (fastenings not supplied)
  • Page 9: Technical Specifications

    2. Description 2.3 Technical specifications Silverline MINI Test conditions Heating power (W) 4210 5560 7010 9260 12320 14910 18000 22520 26°C Consumption (W) 1160 1470 1950 2360 2820 3730 Water 26°C COP (Coeff. of performance) 6,18 6,28 6,03 6,27 6,31 6,38 6.03 Heating power (W)
  • Page 10: Unit Dimensions

    2. Description 2.4 Unit dimensions dimensions in mm Silverline MINI / 55 Silverline 70 Silverline 90 / 120 / 150 / 180 Silverline 220 1067 101.5...
  • Page 11: Exploded View

    2. Description 2.5 Exploded view 1. Front panel 10. Right side panel 2. Fan blade 11. Couvercle du boîtier électrique 3. Fan motor 12. Service valve 4. Left side panel 13. Low pressure sensor 5. Evaporator 14. High pressure sensor 6.
  • Page 12: Installation

    3. Installation WARNING: Installation must be carried out by a qualified engineer. This section is provided for information purposes only and must be checked and adapted if necessary according to the actual installation conditions. Pre-requirements Equipment necessary for the installation of your heat pump: Power supply cable suitable for the unit’s power requirements.
  • Page 13: Installation Layout

    3. Installation 3.3 Installation layout Heat pump Automated treatment system 4-way valve (salt chlorinator, metering pump) Valve 1 Valve 5 Valve 3 Valve 2 Water outlet Water intake Elevating studs Valve 4 Drain Condensation Circulating Filtration plug draining pump FROM THE POOL TOWARDS THE POOL Valves 1, 2 and 3: Bypass valves Valves 4 and 5: Regulating valves...
  • Page 14: Hydraulic Connection

    3. Installation WARNING: Installation must be carried out by a qualified engineer. This section is provided for information purposes only and must be checked and adapted if necessary according to the actual installation conditions. Hydraulic connection By-Pass assembly Open valve The heat pump must be connected to the pool by Half-open valve means of a By-Pass assembly.
  • Page 15 3. Installation By-Pass assembly for one heat pump TOWARDS THE POOL Automated treatment system POOL Filtration + Pump FROM THE POOL Half-open valve Open valve By-Pass assembly for more than one heat pump TOWARDS THE POOL Automated treatment system POOL Filtration + Pump FROM THE POOL Half-open valve...
  • Page 16: Electrical Installation

    In places open to the public, it is mandatory to install an emergency stop button close to the heat pump. Protection Cable diameter Models Electricity supply Max. current Thermal-magnetic (D curve) protection Silverline Mini RO2V 3x2.5 mm² Silverline 55 RO2V 3x2.5 mm² Silverline 70 RO2V 3x2.5 mm² Silverline 90 11.5 RO2V 3x2.5 mm²...
  • Page 17: Electrical Connection

    3. Installation Electrical connection WARNING: The heat pump’s power supply MUST be disconnected before any operation. Please comply with the following instructions to electrically connect the heat pump. Step 1: Detach the electrical side panel with a screwdriver to access the electrical terminal block. Step 2: Insert the cable into the heat pump unit by passing it through the opening provided for that purpose.
  • Page 18: Wall-Mounting The Remote Control

    3. Installation 3.9 Wall–mounting the remote control Step 1: Detach the remote control from the machine. Pay attention to the communication wire connected to the printed circuit board and separate them carefully. Step 2: Use a screwdriver to open the casing and separate the remote control. Step 3: Drill two parallel holes at eye level: 60 mm centre-to-centre.
  • Page 19: Use

    4. Use Wired remote control Operating mode Water temperature Outside temperature Clock Button: Clock Button: On/Off and Timers Button: Operating mode 4.2 Operating mode selector Before starting, ensure that the filtration pump is working and that water is circulating through the heat pump.
  • Page 20: Heating Mode

    4. Use Heating Mode WARNING: Before starting, ensure that the filtration pump is operating correctly. Step 1: Press to switch on your pump. Step 2: Press to switch from one mode to another until the heating mode is displayed. Step 3: Using buttons select the required temperature (15-40°C).
  • Page 21: Setting The Clock

    4. Use 4.4 Setting the clock Set the system clock to local time, as follows: Step 1: Press to set the time, the symbol is blinking. Step 2: Press to select the hour. Step 3: Adjust the hours with the buttons Step 4: Press to switch to minutes.
  • Page 22: Programming Start/Stop

    4. Use Programming Start/Stop This function is for programming the Start/Stop timing. You can programme up to 3 different Start/Stop timings. Setting is as follows: Step 1: Select the programme to be configured, NB: The remote control - Press twice to select programme 1.
  • Page 23: Activating A Programme

    4. Use 4.6 Activating a programme Once the programme has been defined, it can be activated as follows: Step 1: Select the programme to be activated, - Press twice to select programme 1. - Press 3 times to select programme 2. - Press 4 times to select programme 3.
  • Page 24: Status Values And Advanced Settings

    4. Use 4.8 Status values and advanced settings WARNING: This operation is used to assist servicing and future repairs. The default settings should only be modified by an experienced professional person. The system’s settings can be checked and adjusted via the remote control by following these steps Step 1: Keep pressing until you enter the settings verification mode.
  • Page 25 4. Use Parameters table Factory N° Description Adjustment range Remarks setting 0 = Off Automatic restart Adjustable 1 = On 0 = start only START/STOP times programming Adjustable 1 = daily Adjustment of temperature difference for restart Adjustable from 2 to 10°C 3°C Adjustable Adjustment of compressor shutdown margin...
  • Page 26: Operation

    5. Operation Operation Conditions of use For the heat pump to operate normally, the ambient air temperature must be between 7°C and 43°C. Recommendations prior to start-up Before activating the heat pump, please: Check that the unit is firmly secured and stable. Check that the gauge indicates a pressure greater than 80 psi.
  • Page 27: Servo-Control Of Circulating Pump

    5. Operation Servo-control of circulating pump If you have connected a circulating pump to terminals P and P , it is automatically electrically powered when the heat pump operates. When the heat pump is on standby, the circulating pump is powered intermittently in order to monitor the water temperature in the pool.
  • Page 28: Antifreeze Protection

    5. Operation Antifreeze protection WARNING: For the antifreeze system to work, the heat pump must be powered and the circulating pump activated. If the circulating pump is servo-controlled by the heat pump, it will be automatically activated. When the heat pump is on standby, the system monitors the ambient temperature and the water tempera- ture in order to activate the antifreeze programme if required.
  • Page 29: Maintenance And Servicing

    6. Maintenance and servicing Maintenance and servicing WARNING: Before undertaking maintenance work on the unit, ensure that you have disconnected the electrical power supply. Cleaning The heat pump’s casing must be cleaned with a damp cloth. The use of detergents or other household products could damage the surface of the casing and affect its properties.
  • Page 30: Repairs

    7. Repairs WARNING: Under normal conditions, a suitable heat pump can heat the water in a swimming pool by 1°C to 2°C per day. It is therefore quite normal to not feel any temperature difference in the system when the heat pump is working. A heated pool must be covered to avoid any loss of heat.
  • Page 31: List Of Faults

    7. Repairs List of faults Code Fault Possible causes Action 1) Sensor badly connected 1) Reconnect sensor Water intake temperature sensor malfunction 2) Sensor defective 2) Replace sensor 3) PCB defective 3) Replace PCB Water outlet temperature sensor malfunction De-icing temperature sensor malfunction Same causes as P3 Same actions as P3 External temperature sensor malfunction...
  • Page 32: Recycling

    8. Recycling Recycling the heat pump Your heat pump has reached the end of its life and you wish to dispose of it or to replace it. Do not throw it in the rubbish bin. A heat pump must be disposed of separately with a view to its reuse, recycling or upgrading. It contains substances that are potentially hazardous to the environment but which will be eliminated or neutralised by recycling.
  • Page 33: Warranty

    The Poolstar Company guarantees the original owner against defective materials and faults in the manufac- ture of the Poolex Silverline heat pump for a period of two (2) years. The compressor is guaranteed for a period of five (5) years.
  • Page 34: Appendices

    10. Appendices 10.1 Wiring diagrams Poolex Silverline MINI / 55 / 70 / 90...
  • Page 35 10. Appendices Poolex Silverline 120 / 150 / 180 Poolex Silverline 220...
  • Page 36 R410 TOUCH & GO OZONE FRIENDLY SILENT EFFICIENCY TE C H N I C AL S UP P OR T www.poolex.fr Poolex is a Poolstar Group trademark www.poolstar.fr...
