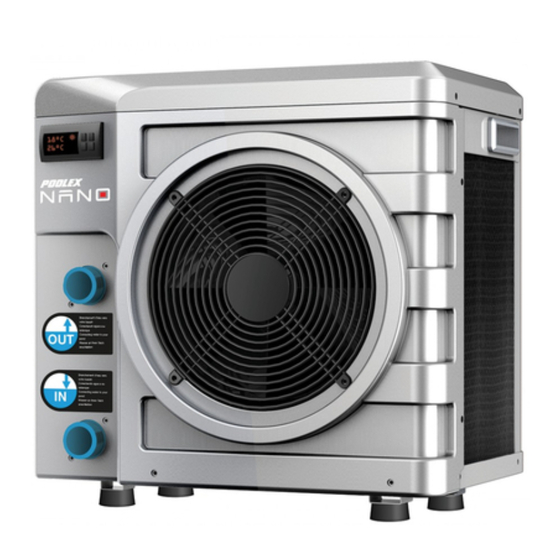

- Page 1 Easy start MANUAL for your heat pump Model Poolex Nano...
- Page 2 Our aim is to provide you with an exceptional high performance quality product. We have produced this manual with the utmost care so that you get maximum benefit from your Poolex heat pump. Please read carefully These installation instructions are an integral part of the product.
- Page 3 Package contents When opening the package, please check that all elements are present with your heat pump : Heat pump Poolex Nano 2 hydraulic inlet/outlet connectors 32/38mm diameter This installation and user manual Electrical socket with 10 mA differential protection...
- Page 4 Value have to be between 100 - 300 psi. If the value is Zero, stop the installation and contact your dealer. Hydrolic connection Poolex Nano can be connected with direct connection. For an above ground pool, your Nano must be connected after your filtration pump.
- Page 5 sTeP 1 : Screw the connectors to the heat pump sTeP 2 : Connect the water outlet pipe and the water intake pipe ToWARds THe PooL FRoM THe PooL WARNING : Your filtration pump must deliver between 1300 up to 4000 L/h for the heat pump to operate.
- Page 6 electrical connection Your heat pomp is equipped with a differential protection. It is obligatory to check its operation beafore each use. The heat pump should not be used if the differential protection test fails. Connect socket to the electrical outlet Push the button “Reset”.
- Page 7 commissioning Once connected electrically and hydraulically, you can switch on the heat pump by pressing Select the desired temperature with . It will be validated automatically after a few seconds and the screen will return to the initial display. Current temperature Current temperature Requested temperature commissioning...
- Page 8 Te c h n i c al S up p or T www.poolex.fr Poolex is a Poolstar Group trademark www.poolstar.fr...
