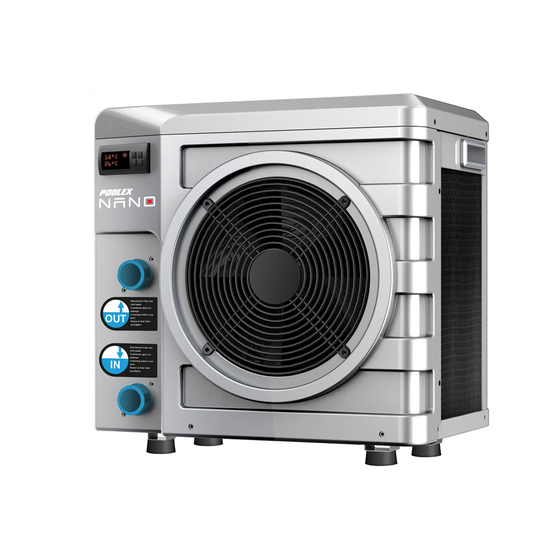

- Page 1 INSTALLATION USER MANUAL for your heat pump Model Poolex Nano...
- Page 3 These are the result of many years of research in the field of design and production of heat pumps for swimming pools. Our aim is to provide you with an exceptional high performance quality product. We have produced this manual with the utmost care so that you get maximum benefit from your Poolex heat pump.
- Page 4 They must be given to the installer and retained by the user. If the manual is lost, please consult the website: www.poolex.fr The instructions and recommendations contained in this manual should be read carefully and understood since they provide valuable information concerning the heat pump’s safe handling and operation. Keep this manual in an accessible place for easy future reference.
-
Page 5: Table Of Contents
Contents 1. General ......................................6 General Terms of Delivery ................................6 Safety instructions ..................................6 Water treatment ..................................7 2. Description ..................................... 8 Package contents ..................................8 General characteristics ................................8 Technical specifications ................................9 Unit dimensions ..................................10 Exploded view ...................................11 3. -
Page 6: General
1. General General Terms of Delivery All equipment, even if shipped ‘free of carriage and packing’, is dispatched at the consignee’s own risk. The person responsible for receiving the equipment must carry out a visual inspection to identify any dam- age to the heat pump during transport (refrigerant system, body panels, electrical control box, frame). -
Page 7: Water Treatment
The low and high side test pressure must not exceed 42 bar. Water treatment Poolex heat pumps for swimming pools can be used with all types of water treatment systems. Nevertheless, it is essential that the treatment system (chlorine, pH, bromine and/or salt chlorinator meter- ing pumps) is installed after the heat pump in the hydraulic circuit. -
Page 8: Description
4 anti-vibration pads ✔ General characteristics A Poolex heat pump has the following features: CE certification and complies with the RoHS European directive. High performance with up to 80% energy savings compared to a conventional heating system. Clean, efficient and environmentally friendly R410A refrigerant. -
Page 9: Technical Specifications
2. Description 2.3 Technical specifications Nano Heating power (W) 2800 26°C Consumption (W) Water 26°C COP (Coeff. of performance) Heating power (W) 2200 15°C Consumption (W) Water 26°C COP (Coeff. of performance) Electricity supply 220-240V single-phase ~ 50Hz Maximum power (W) Maximum current (A) 3.62... -
Page 10: Unit Dimensions
2. Description 2.4 Unit dimensions 比例 1.000 Dimensions in mm Nano... -
Page 11: Exploded View
2. Description 2.5 Exploded view 1. Base plate 9. Left side panel 2. Compressor 10. Heat exchanger 3. Evaporator 11. Fan and motor 4. Top panel 12. Fan support 5. Throttling parts 13. Control panel cover 6. Electrical control box 14. -
Page 12: Installation
3. Installation The heat pump is very easy to install, only water and power need to be connected during installation. Location The heat pump should be located at least 2.5 meter away from the swimming pool. Pool >2.5m Please comply with the following rules concerning the choice of heat pump location. 1. -
Page 13: Installation Layout
3. Installation 3.2 Installation layout TOWARDS THE POOL Automated treatment system POOL Filtration + Pump FROM THE POOL The filter located upstream of the heat pump must be regularly cleared so that the water in the system is clean, thus avoiding the operational problems associated with dirt or clog- ging in the filter. -
Page 14: Hydraulic Connection
3. Installation Hydraulic connection Step 1 : Screw the connectors to the heat pump Step 2 : Connect the water outlet pipe and the water intake pipe TOWARDS THE POOL FROM THE POOL... -
Page 15: Electrical Connection
3. Installation Electrical connection The heat pump electrical plug integrates a 10mA differential circuit breaker. Before connecting your heat pump, please ensure that the plug is connected to the ground. The filter pump should function at the same time as the heat pump. Therefore, you need to connect them to the same electrical circuit. -
Page 16: Use
4. Use Control panel 1. ON/OFF 2. Heating 3. Malfunction 4. Defrost 5. Fan 6. Water pump 7. Compressor 8. Setting 9. + 10. -... -
Page 17: Heating Mode
4. Use Heating Mode WARNING: Before starting, ensure that the filtration pump is operating correctly. Step 1 : Press to switch on your pump. Step 2 : Using buttons select the required temperature. EXAMPLE: If the current temperature is 15°C, default setting temperature is 27° required temperature is 30°C. Current water Required temperature... -
Page 18: Status Values And Advanced Settings
4. Use Status values and advanced settings WARNING: This operation is used to assist servicing and future repairs. The default settings should only be modified by an experienced professional person. The system’s settings can be checked and adjusted via the remote control by following these steps Step 1 : Keep pressing until you enter the settings verification mode. - Page 19 4. Use Parameters table Factory N° Description Adjustment range Remarks setting Reserved - Do not adjust 8~37°C 12°C Reserved Default temperature 15~40°C 27°C Adjustable Defrost auto-activation time 10~90 min 40 min Adjustable Defrost activation temperature -30~0°C 0°C Adjustable Defrost deactivation temperature 1~30°C 2°C Adjustable...
-
Page 20: Operation
5. Operation Operation Conditions of use For the heat pump to operate normally, the ambient air temperature must be between 7°C and 43°C. Recommendations prior to start-up Before activating the heat pump, please: Check that the unit is stable. ✔ Check that the gauge indicates a pressure greater than 80 psi. -
Page 21: Using The Pressure Gauge
5. Operation Using the pressure gauge The gauge is for monitoring the pressure of the refrigerant contained in the heat pump. The values it indicates can vary considerably, depending on the climate, temperature and atmospheric pressure. When the heat pump is in operation: The gauge needle indicates the refrigerant pressure. -
Page 22: Maintenance And Servicing
6. Maintenance and servicing Maintenance, servicing and winter storage WARNING: Before undertaking maintenance work on the unit, ensure that you have disconnected the electrical power supply. Cleaning The heat pump’s casing must be cleaned with a damp cloth. The use of detergents or other household products could damage the surface of the casing and affect its properties. -
Page 23: Repairs
7. Repairs WARNING: Under normal conditions, a suitable heat pump can heat the water in a swimming pool by 1°C to 2°C per day. It is therefore quite normal to not feel any temperature difference in the system when the heat pump is working. A heated pool must be covered to avoid any loss of heat. -
Page 24: Recycling
8. Recycling Recycling the heat pump Your heat pump has reached the end of its life and you wish to dispose of it or to replace it. Do not throw it in the rubbish bin. A heat pump must be disposed of separately with a view to its reuse, recycling or upgrading. It contains substances that are potentially hazardous to the environment but which will be eliminated or neutralized by recycling. -
Page 25: Warranty
The Poolstar Company guarantees the original owner against defective materials and faults in the manufac- ture of the Poolex Nano heat pump for a period of two (2) years. The compressor is guaranteed for a period of five (5) years. -
Page 26: Appendices
10. Appendices 10.1 Wiring diagrams... - Page 28 TE C H N I C AL S UP P OR T www.poolex.fr Poolex is a Poolstar Group trademark www.poolstar.fr...
